Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Ignition Switch >> Testing and Inspection >> Pinpoint Tests >> Test A: The Ignition Switch Is Inoperative

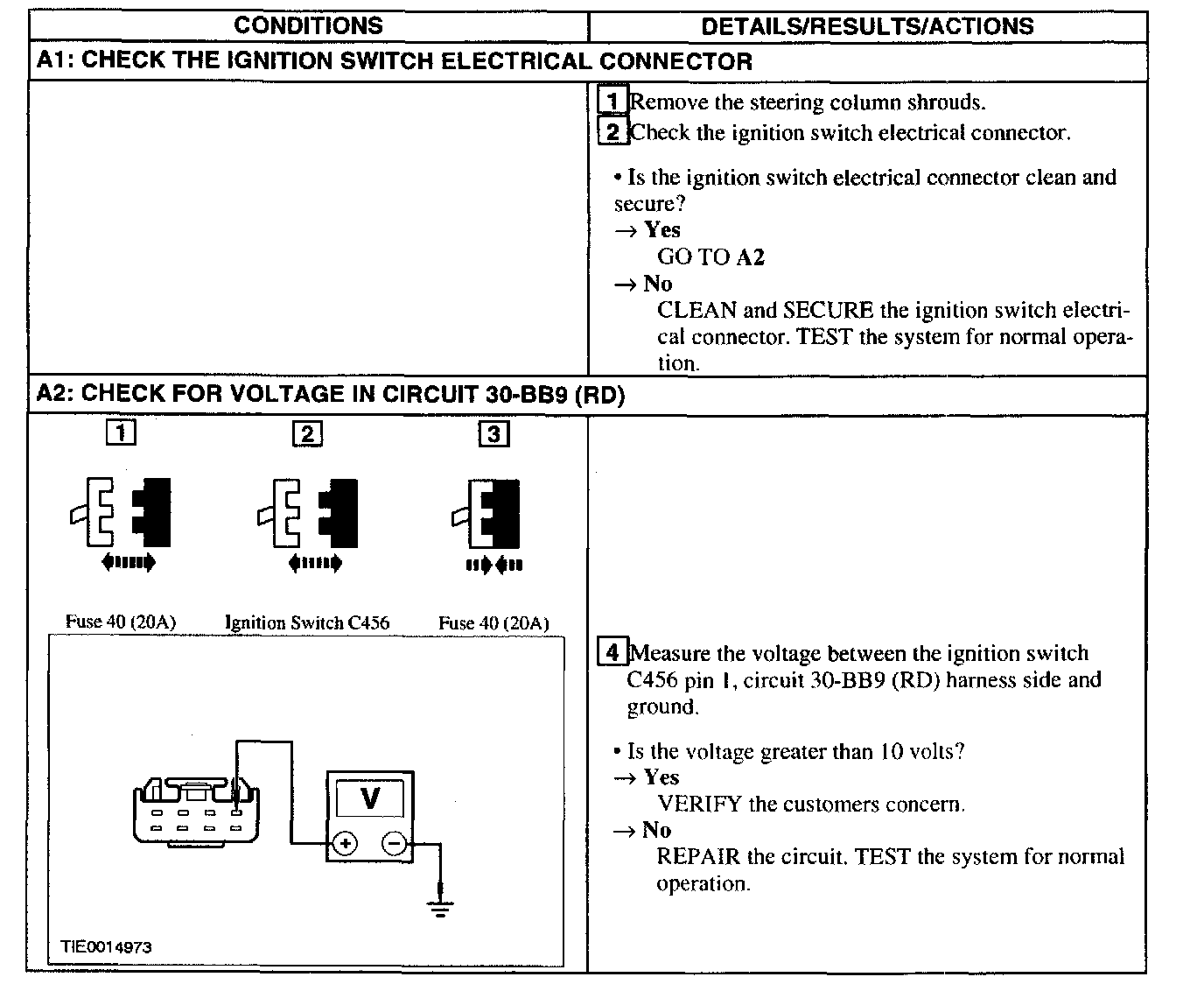

Test A: The Ignition Switch Is Inoperative
