Air Conditioning Switch: Service and Repair

Air Distribution Control Switch

REMOVAL

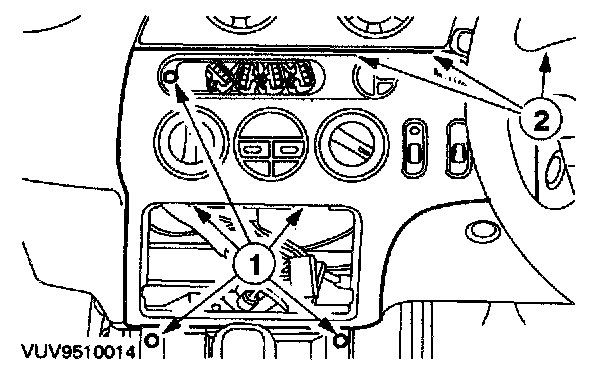

1. Remove the audio unit.
2. Remove the floor console.







3. Remove the switch assembly.

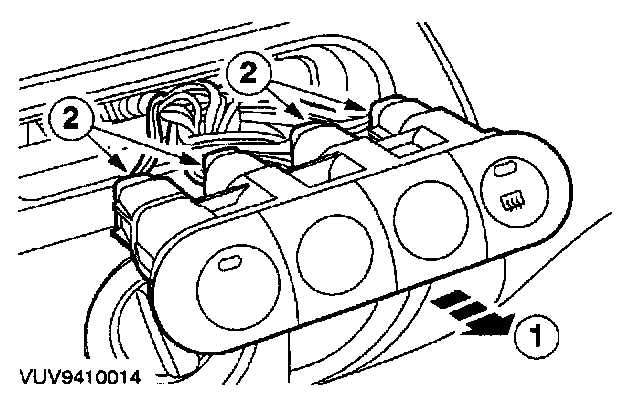

1. Detach the switch assembly.
2. Disconnect the electrical connectors.







4. Detach the heater control/audio unit bezel.

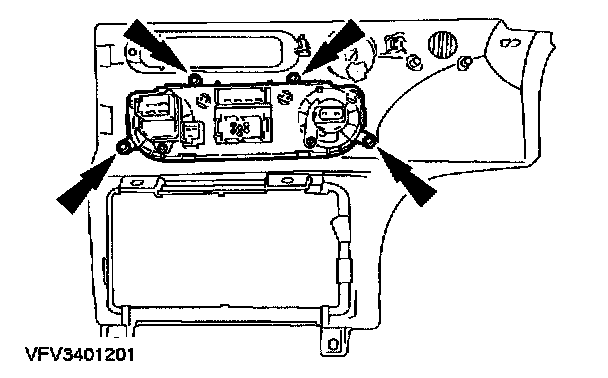

1. Remove the screws.
2. Detach the panel from the clips.







5. Remove the heater control/audio unit bezel.
- Disconnect the electrical connectors.
- Disconnect the vacuum lines.







6. Remove the heater control panel.
7. Remove the air distribution control switch.

INSTALLATION
1. To install, reverse the removal procedure.
