Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> Test I: Air Bag Passenger Circuit Short to Ground

Test I: Air Bag Passenger Circuit Short to Ground

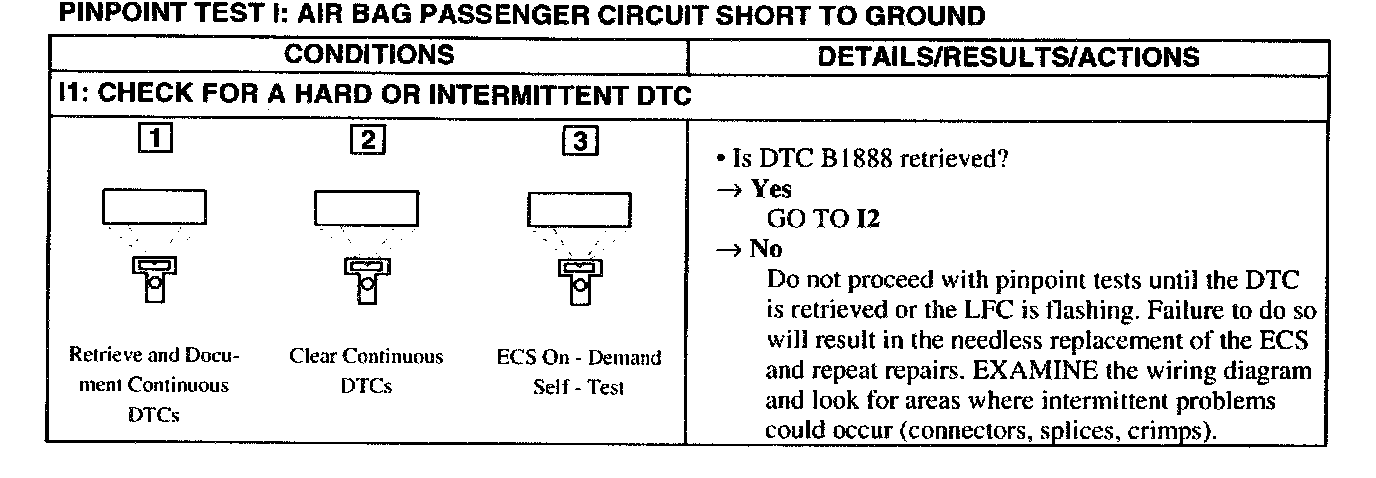

I1:

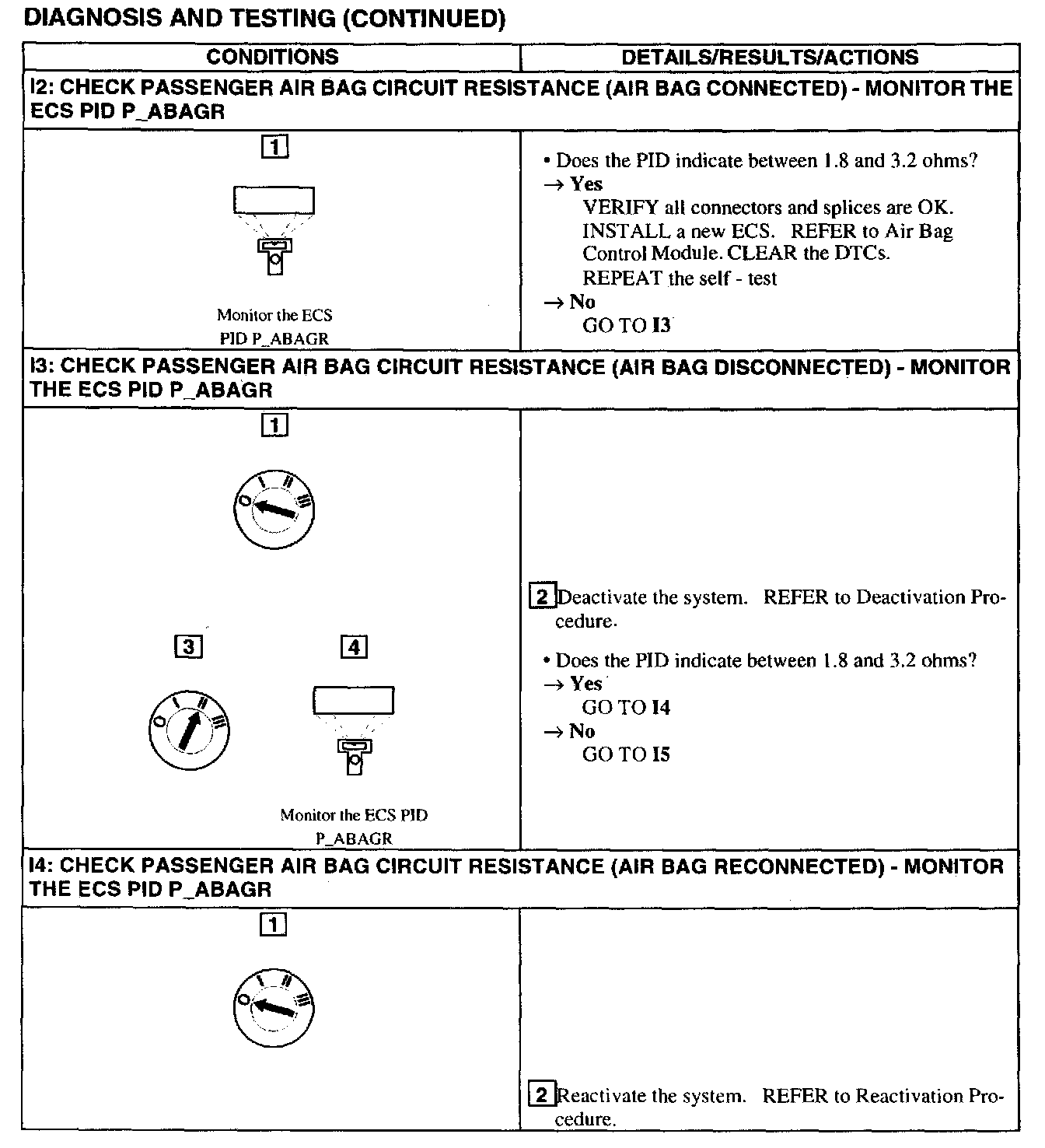

I2 - I4:

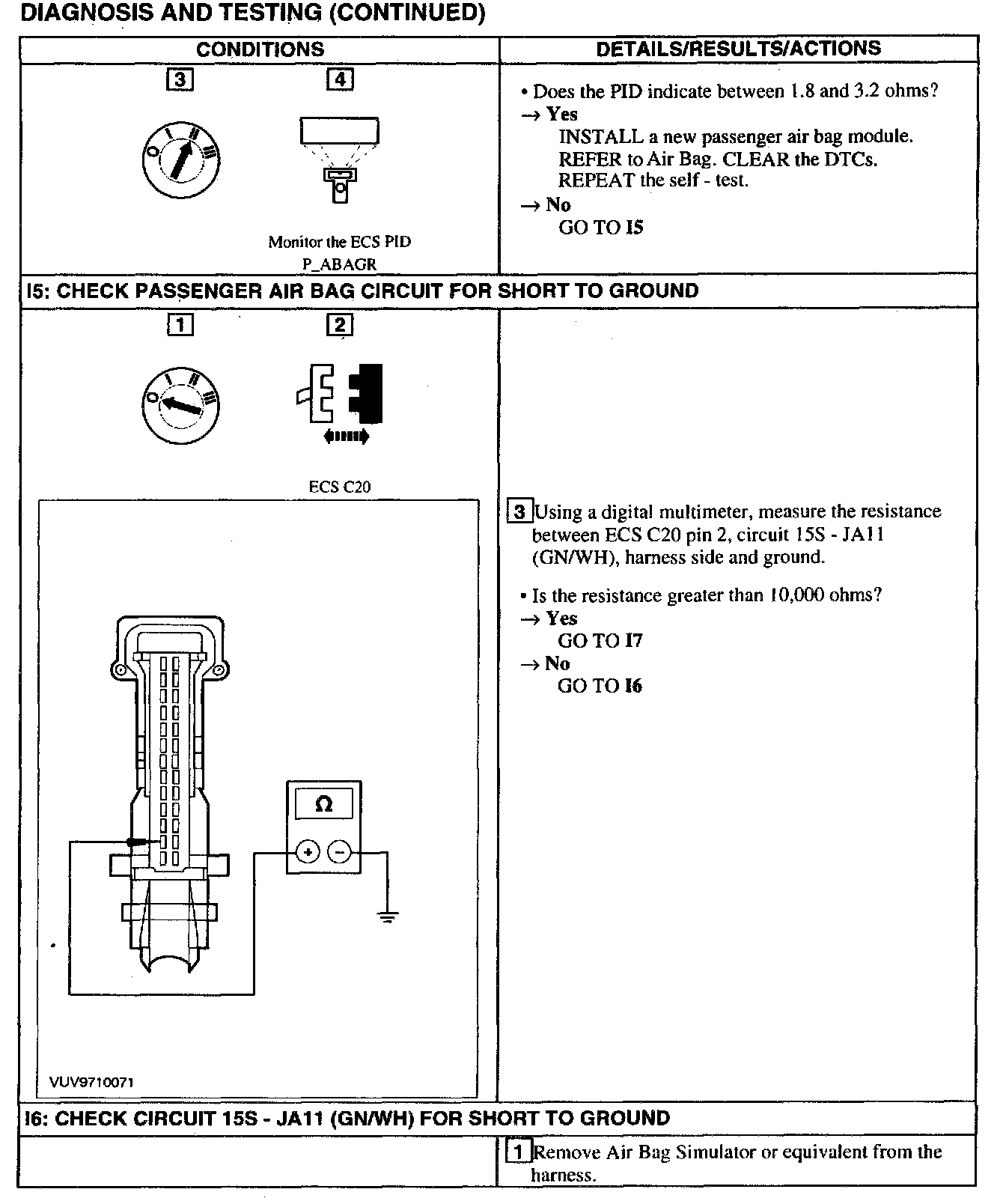

I4 - I6:

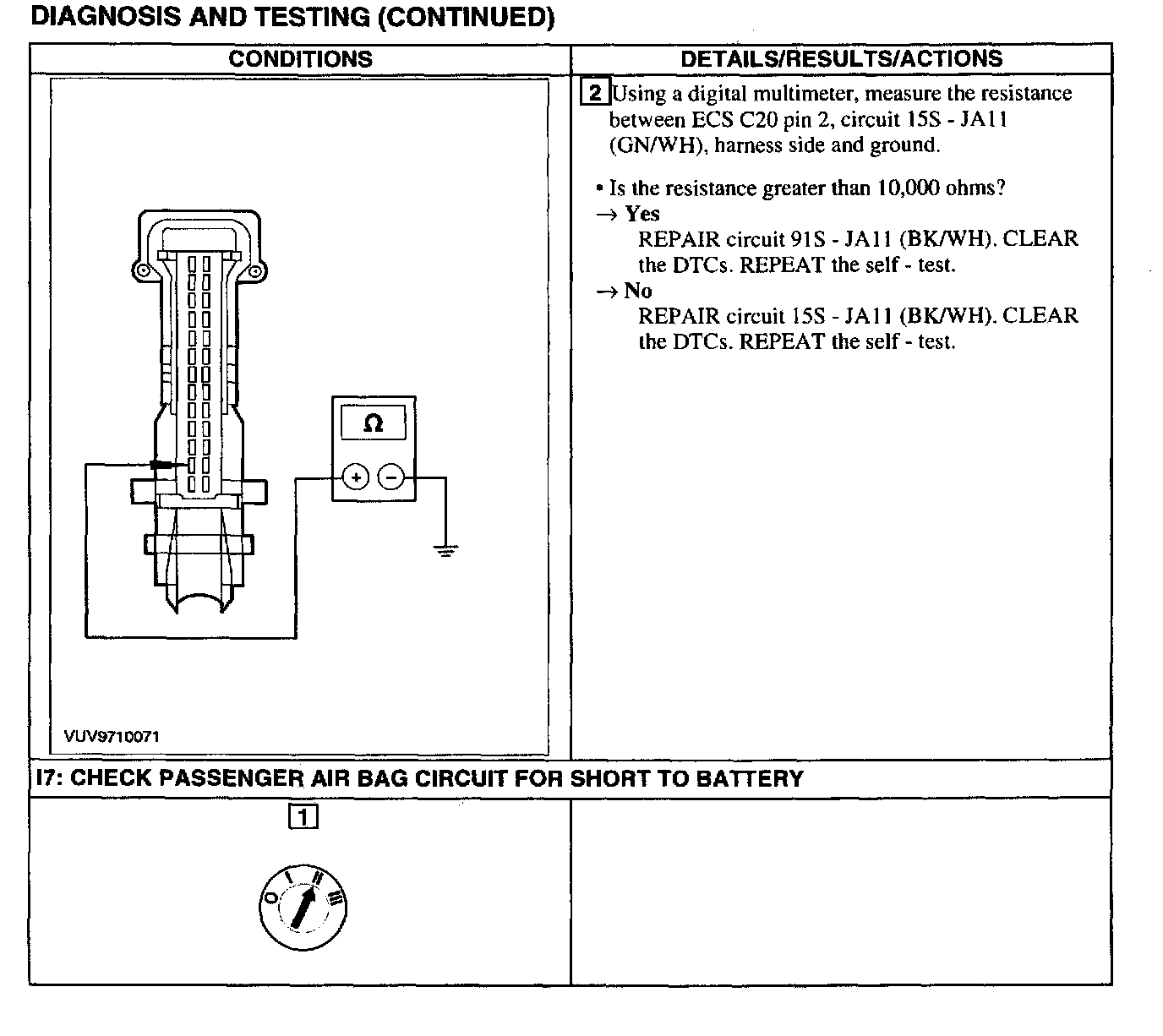

I6 - I7:

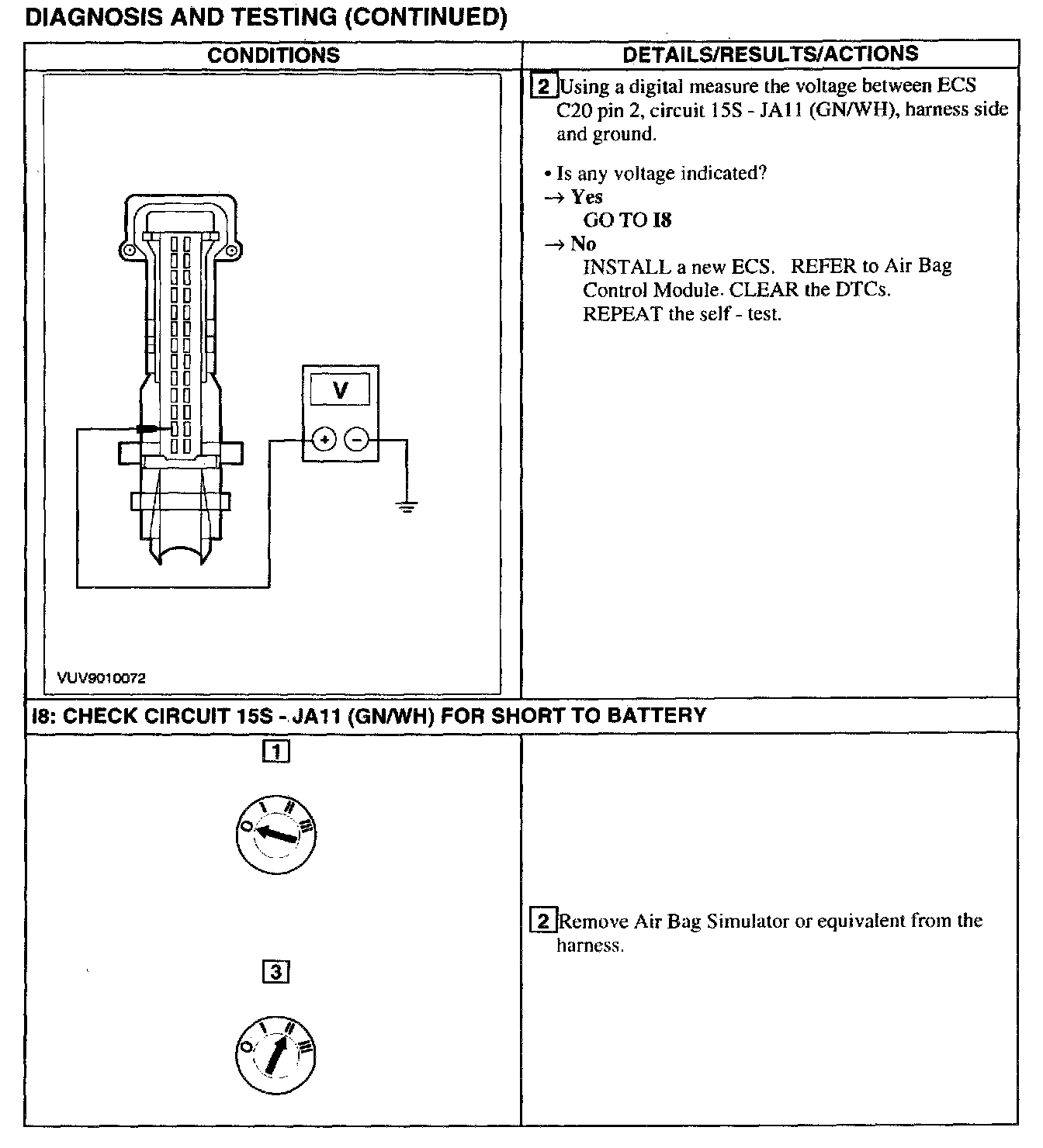

I7 - I8:






I8:
