Test H: Air Bag Driver Circuit Short to Ground
Test H: Air Bag Driver Circuit Short to Ground

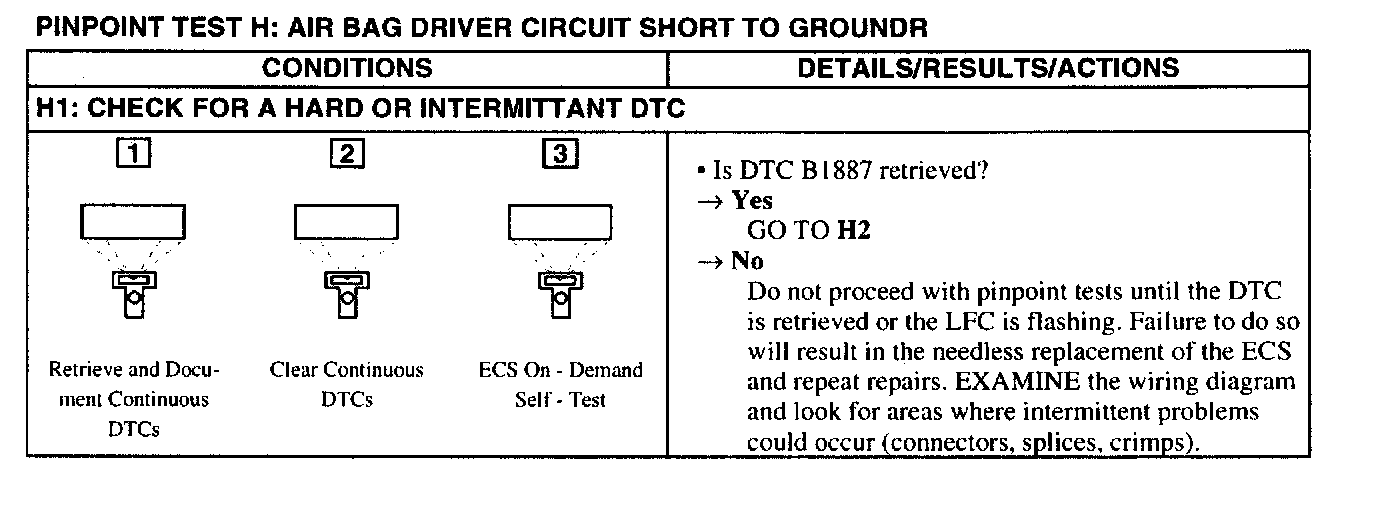

H1:

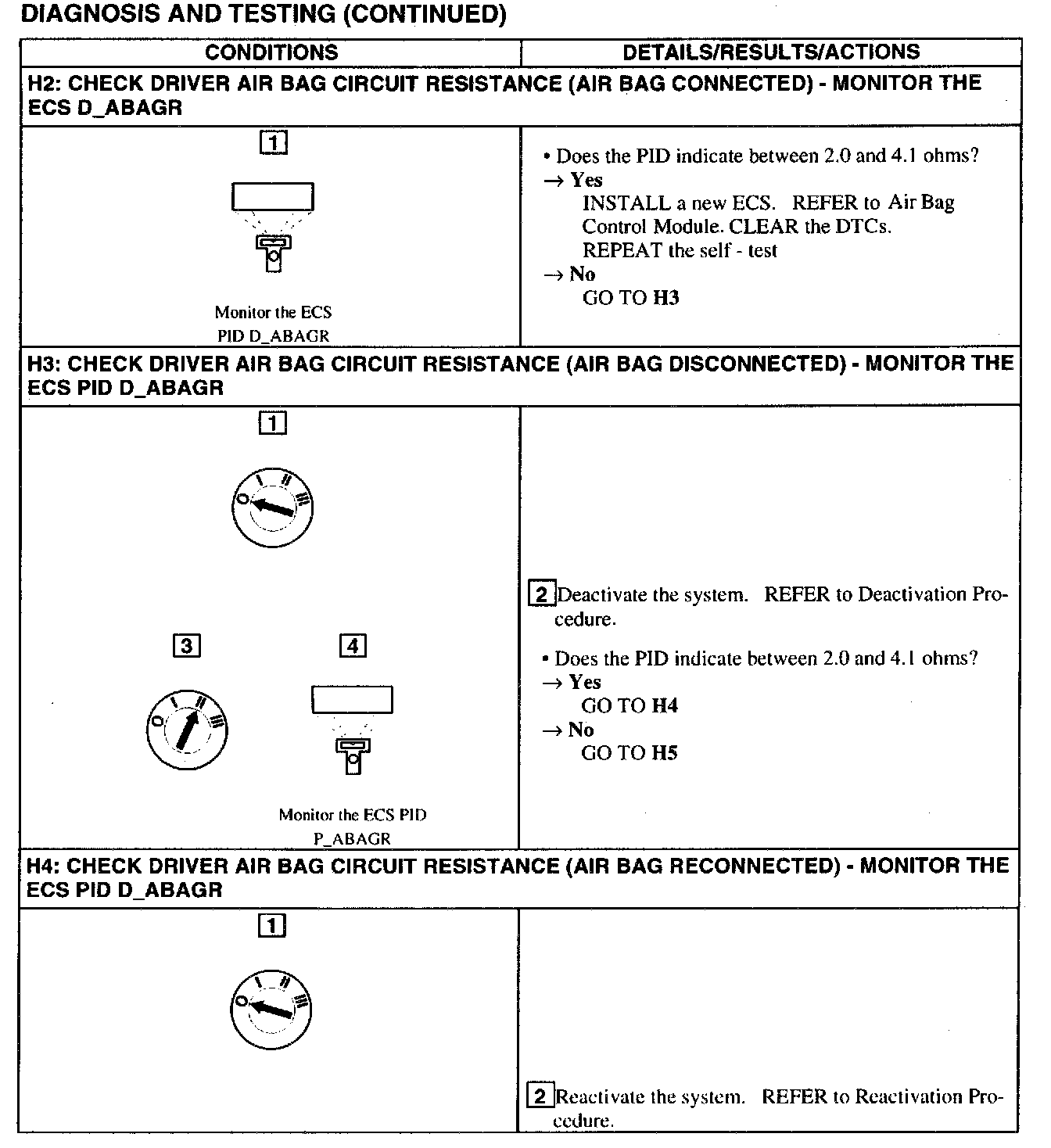

H2 - H4:
H4 - H5:

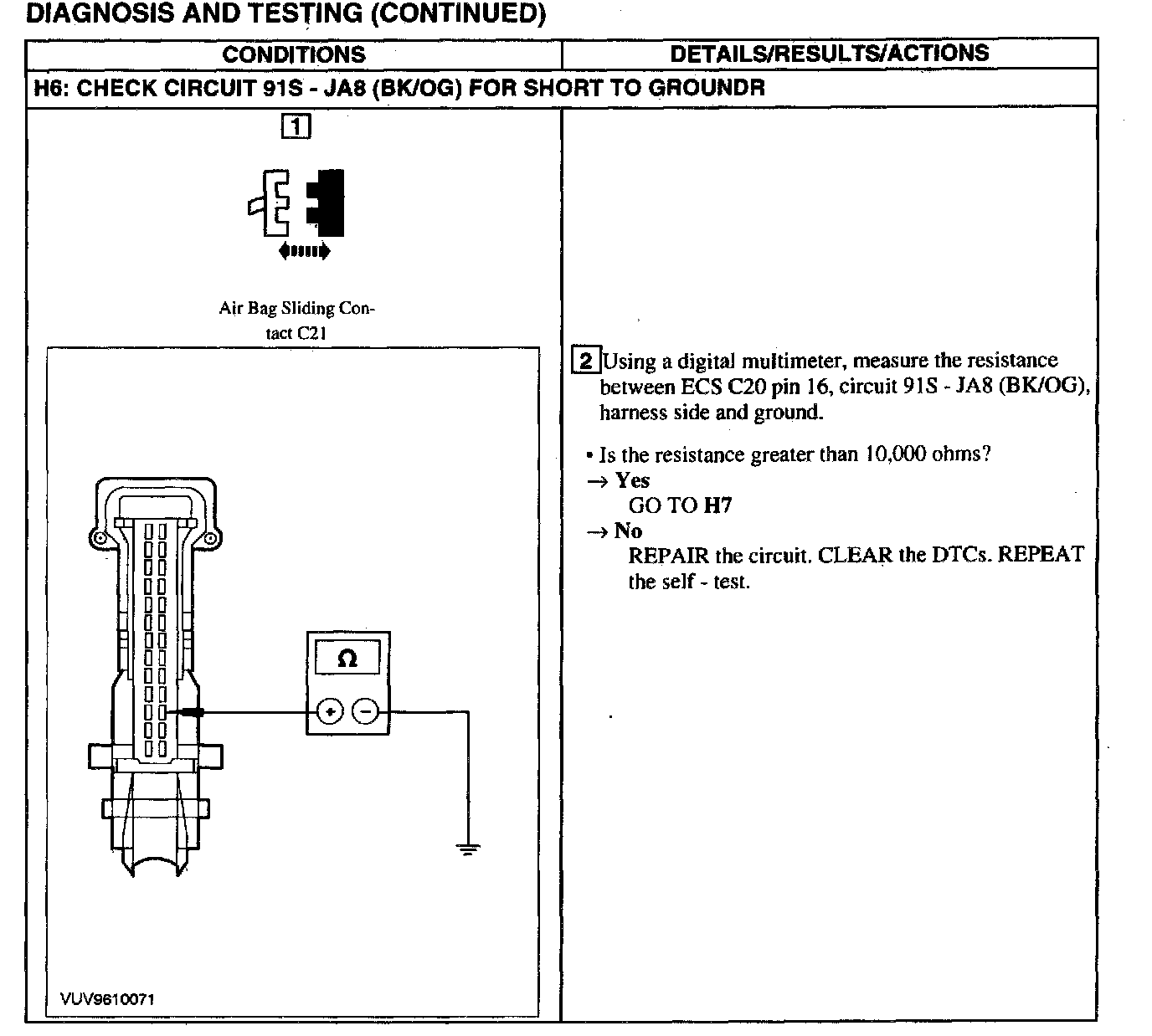

H6:

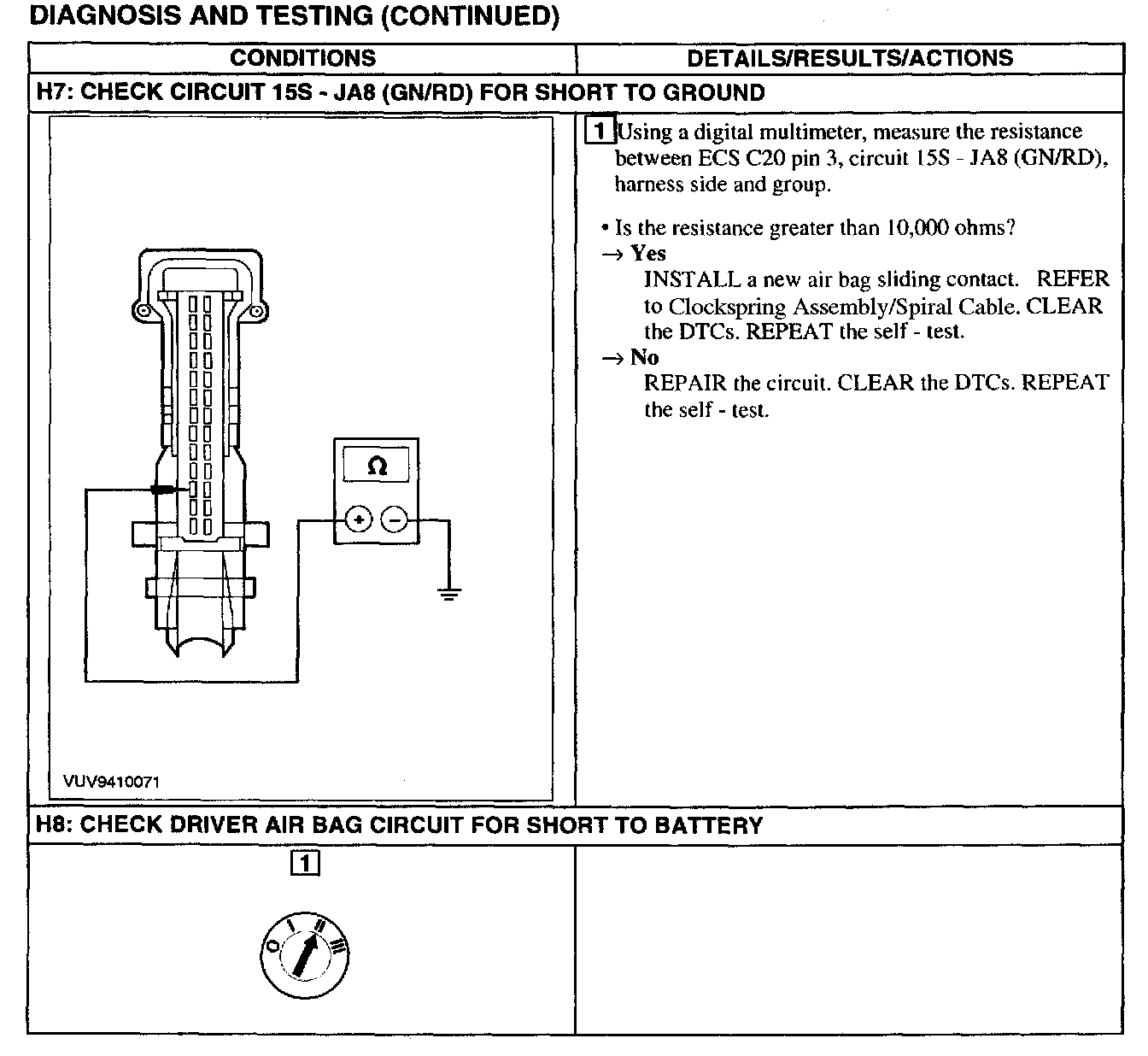

H7 - H8:

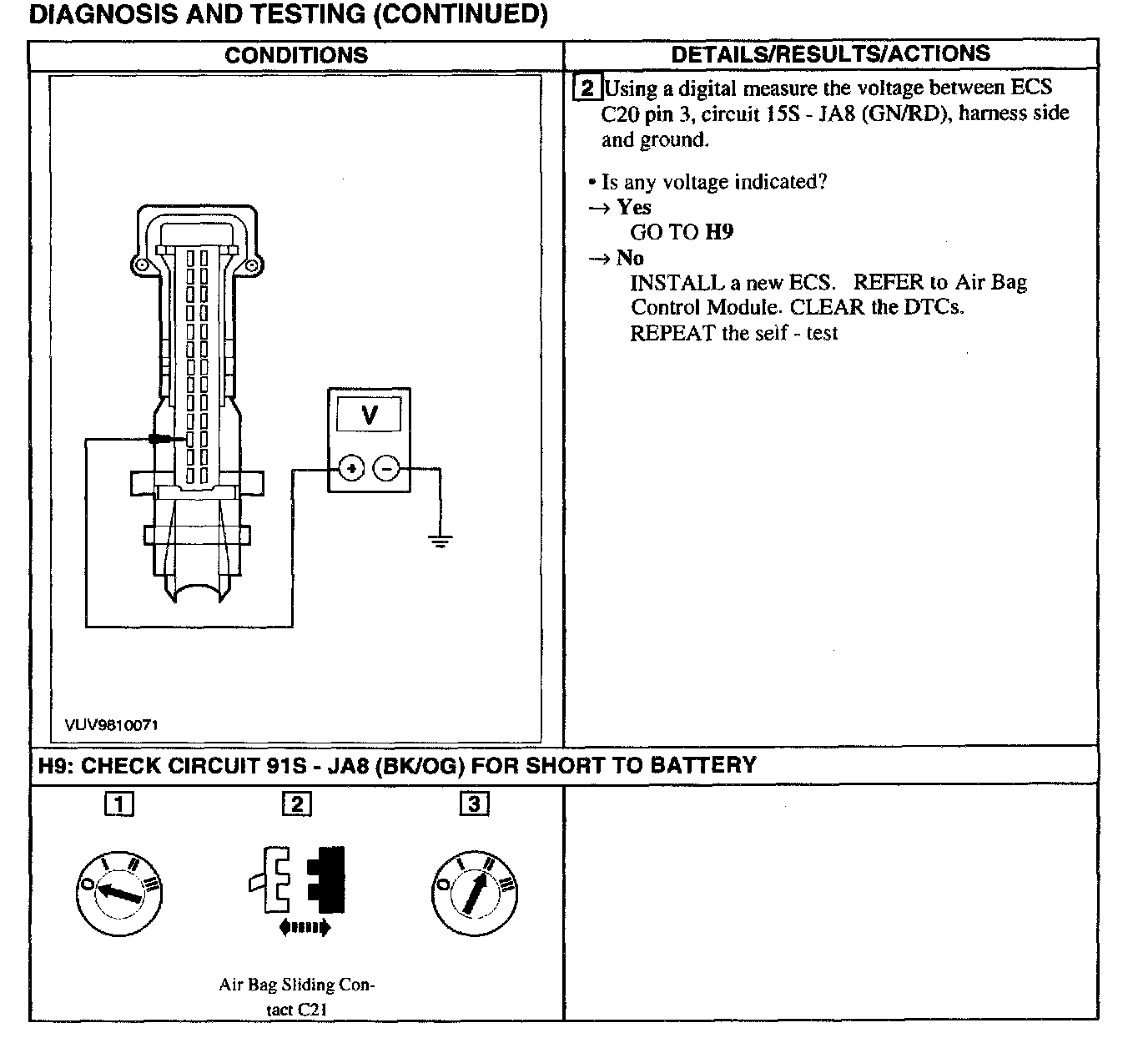

H8 - H9:
H8:

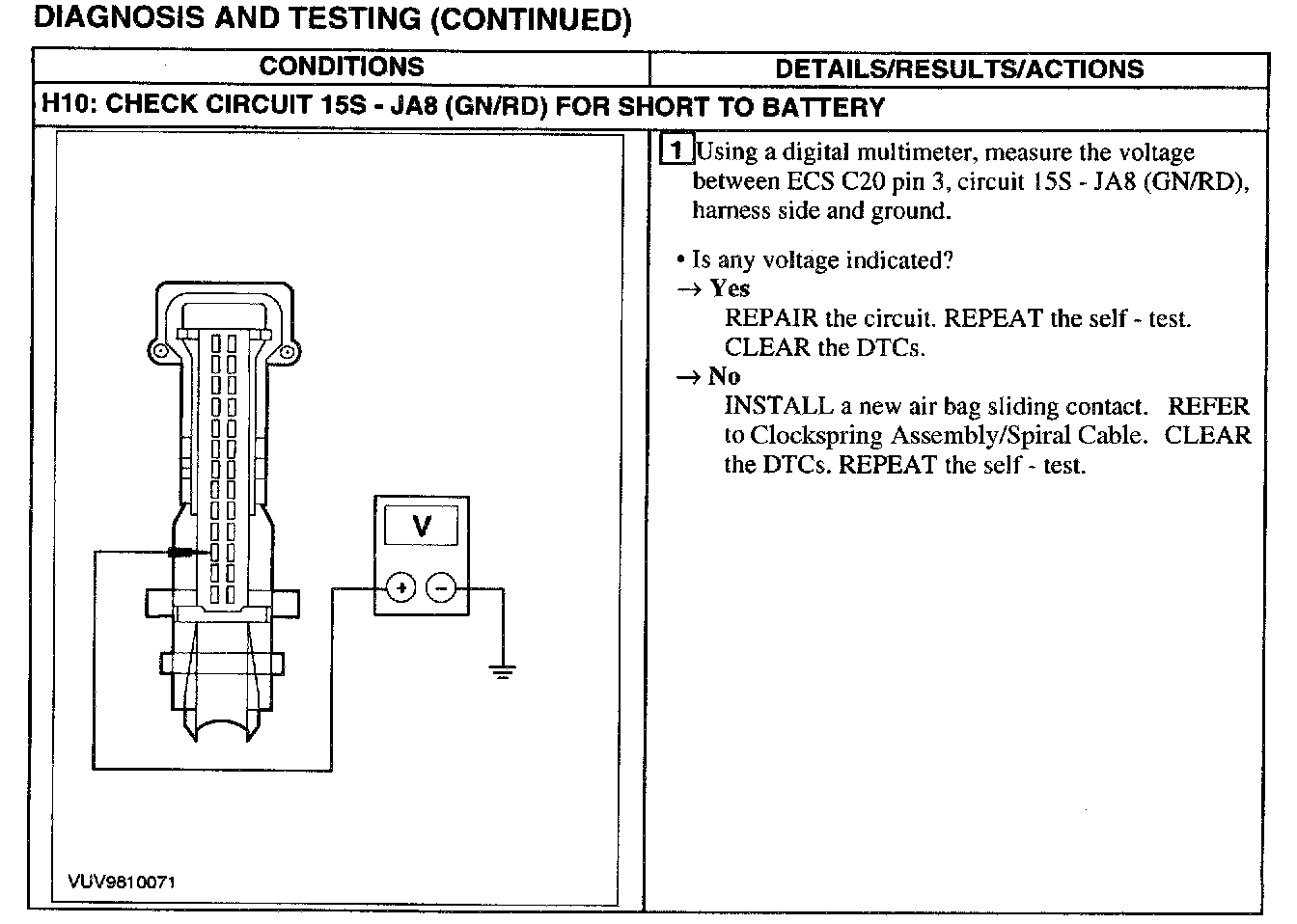

H10:
