Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Normal Scan Data Values - Includes PIDs
>>
Typical Diagnostic Reference Values
>>
With Manual Transmission
With Manual Transmission

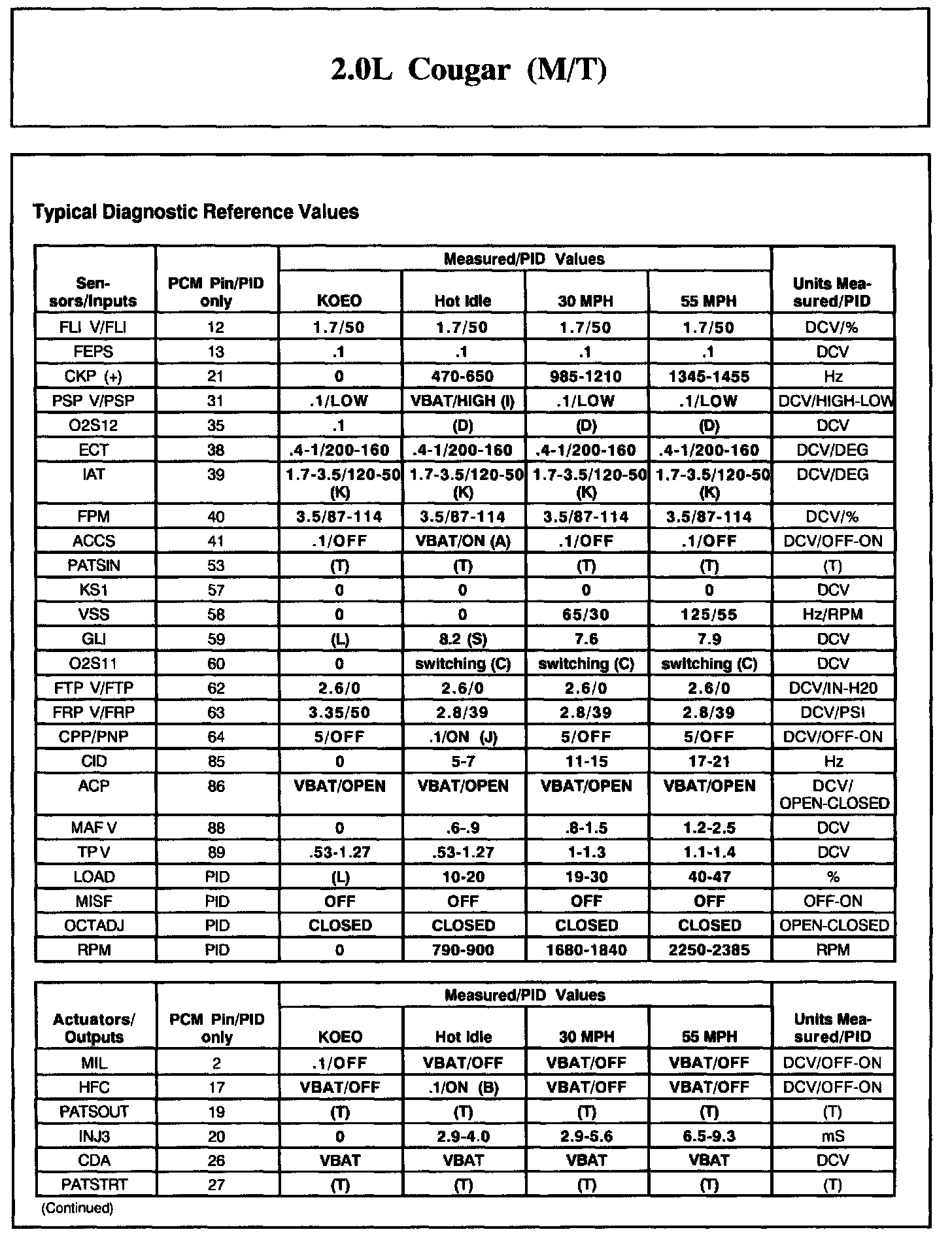

Typical Diagnostic Reference Values, Part 1:

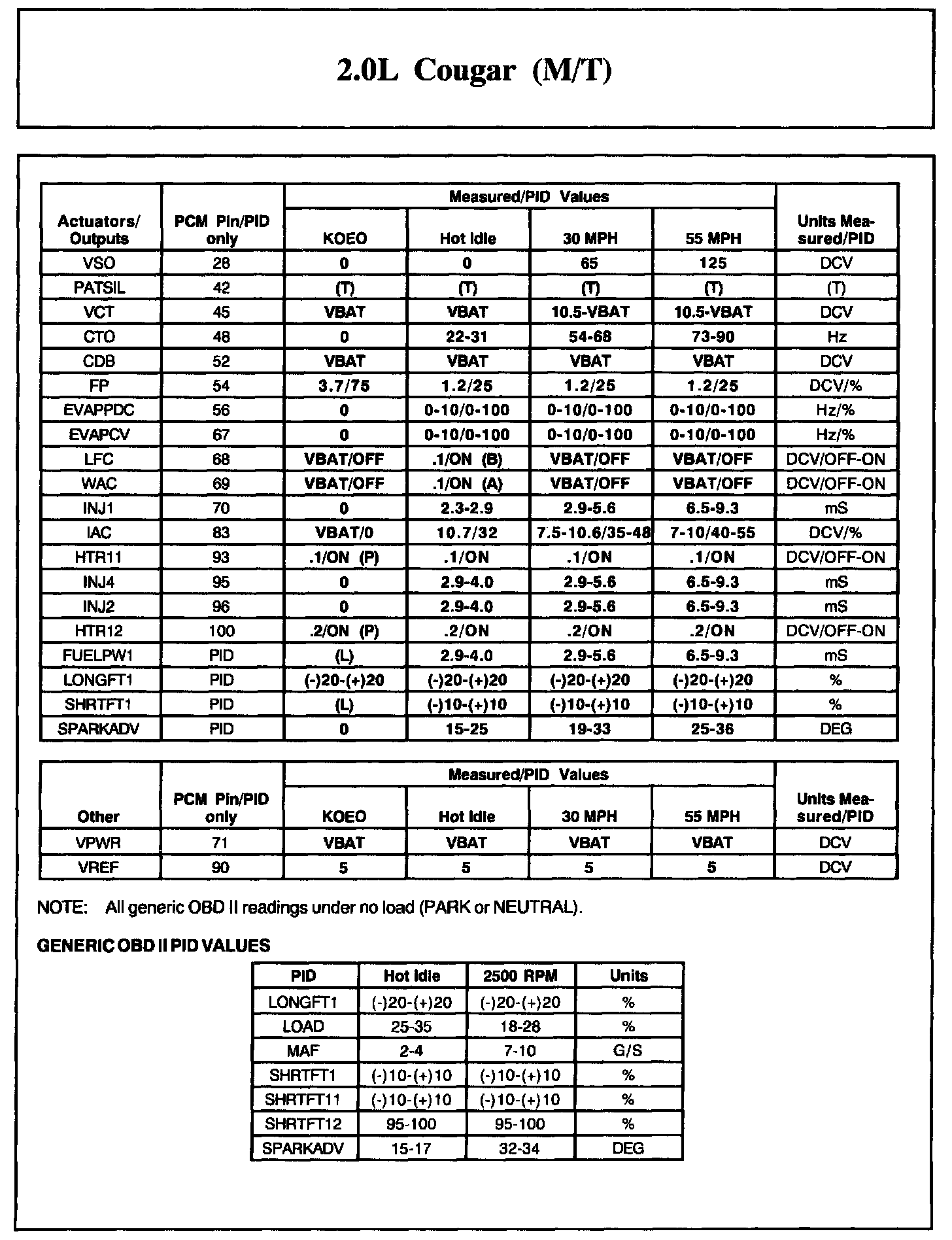

Typical Diagnostic Reference Values, Part 2:
