Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinpoint Tests >> Test F: CSM Does Not Respond to the Scan Tool

Test F: CSM Does Not Respond to the Scan Tool

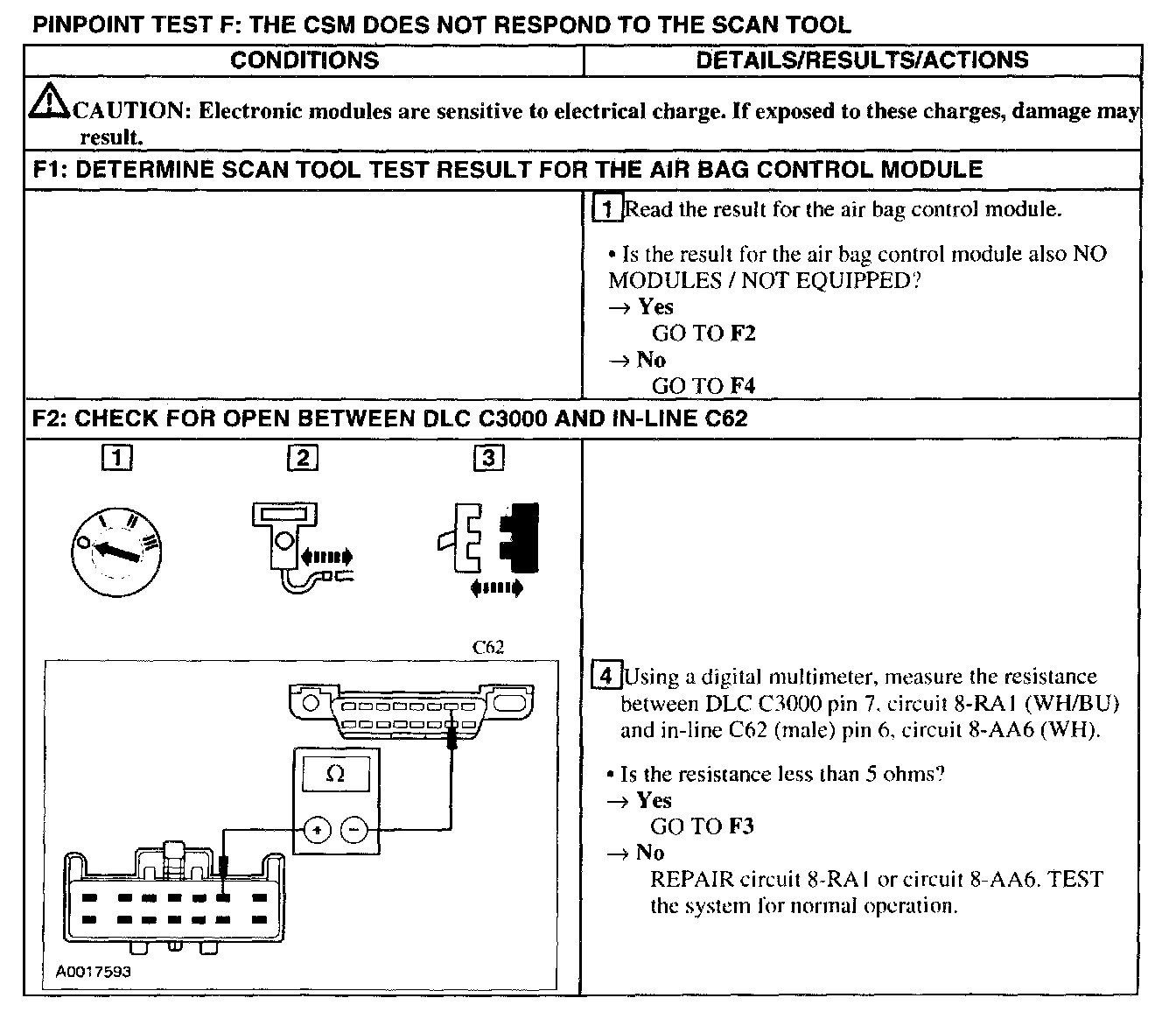

F1 - F2:

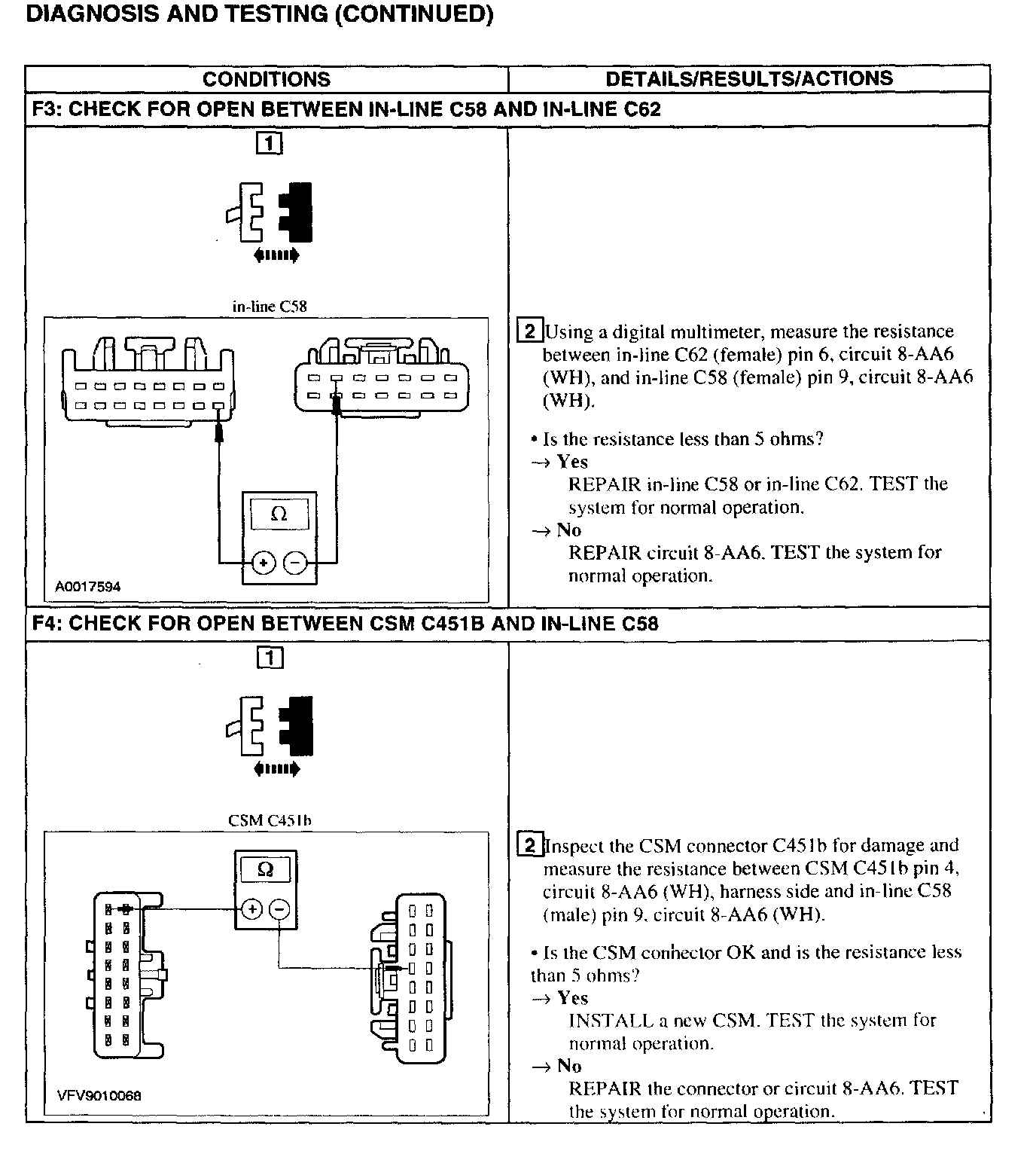

F3 - F4:
