FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2001
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test B: PCM Does Not Respond to the Scan Tool
Test B: PCM Does Not Respond to the Scan Tool

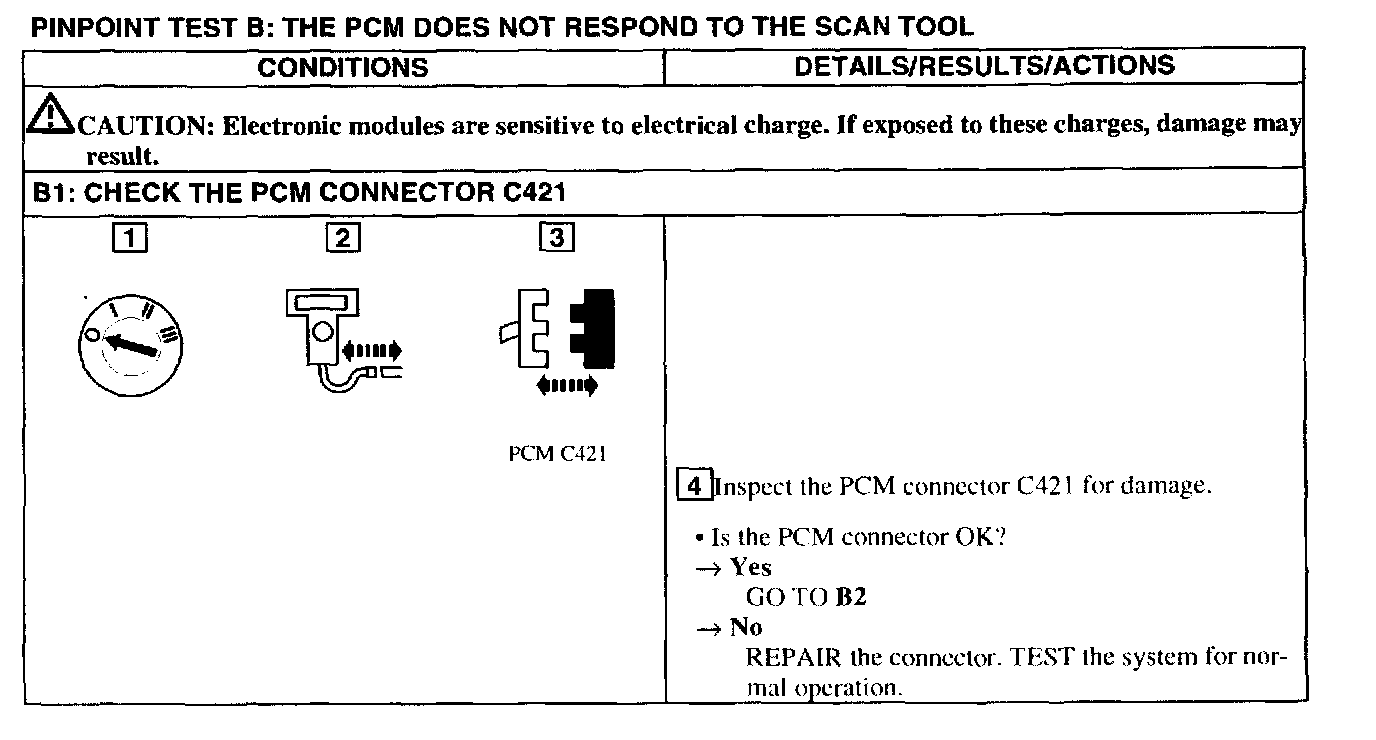

B1:

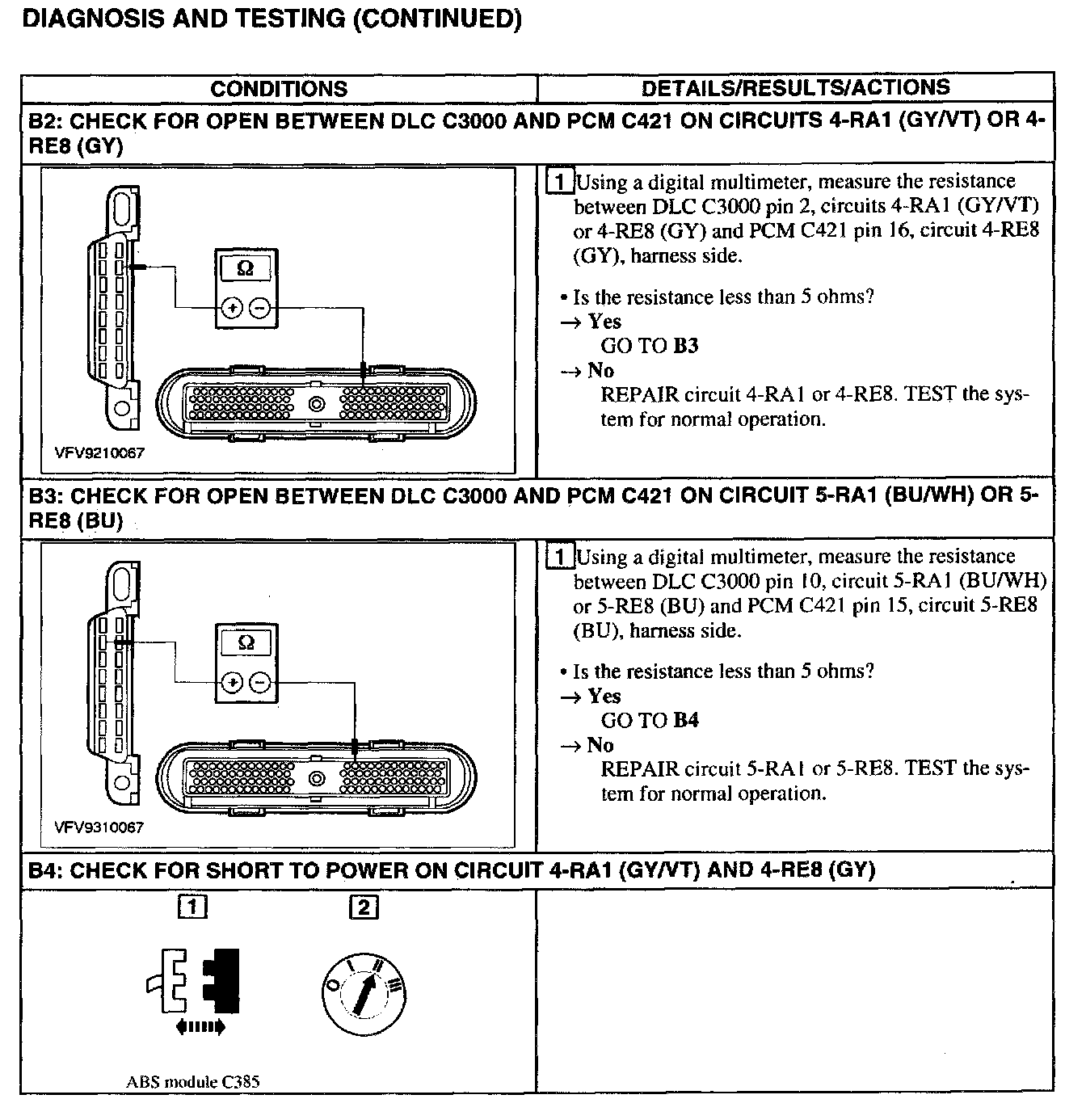

B2 - B4:

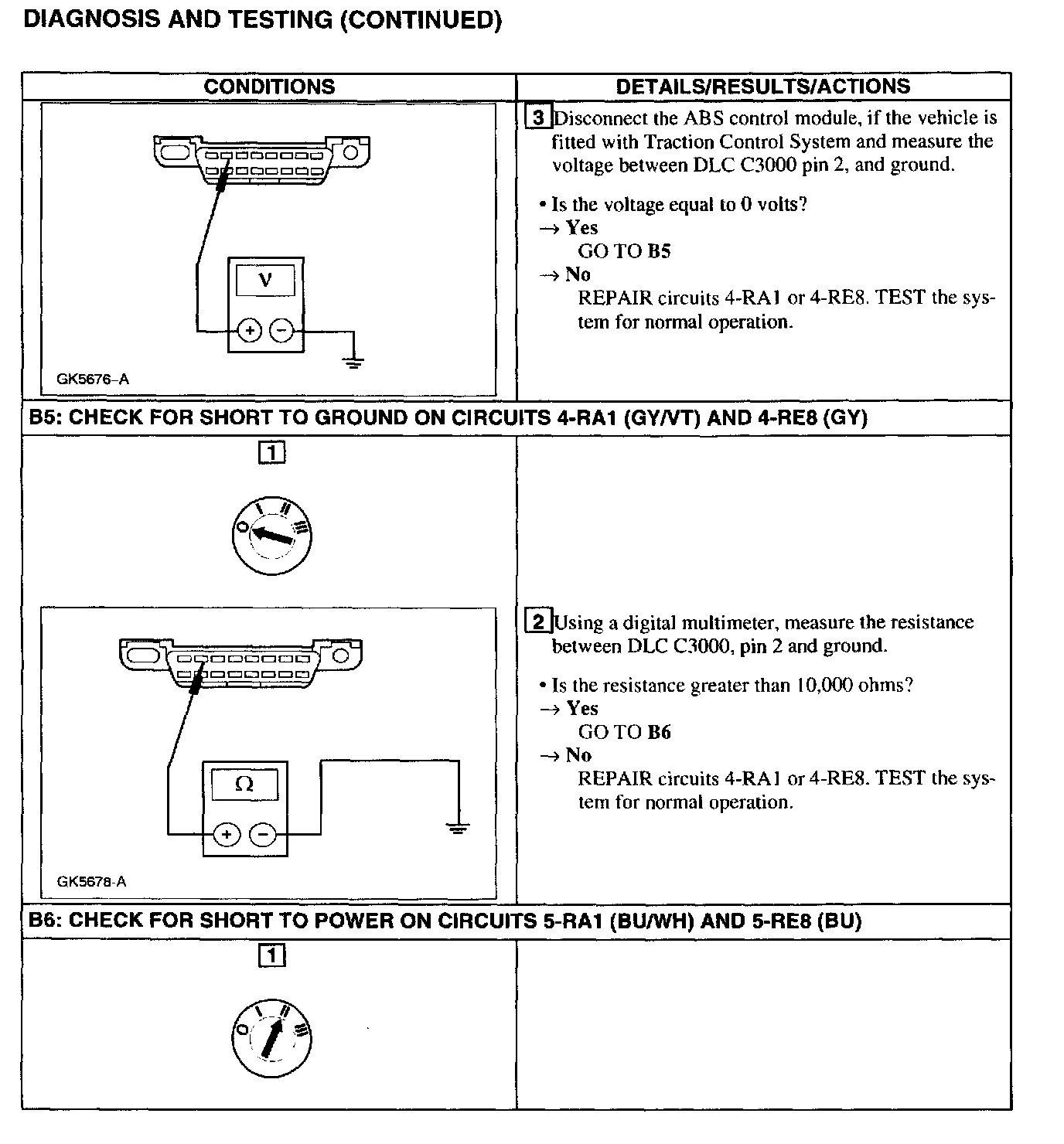

B4 - B6:

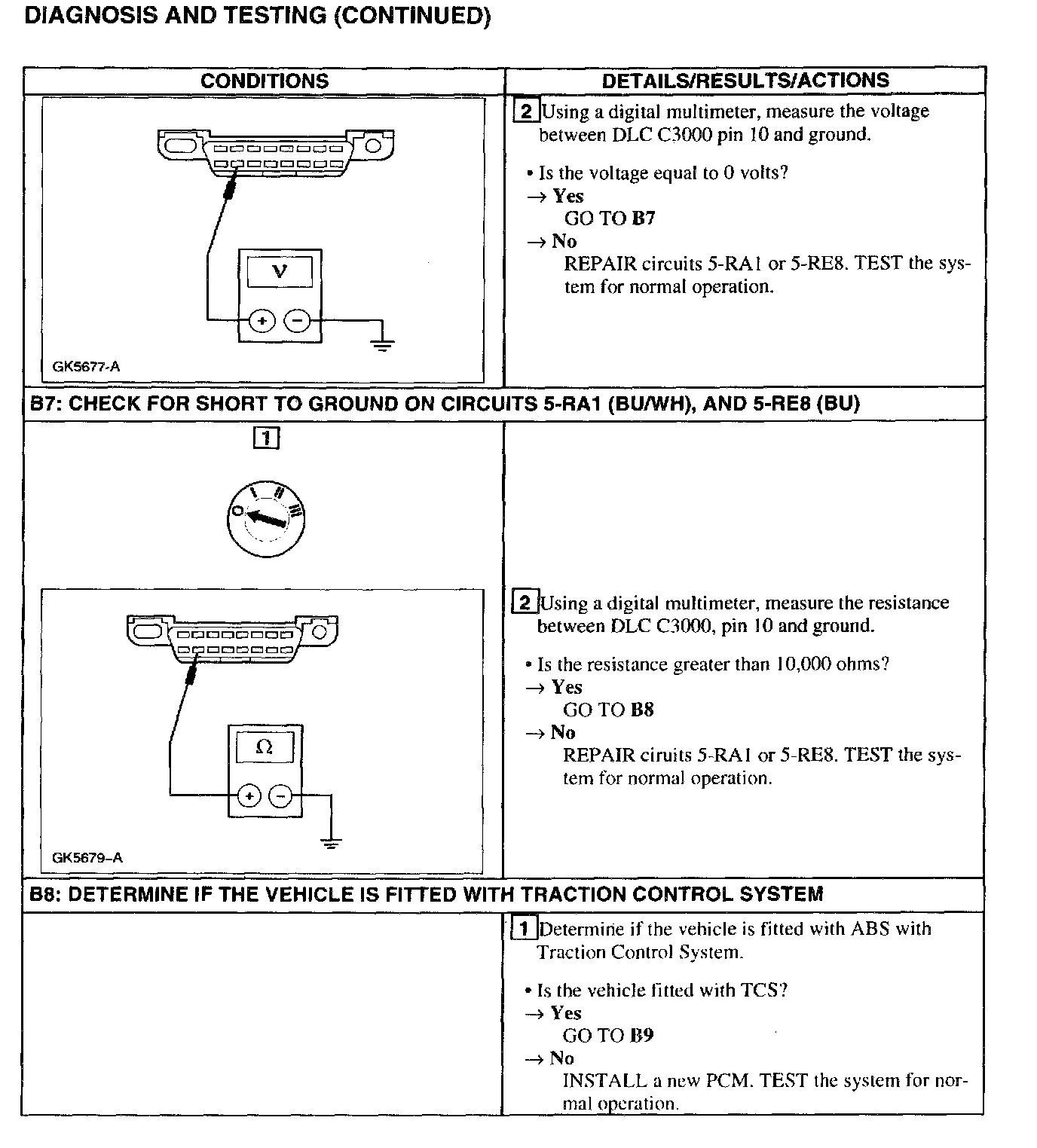

B6 - B8:

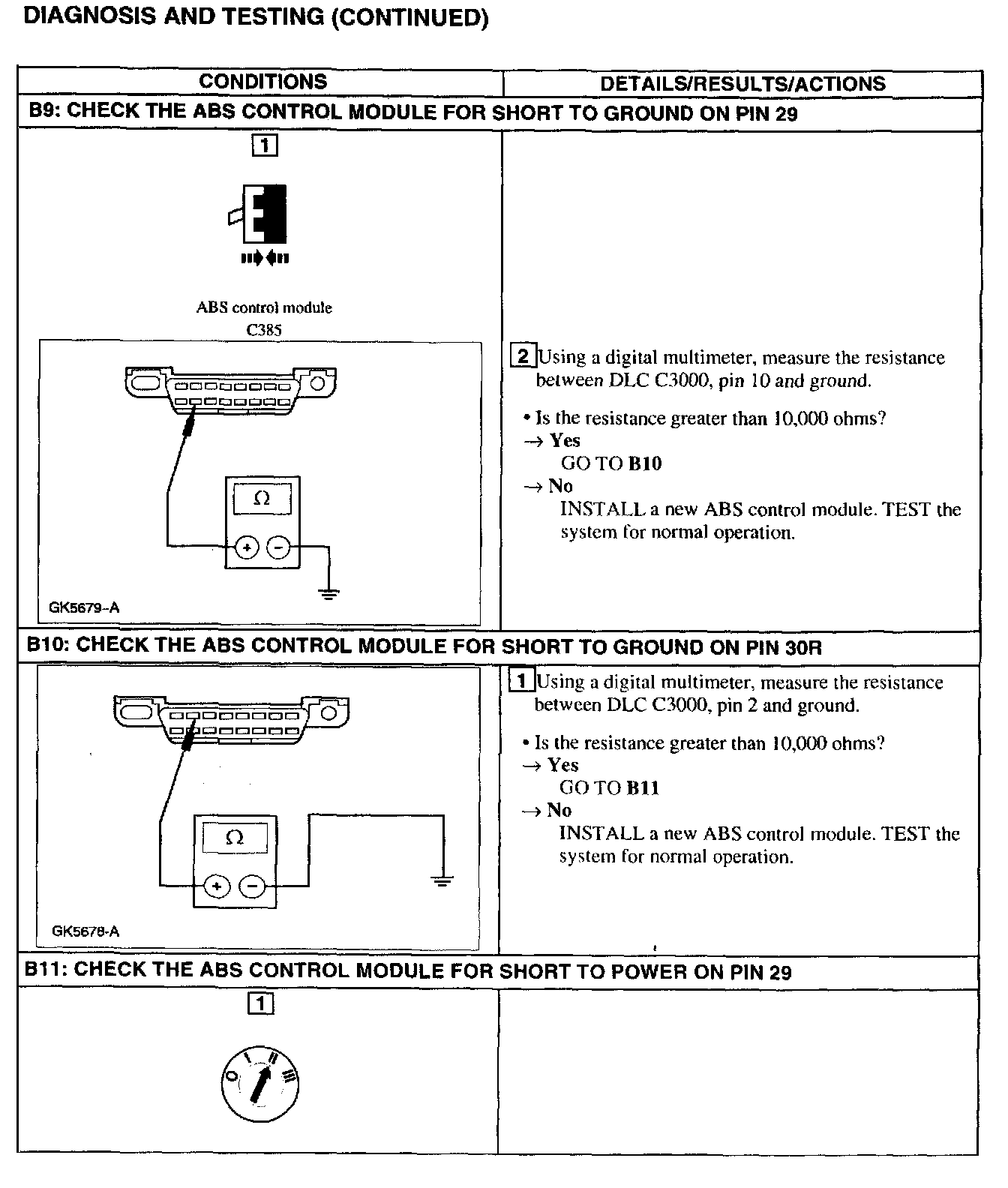

B9 - B11:

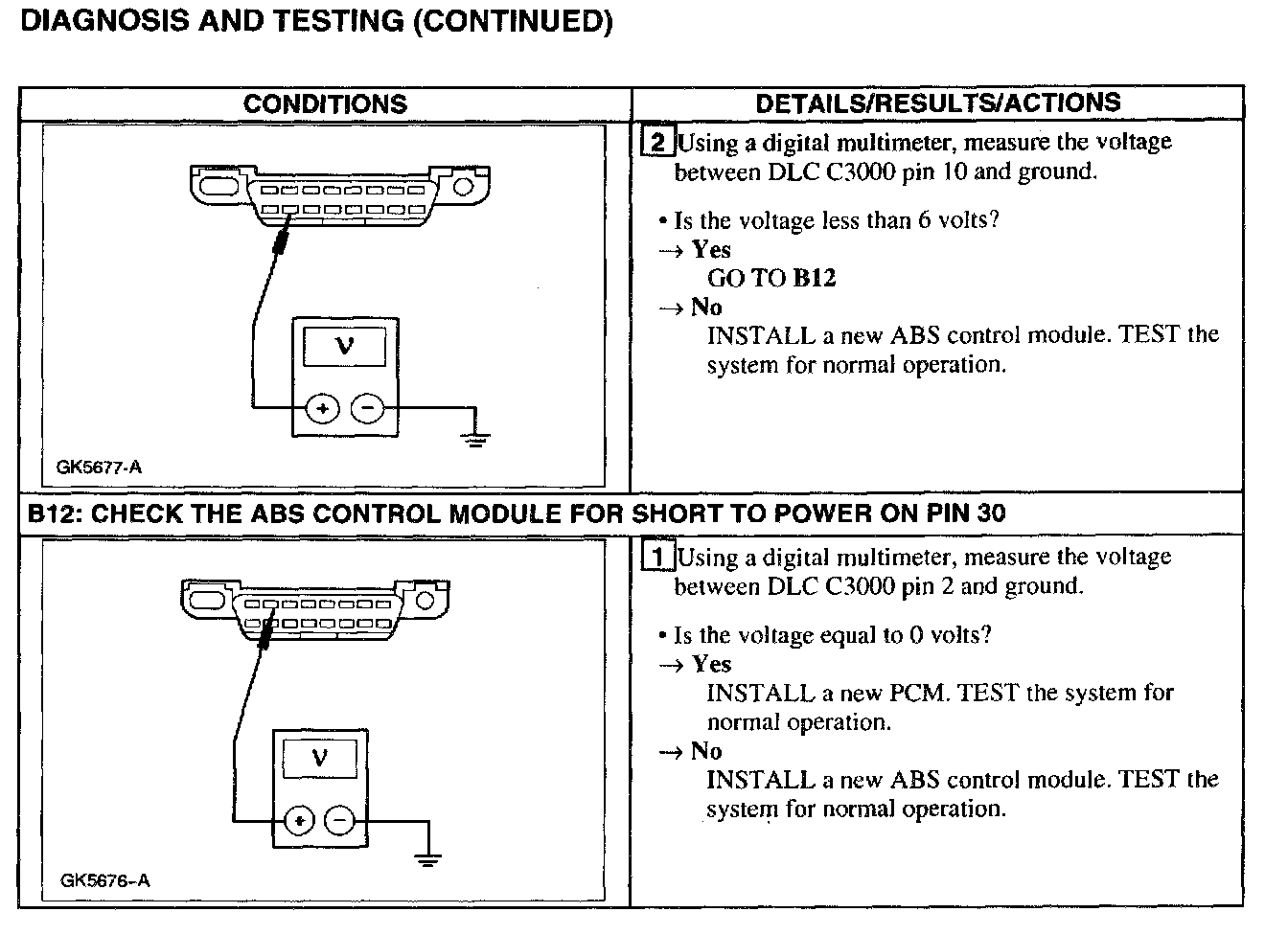

B11 - B12:
