Test H: Battery Saver Does Not Operate Correctly
Test H: Battery Saver Does Not Operate Correctly

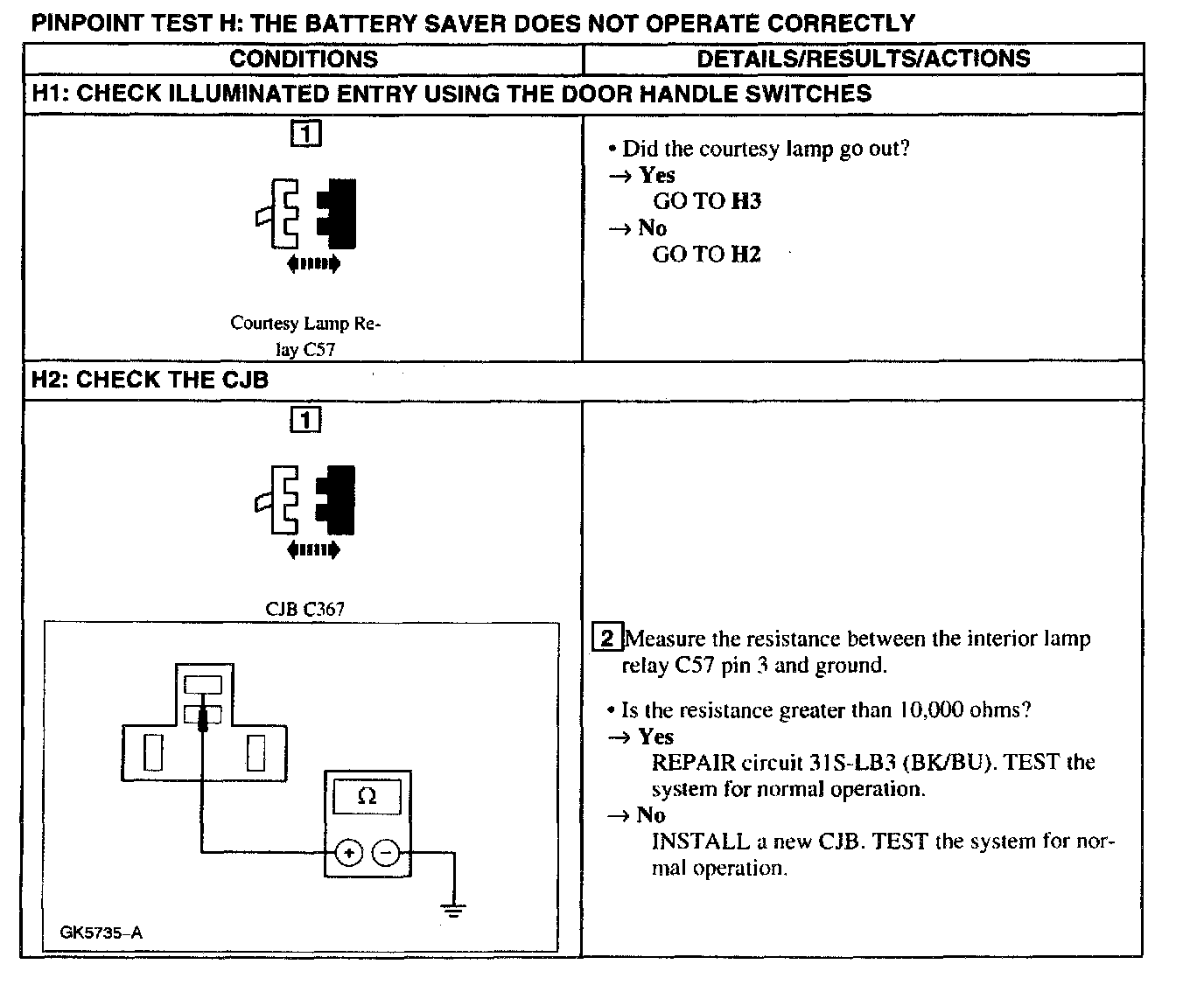

H1 - H2:

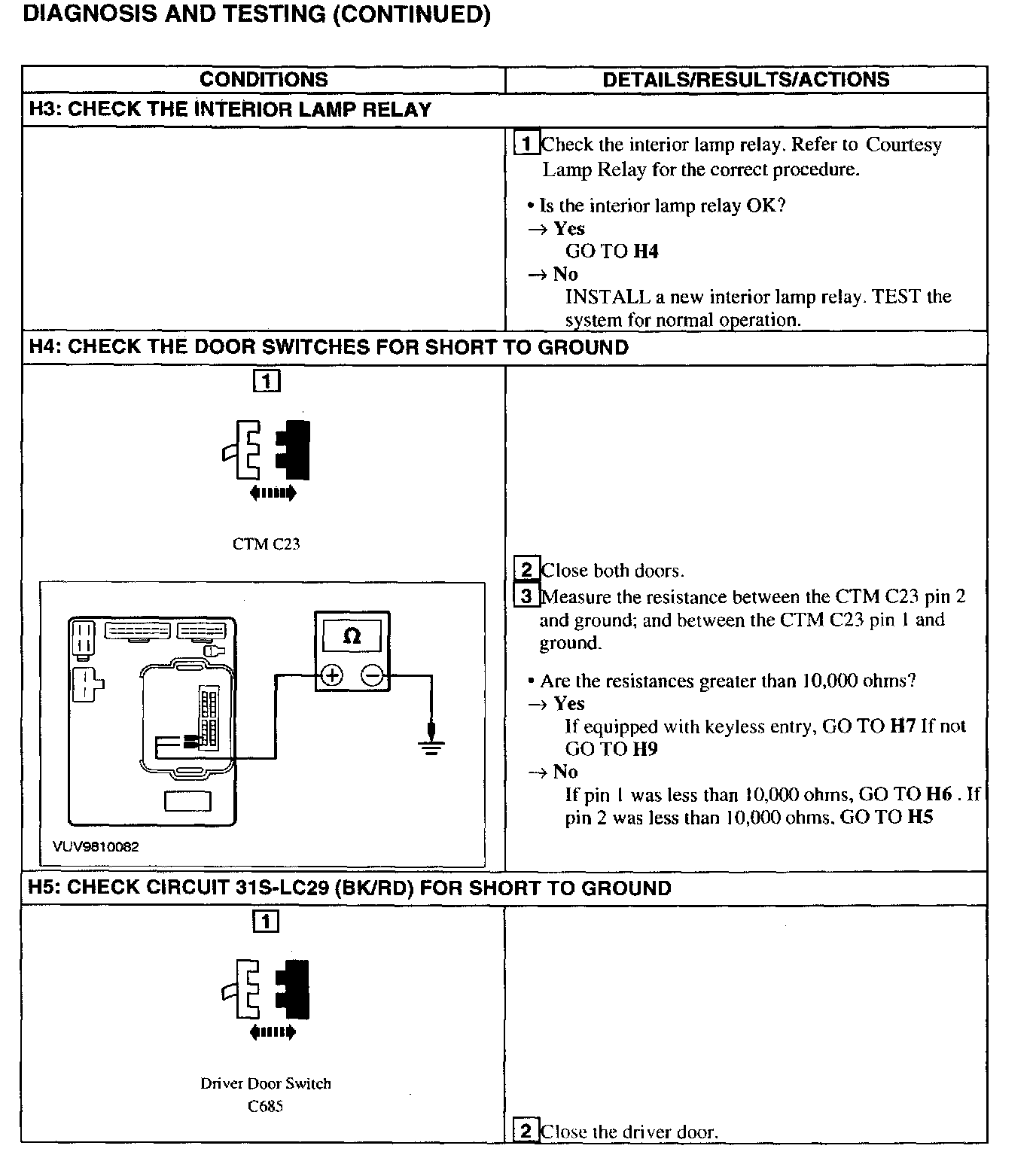

H3 - H5:

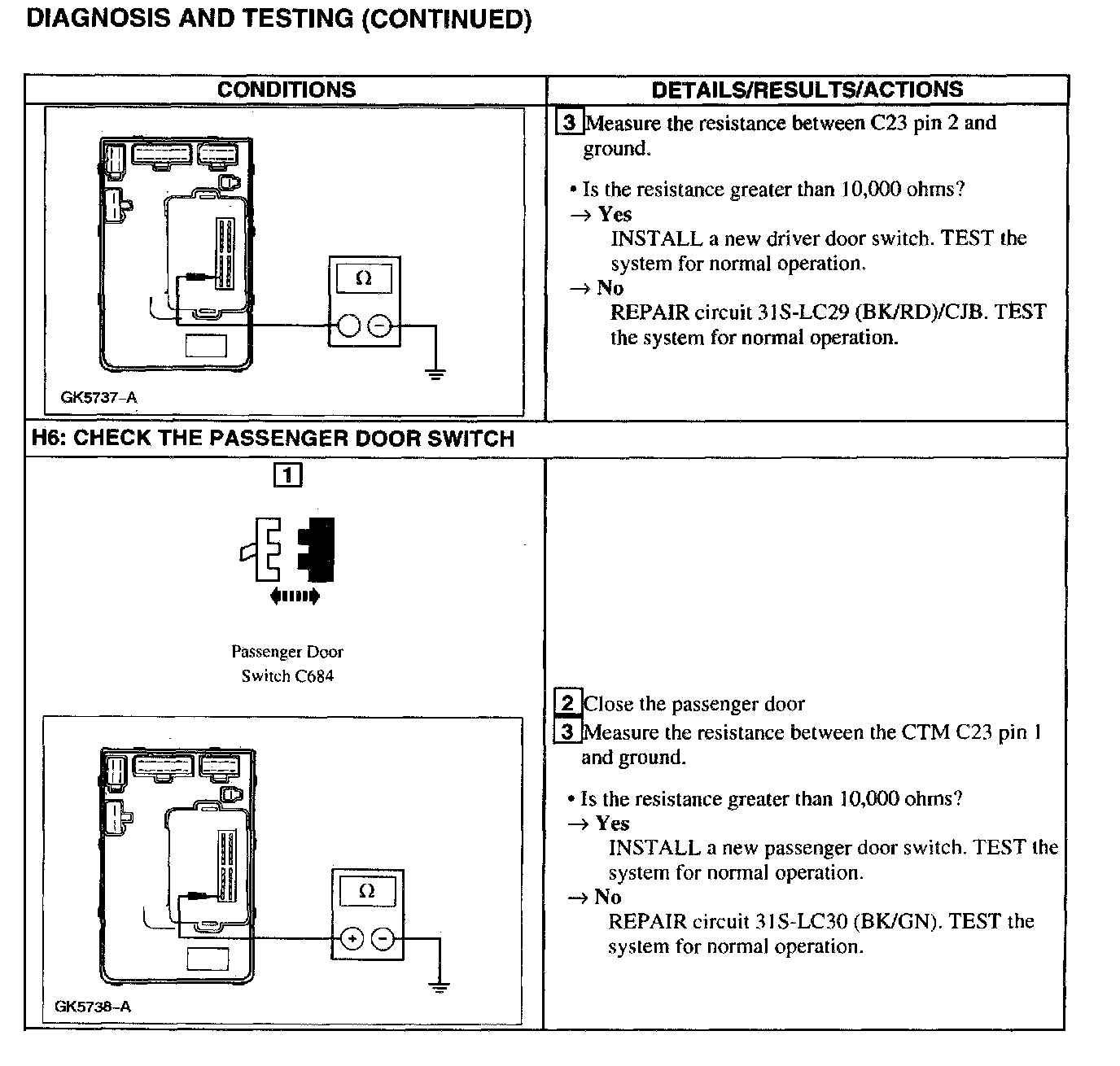

H5 - H6:

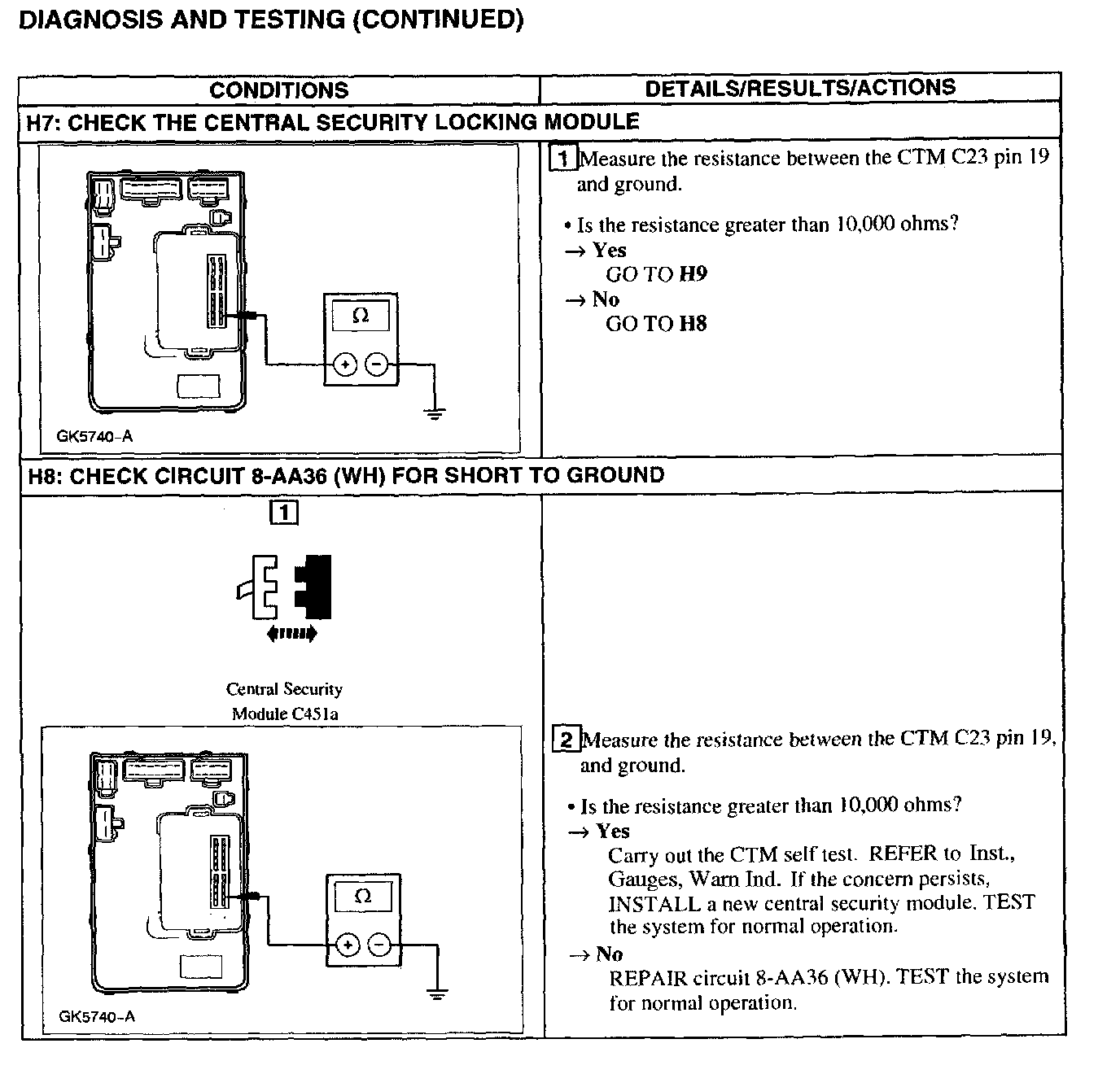

H7 - H8:

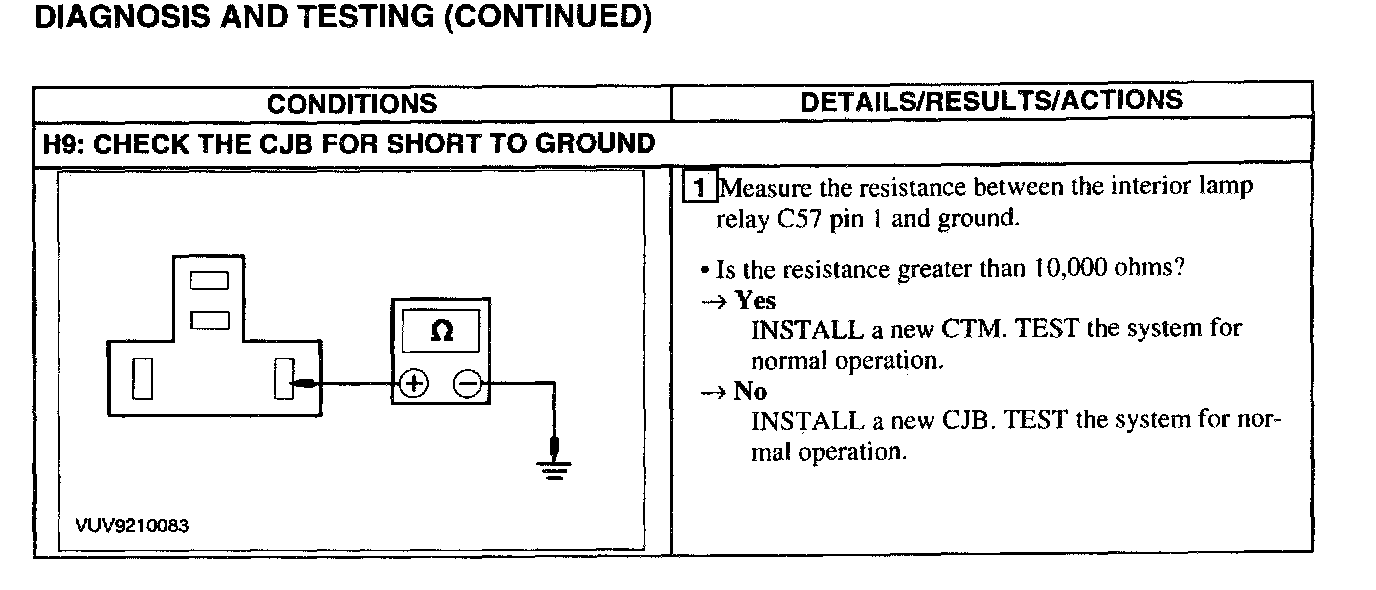

H9:
