Test E: A Single Illumination Source Is Inoperative
Test E: A Single Illumination Source Is Inoperative

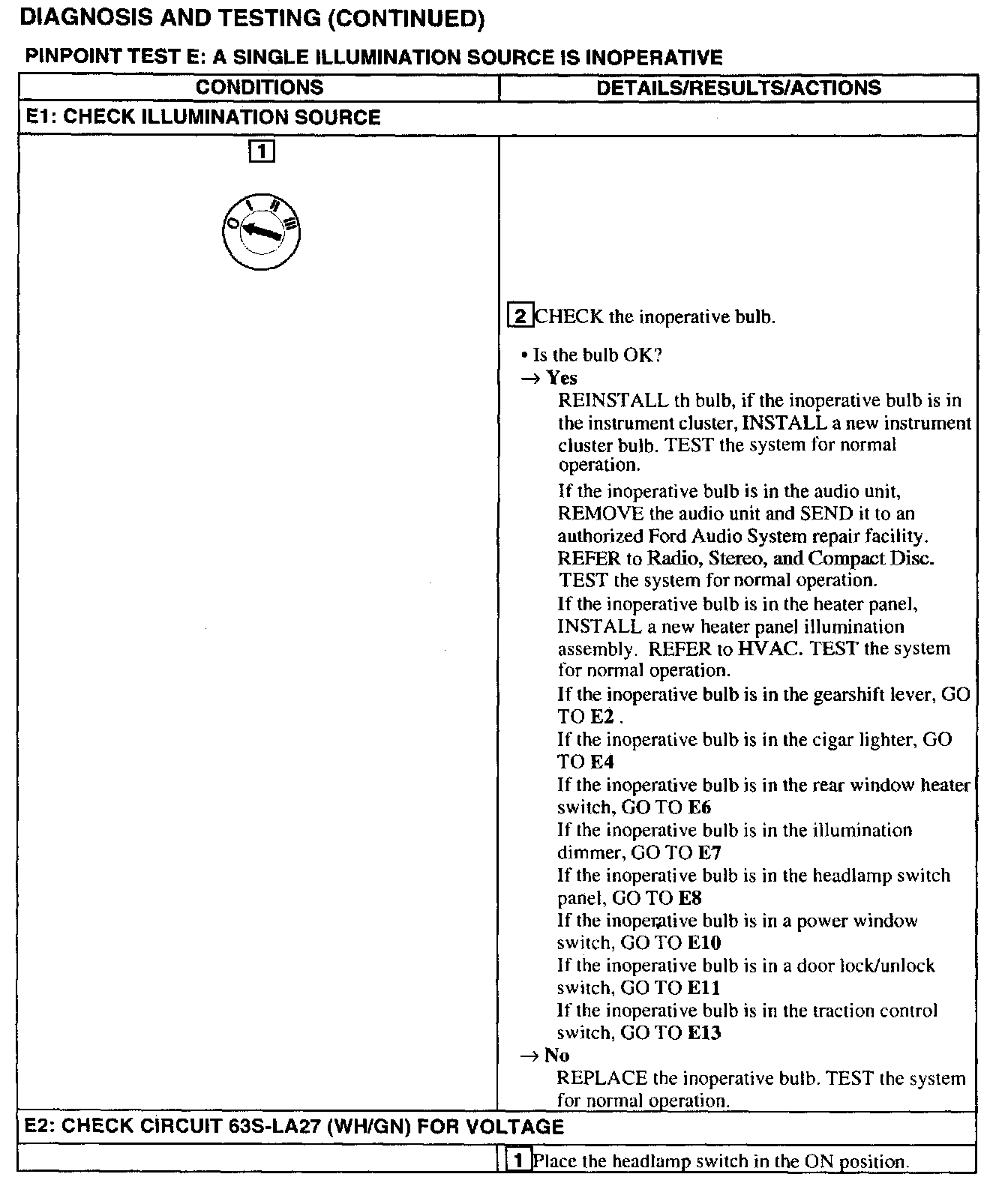

E1 - E2:

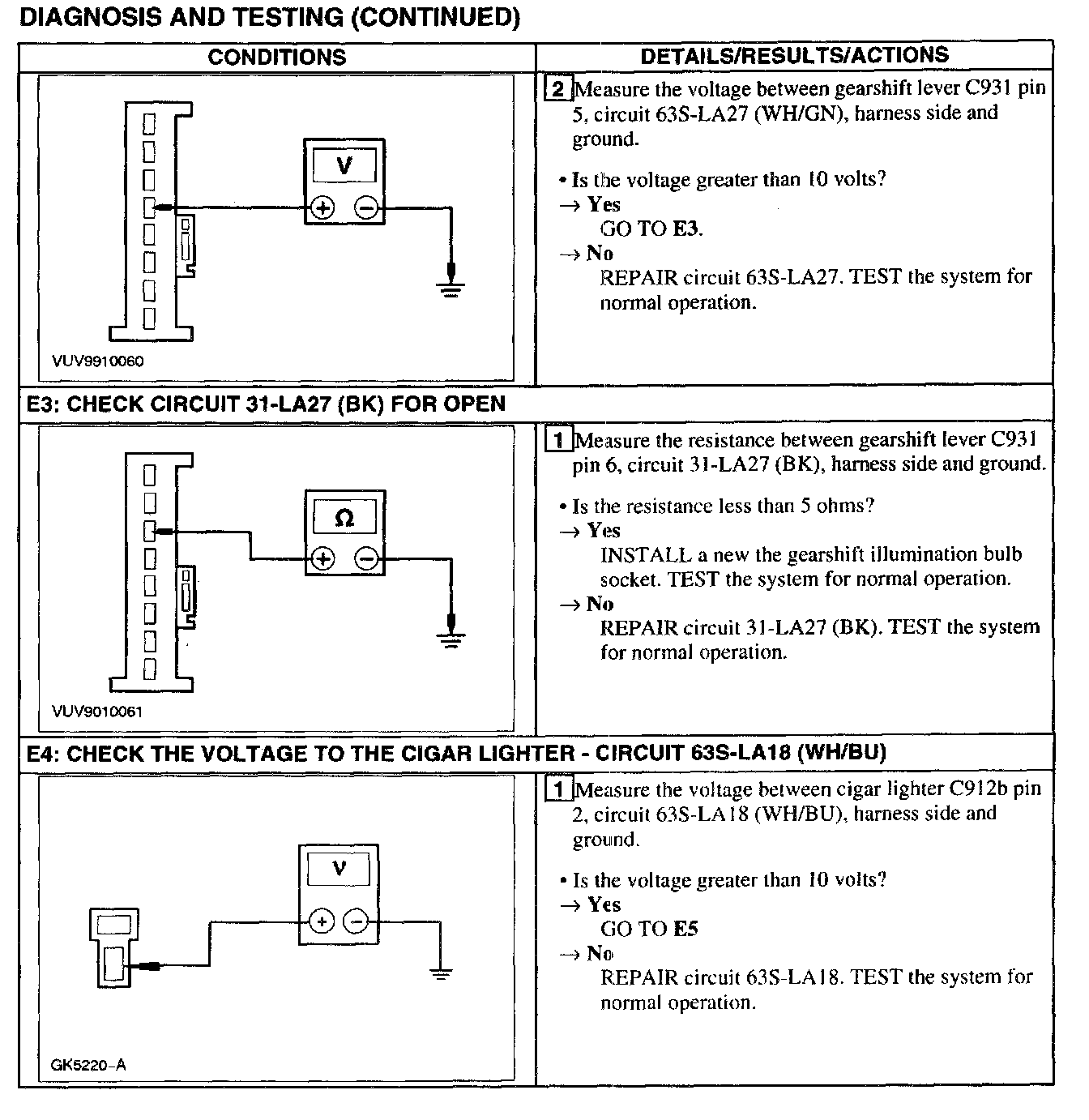

E2 - E4:

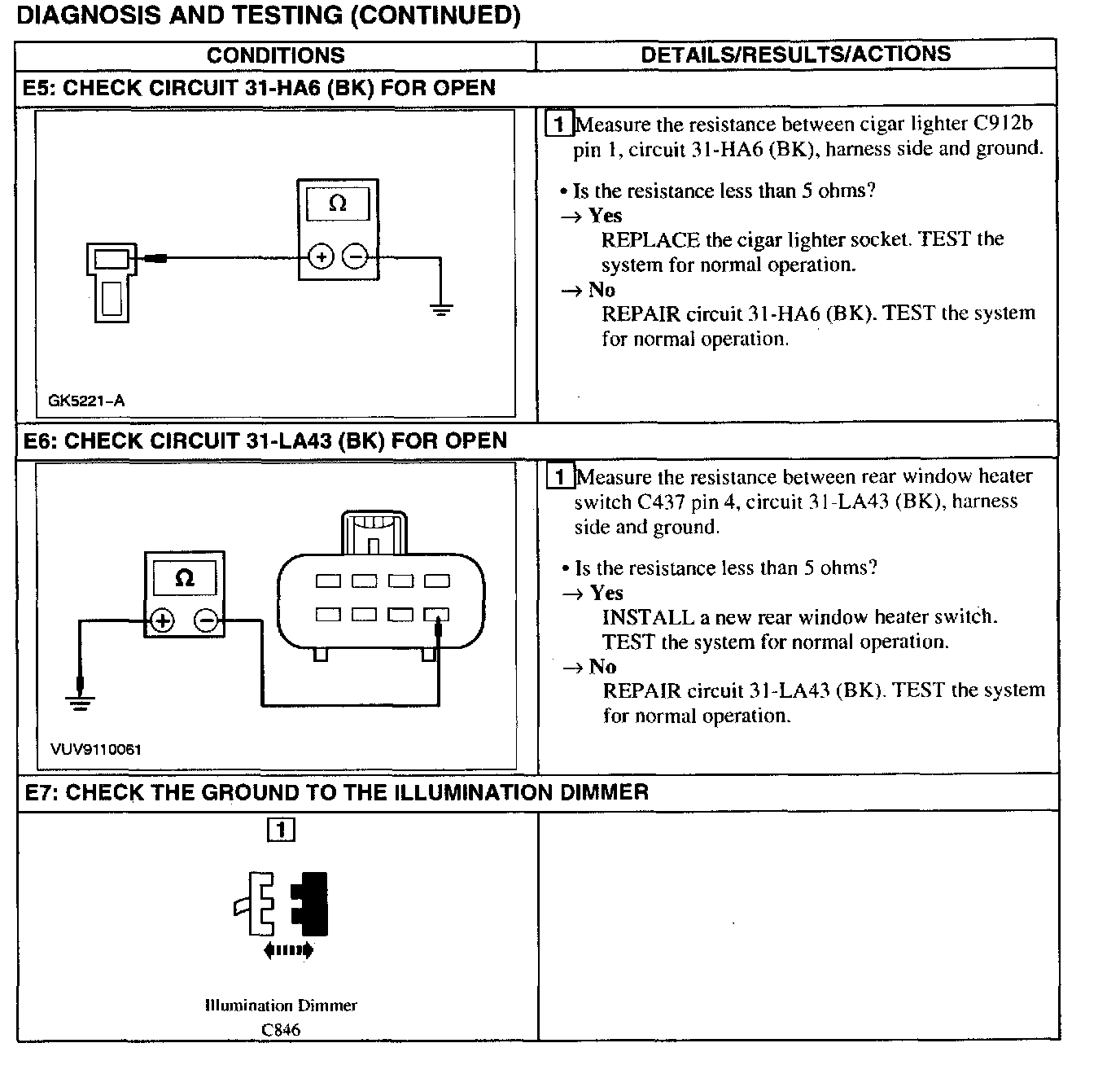

E5 - E7:

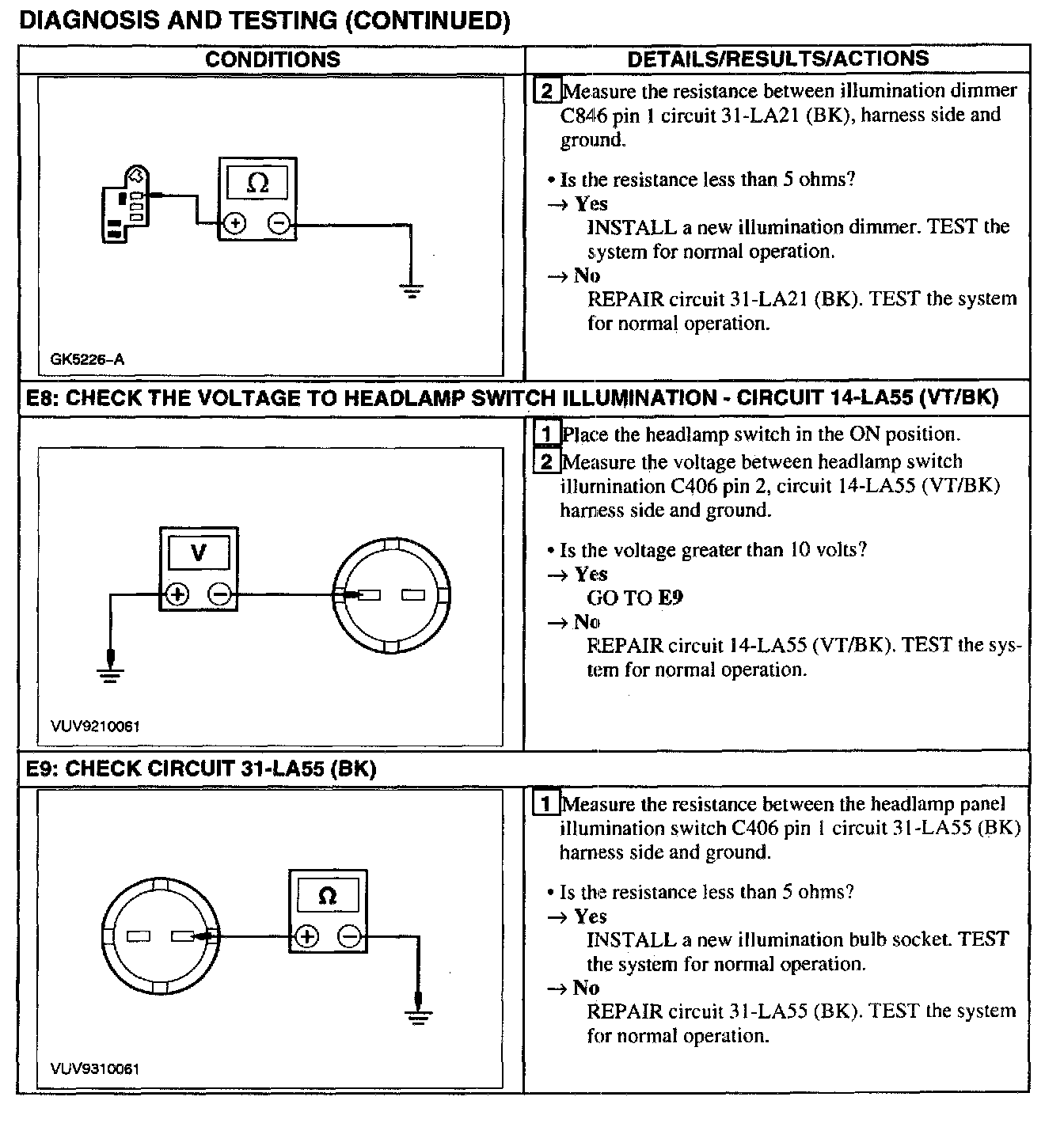

E7 - E9:

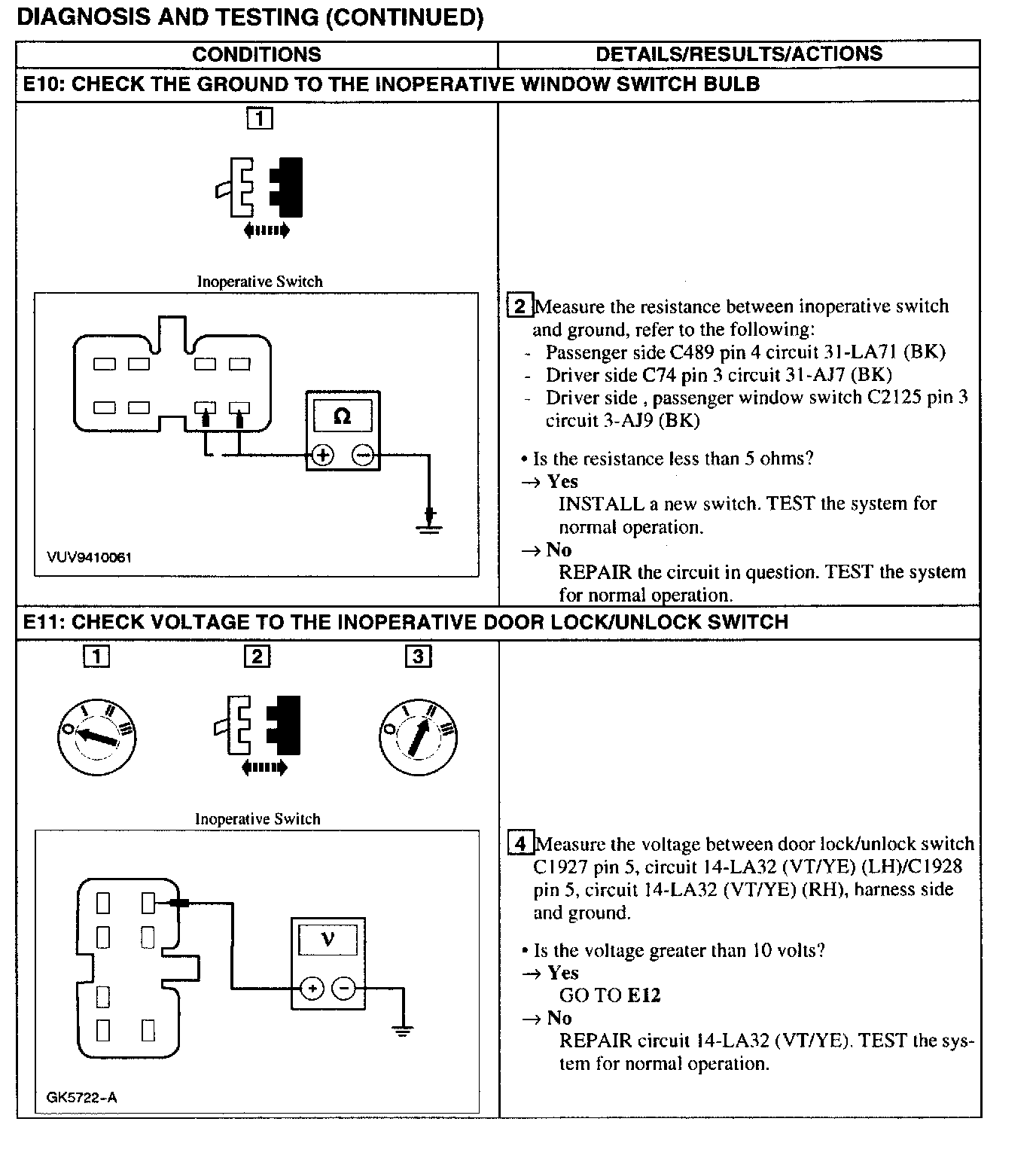

E10 - E11:

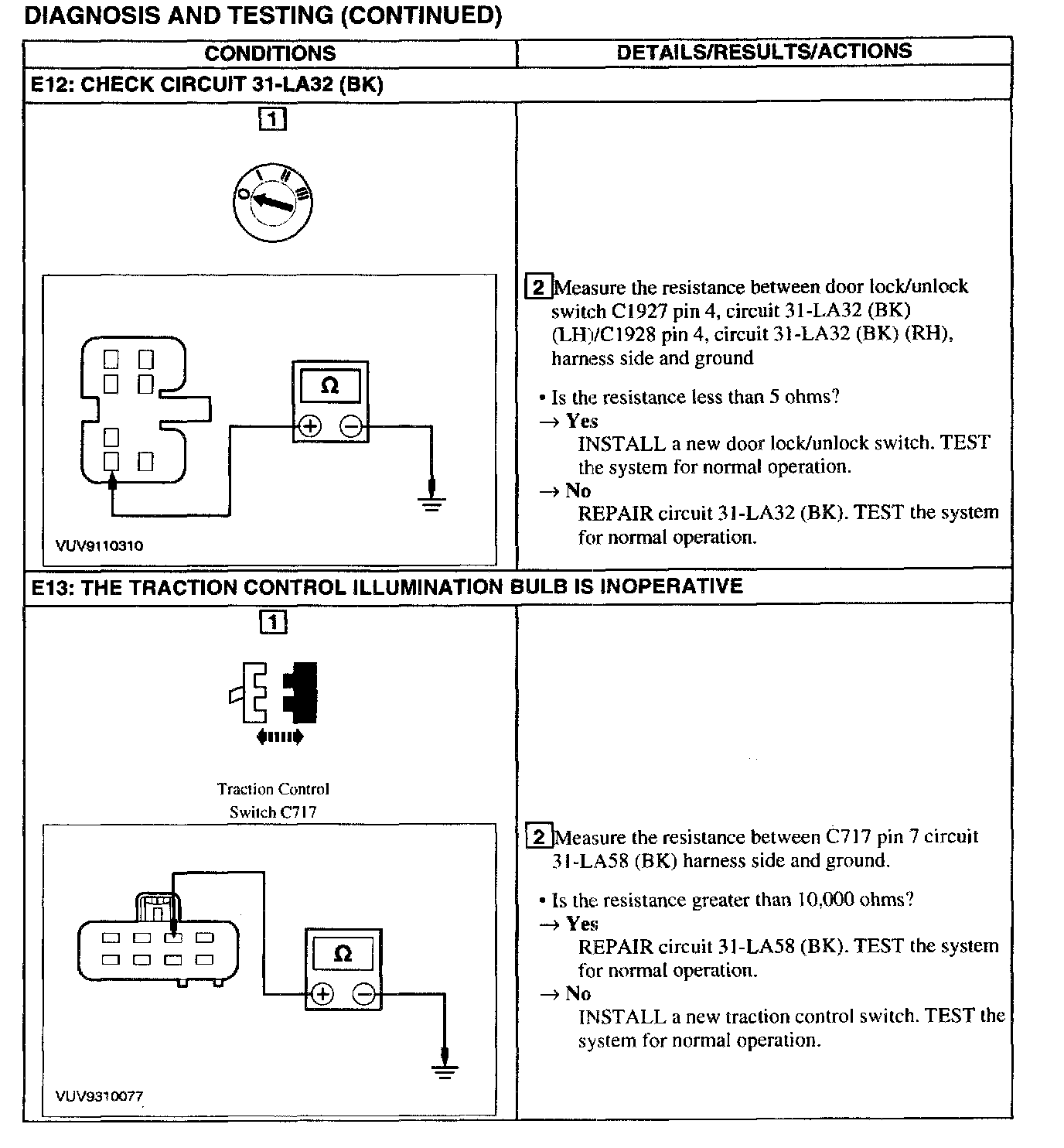

E12 - E13:
