Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test Z: An Indicator Is Always On - Malfunction Indicator Lamp (MIL)R

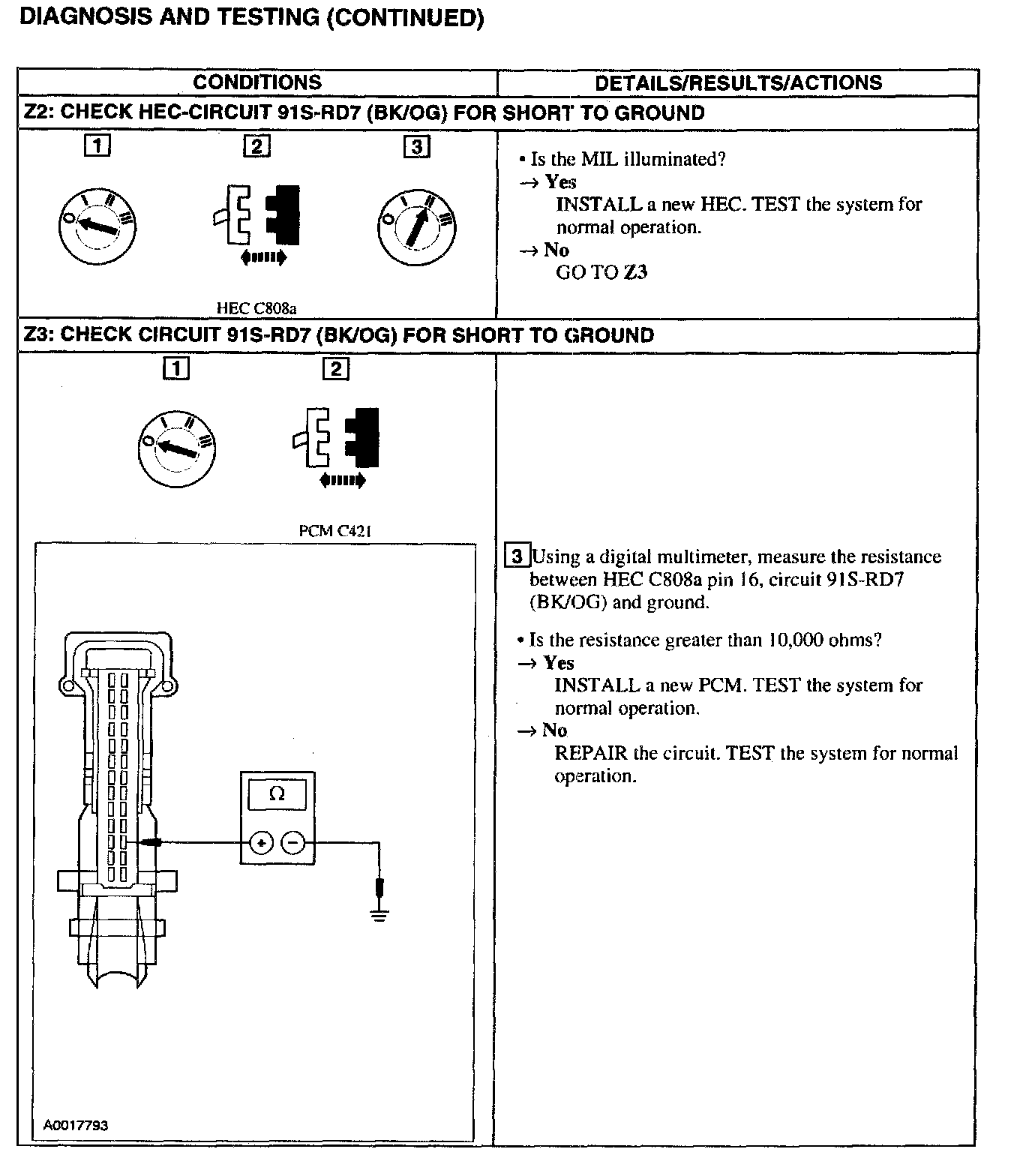

Test Z: An Indicator Is Always On - Malfunction Indicator Lamp (MIL)R

Z1:



Z2 - Z3:
