Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test Y: An Indicator Is Inoperative-Malfunction Indicator Lamp

Test Y: An Indicator Is Inoperative-Malfunction Indicator Lamp

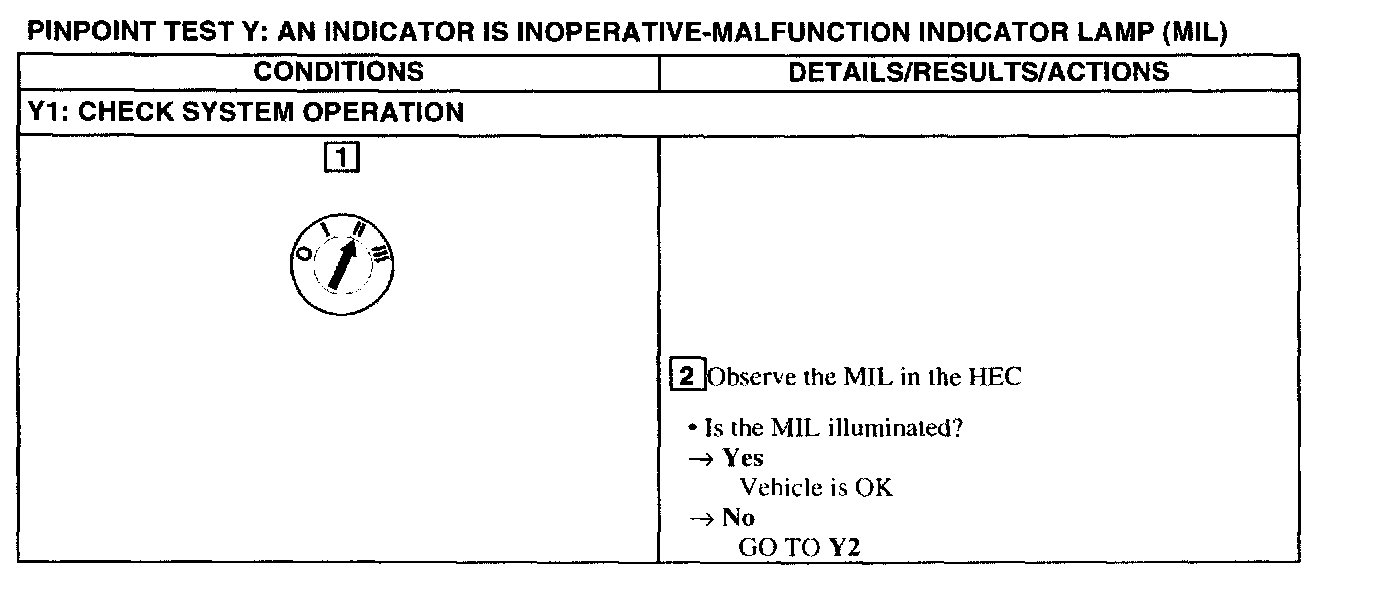

Y1:

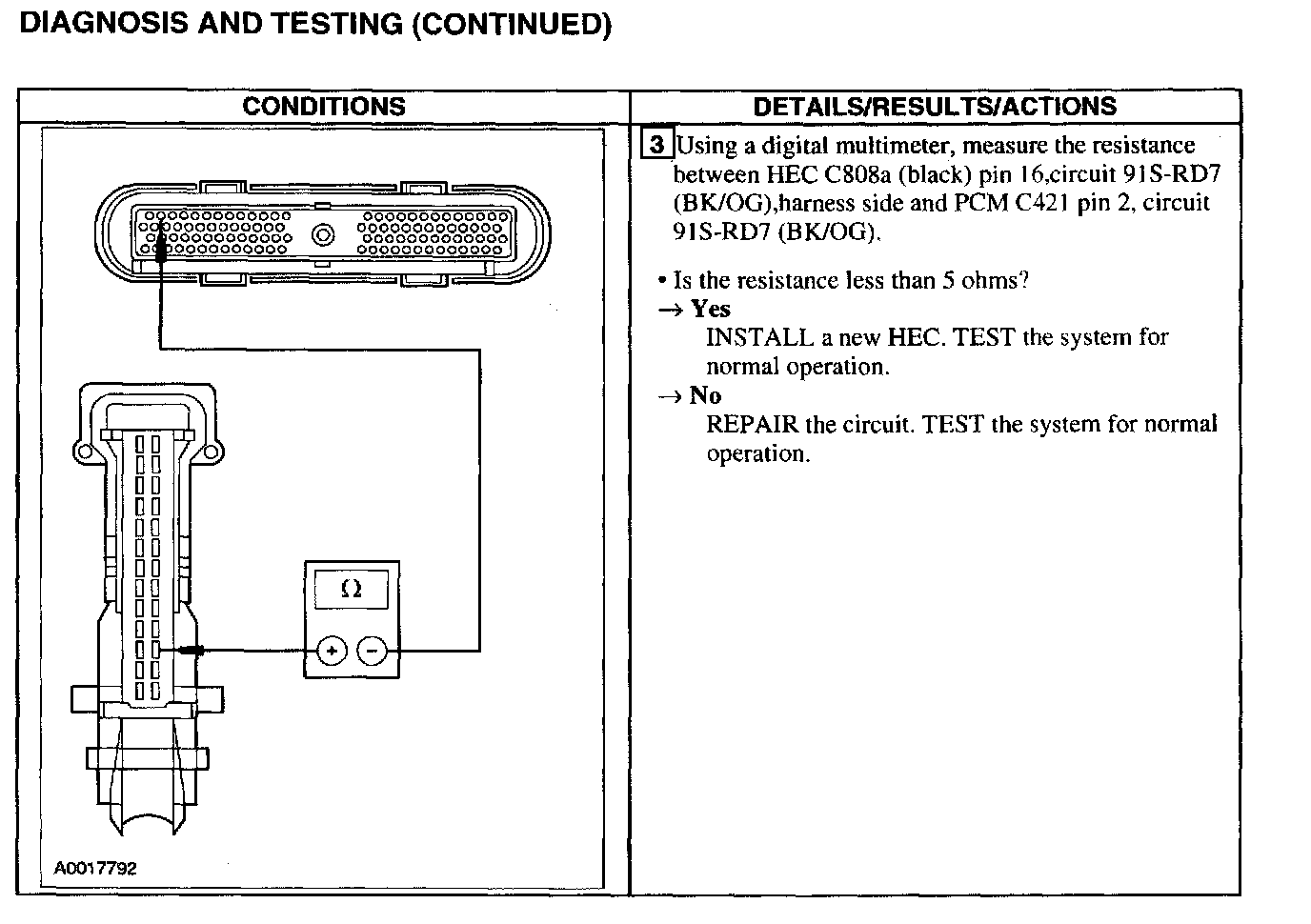

Y2 - Y3:






Y3:
