Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test W: An Indicator Is Inoperative - Turn Signals

Test W: An Indicator Is Inoperative - Turn Signals

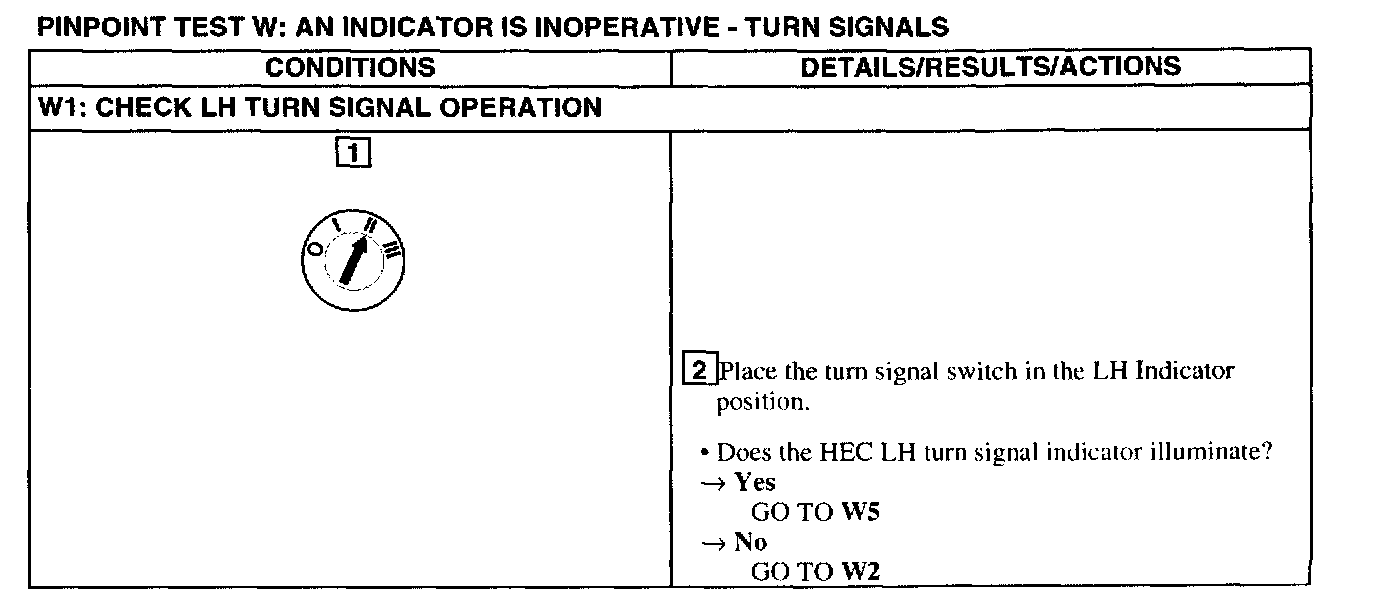

W1:

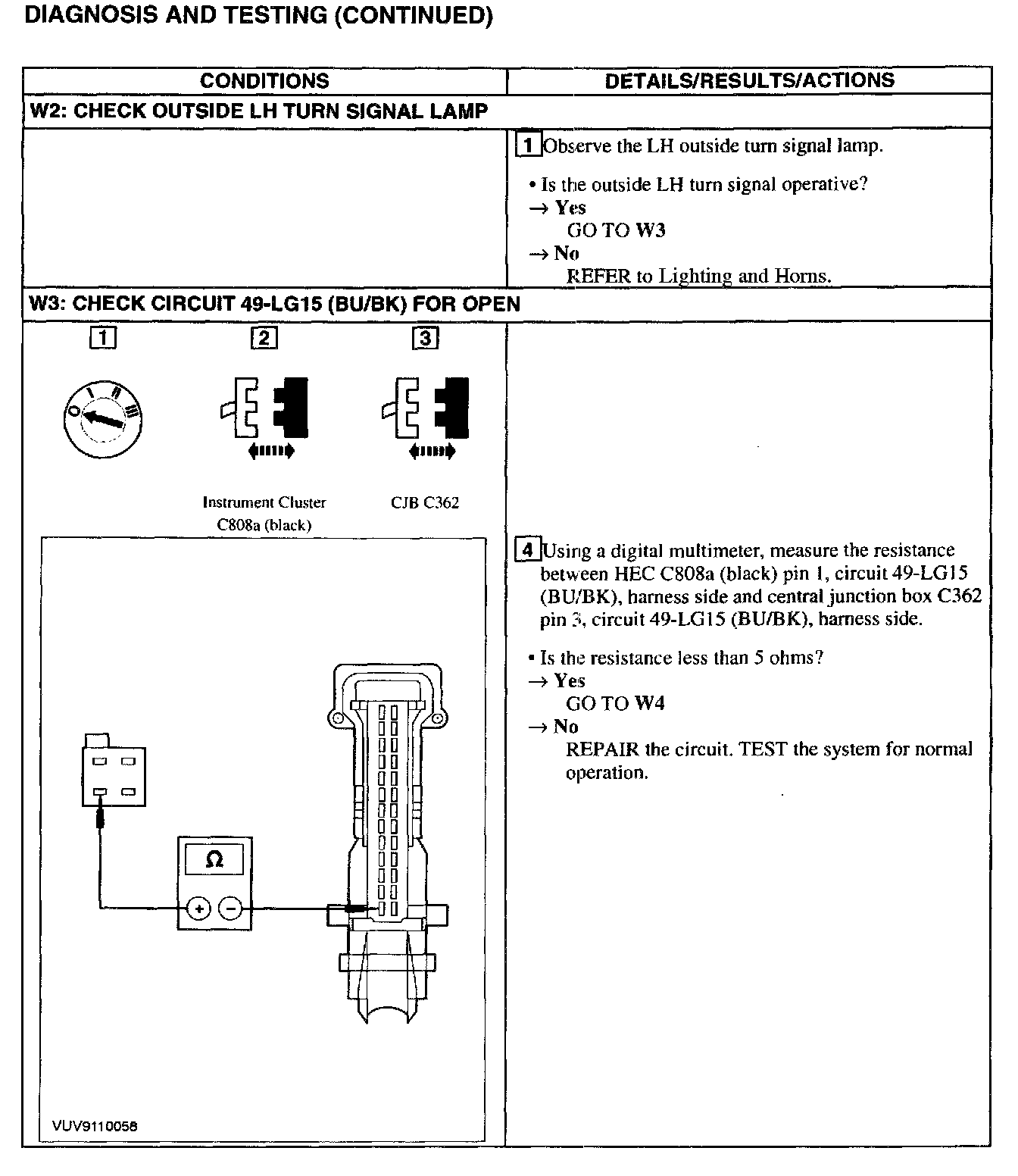

W2 - W3:

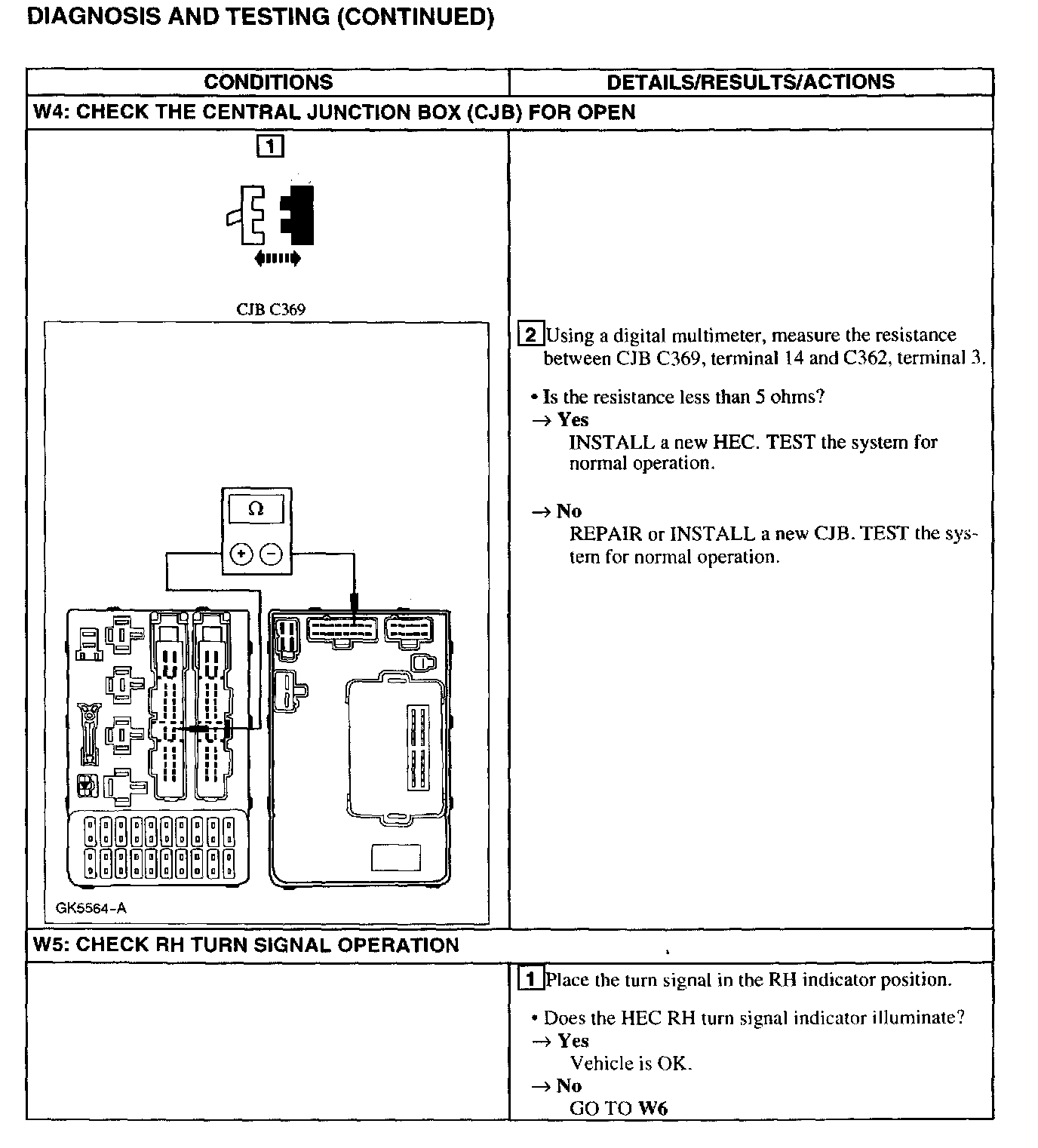

W4 - W5:

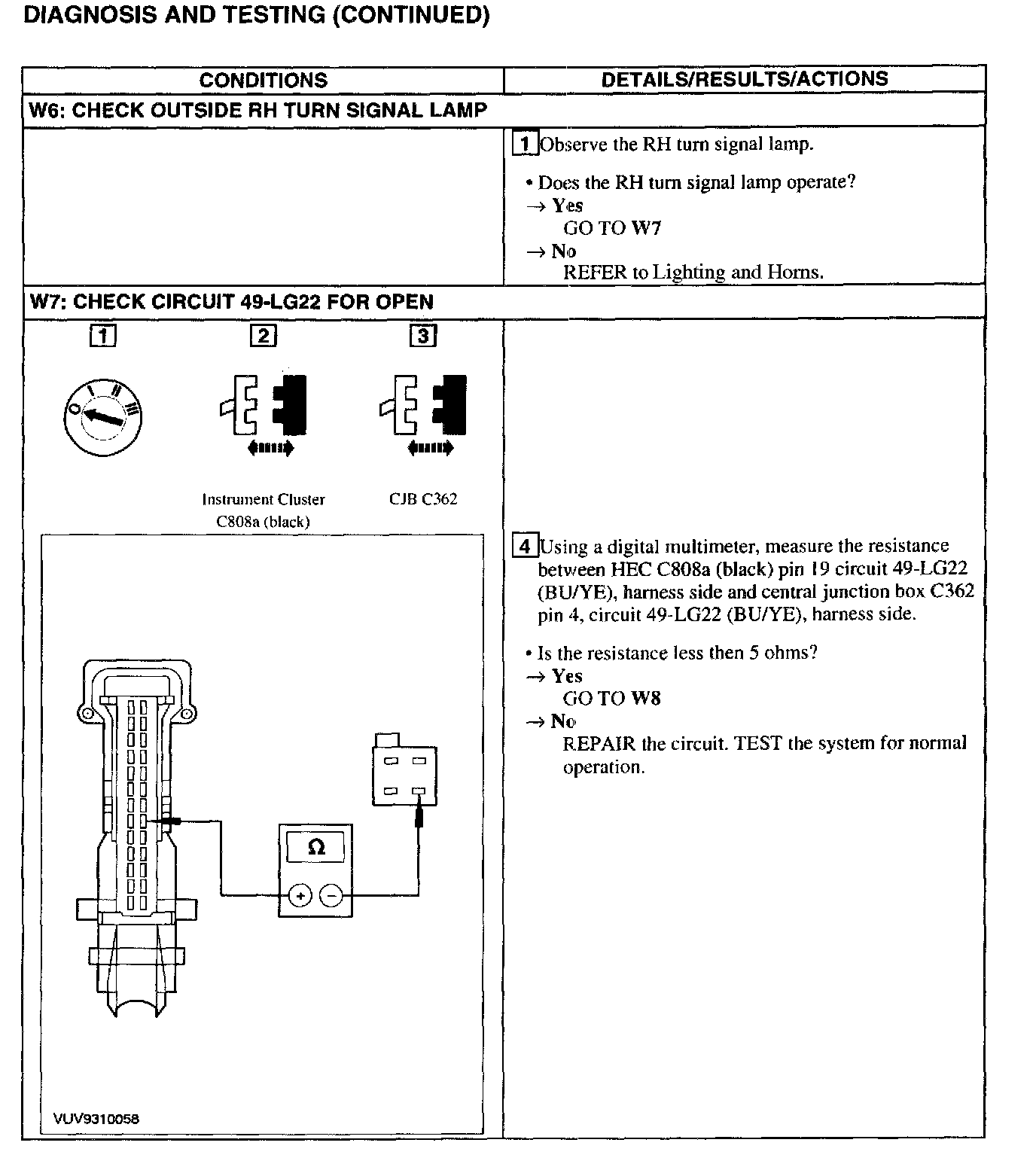

W6 - W7:

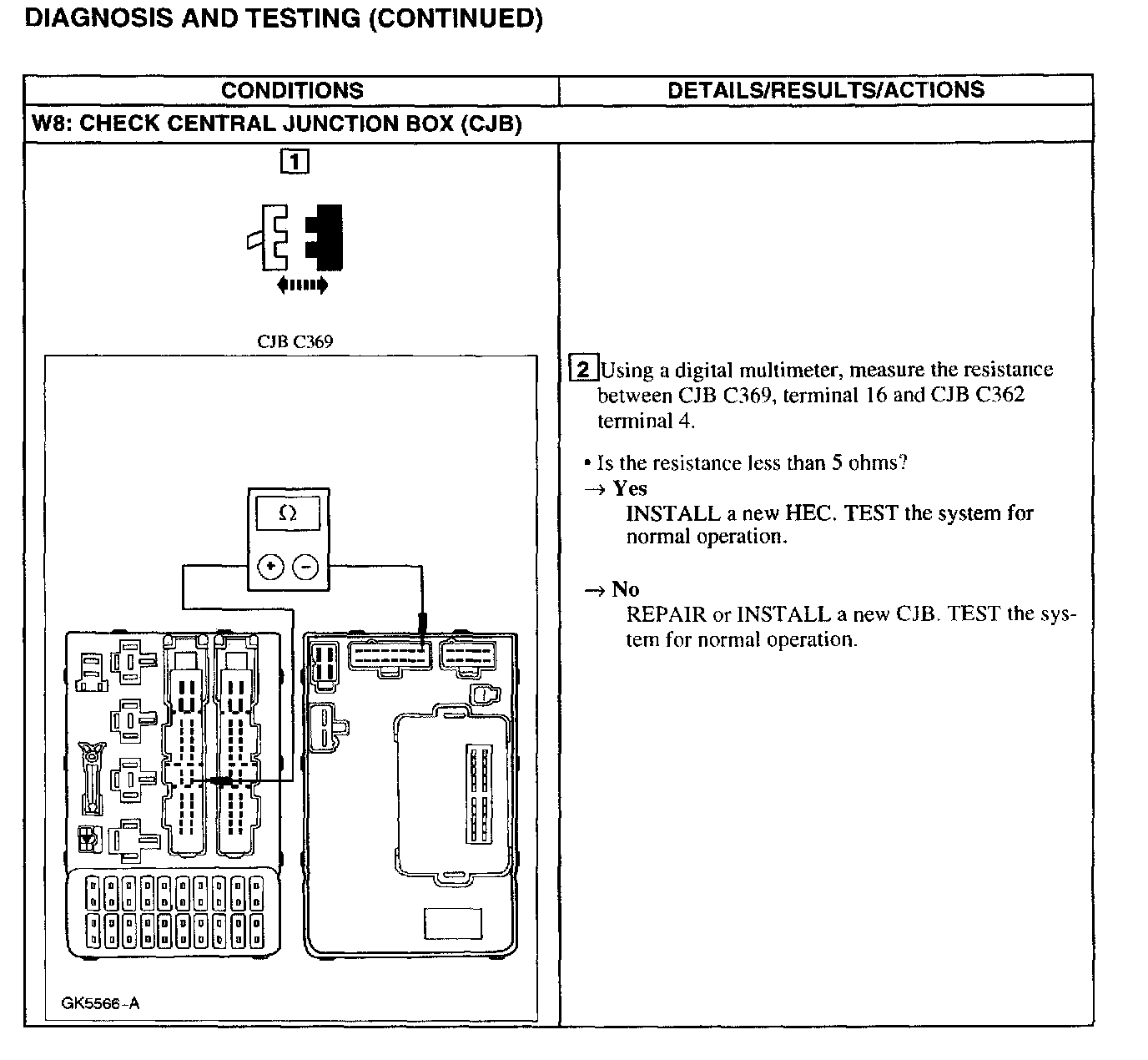

W8:
