Test Q: Safety Belt Warning Indicator Is Always On (Chime Is Operative)
Test Q: Safety Belt Warning Indicator Is Always On (Chime Is Operative)

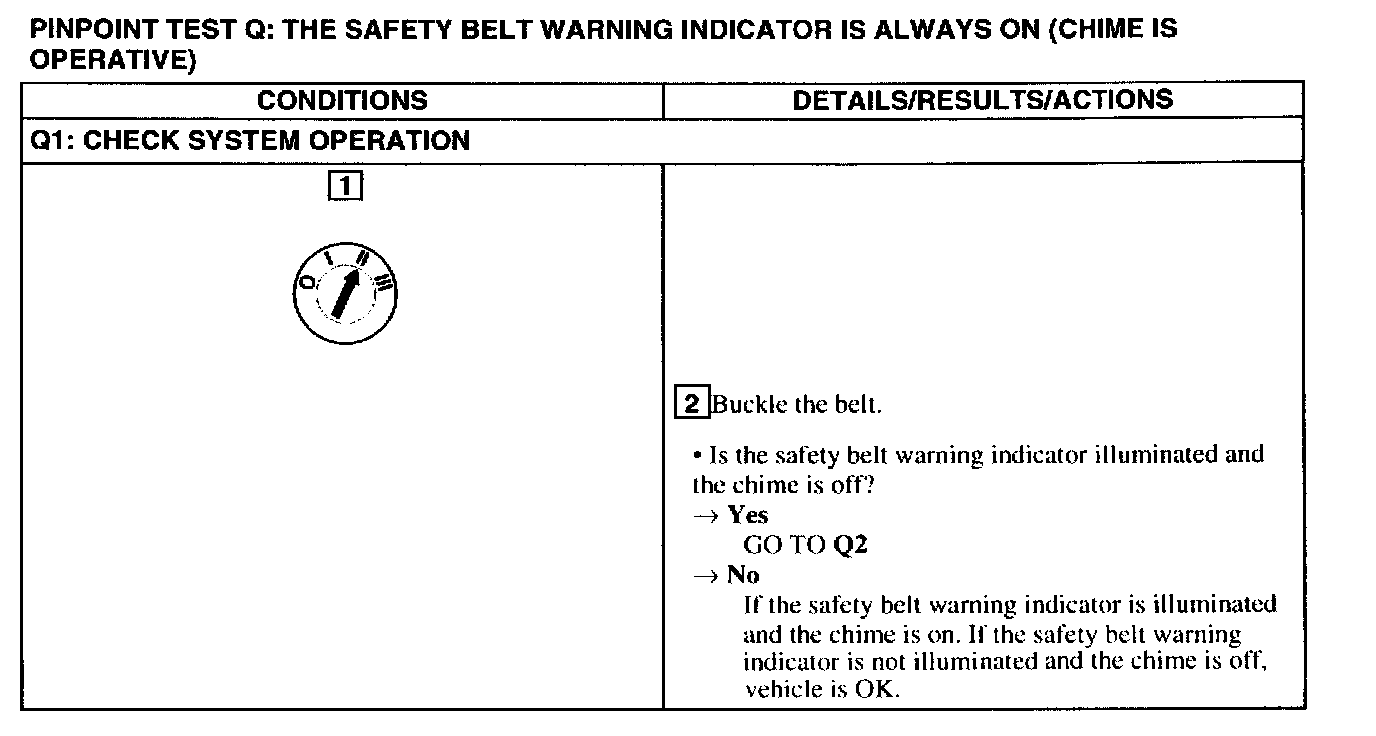

Q1:

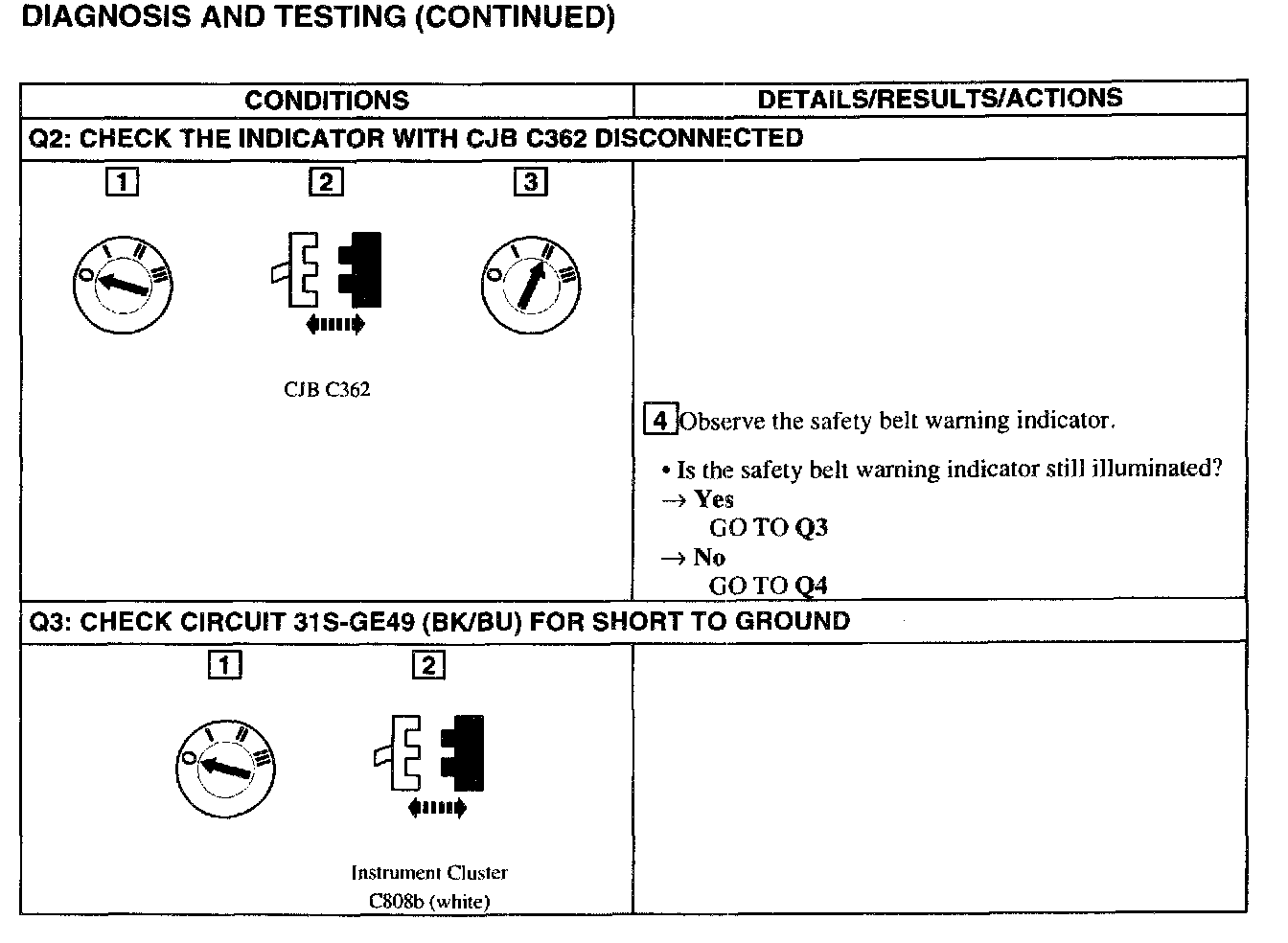

Q2 - Q3:

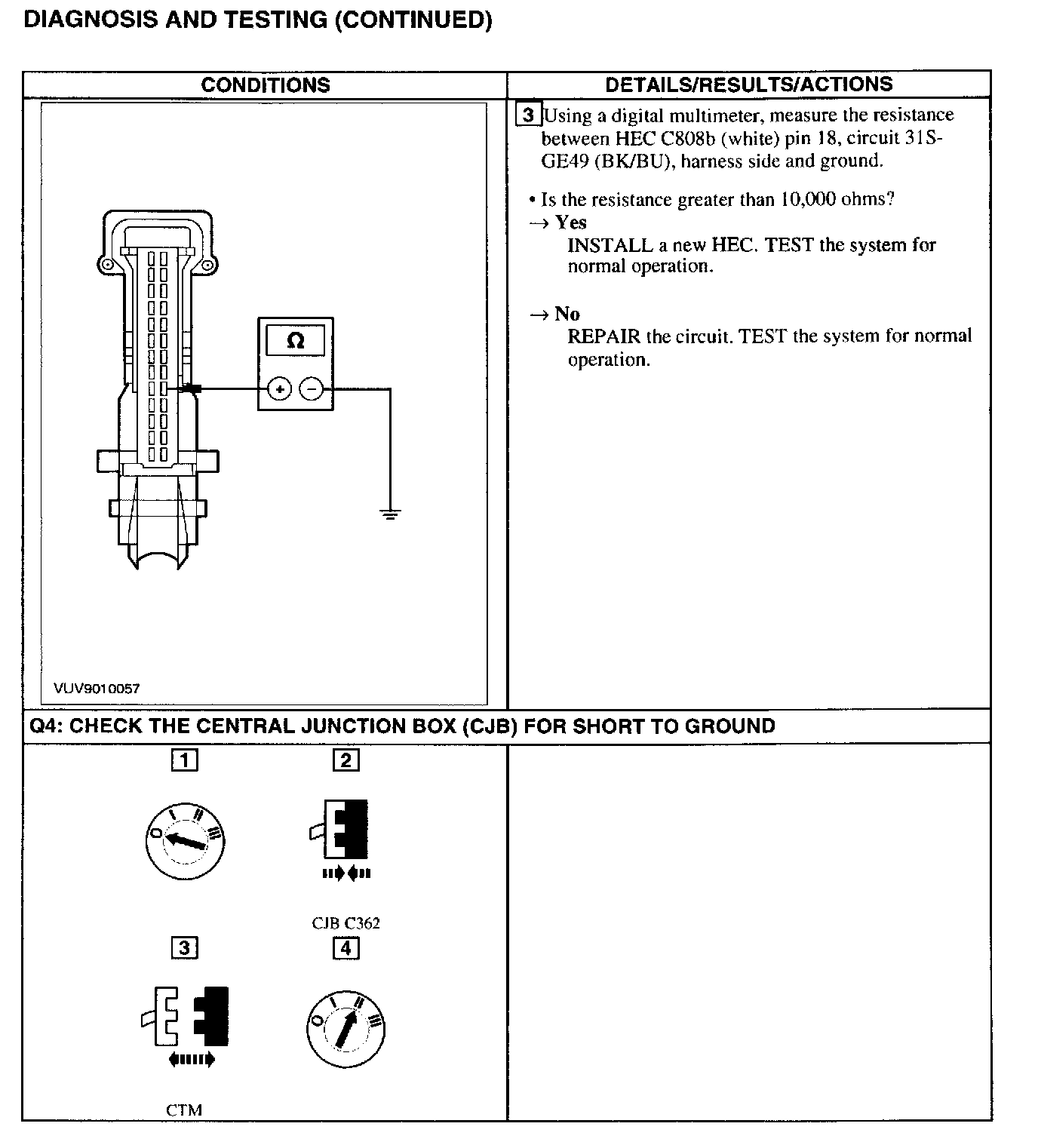

Q3 - Q4:

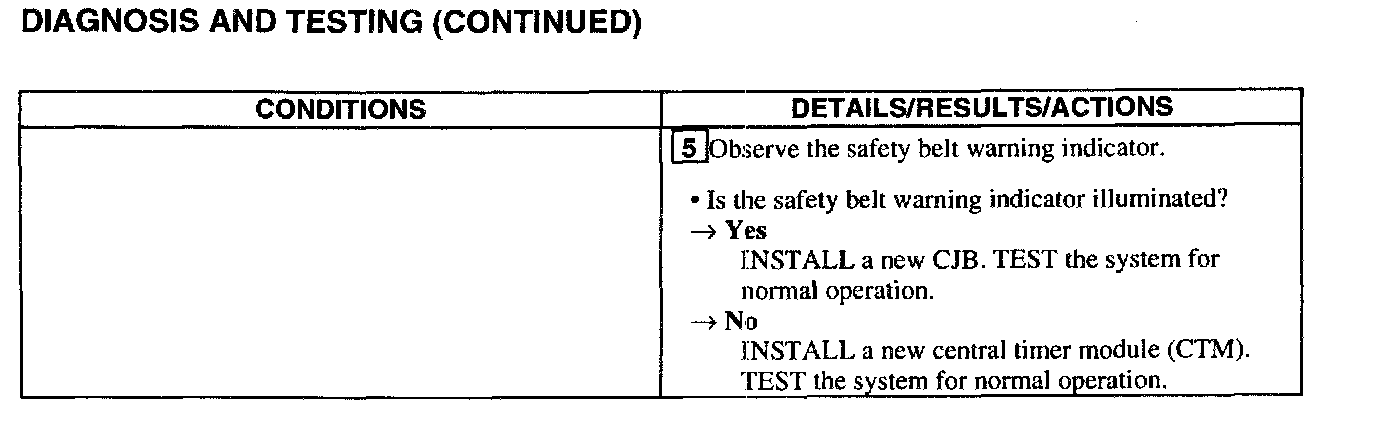

Q4:
