Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test L: An Indicator Is Inoperative/Always On Door Ajar Warning Indicator

Test L: An Indicator Is Inoperative/Always On Door Ajar Warning Indicator

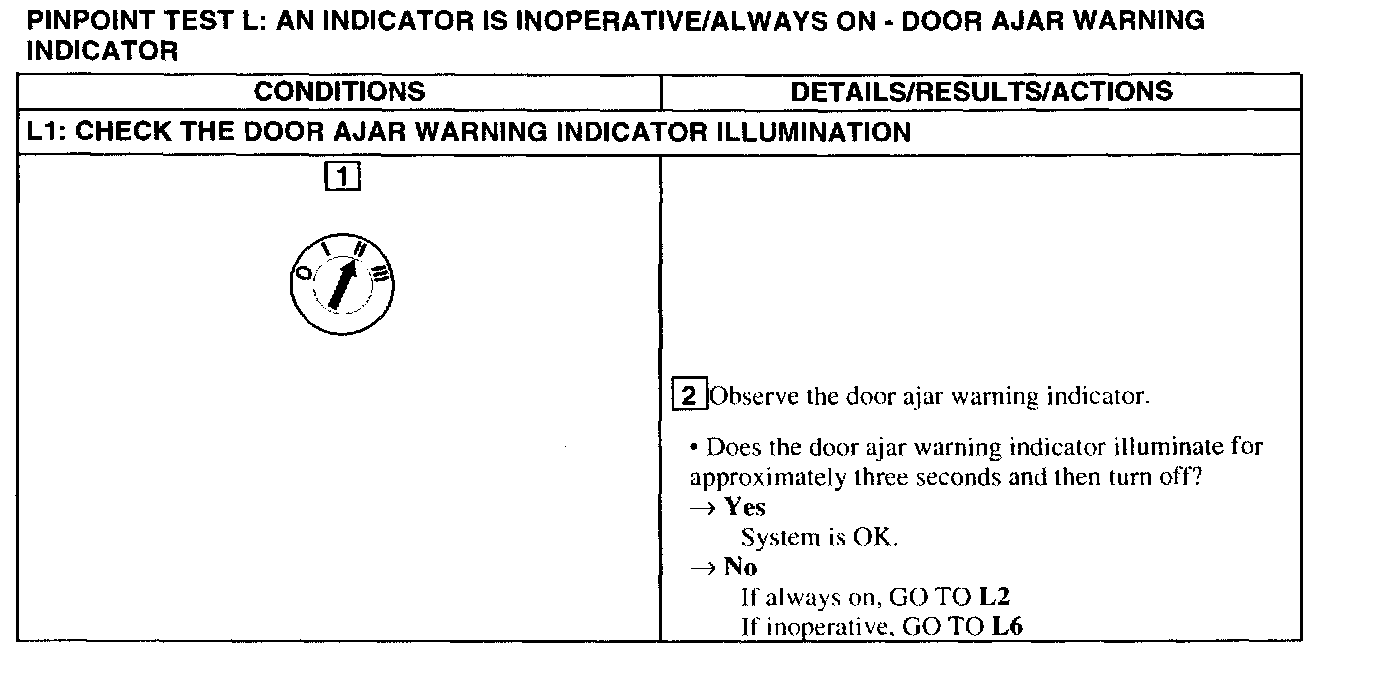

L1:

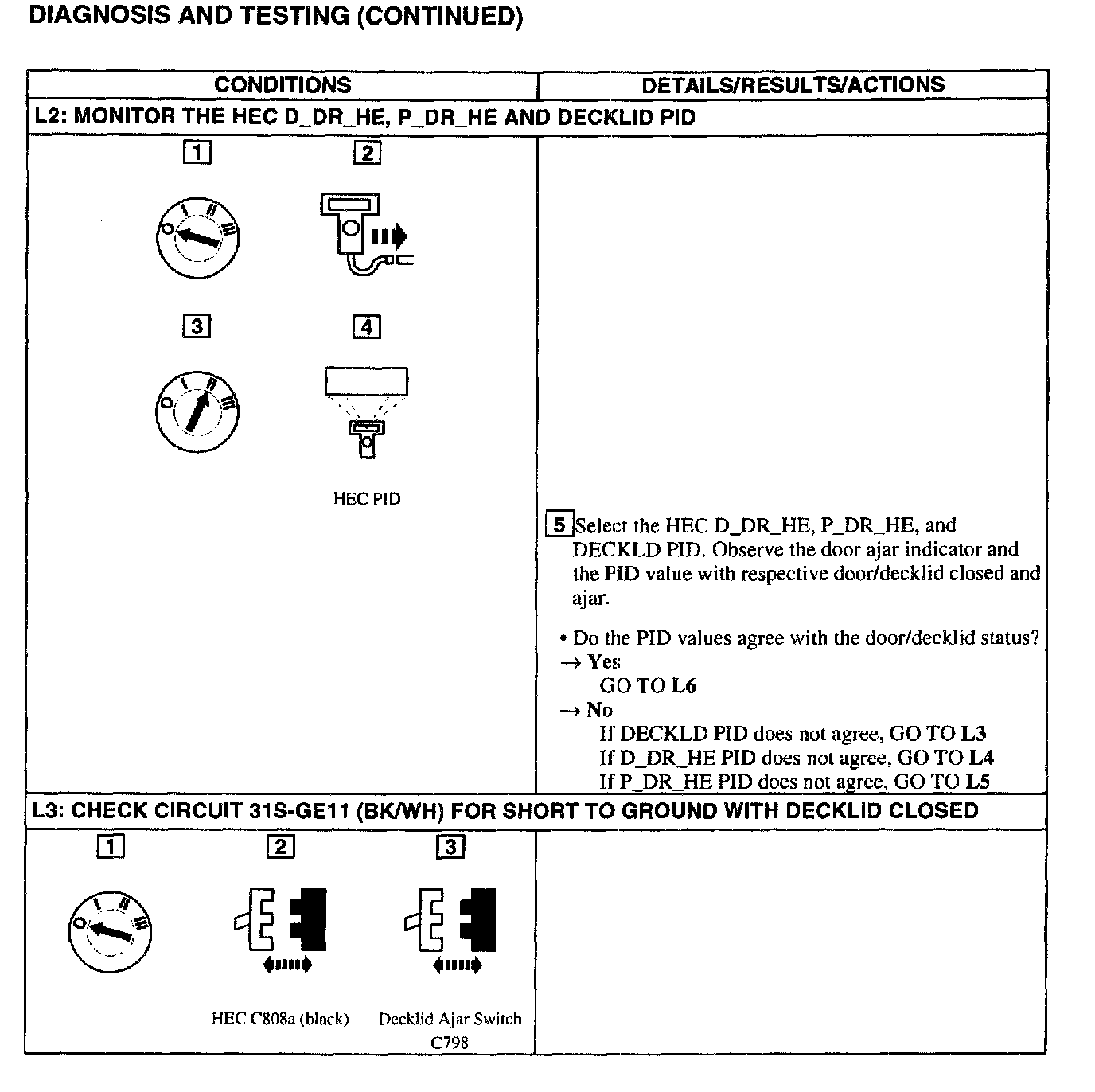

L2 - L3:

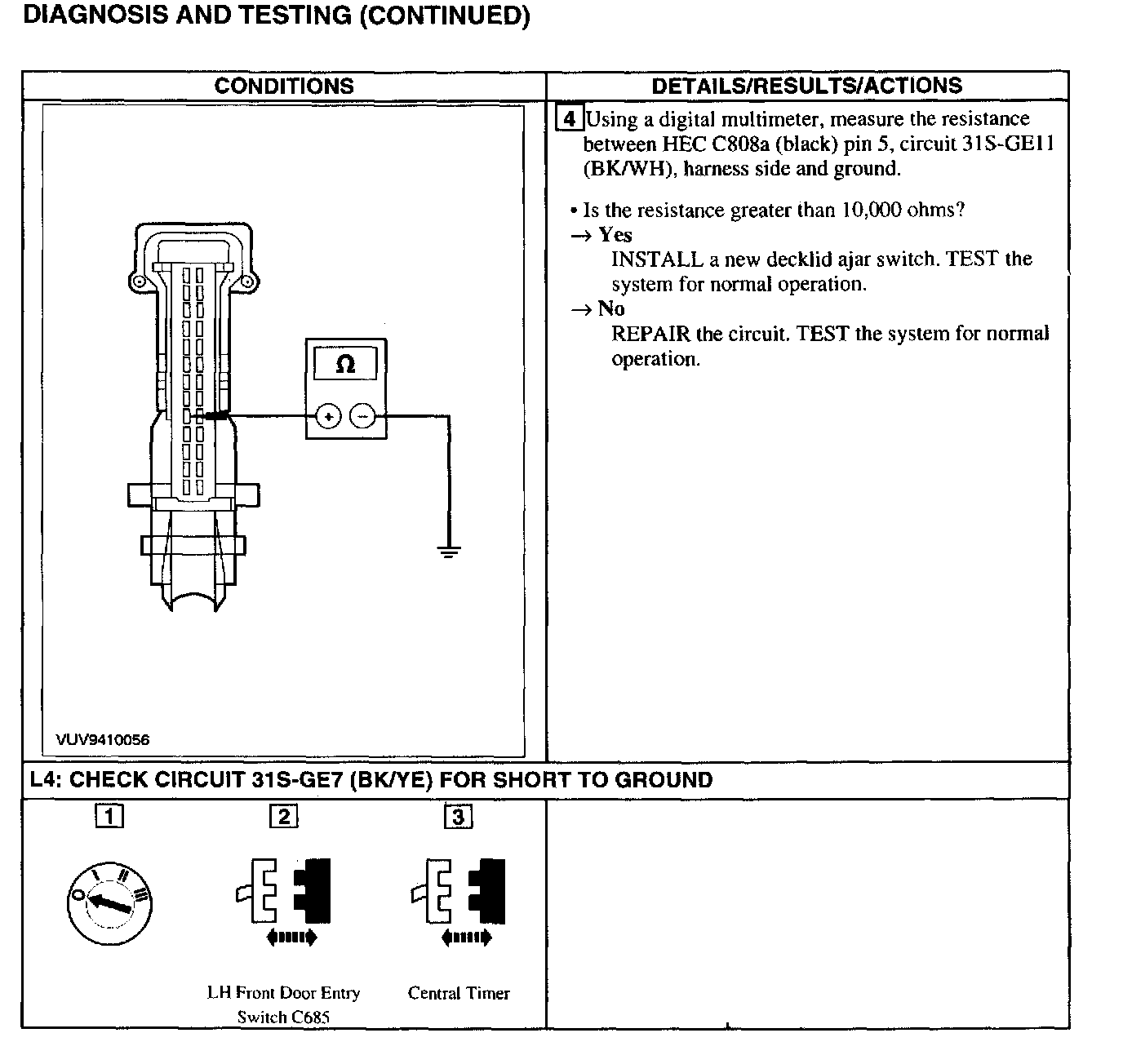

L3 - L4:

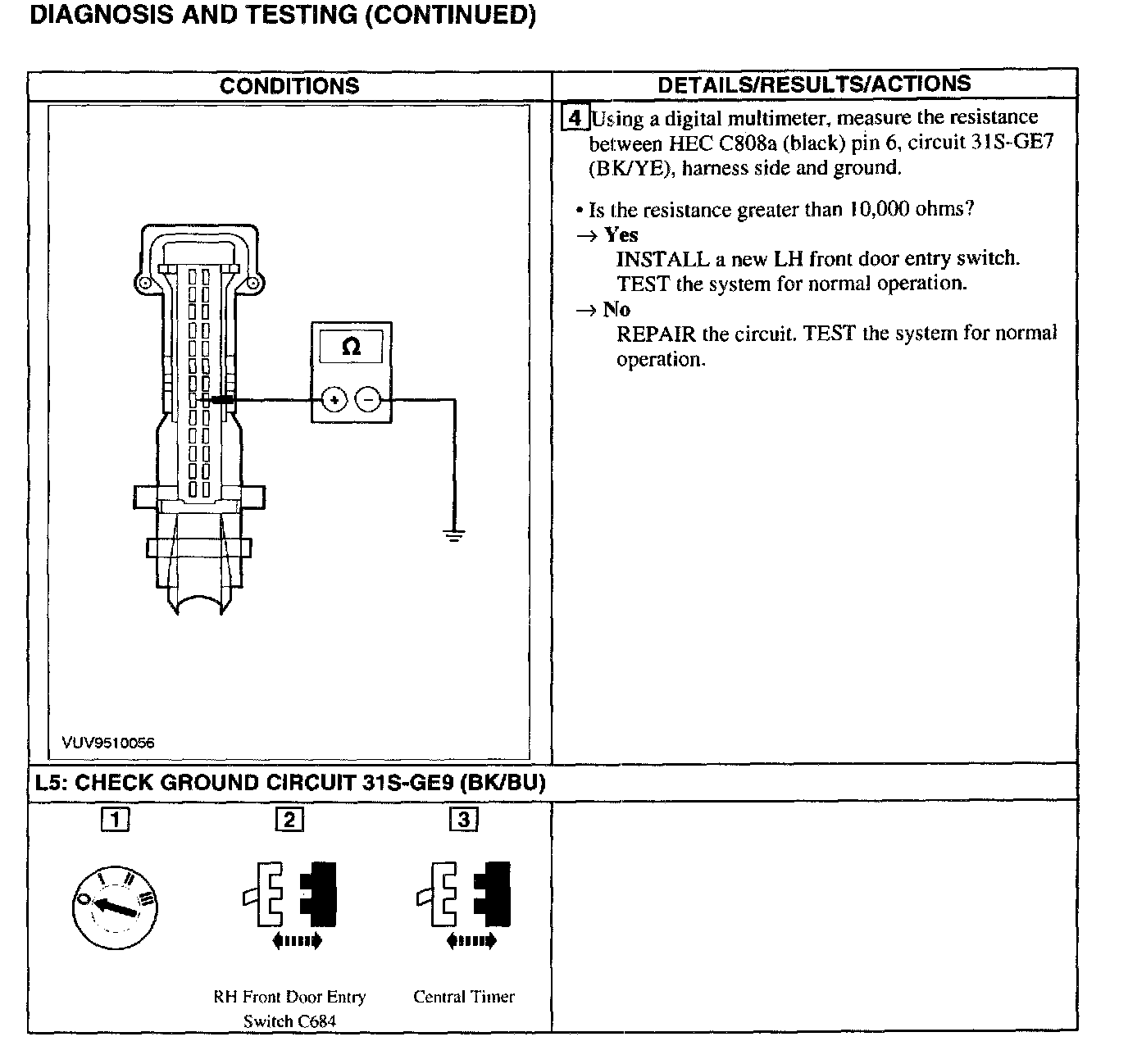

L4 - L5:

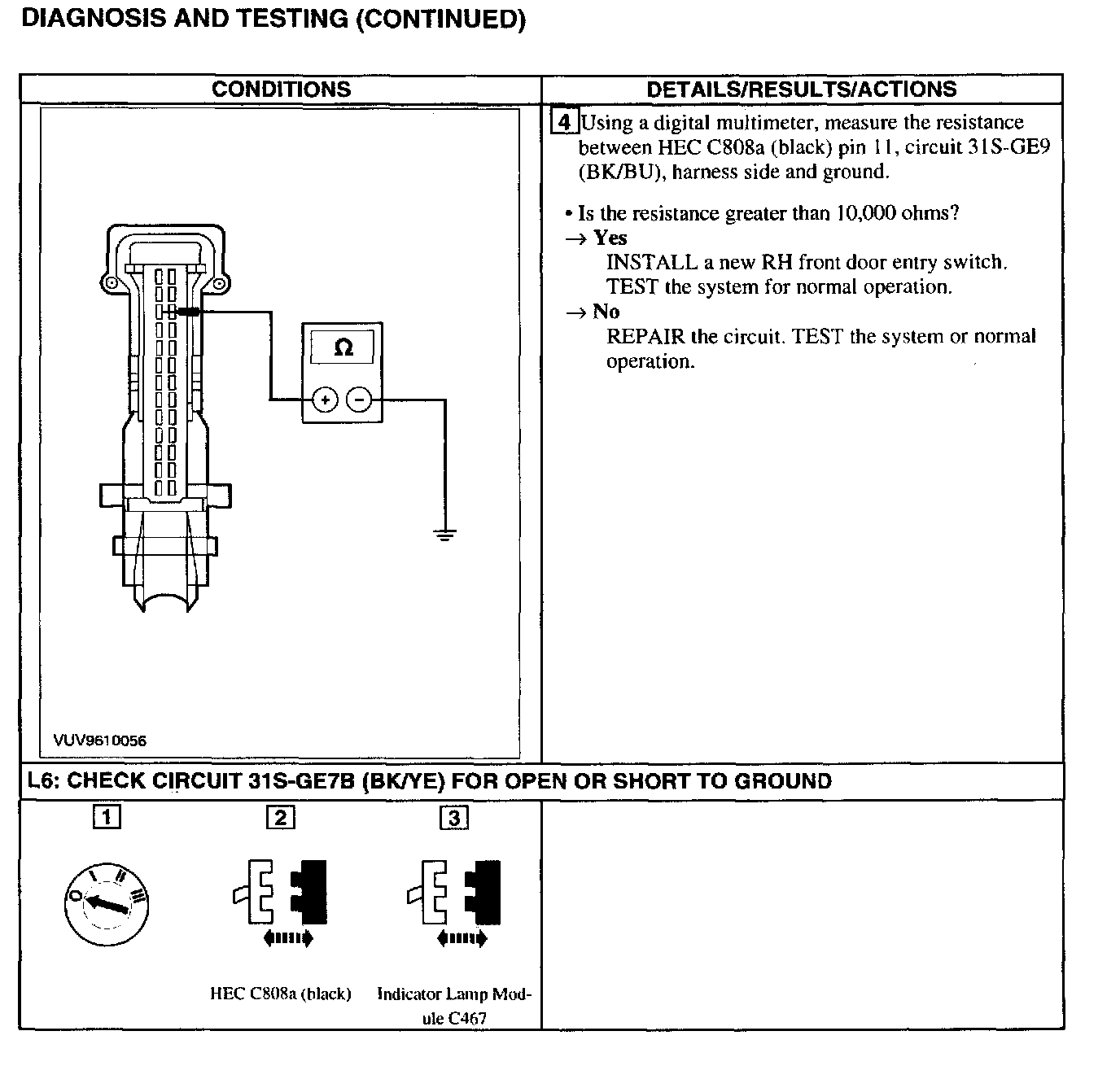

L5 - L6:

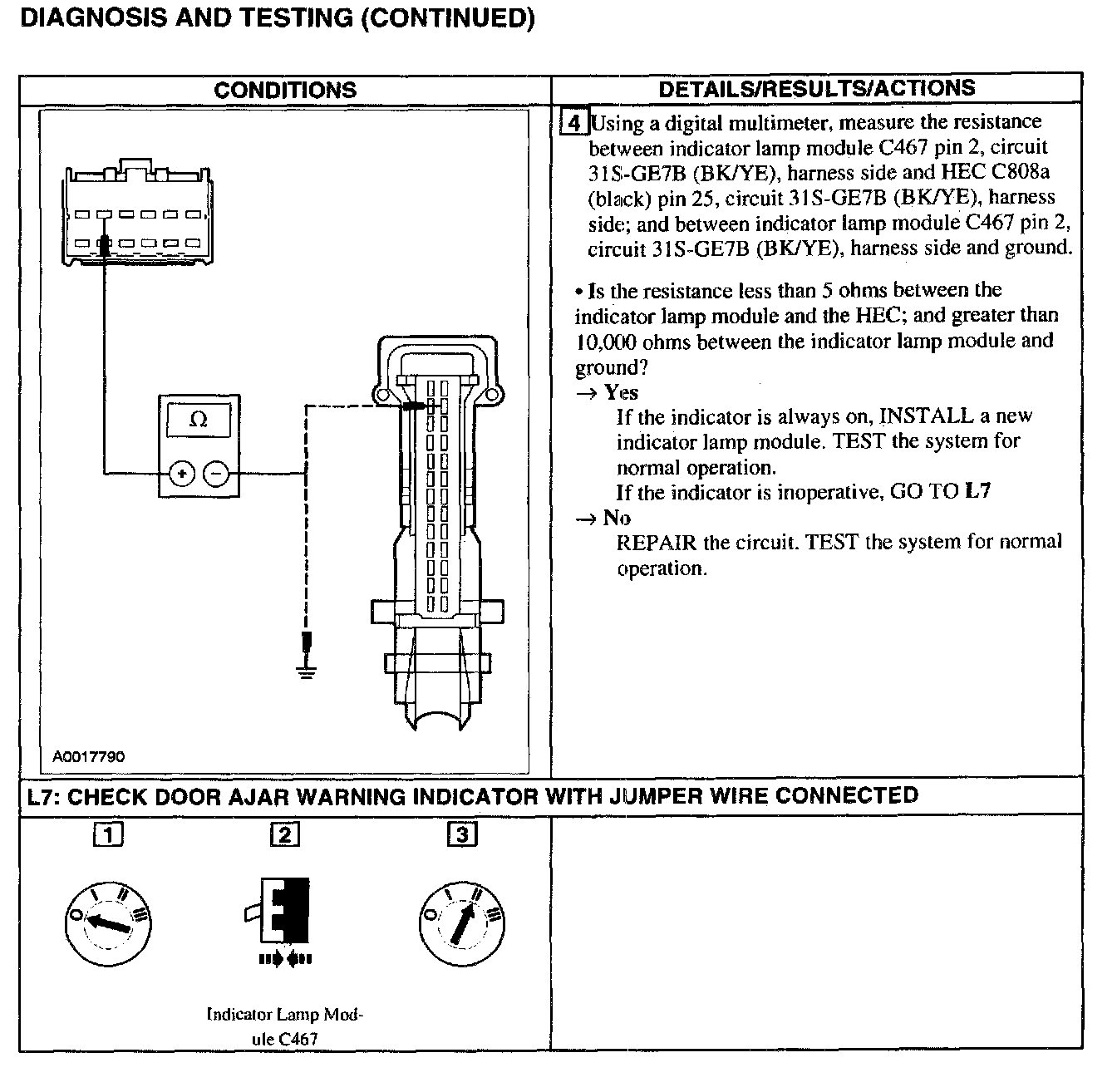

L6 - L7:

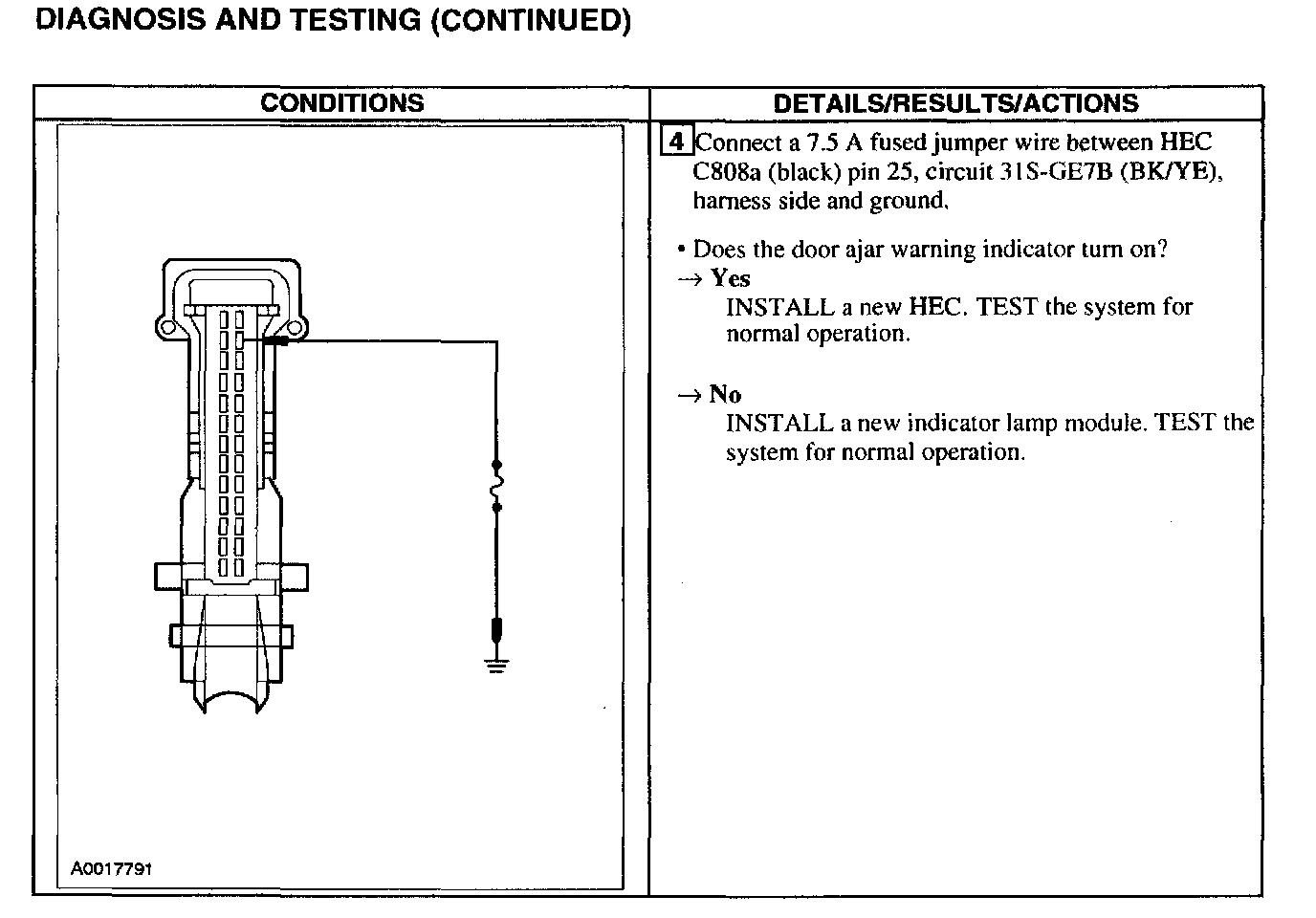

L7:
