Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test K: An Indicator Is Inoperative/Always On - Low Washer Fluid Level Warning Indicator

Test K: An Indicator Is Inoperative/Always On - Low Washer Fluid Level Warning Indicator

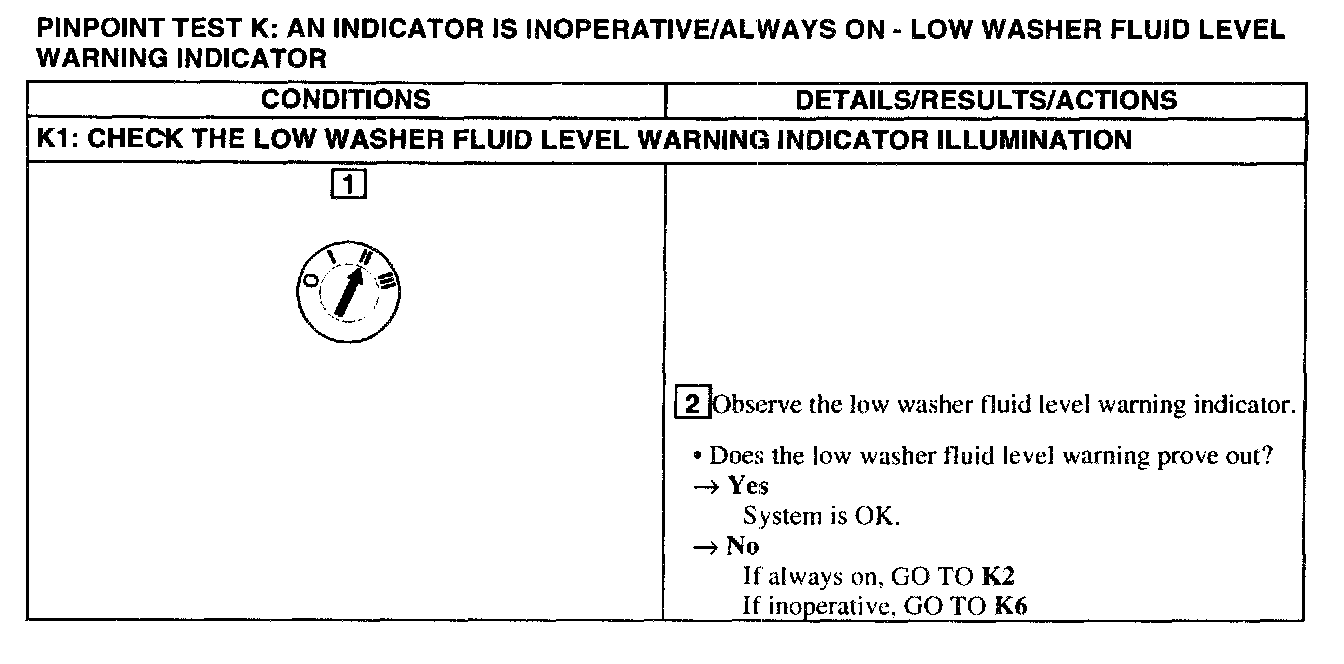

K1:

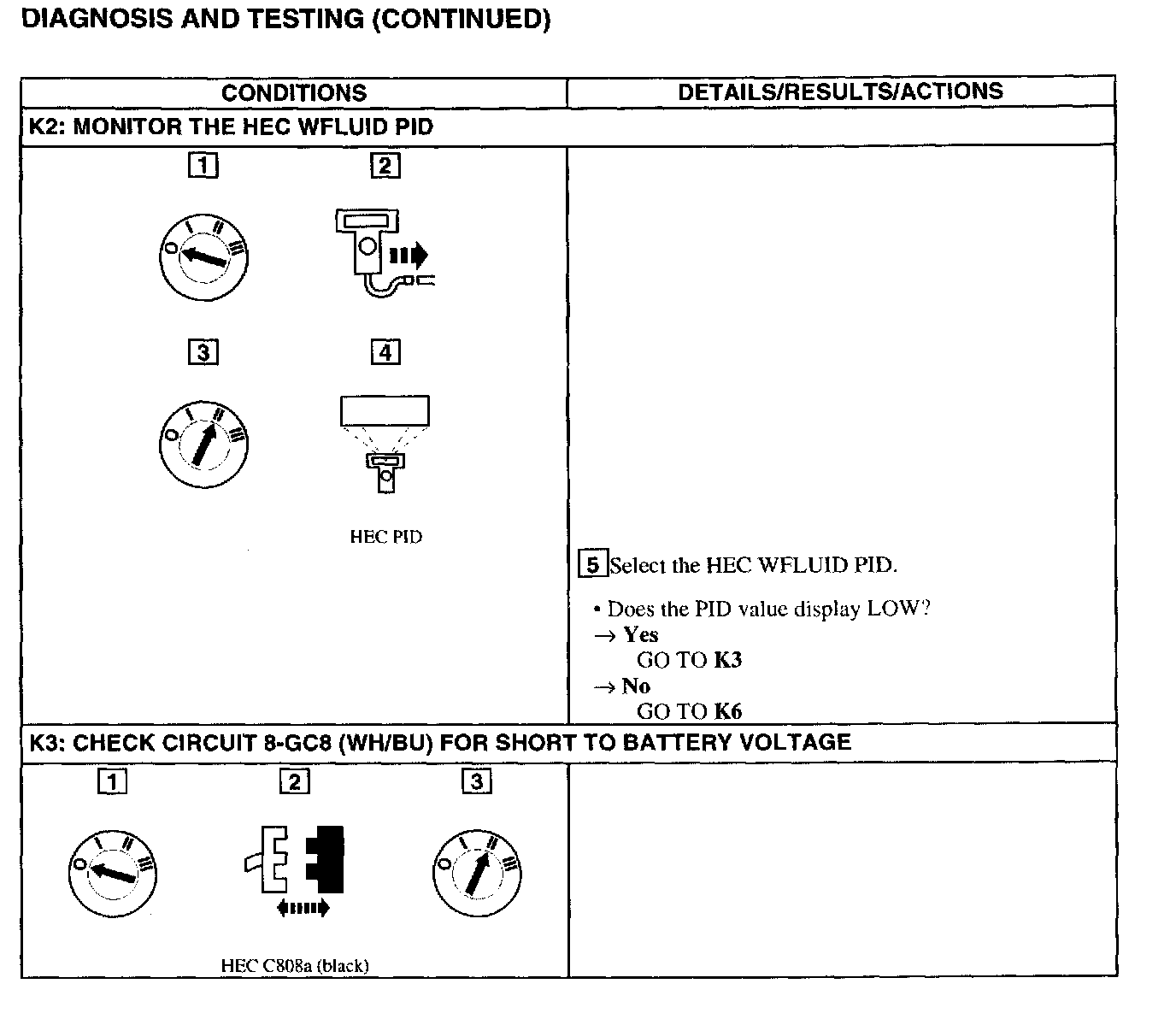

K2 - K3:

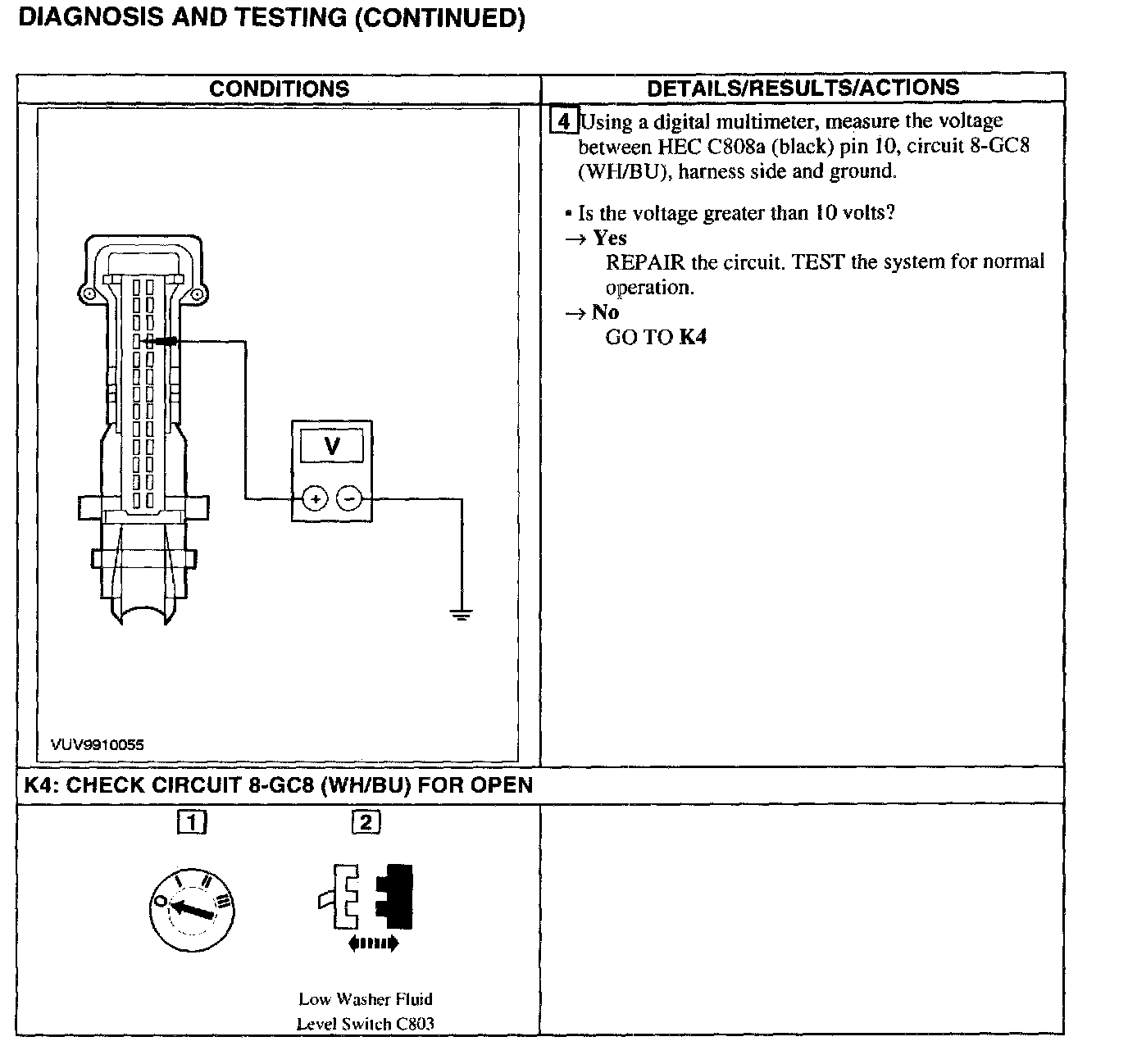

K3 - K4:

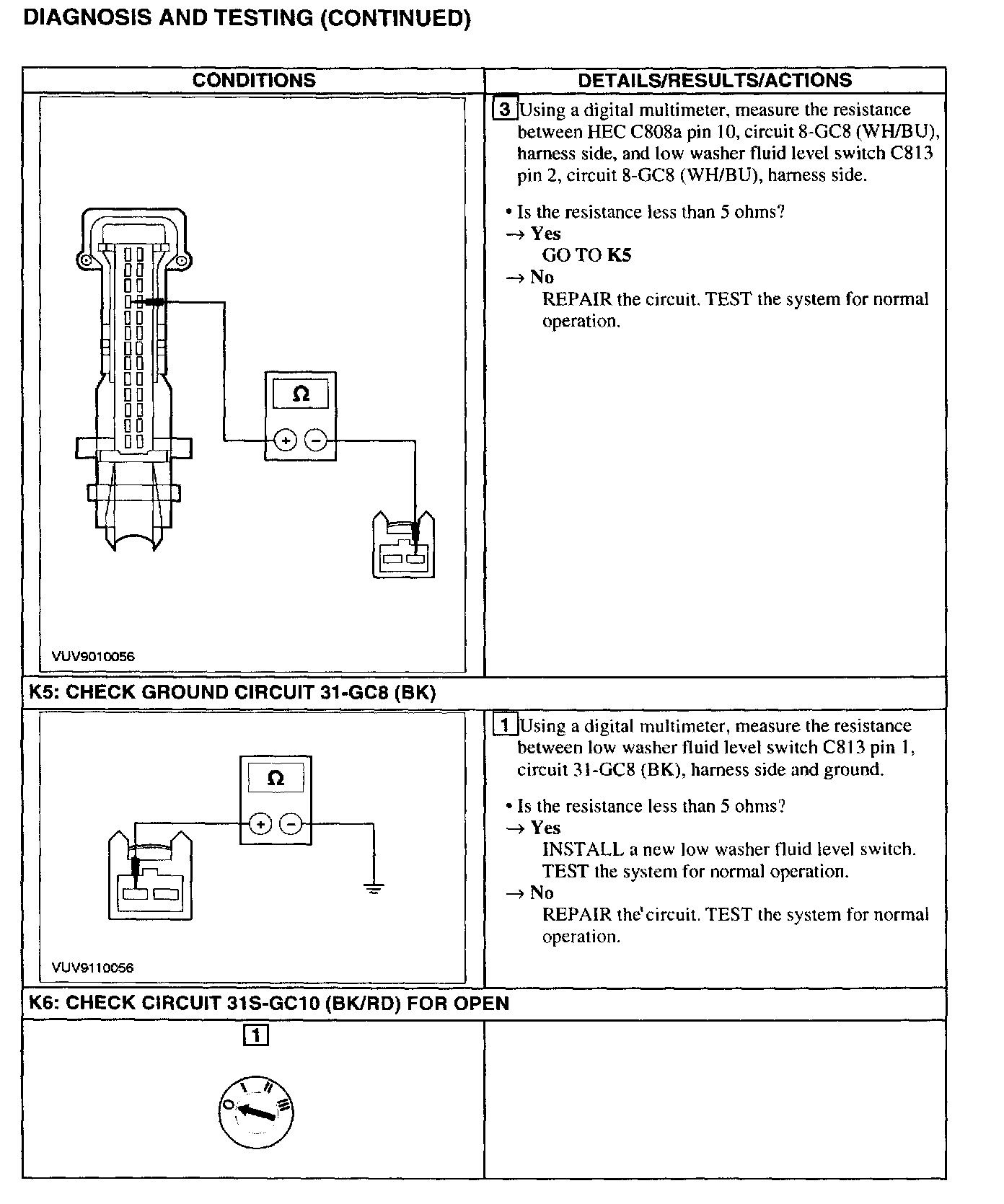

K4 - K6:

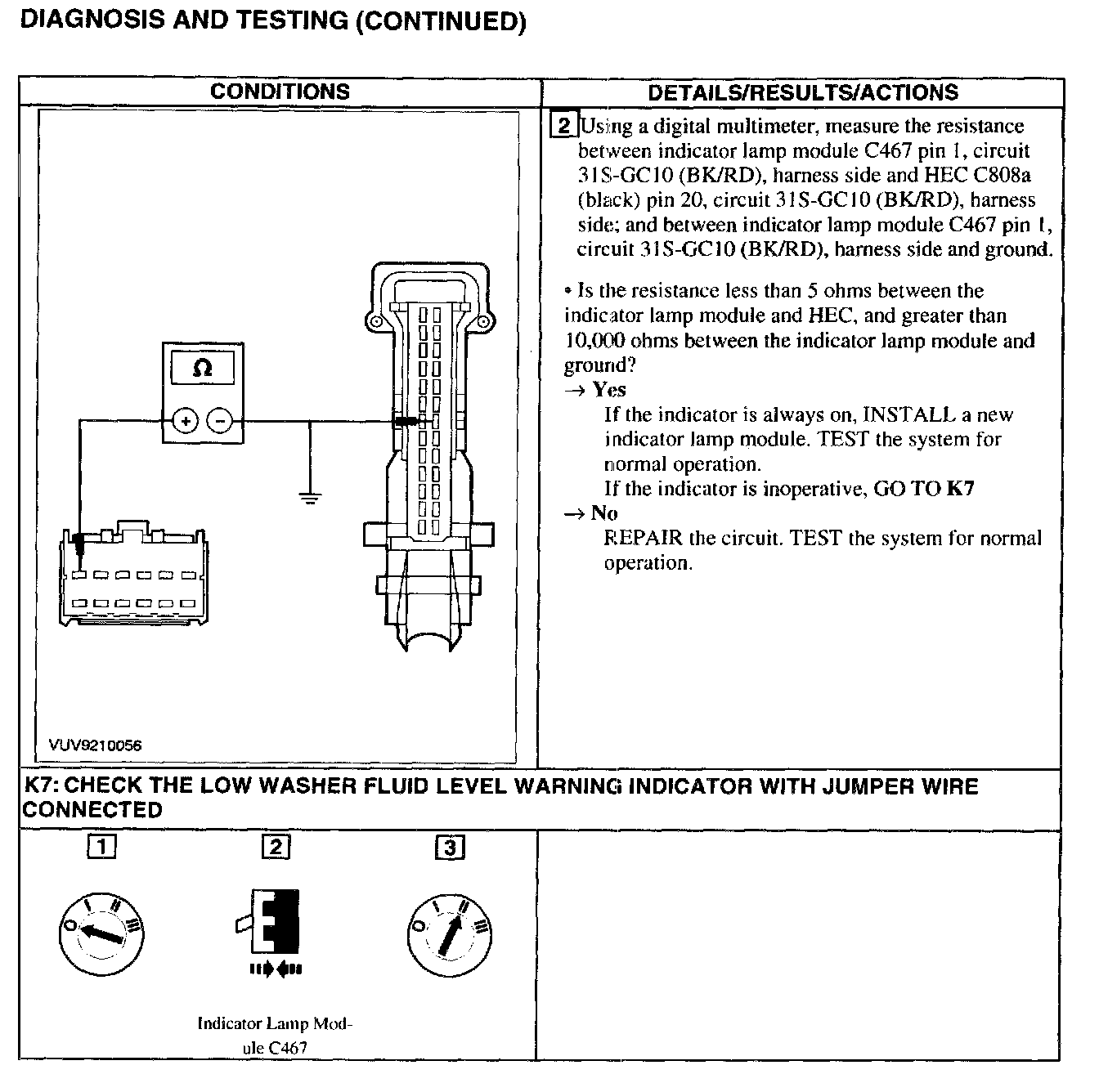

K6 - K7:

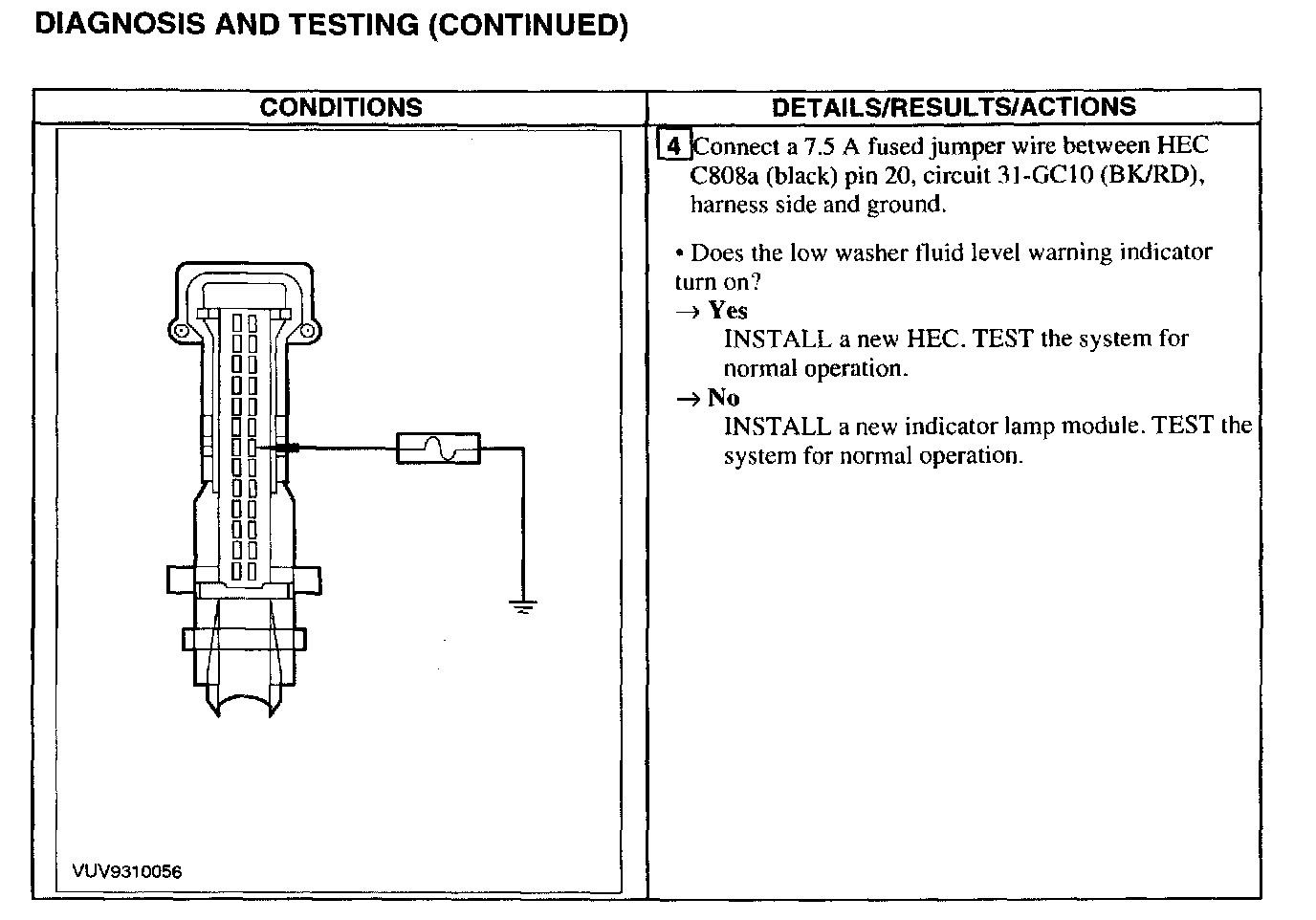

K7:
