Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test J: An Indicator Is Inoperative/Always On Brake Pad Wear Indicator

Test J: An Indicator Is Inoperative/Always On Brake Pad Wear Indicator

J1:

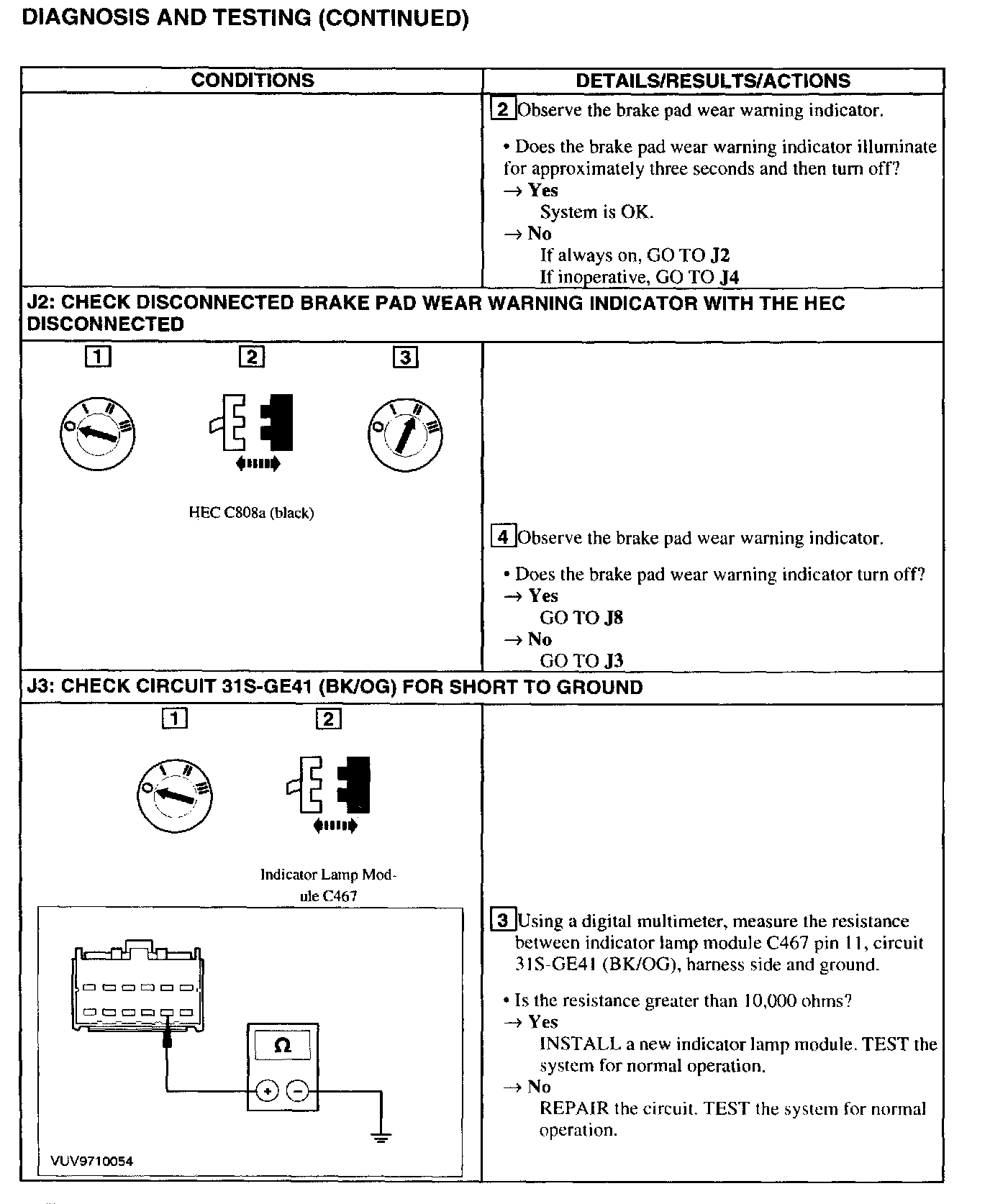

J1 - J3:

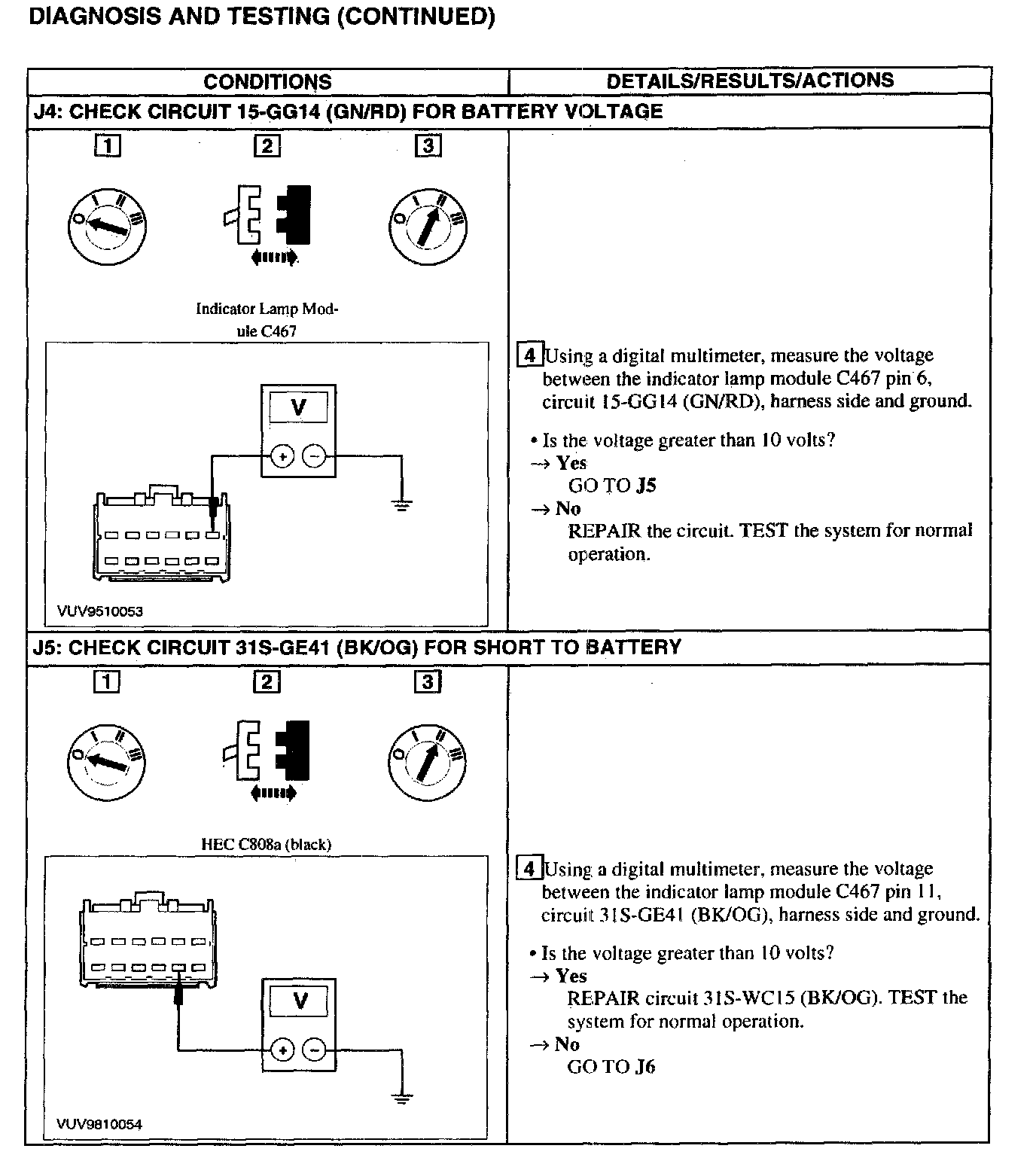

J4 - J5:

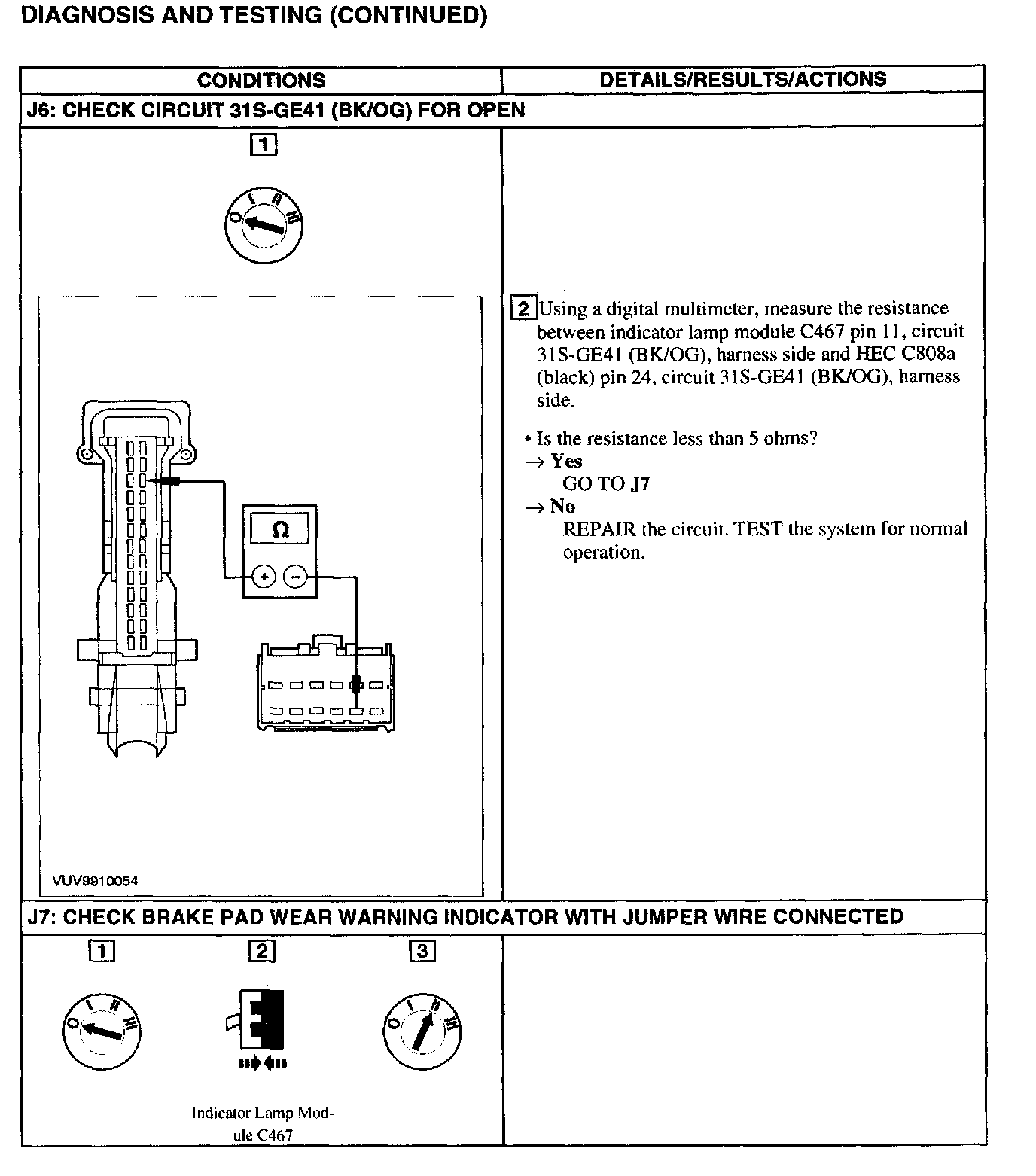

J6 - J7:






J7 - J8:

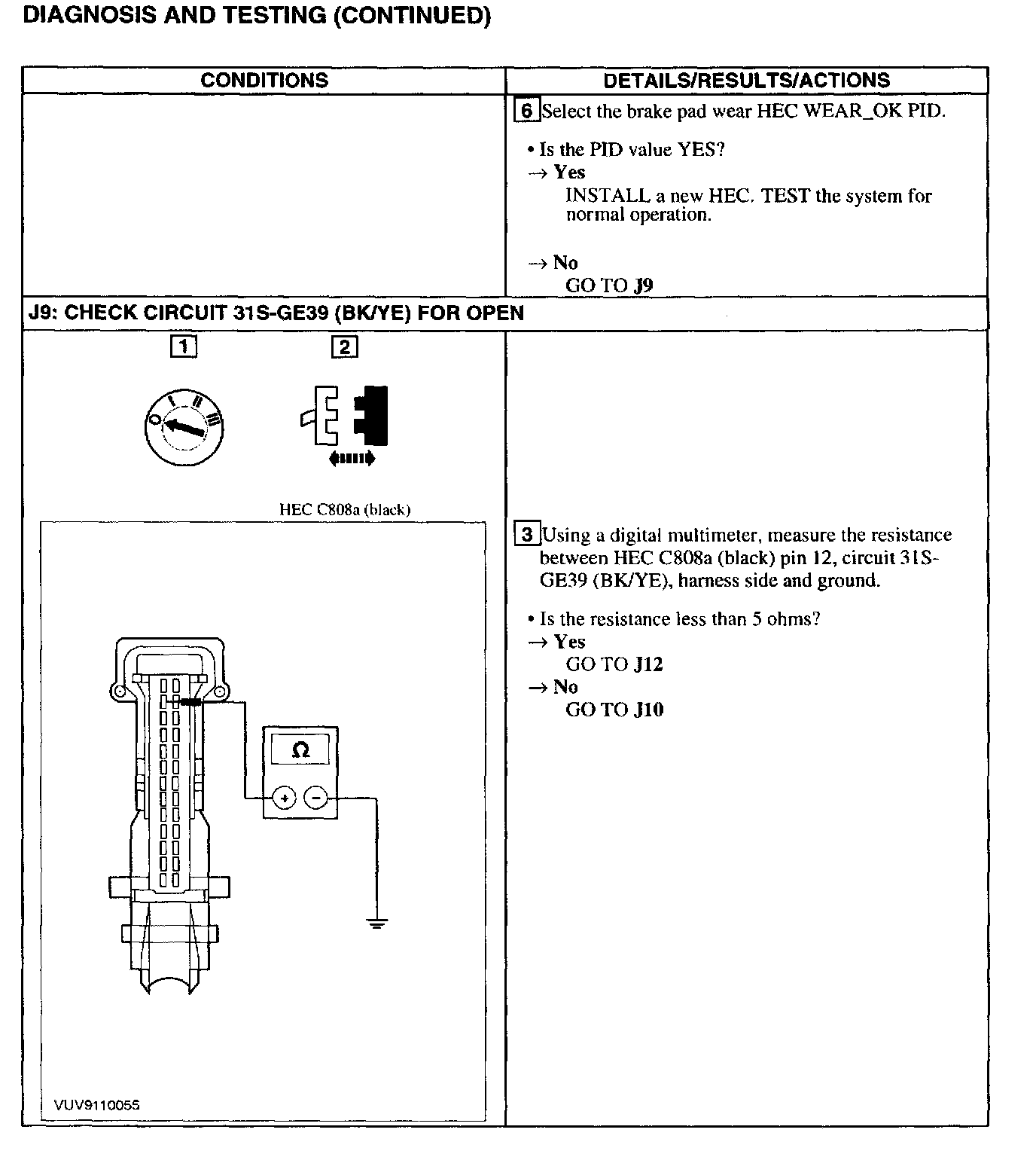

J8 - J9:

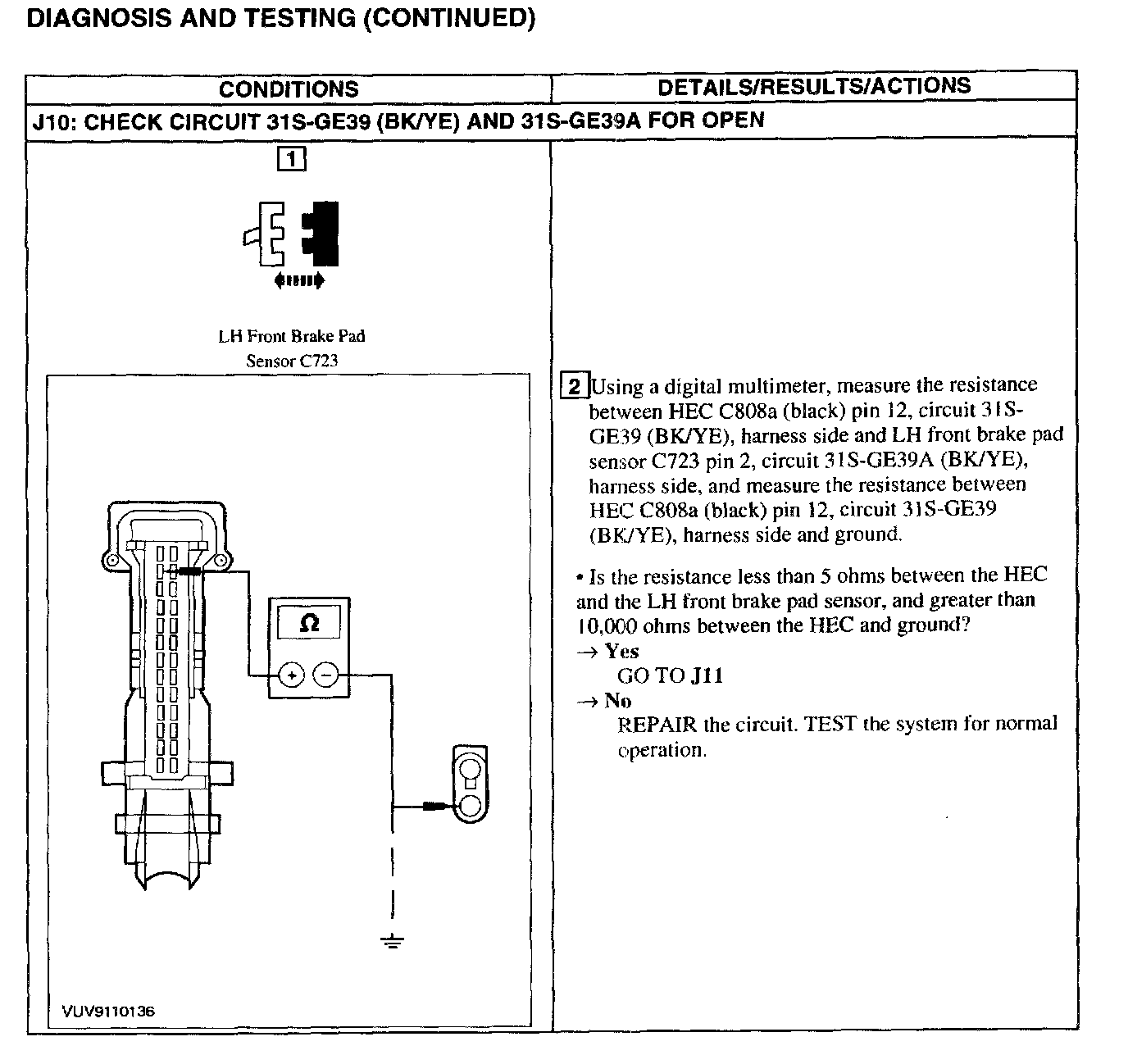

J10:

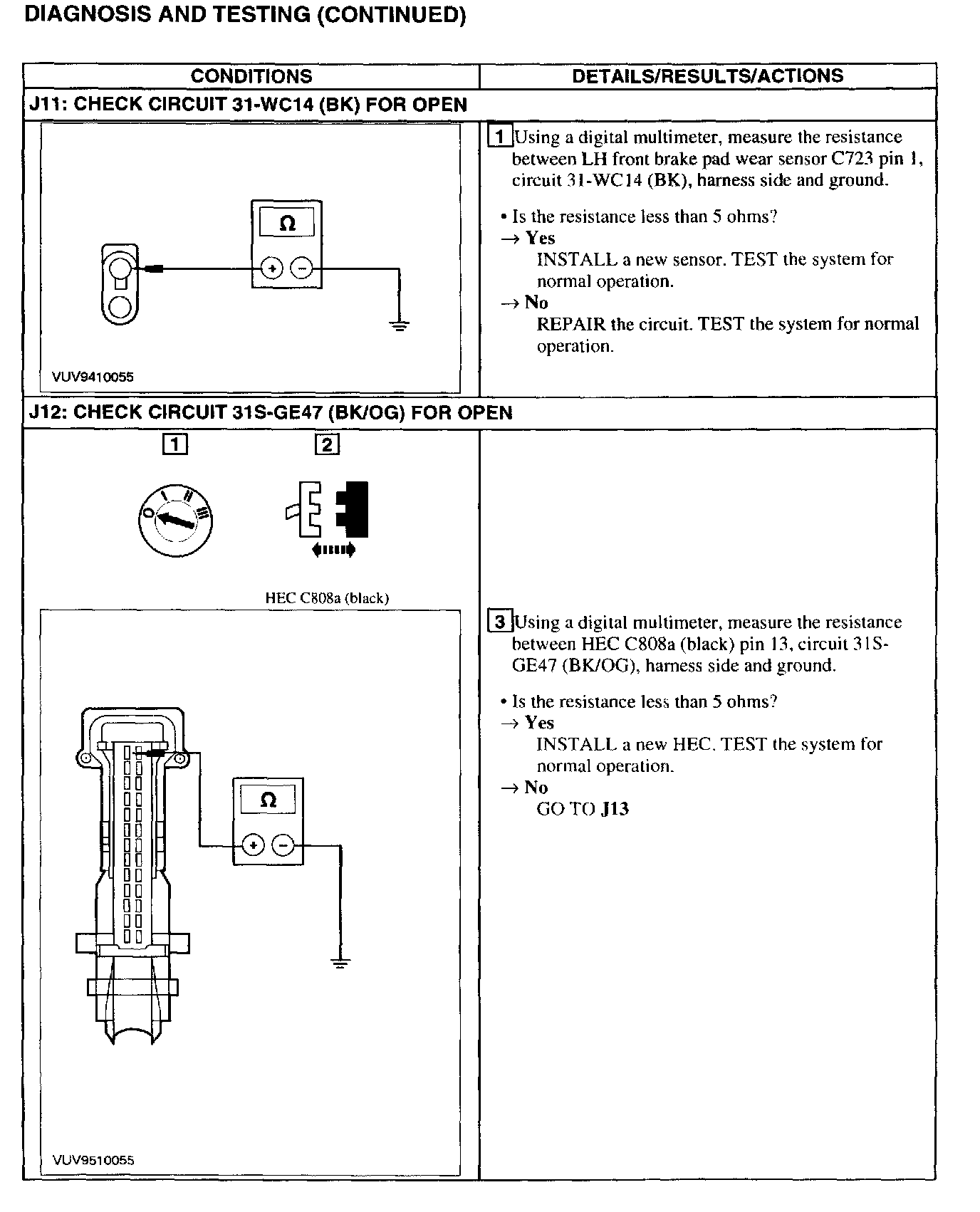

J11 - J12:

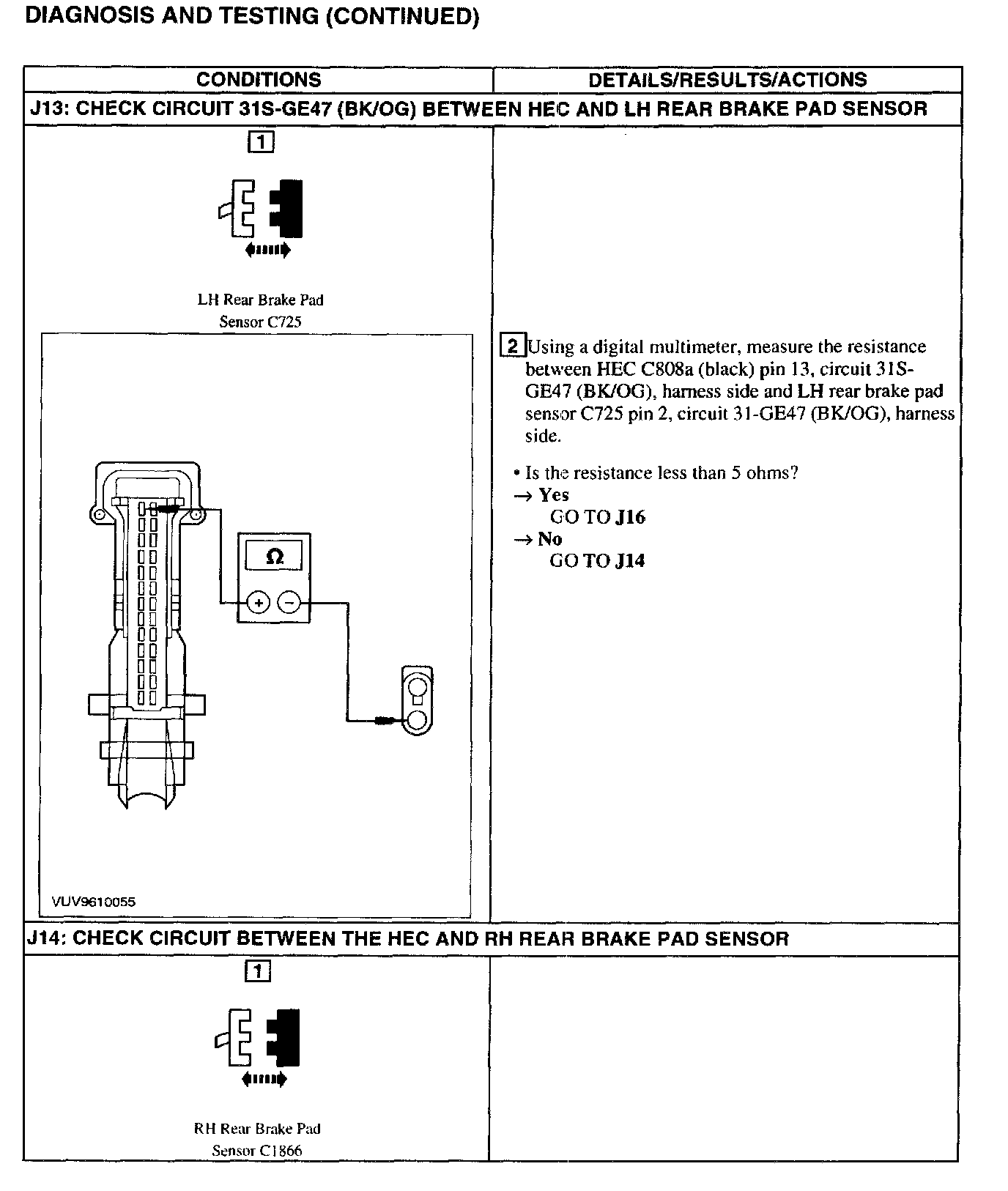

J13 - J14:

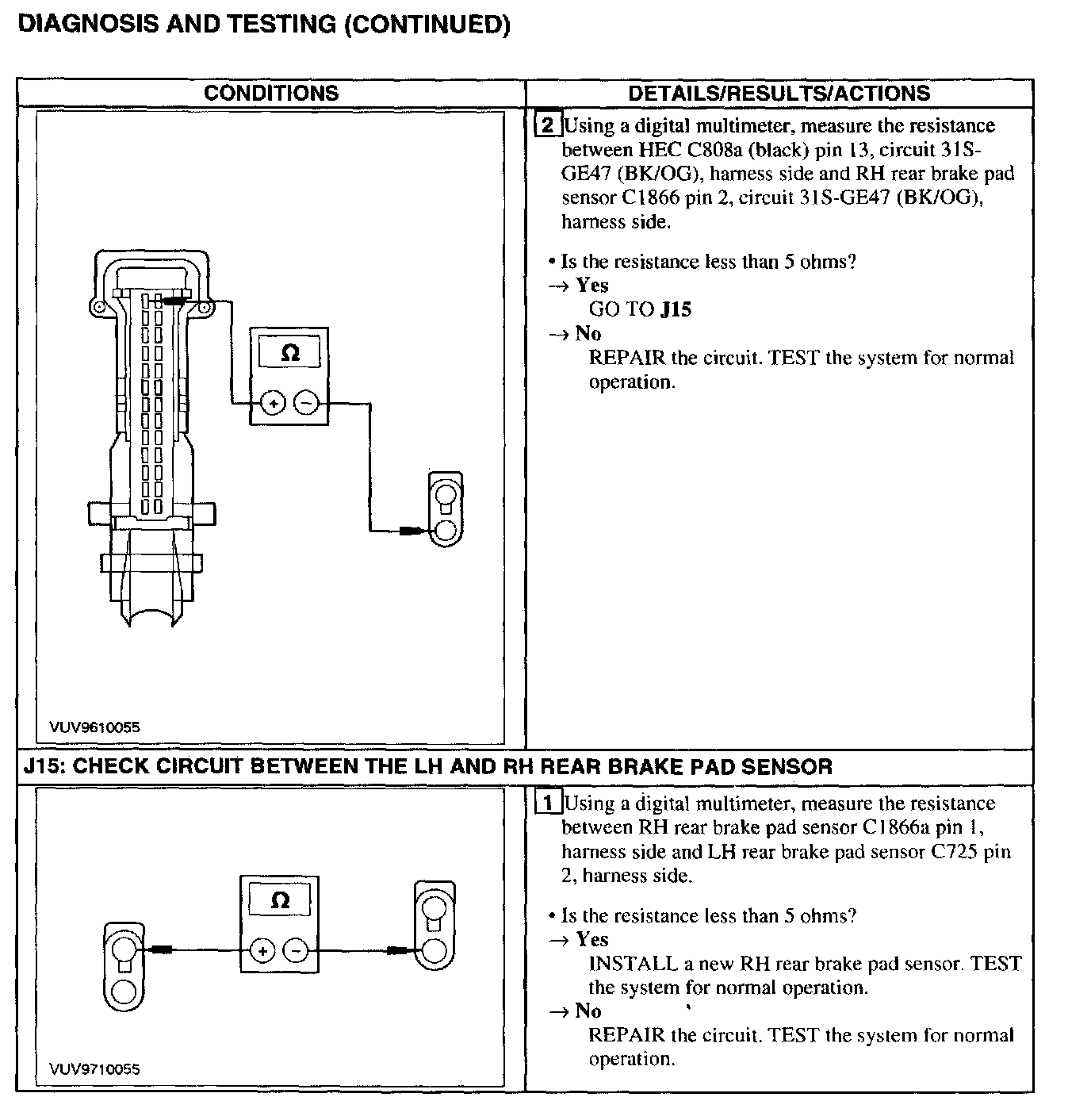

J14 - J15:

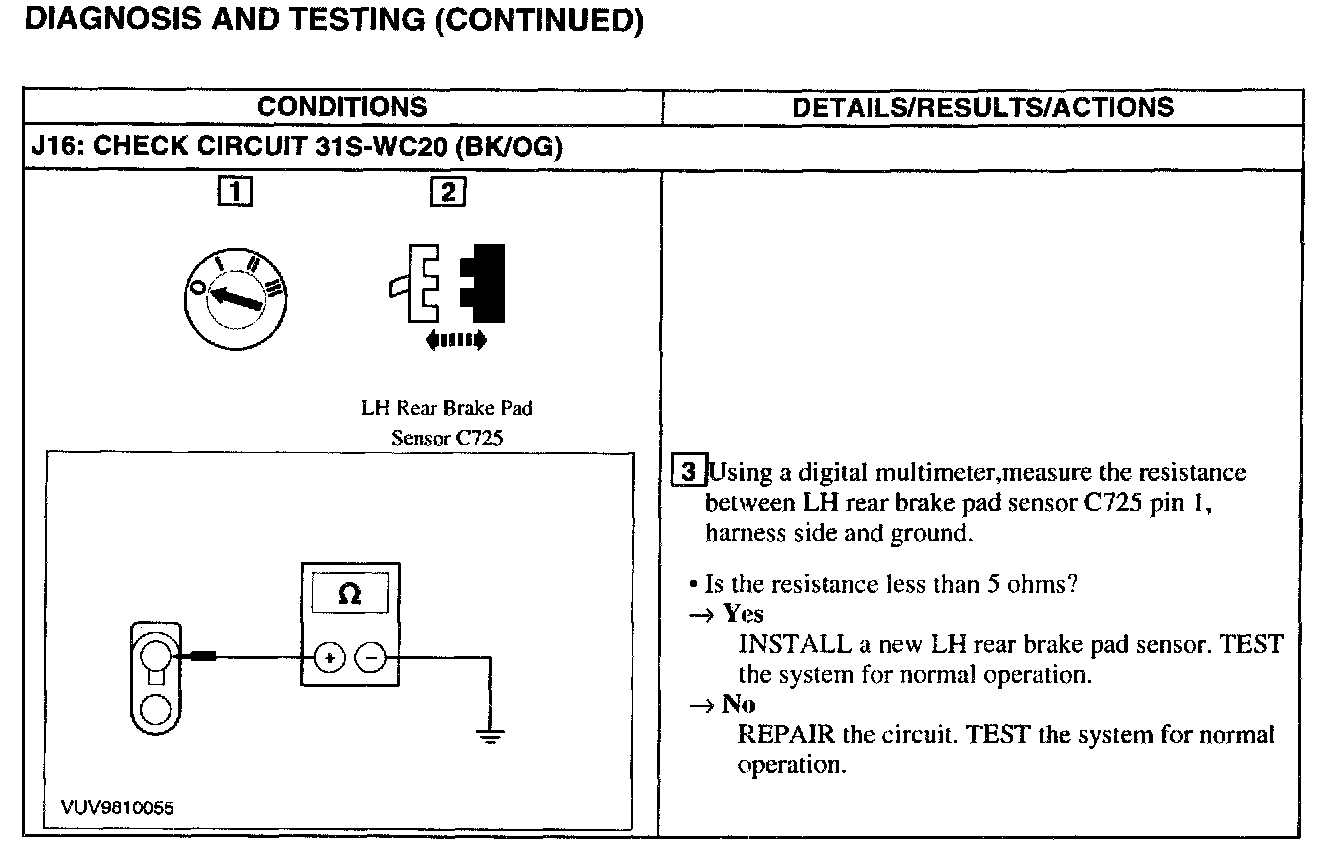

J16:
