Test H: An Indicator Is Inoperative/Always On - Ice Warning Indicator
Test H: An Indicator Is Inoperative/Always On - Ice Warning Indicator

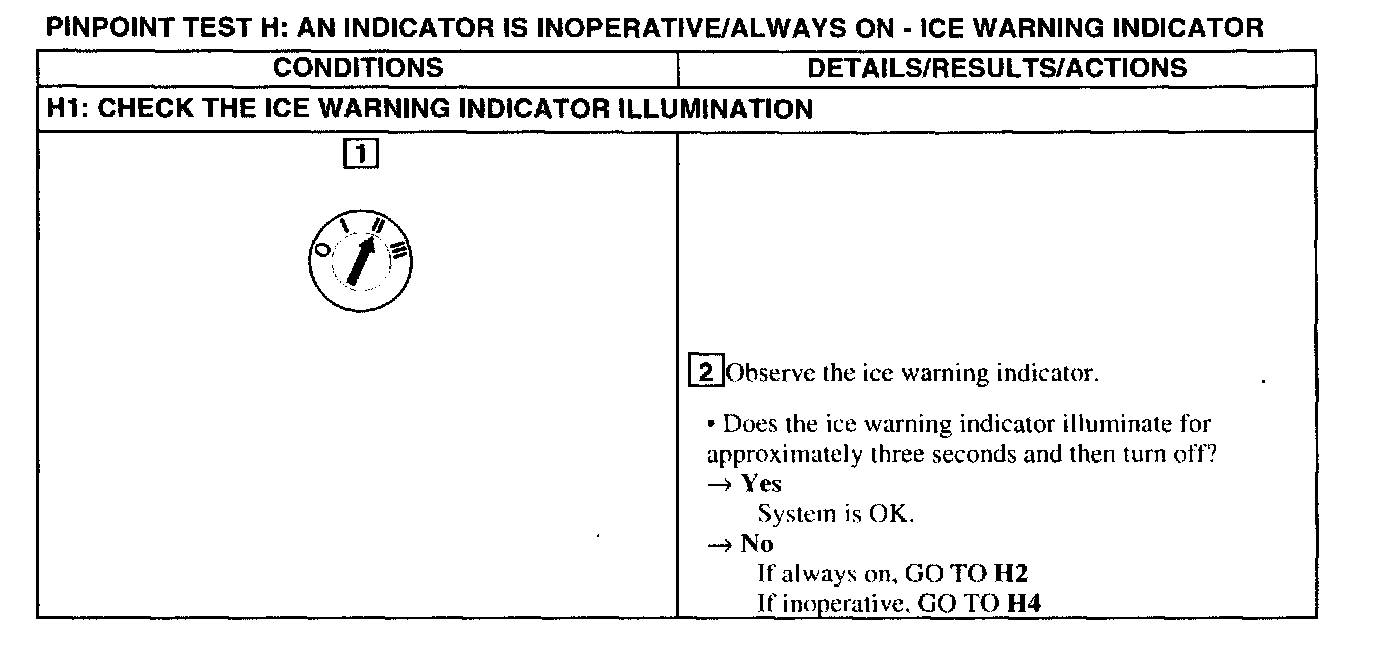

H1:

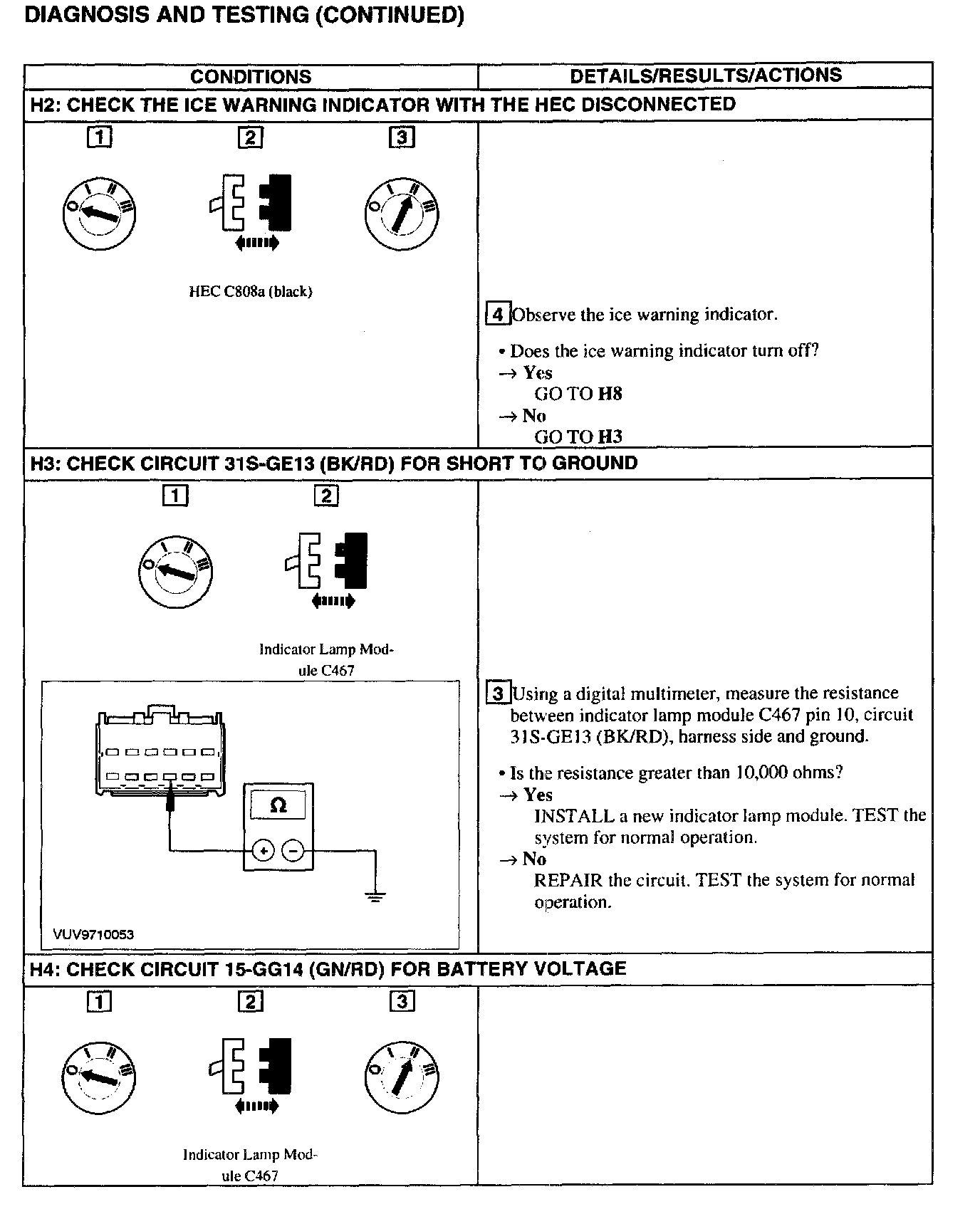

H2 - H4:

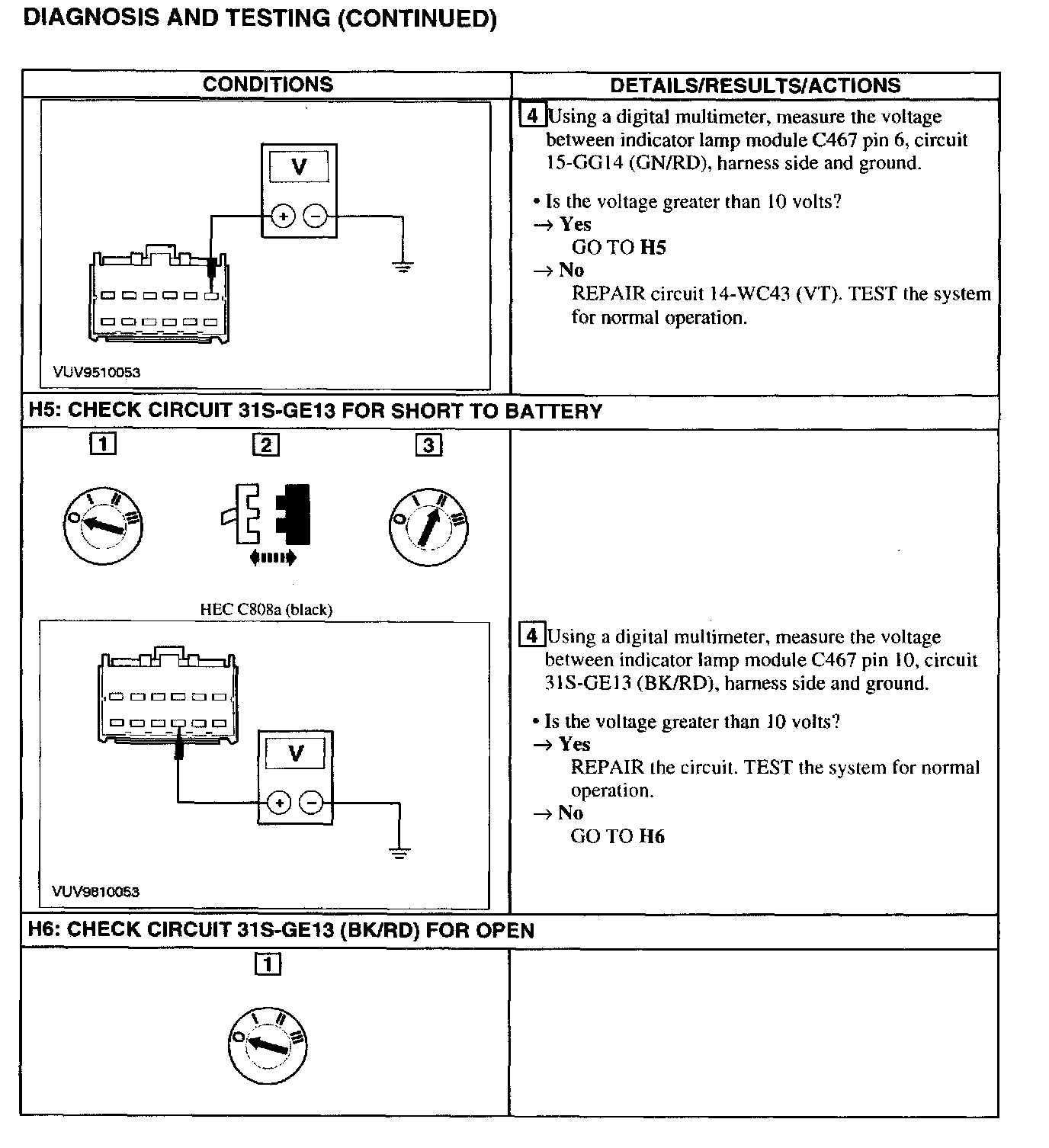

H4 - H6:
H6 - H7:

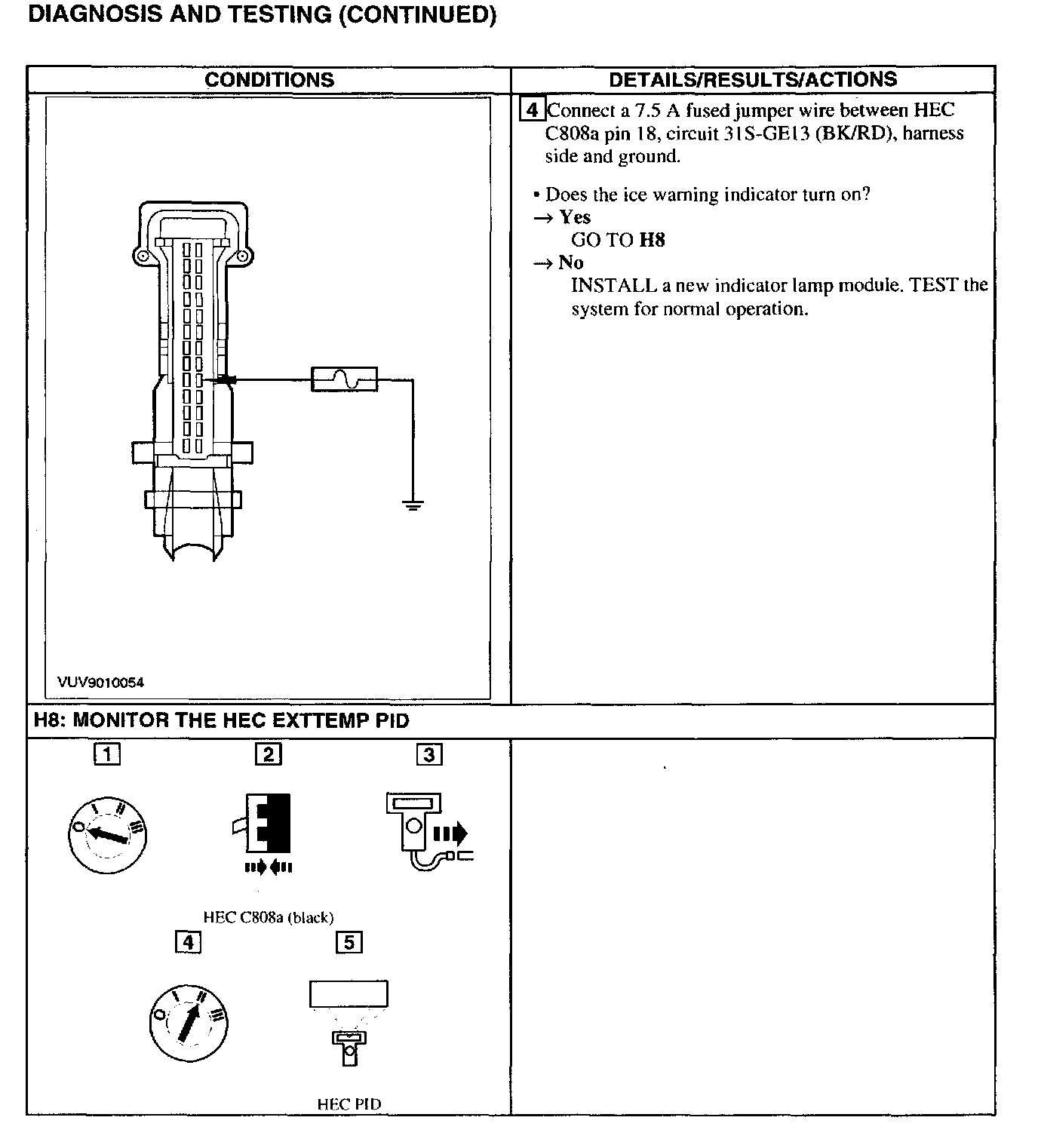

H7 - H8:

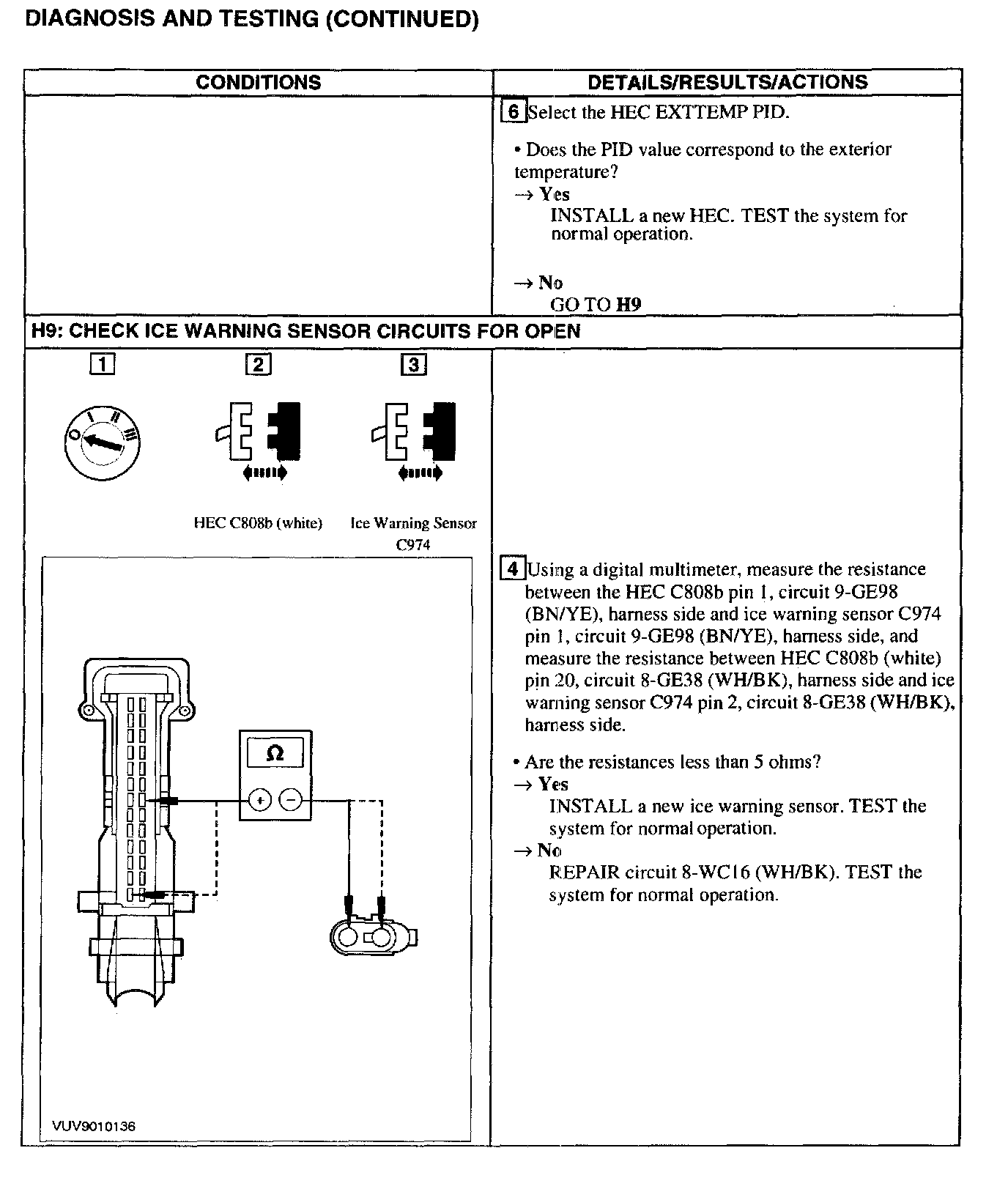

H8 - H9:
