FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2001
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test G: An Indicator Is Inoperative/Always On Maintenance Interval Warning Indicator
Test G: An Indicator Is Inoperative/Always On Maintenance Interval Warning Indicator

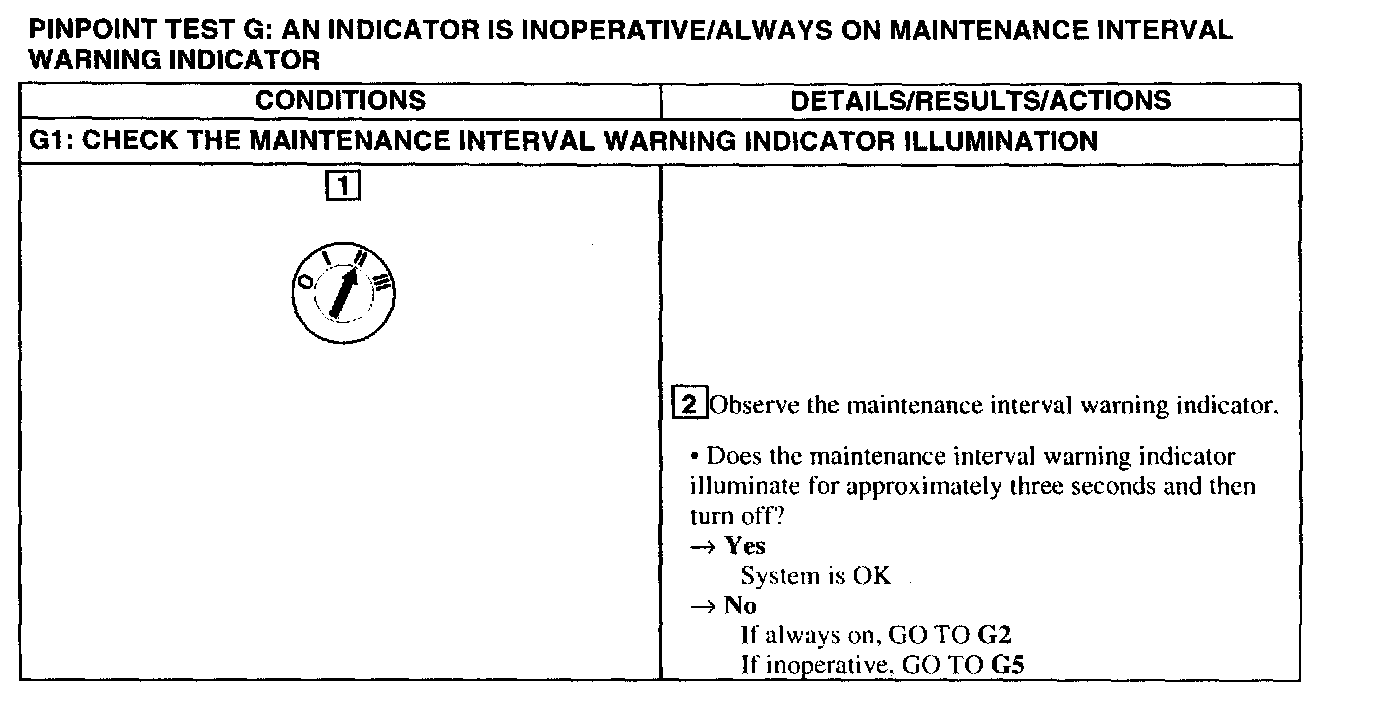

G1:

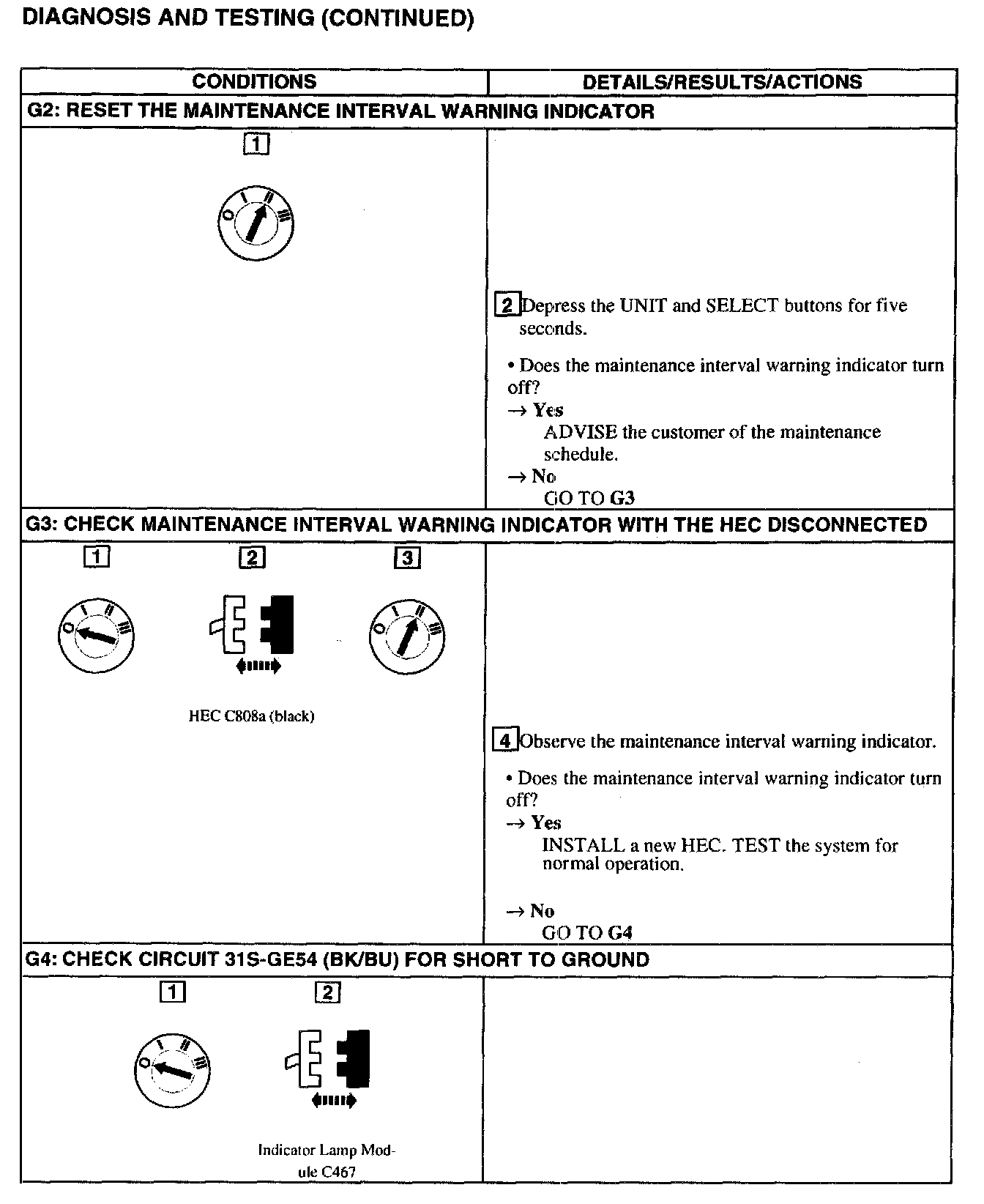

G2 - G4:

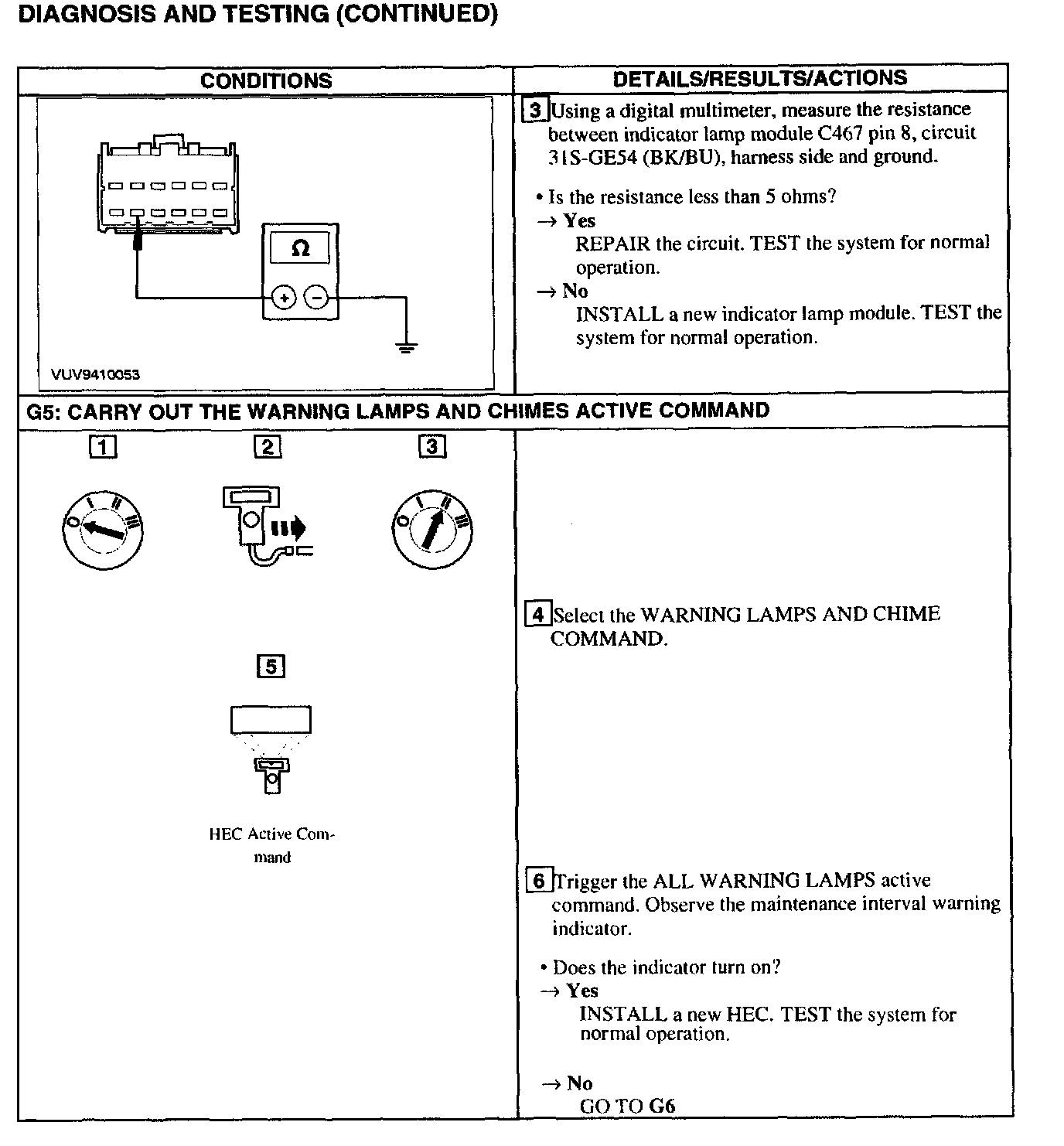

G4 - G5:

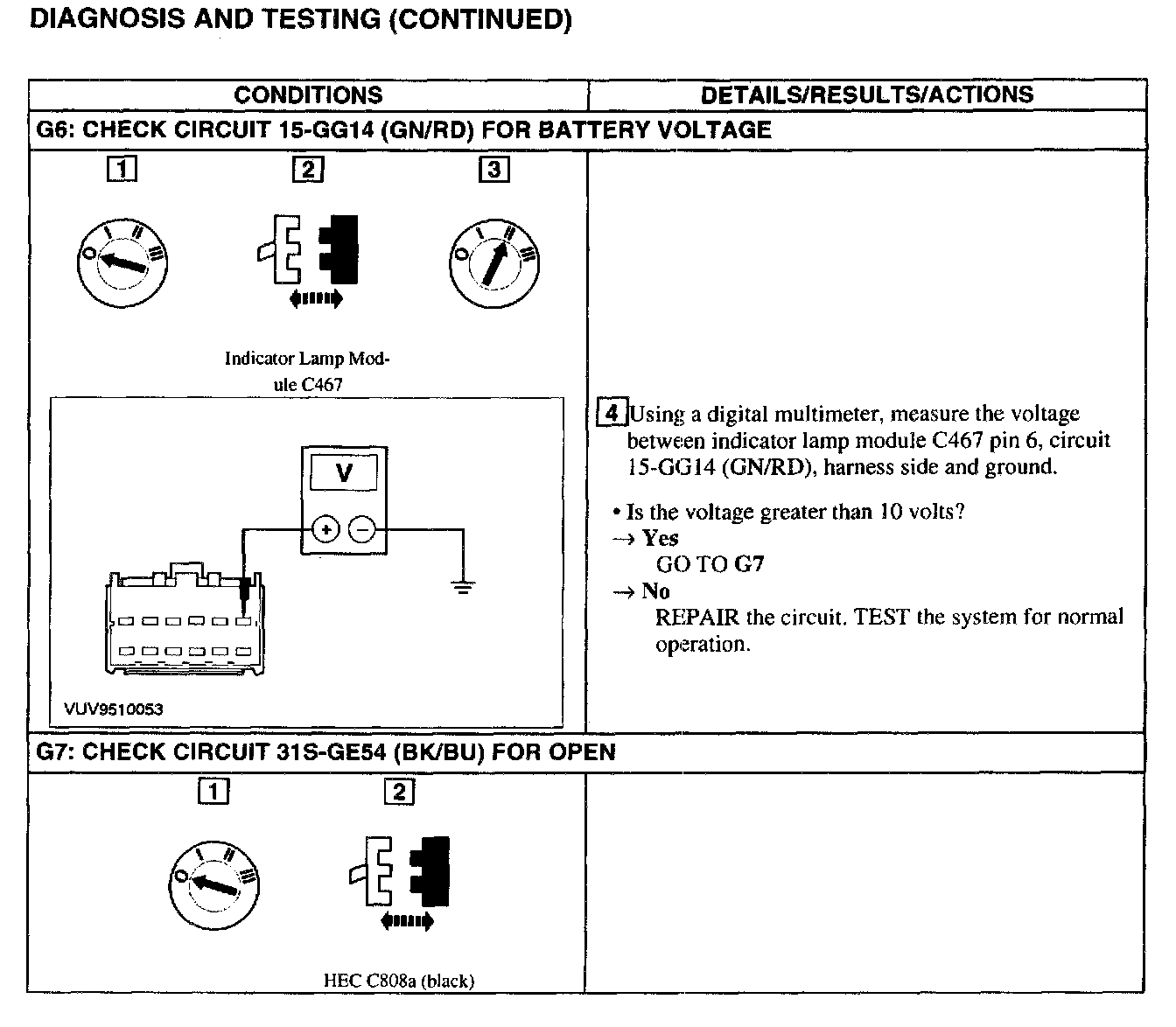

G6 - G7:

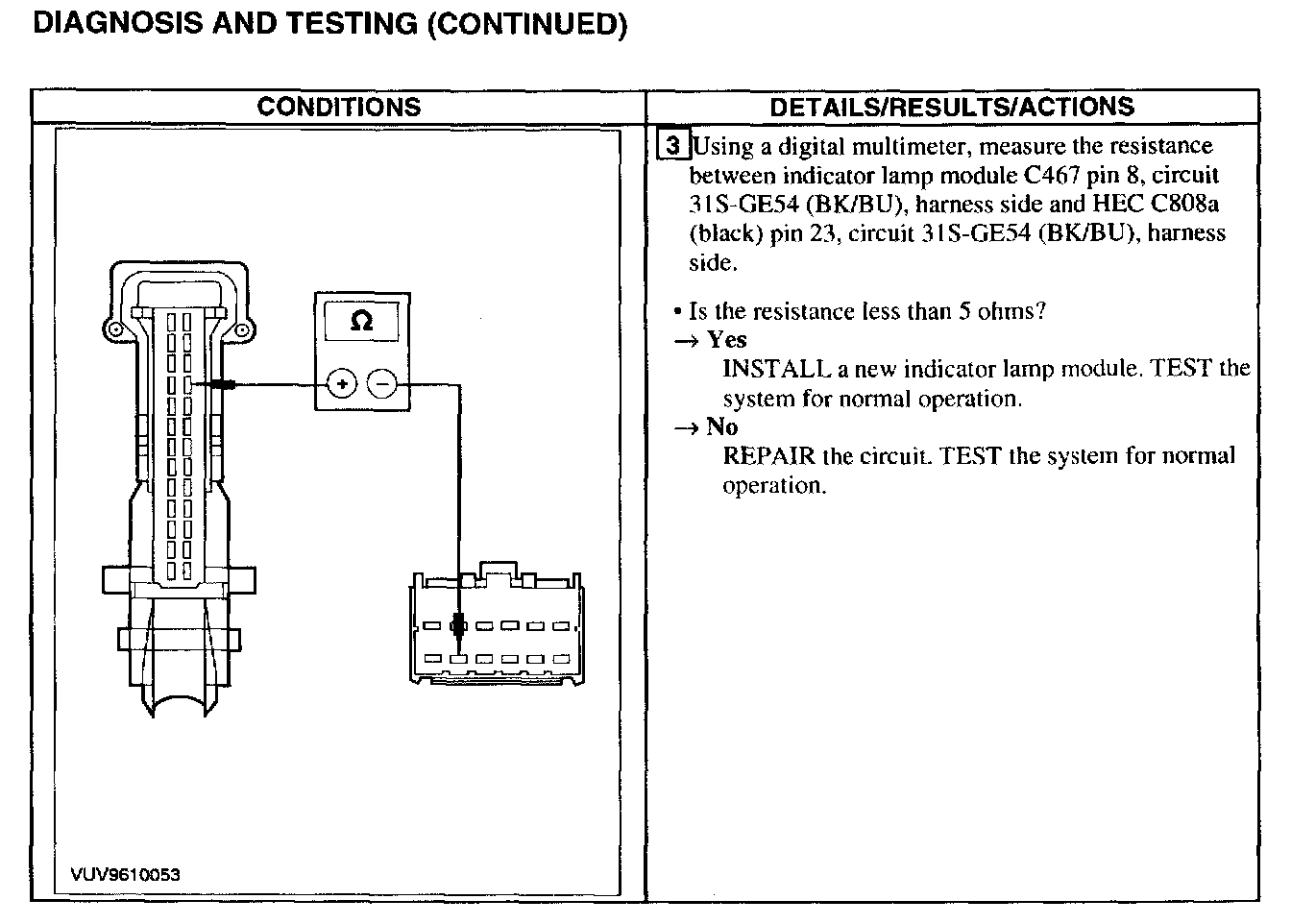

G7:
