Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Information and Message Center >> Test B: Message Center Switch Is Not Operating Correctly

Test B: Message Center Switch Is Not Operating Correctly

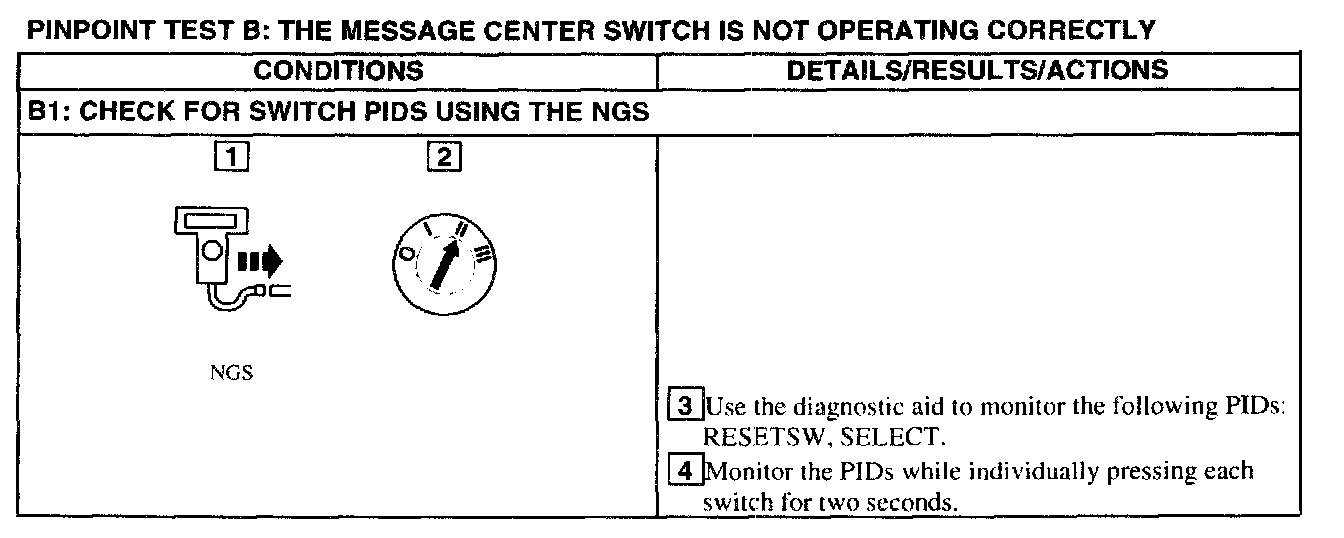

B1:

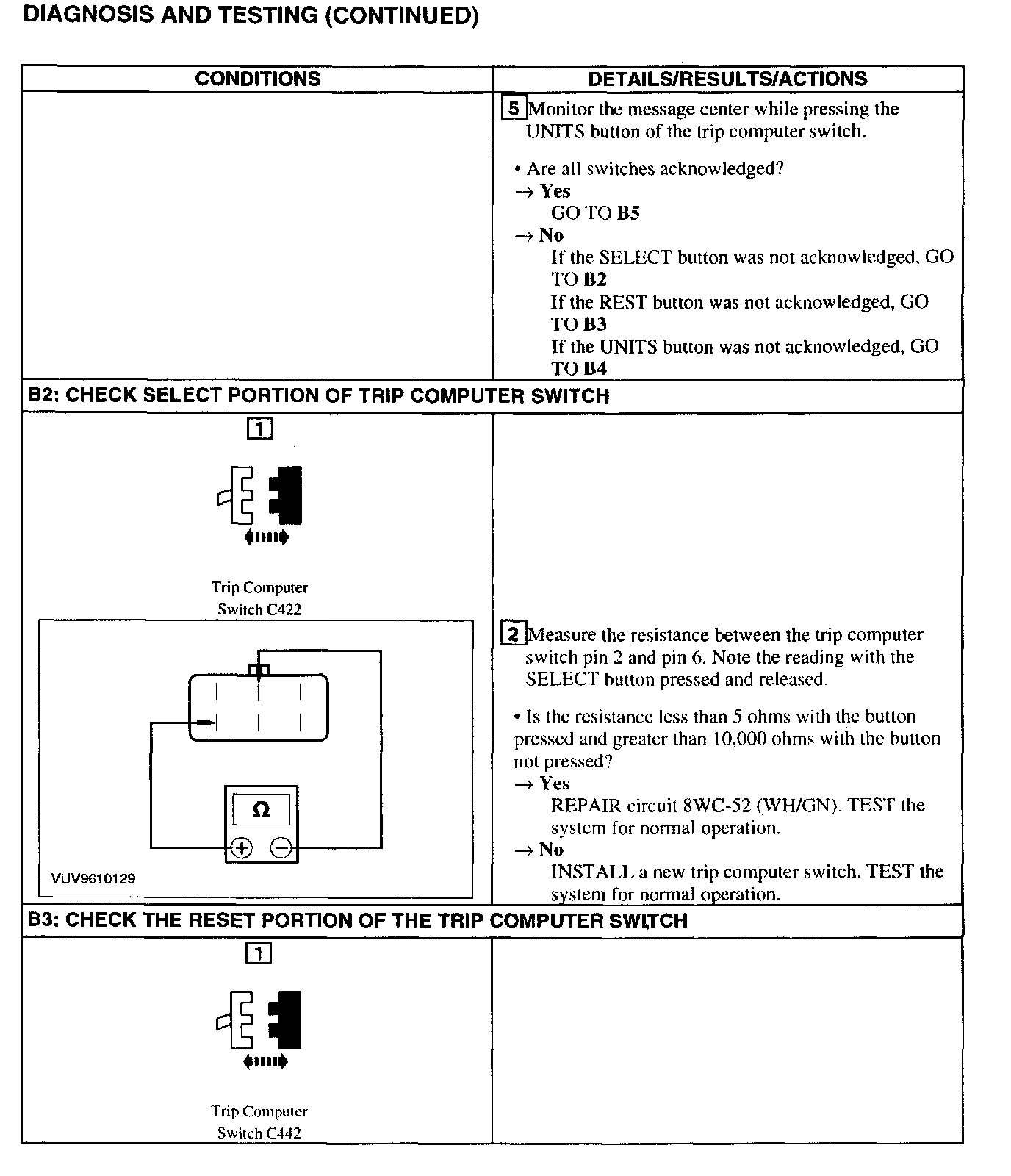

B1 - B3:

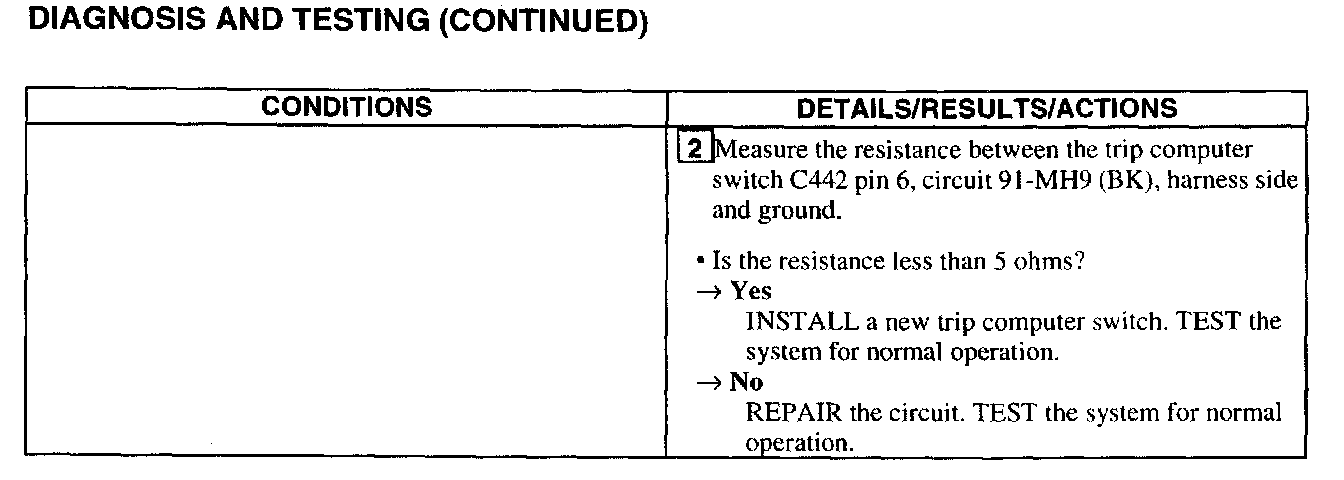

B3 - B5:






B5:
