Test D: Incorrect/Erratic Direction of Airflow From Outlet
Test D: Incorrect/Erratic Direction of Airflow From Outlet

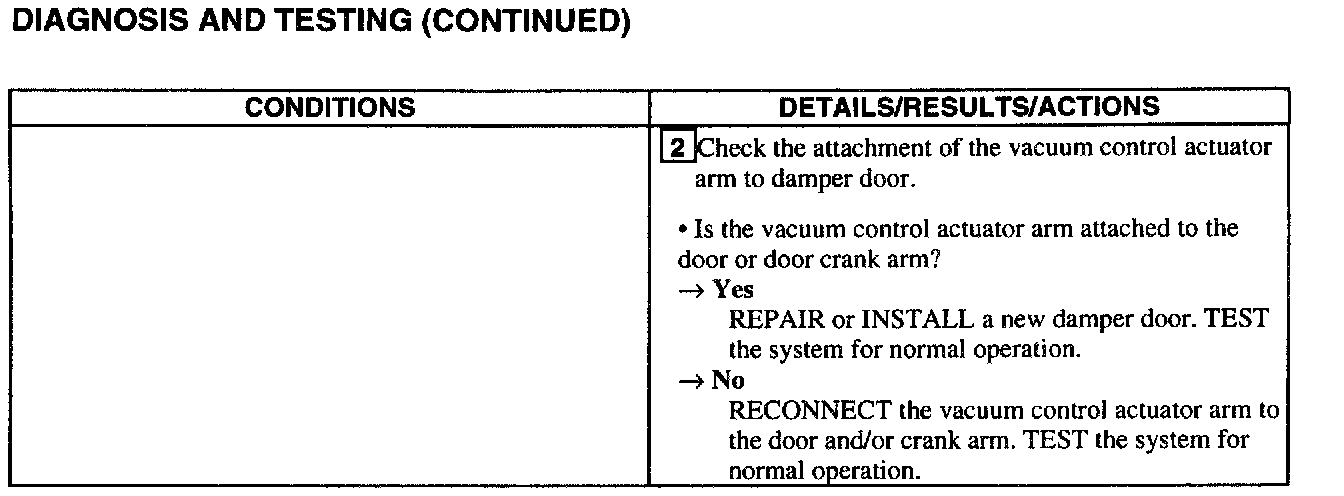

D1:

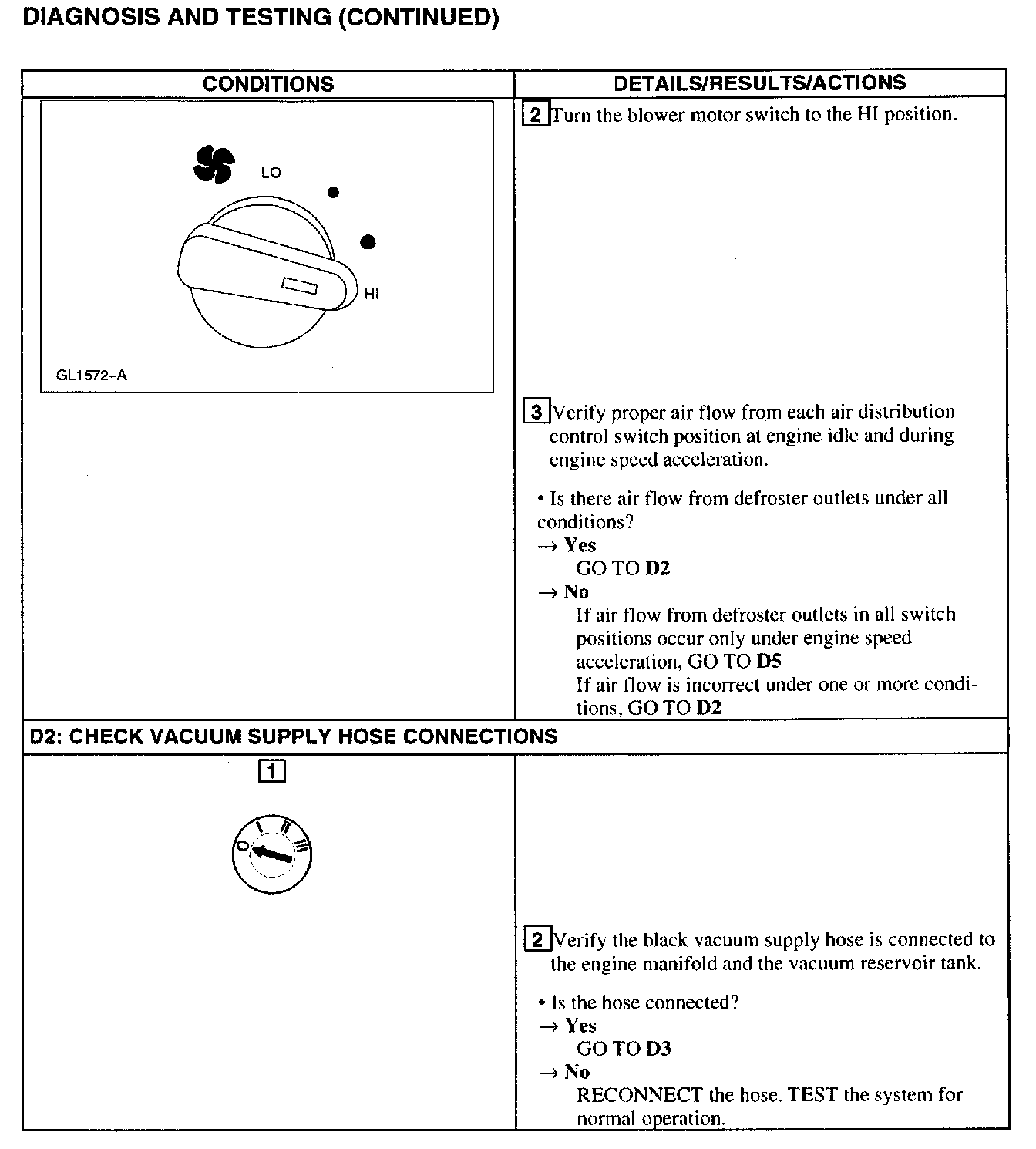

D1 - D2:

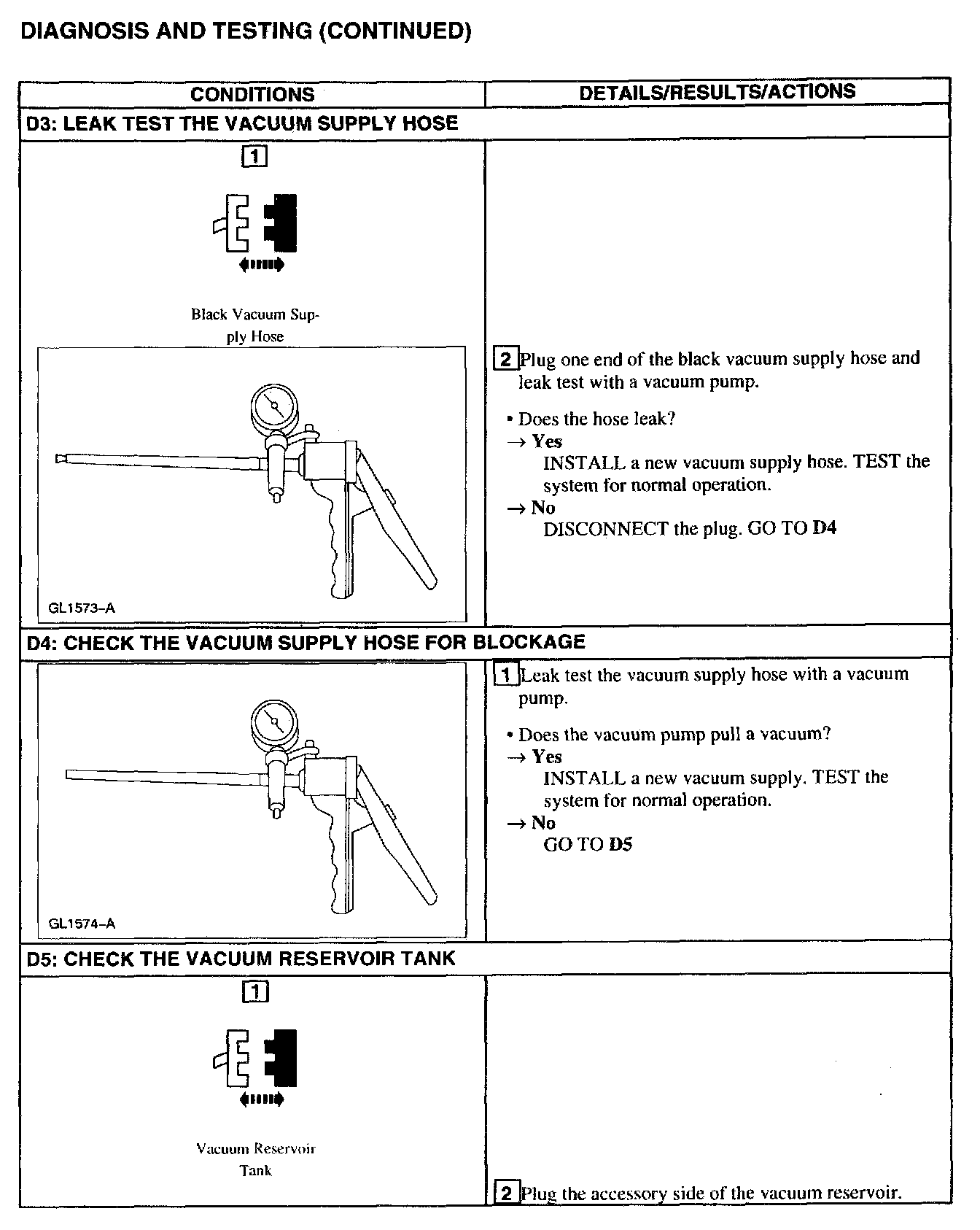

D3 - D5:

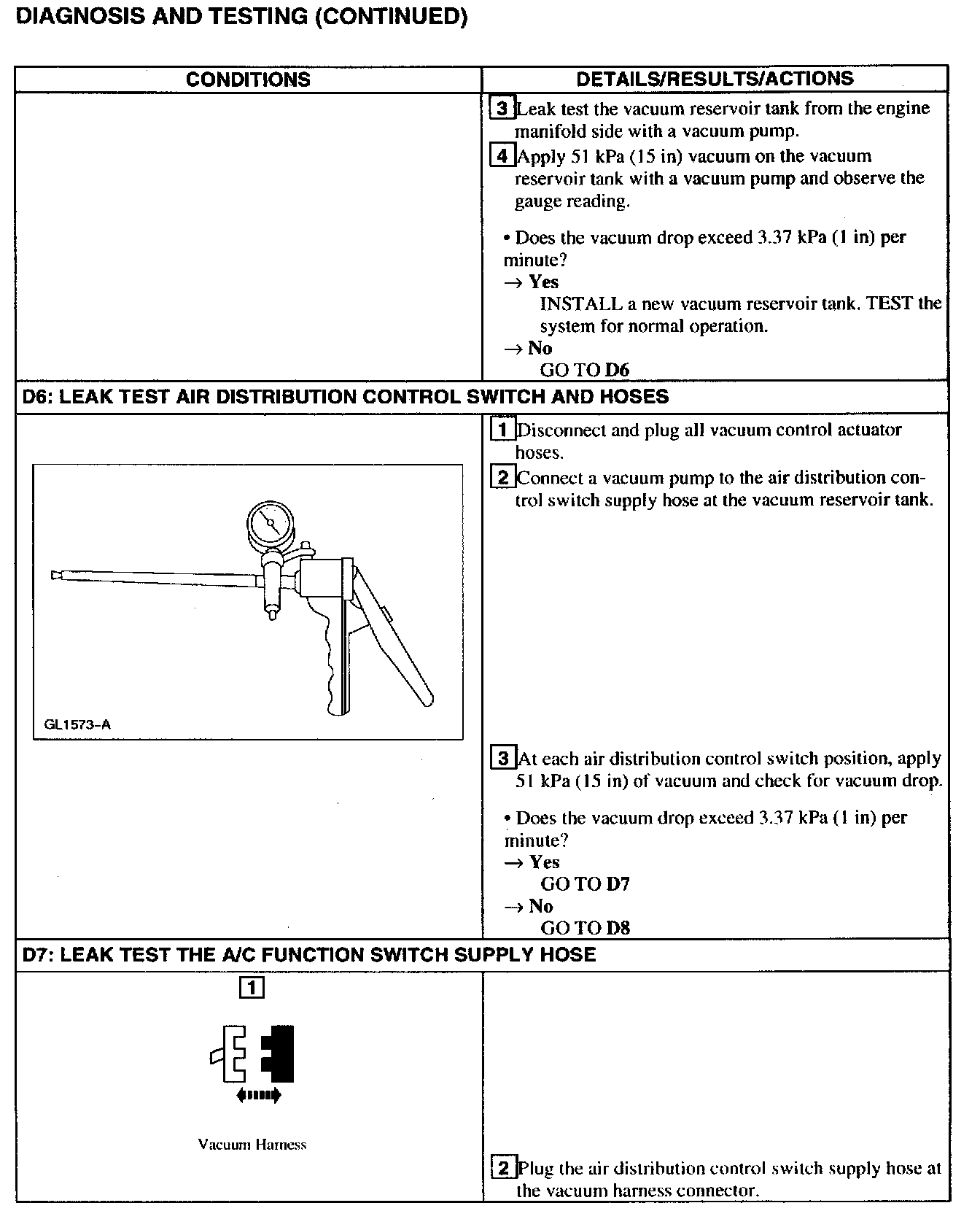

D5 - D7:

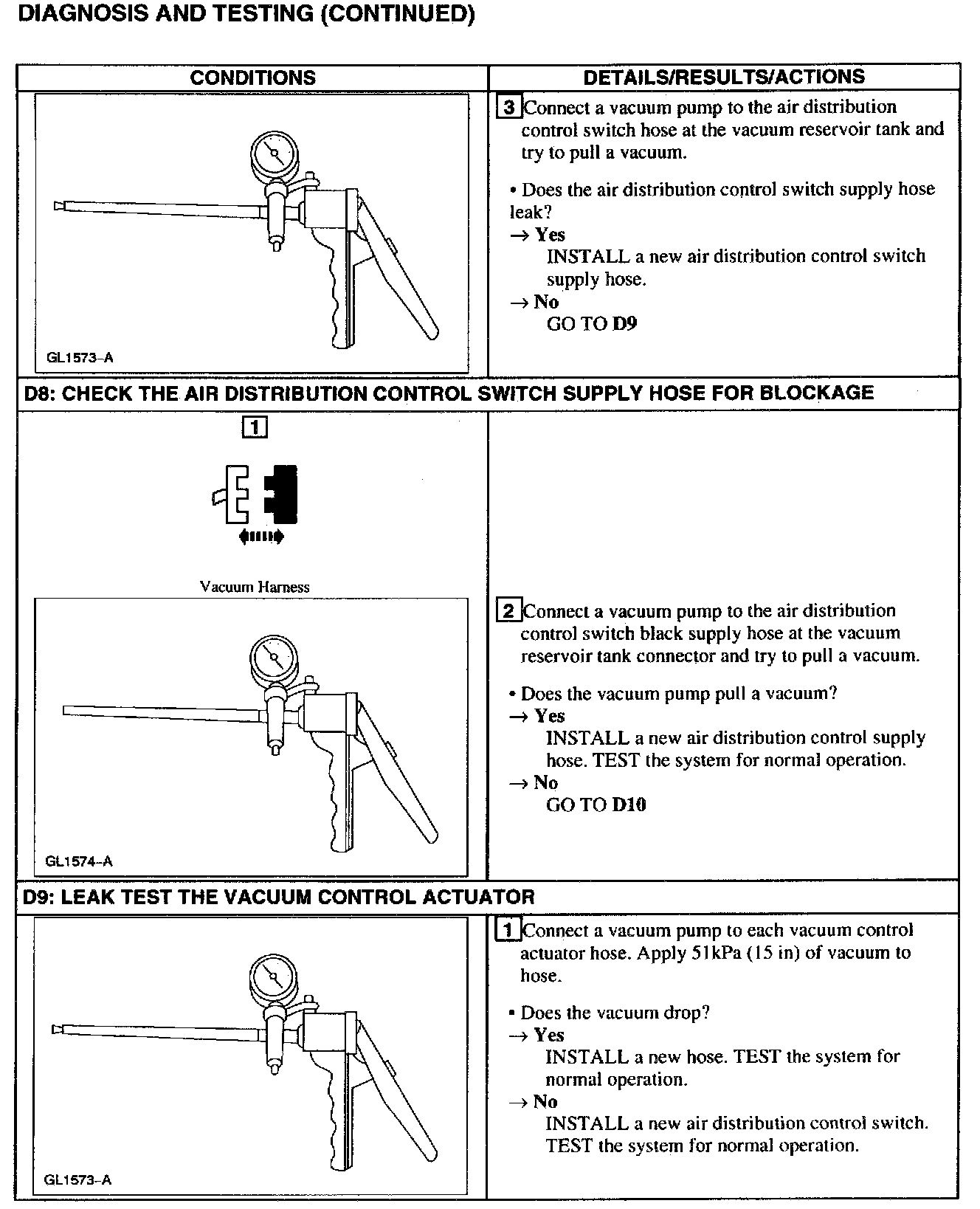

D7 - D9:

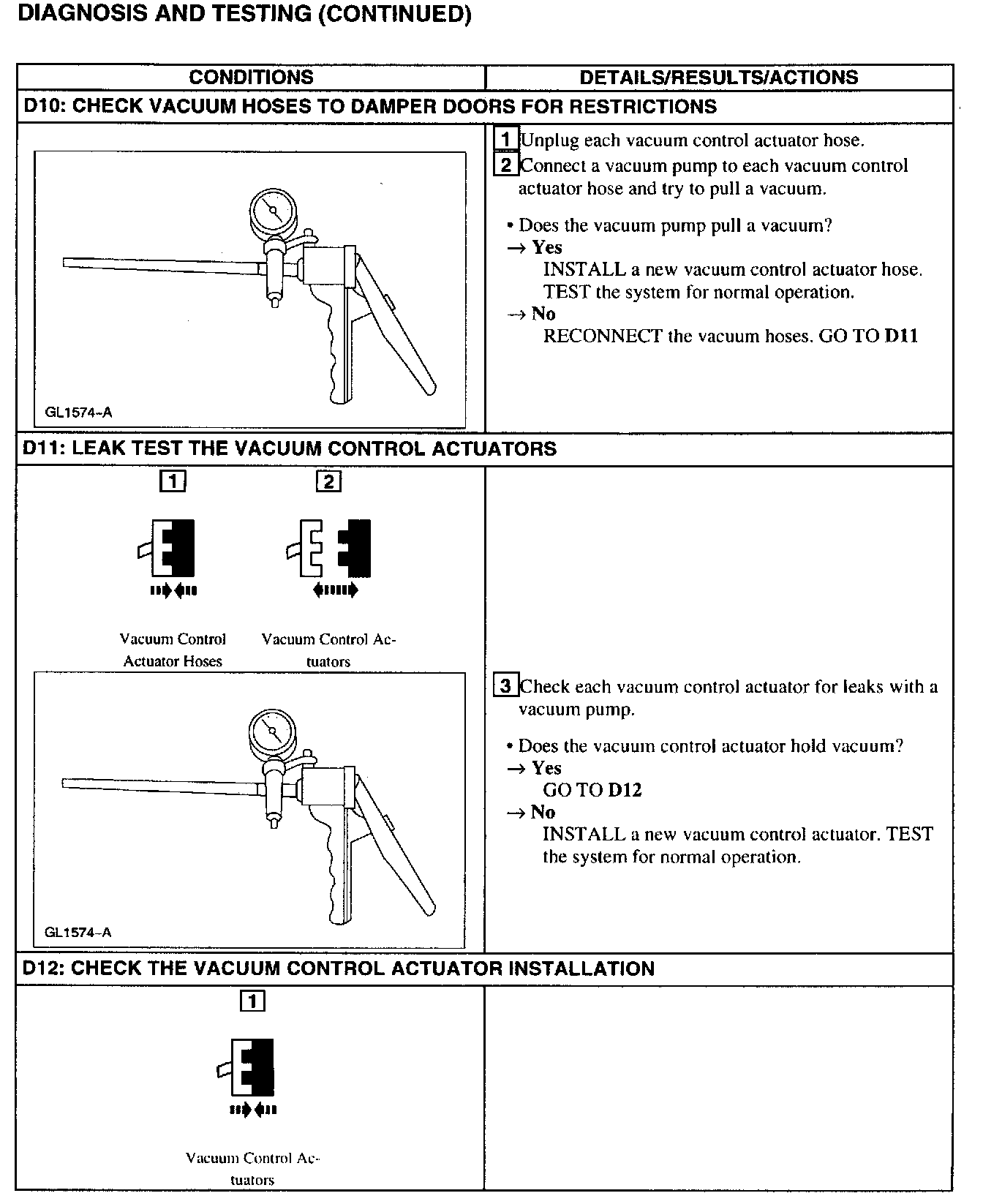

D10 - D12:
D12:
