FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2001
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C: Blower Motor Does Not Operate
Test C: Blower Motor Does Not Operate

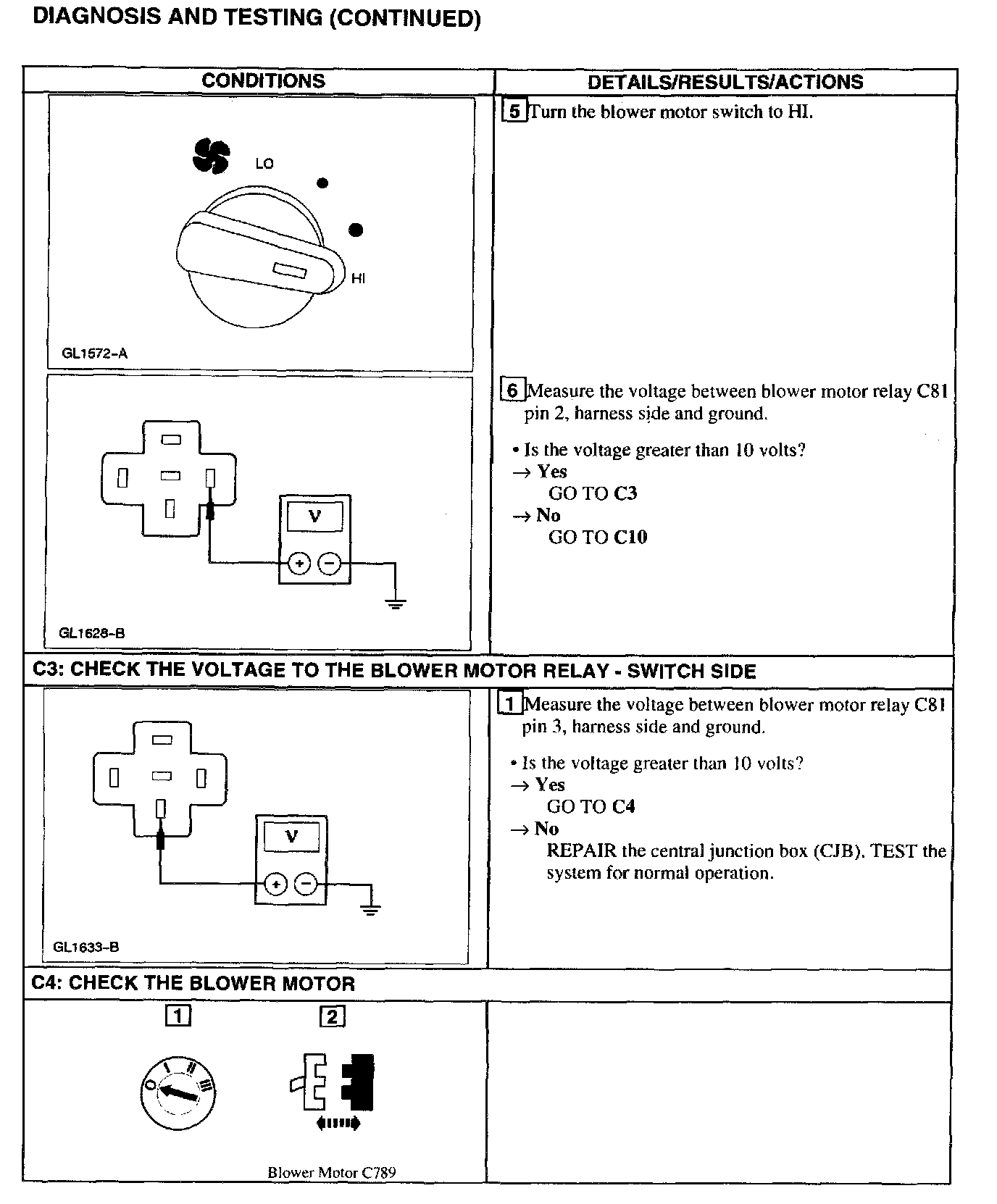

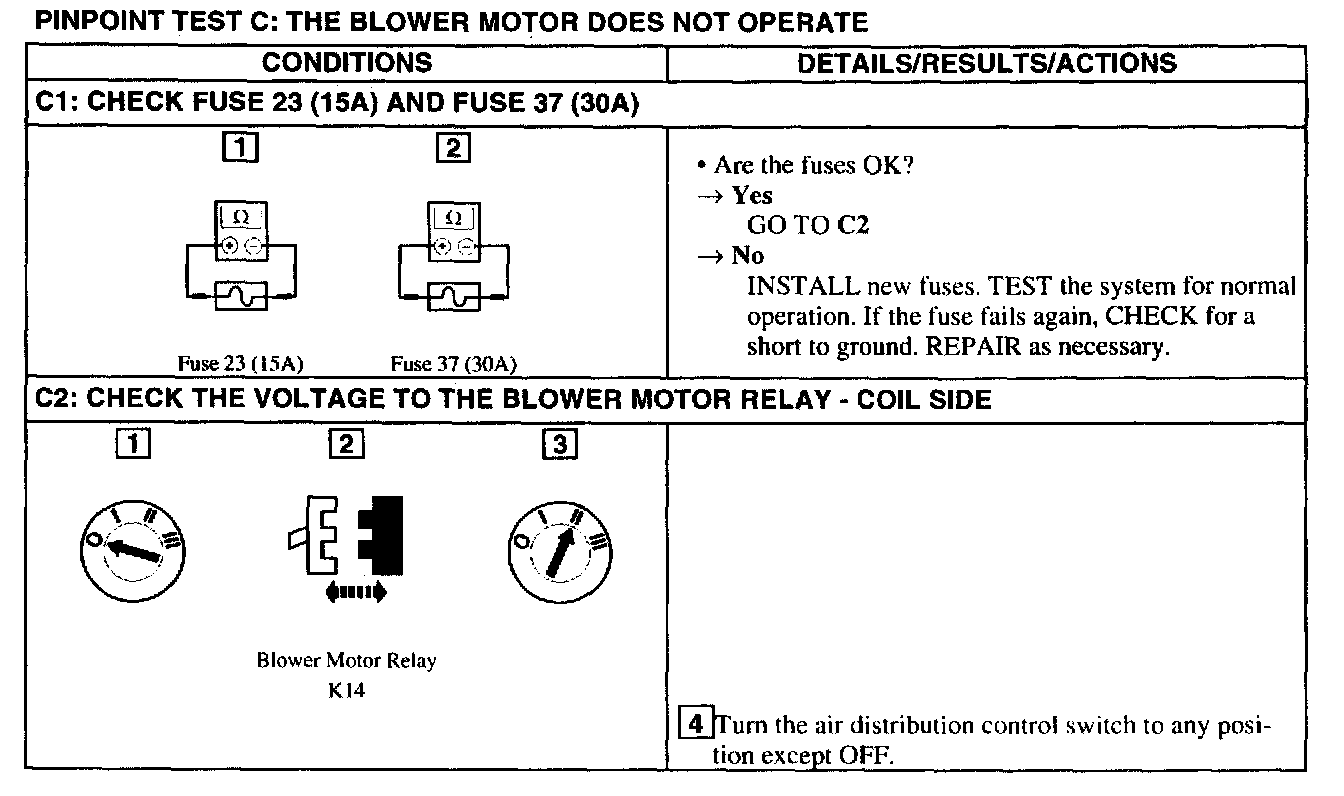

C1 - C2:

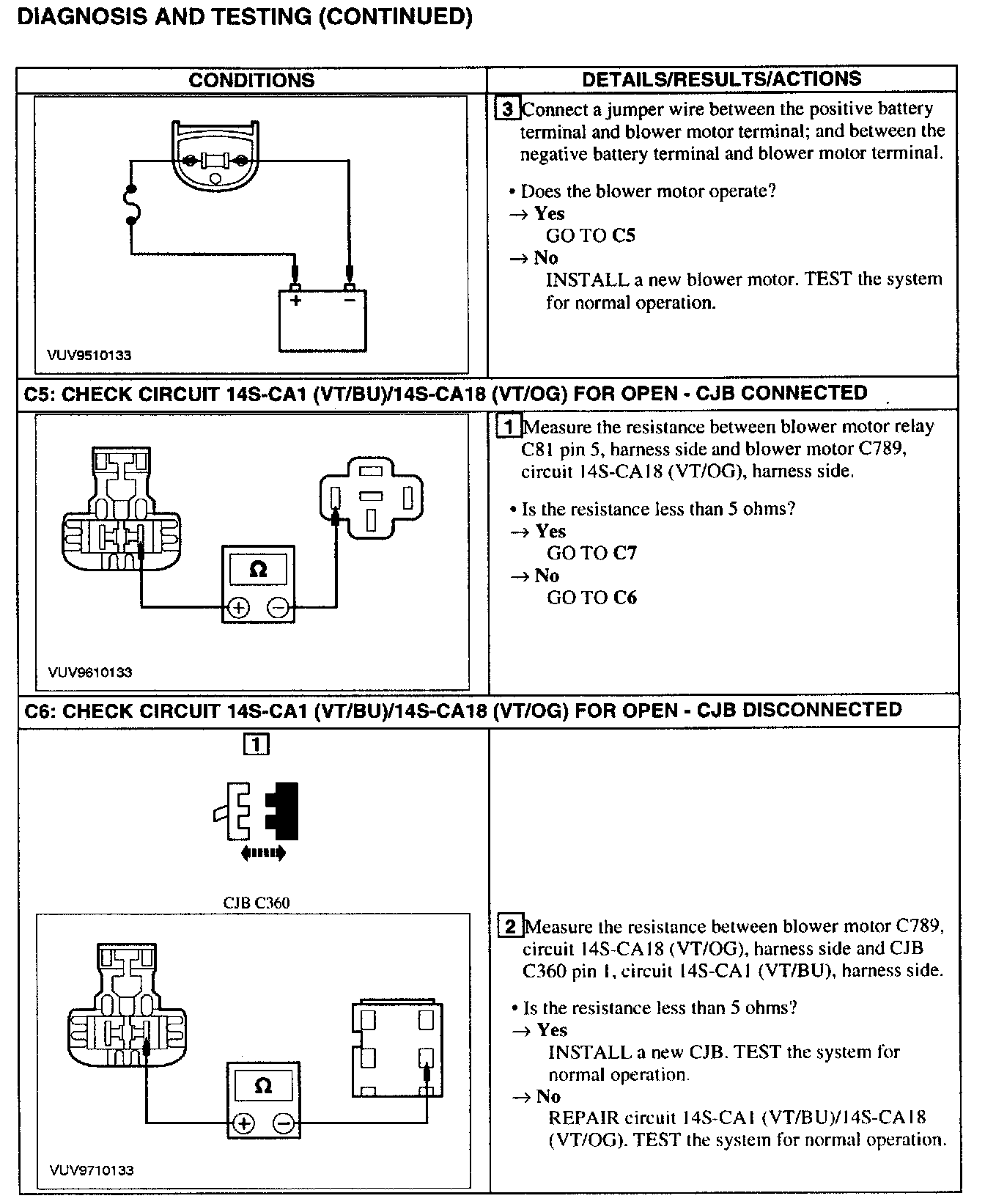

C2 - C4:
C4 - C6:

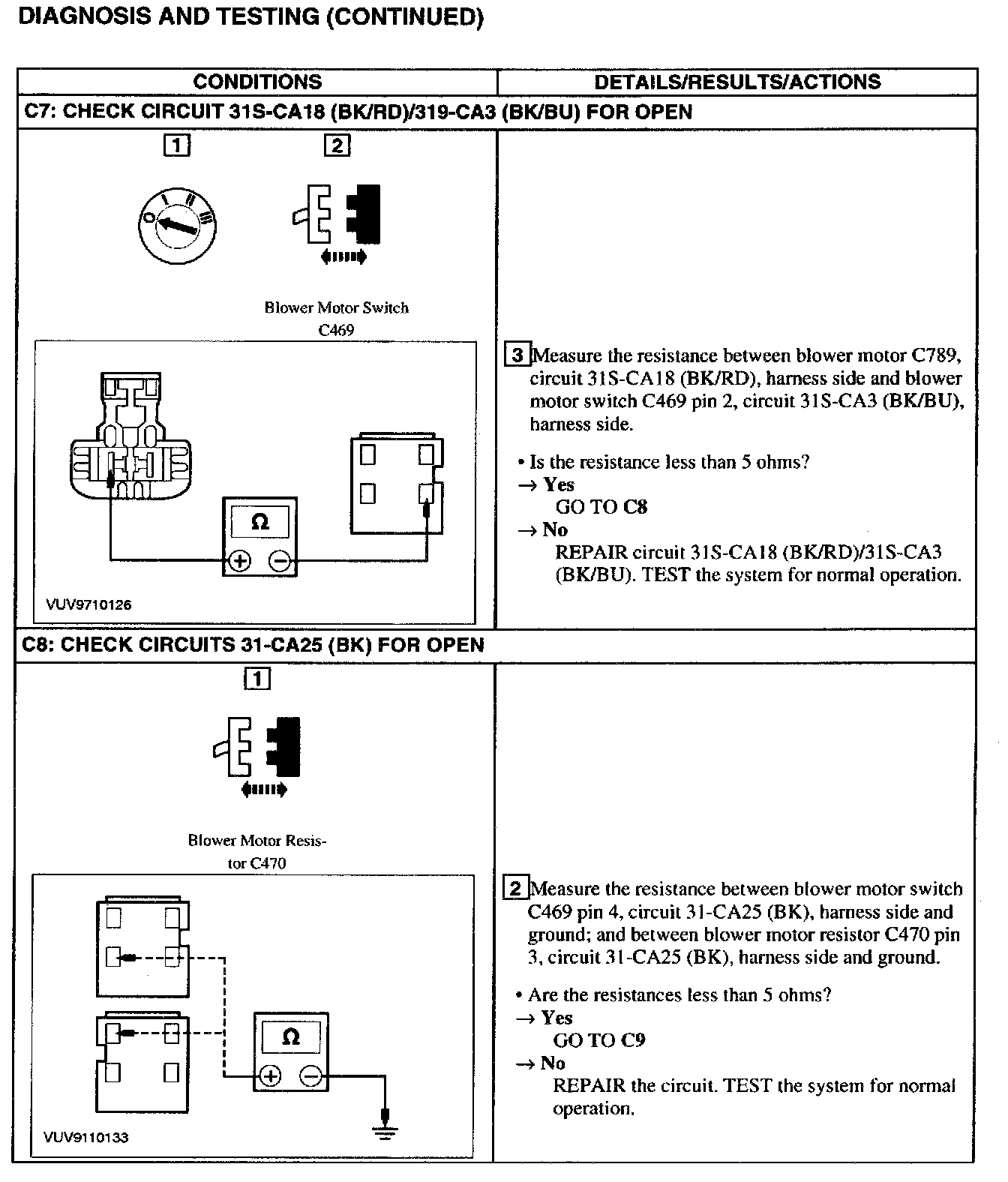

C7 - C8:

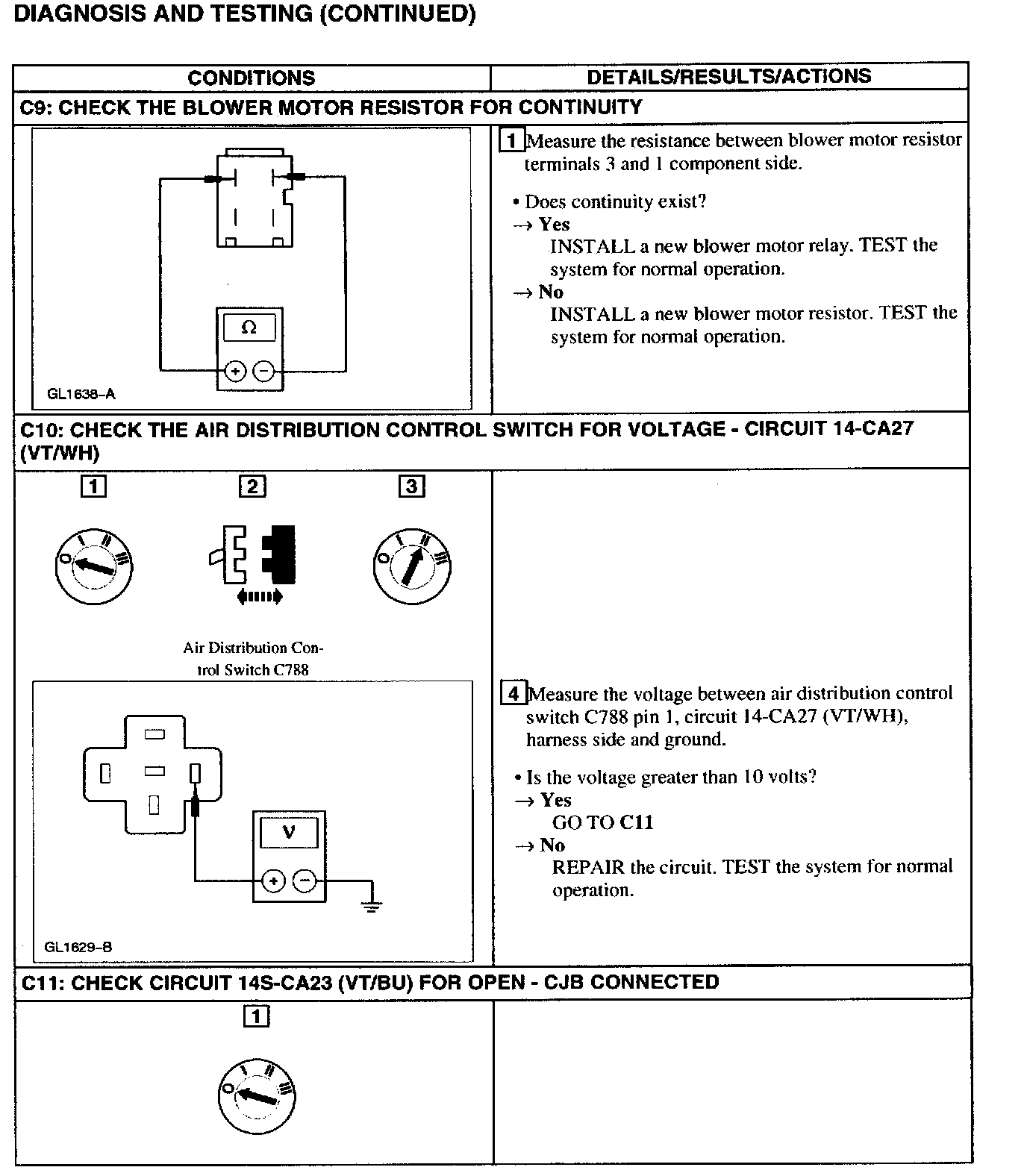

C9 - C11:

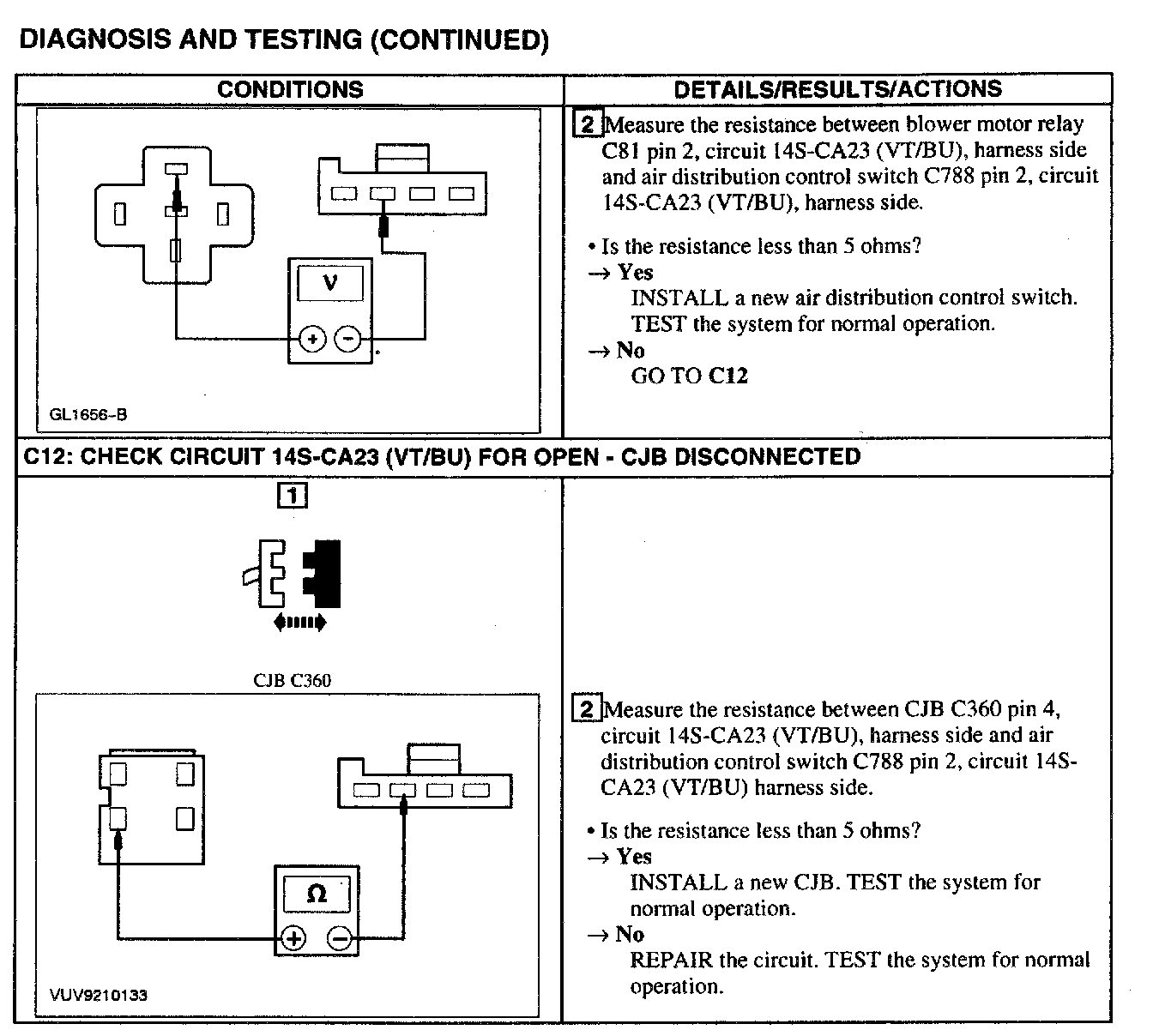

C11 - C12:
