Initial Inspection and Diagnostic Overview

NOTE: All A/C related tests should be run in an ambient temperature of at least 10°C (50°F).

1. Verify the customer concern by operating the system.
2. Visually inspect for obvious signs of mechanical or electrical damage.

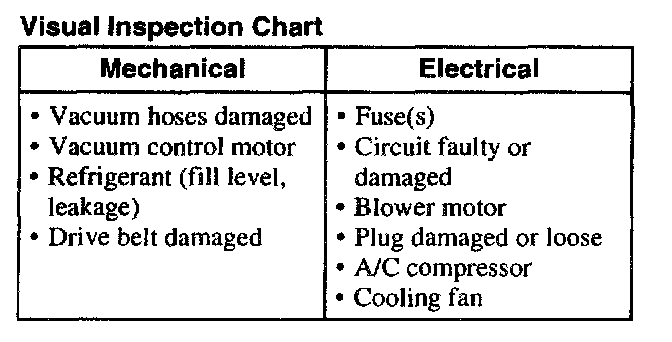

Visual Inspection Chart:

VISUAL INSPECTION CHART

3. If an obvious cause for an observed or reported concern is found, correct the cause (if possible) before proceeding to the next step.
4. If the concern is not visually evident, verify the symptom and refer to the Symptom Chart. Symptom Related Diagnostic Procedures
