A/C Performance Symptom Chart

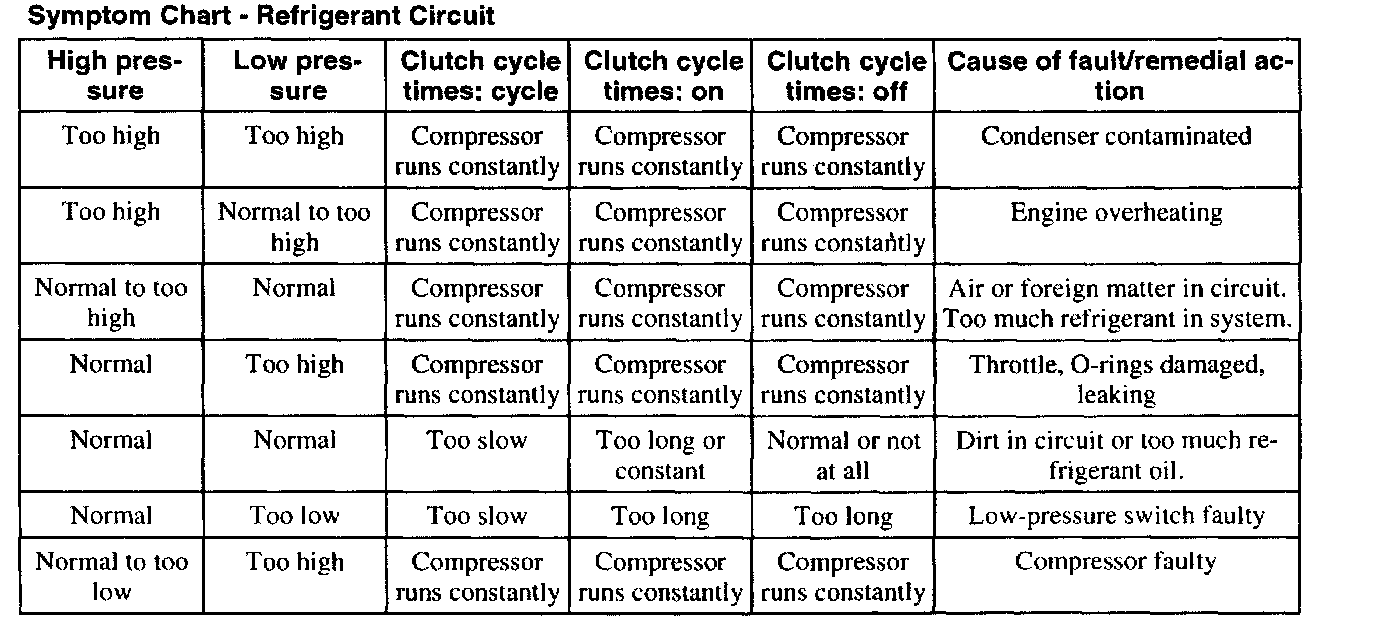

Symptom Chart - Refrigerant Circuit, Part 1:

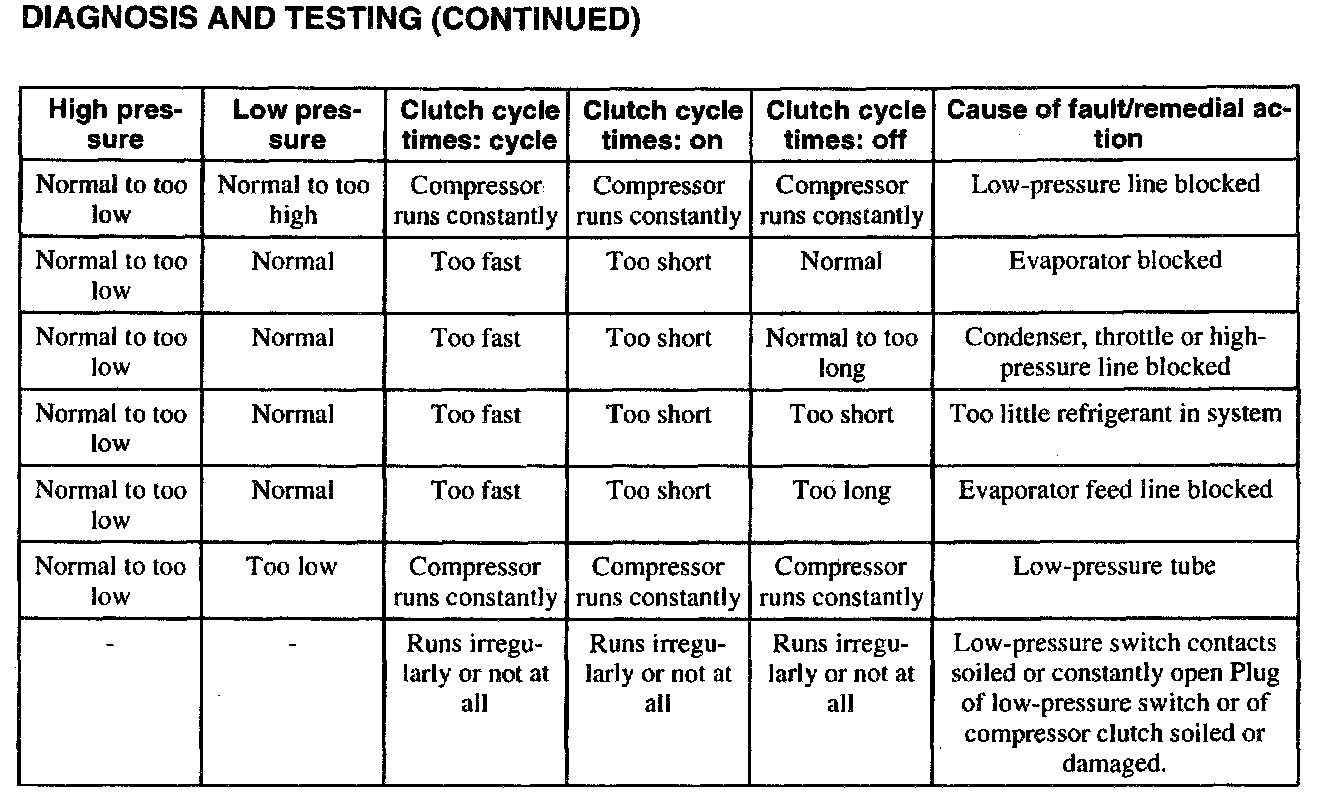

Symptom Chart - Refrigerant Circuit, Part 2:
