Main Climate Control

REMOVAL
1. Remove the audio unit.







2. Remove the ashtray and cigar lighter bezel.

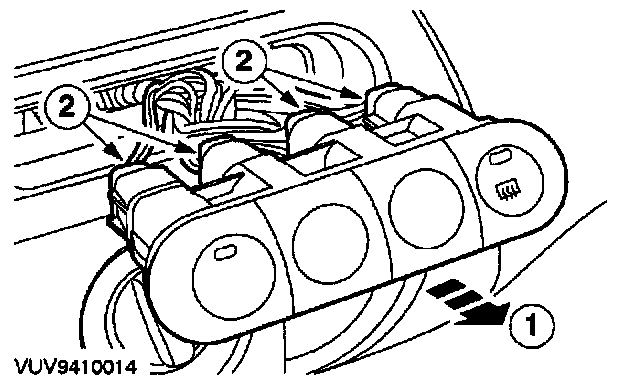

3. Remove the switch assembly.
1. Detach the switch assembly.
2. Disconnect the electrical connectors.







4. Detach the heater control/audio unit bezel.
1. Remove the screws.
2. Detach the panel from the clips.







5. Remove the heater control/audio unit bezel.
- Disconnect the electrical connectors.
- Disconnect the vacuum lines.







6. Remove the climate control panel.

INSTALLATION
1. To install, reverse the removal procedure.
