Compressor Clutch: Adjustments

1. Check the air gap A between the drive plate and the pulley at 60 degrees intervals around the circumference.
1. Belt pulley
2. Spacer washer
3. Driveplate

NOTE: The refrigerant circuit can remain closed if possible.

2. If the air gap A is outside the tolerance range, if necessary detach the air conditioning compressor.
- Tie up the compressor with wire if necessary.

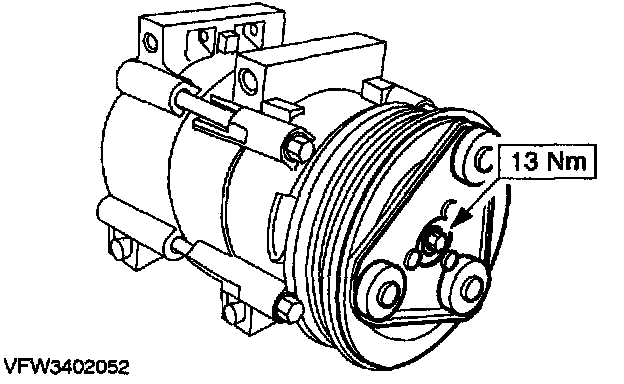

Compressor Clutch, Part 1:

Compressor Clutch, Part 2:

3. Detach the drive plate.
4. Correct air gap A as necessary using spacer washers.
5. Attach the drive plate.
6. Check air gap A as described in step 1. Repeat steps 3-6 if necessary.
7. Install the air conditioning compressor.
