Blower Motor Resistor: Service and Repair

REMOVAL

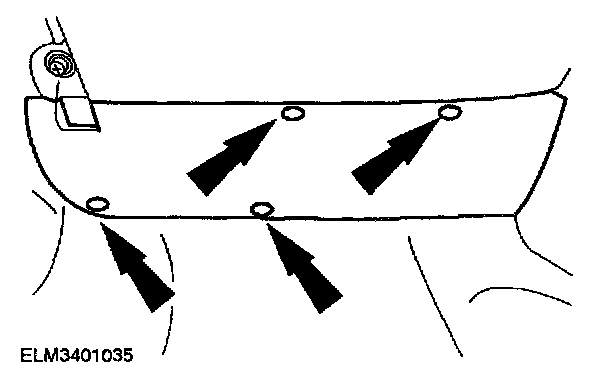

1. Remove the upper footwell trim panel (passenger side).
- Remove the pushpins.

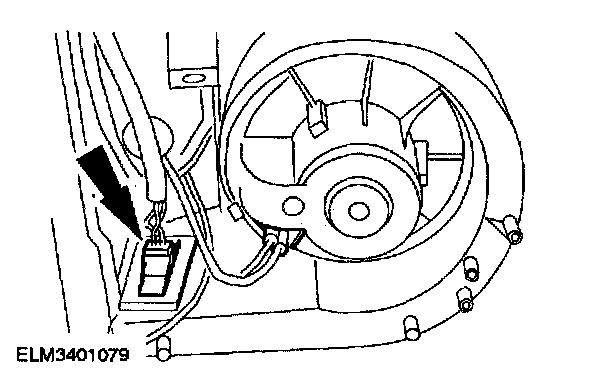

2. Disconnect the blower motor resistor electrical connector.

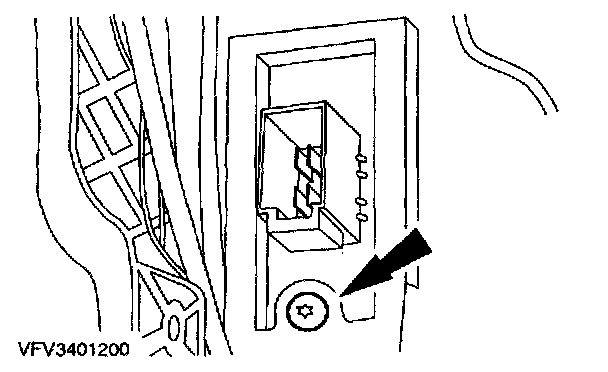

3. Remove the blower motor resistor.

INSTALLATION
1. To install, reverse the removal procedure.
