Piston Diameter

Piston Diameter

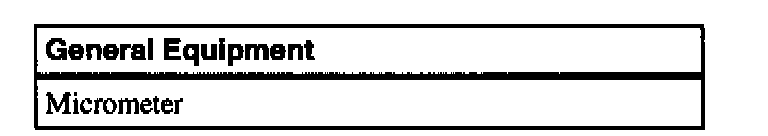

General Equipment:

1. NOTE: Mark piston in case a piston has to be again installed.

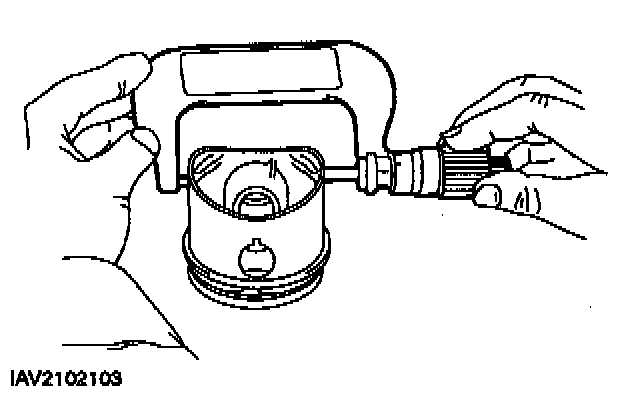

Using a Micrometer measure the piston in two directions.
- Measure the piston diameter at the height of the piston pin bore, but offset by 90 degrees.
