Test D: Block Heater Does Not Operate Properly
Test D: Block Heater Does Not Operate Properly
PINPOINT TEST D:
ENGINE BLOCK HEATER
DOES NOT OPERATE CORRECTLY

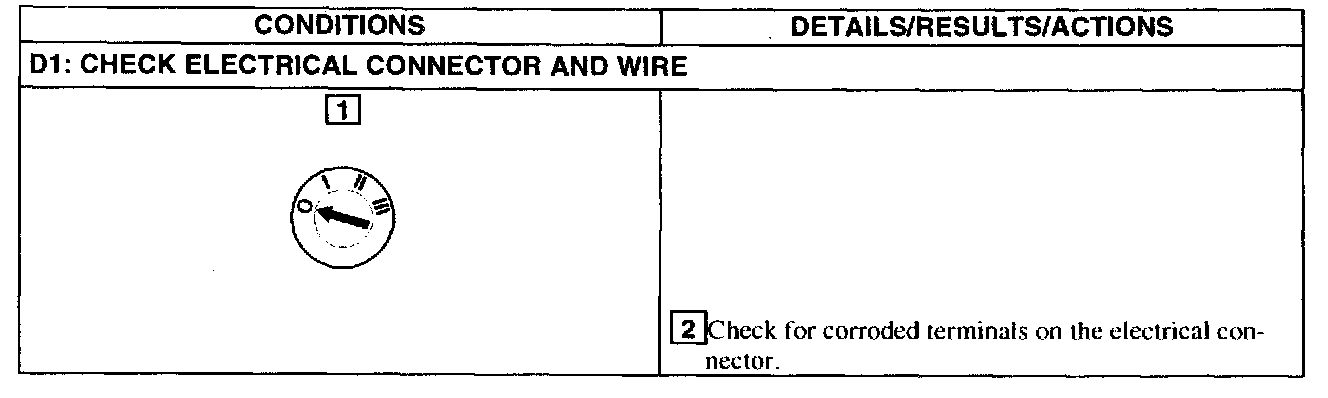

Test D1

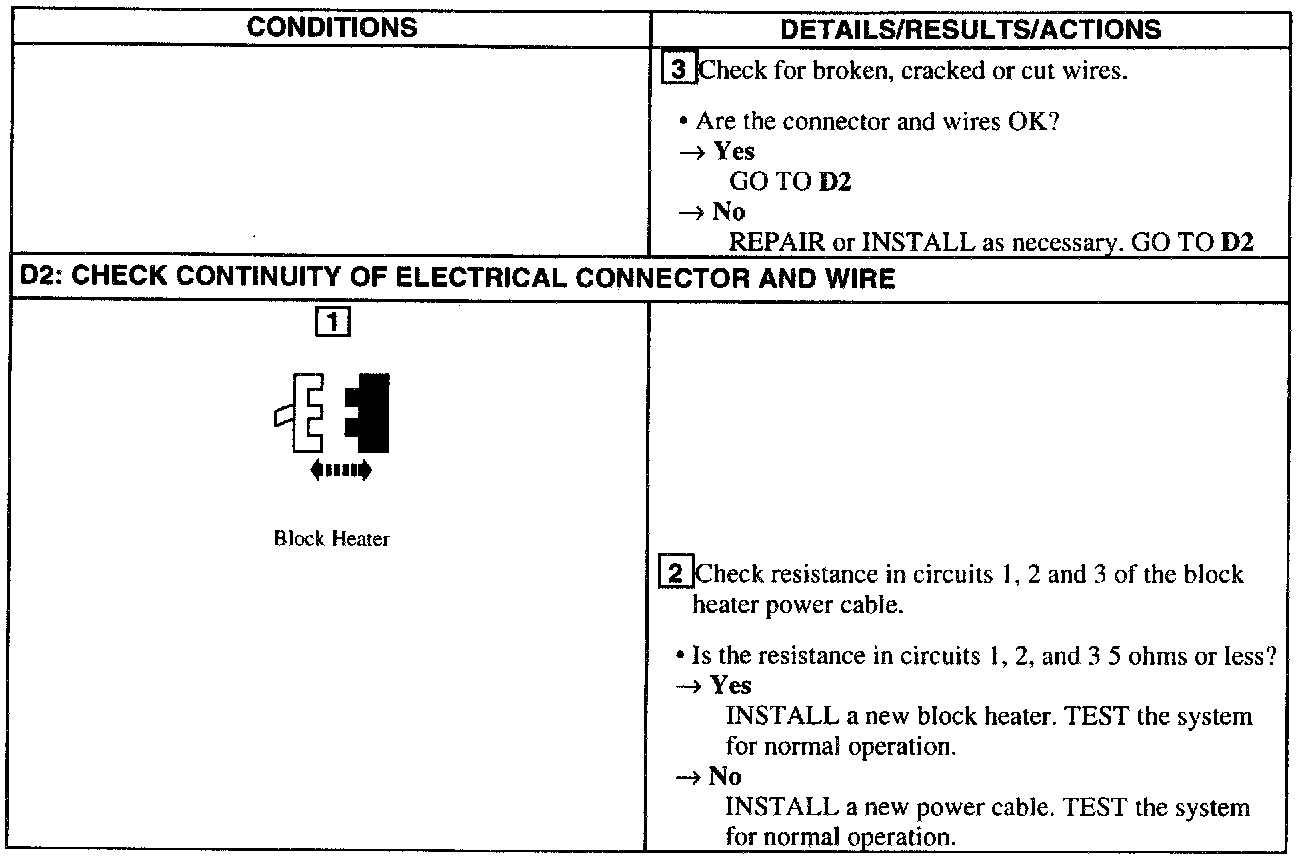

Test D2
