Thermostat-Electrical Test
Thermostat Test, ElectricalCAUTION: Always vent the exhaust to the outside when carrying out this test.
NOTE: Procedure is most accurate if carried out indoors at less than 37.8°C (100°F) ambient air. This test may be performed with or without the hood open and with the engine warm or cold.
1. Check the coolant level in the radiator and engine coolant expansion tank. Fill as required.
2. With the key OFF, disconnect the Engine Coolant Temperature (ECT) sensor electrical connector and attach Service Coolant Temperature Monitor Harness as a jumper between the PCM and the ECT. Attach Digital Multimeter to the thermostat monitor harness. Voltage values (0 to 5 V) may now be monitored while the sensor retains its connection to the harness.
NOTE: Running this test with the vehicle in gear or with the A/C compressor clutch engaged (running) will cause improper diagnosis.
3. Place transmission in Park (P) or Neutral (N).

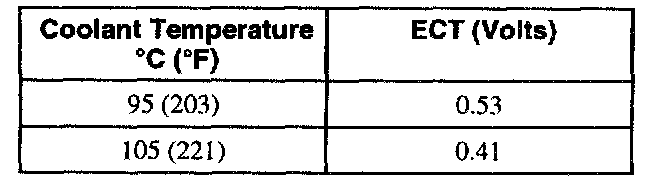

4. Start the engine and allow to idle throughout this test. Allow the engine to run for 2 minutes, then record the ECT voltage. Record the ECT voltage every 60 seconds. When the ECT voltage trend changes direction or only changes slightly (0.03 volts or less) from the previous reading, record this as the thermostat opening voltage. Use the voltage and corresponding coolant temperature chart listed below
5. If the thermostat opening voltage is greater than 0.79 volts and less than 0°C (76°F), replace the thermostat.
6. If the thermostat opening voltage is less than 0.79 volts and greater than 80°C (176°F), the thermostat is OK and should not be changed. Refer to the Symptom Chart for further instructions.
