System Diagram

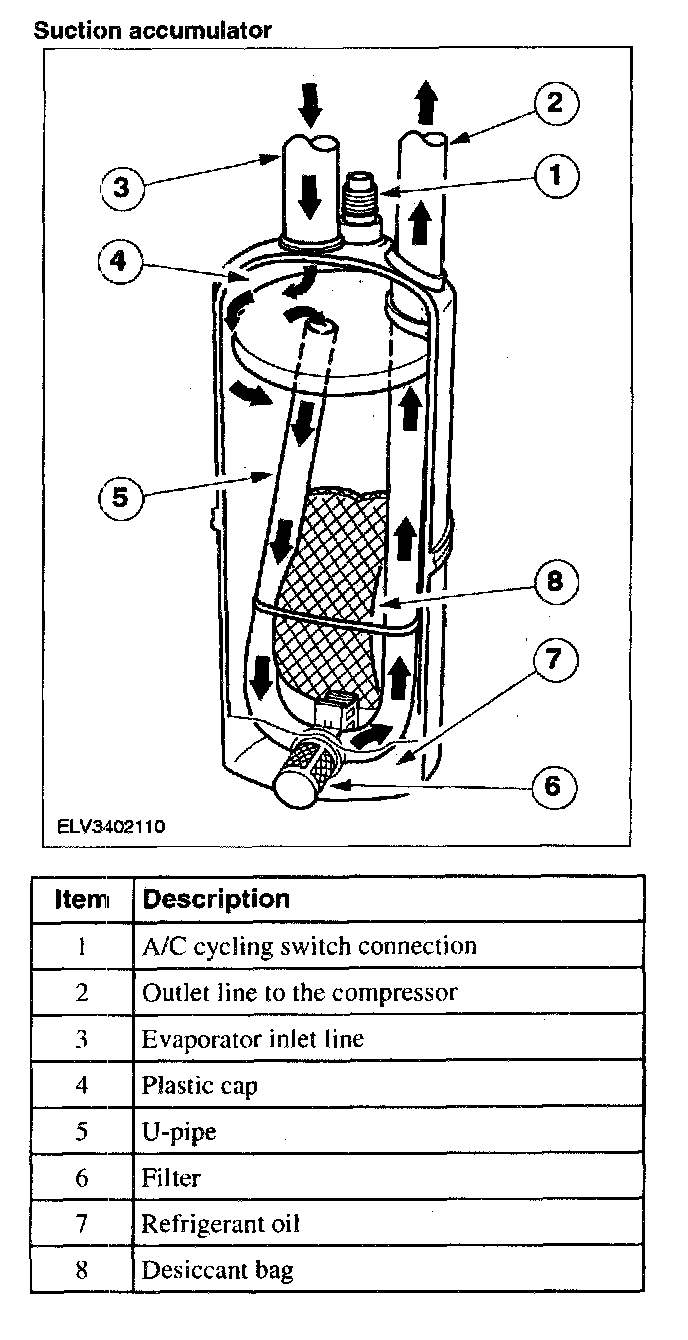

Suction Accumulator:

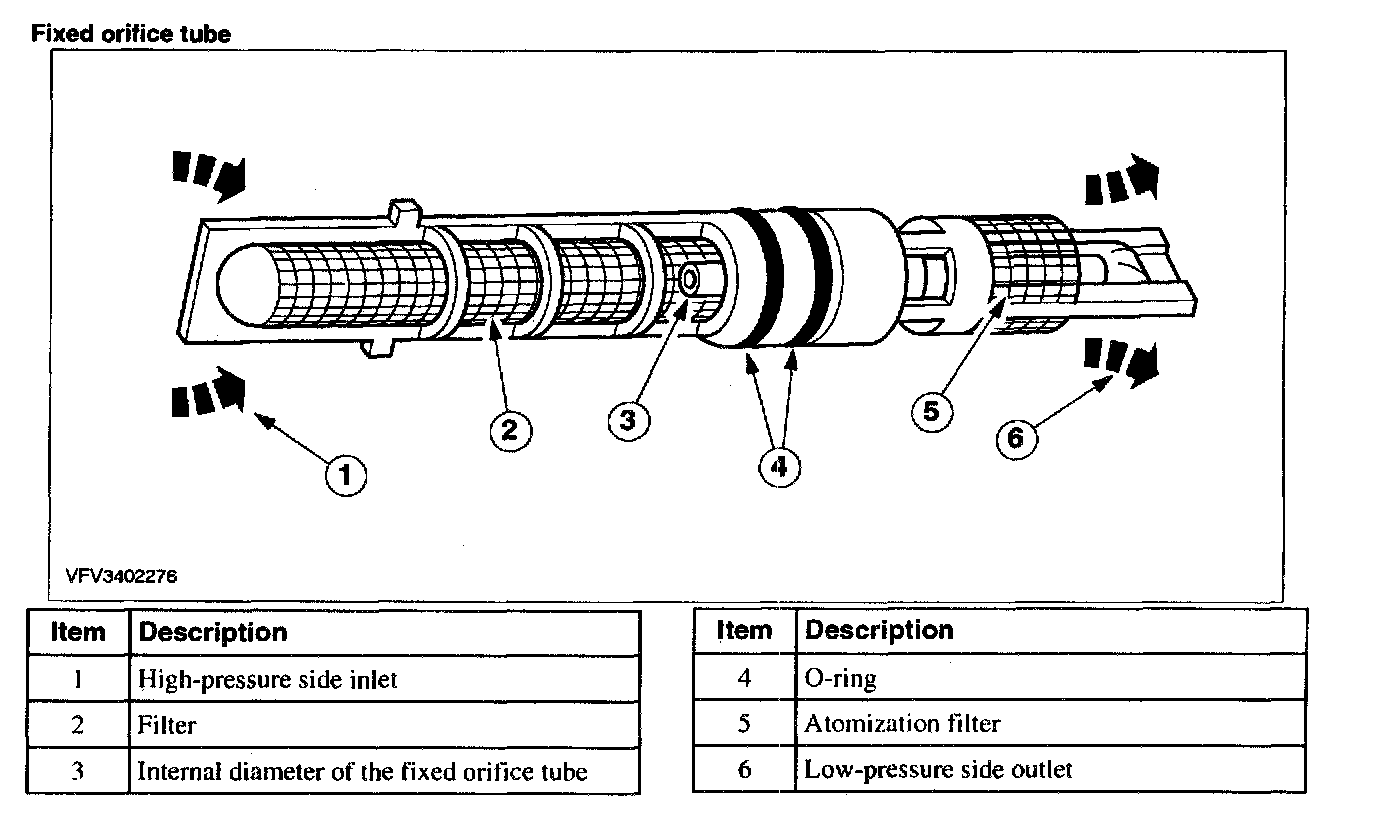

Fixed Orifice Tube:

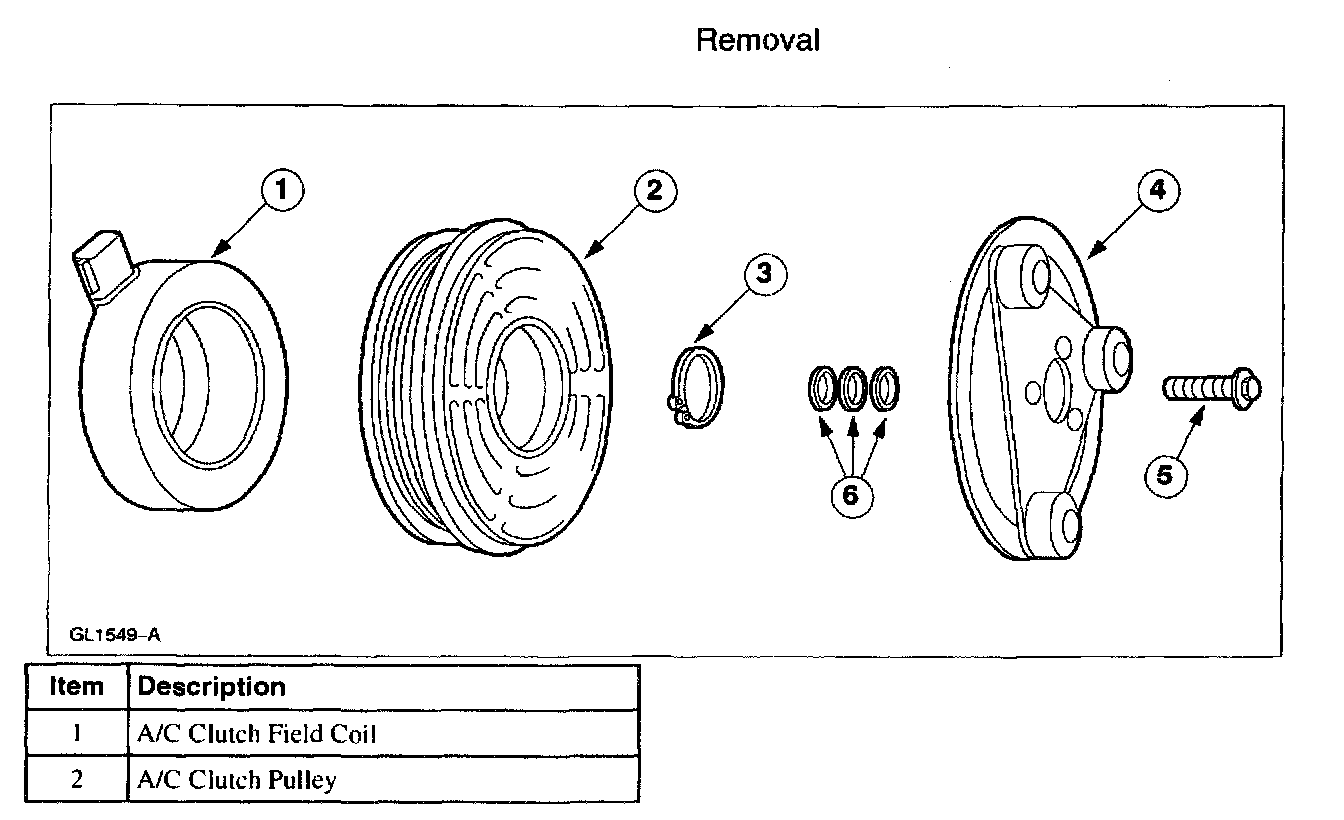

Compressor Clutch, Part 1:

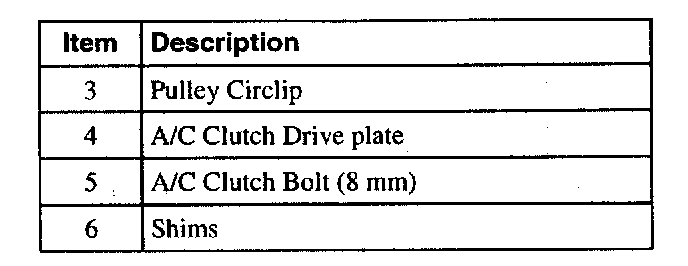

Compressor Clutch, Part 2:
