Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Auxiliary Power Outlet
Auxiliary Power Outlet
DETAILED DIAGRAM

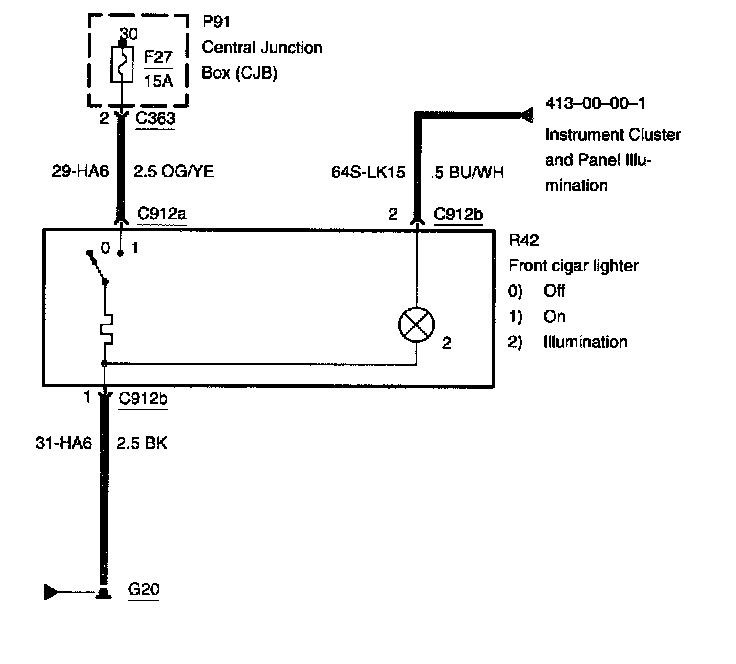

Diagram 501-12-00-1:
RELATED DIAGRAM
Diagram 413-00-00-1:
