Instrument Cluster and Panel Illumination

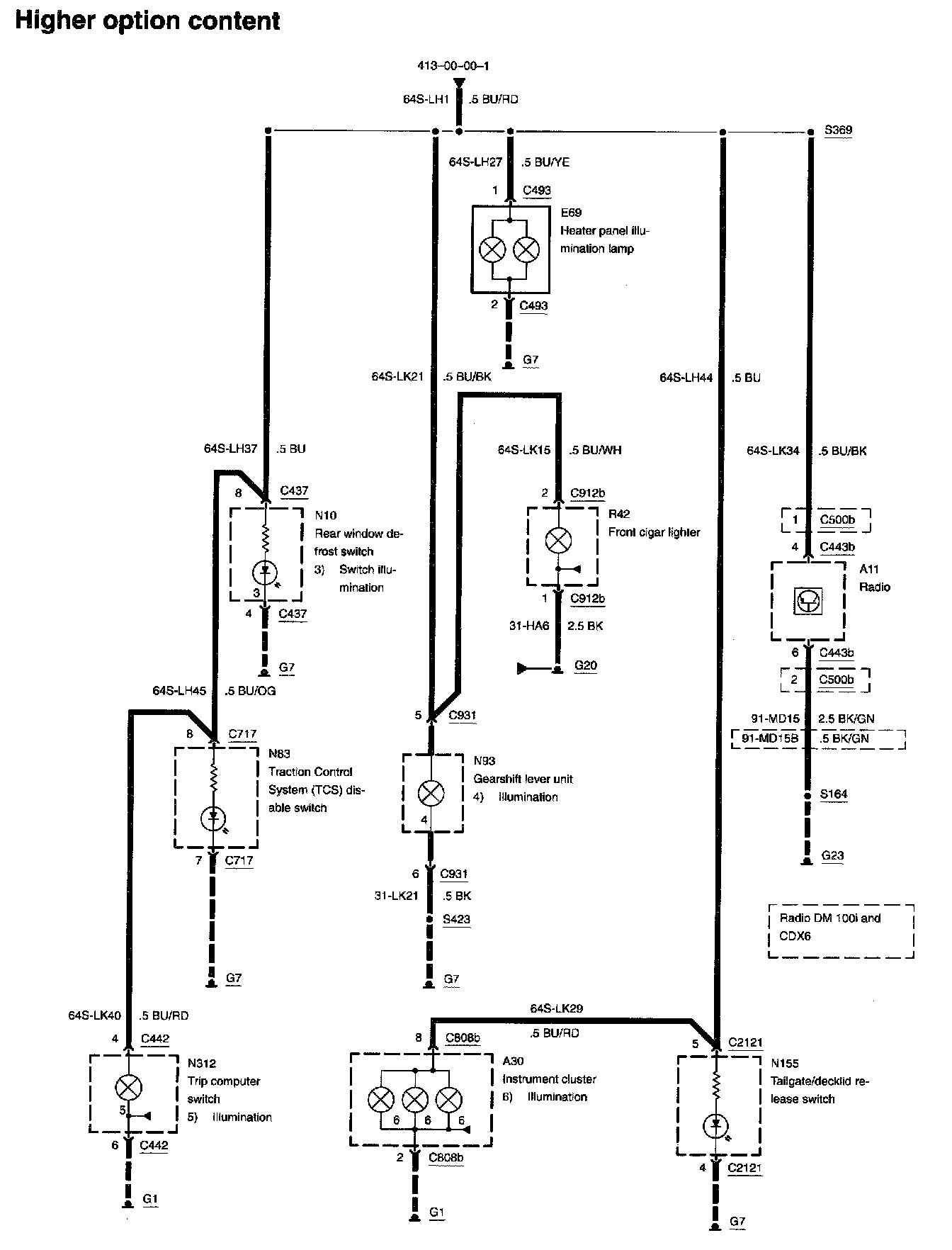

Diagram 413-00-00-1:

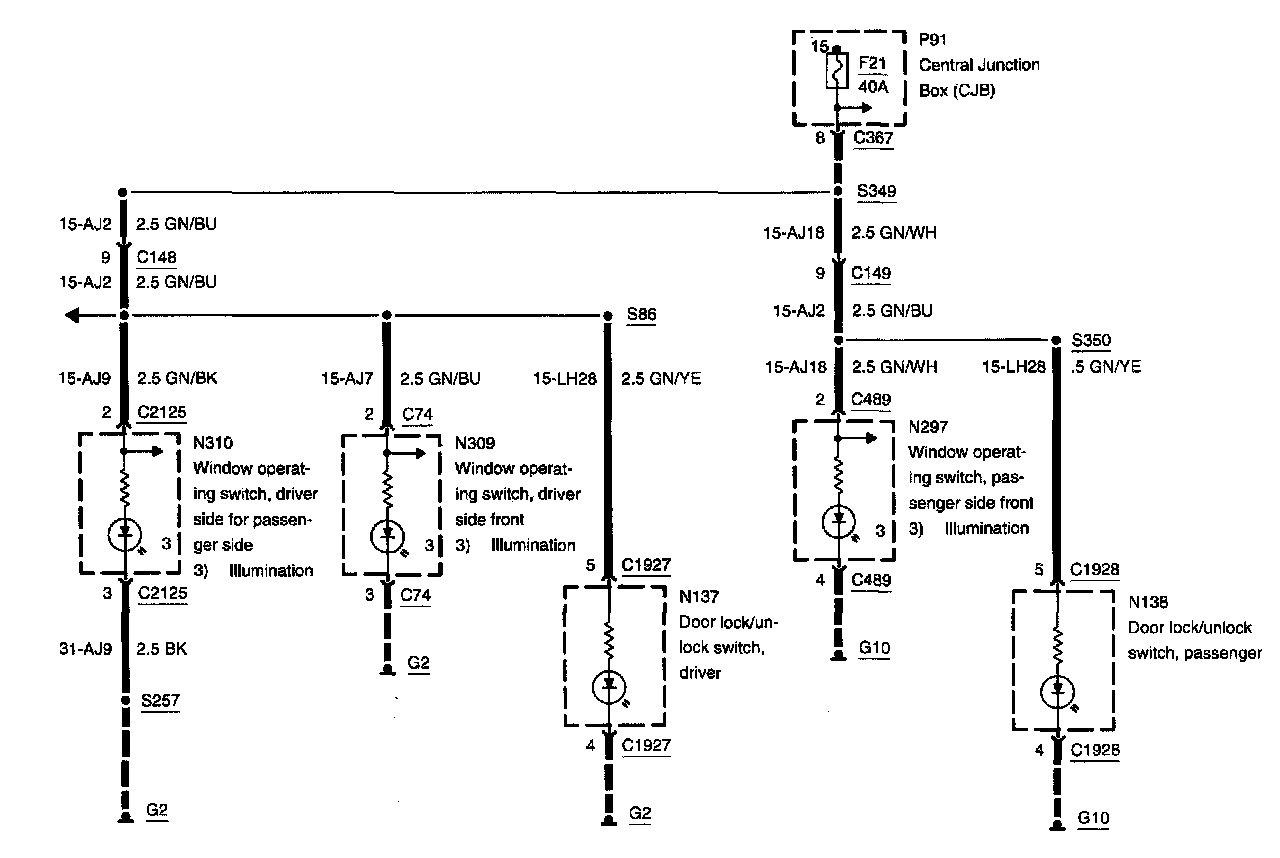

Diagram 413-00-00-2:

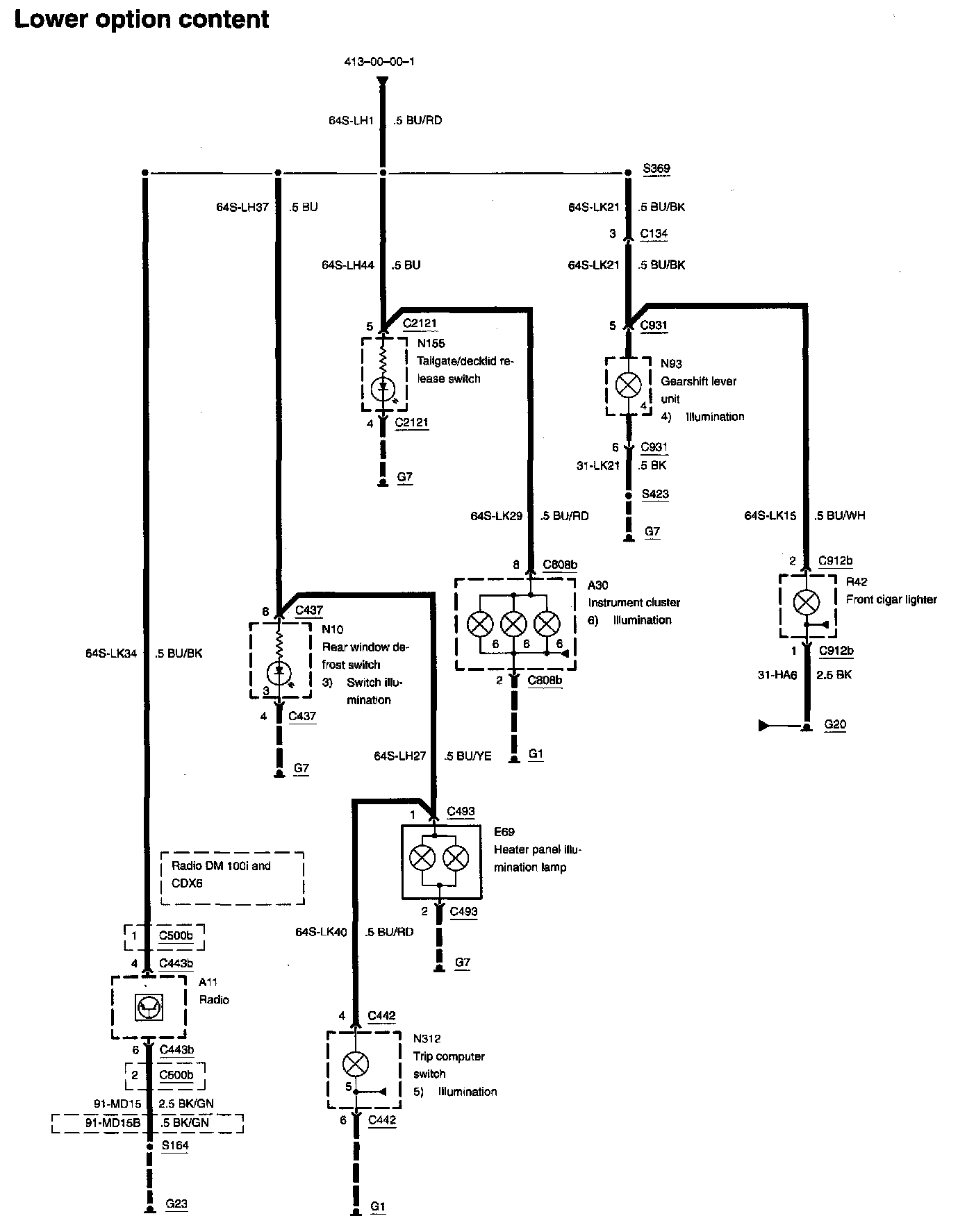

Diagram 413-00-00-3:






Diagram 413-00-00-4:
