Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> System Diagram

System Diagram

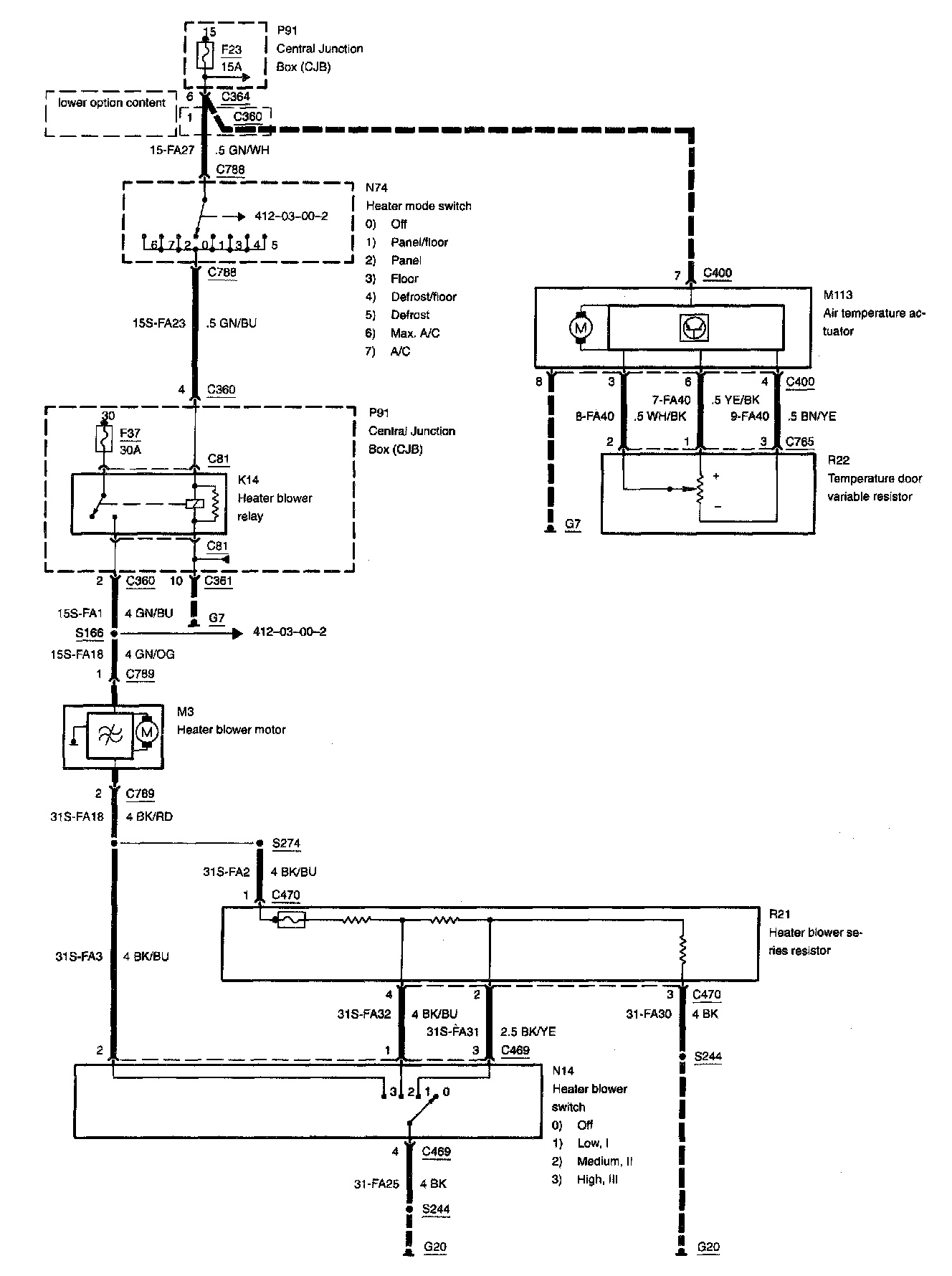

Diagram 412-03-00-1:

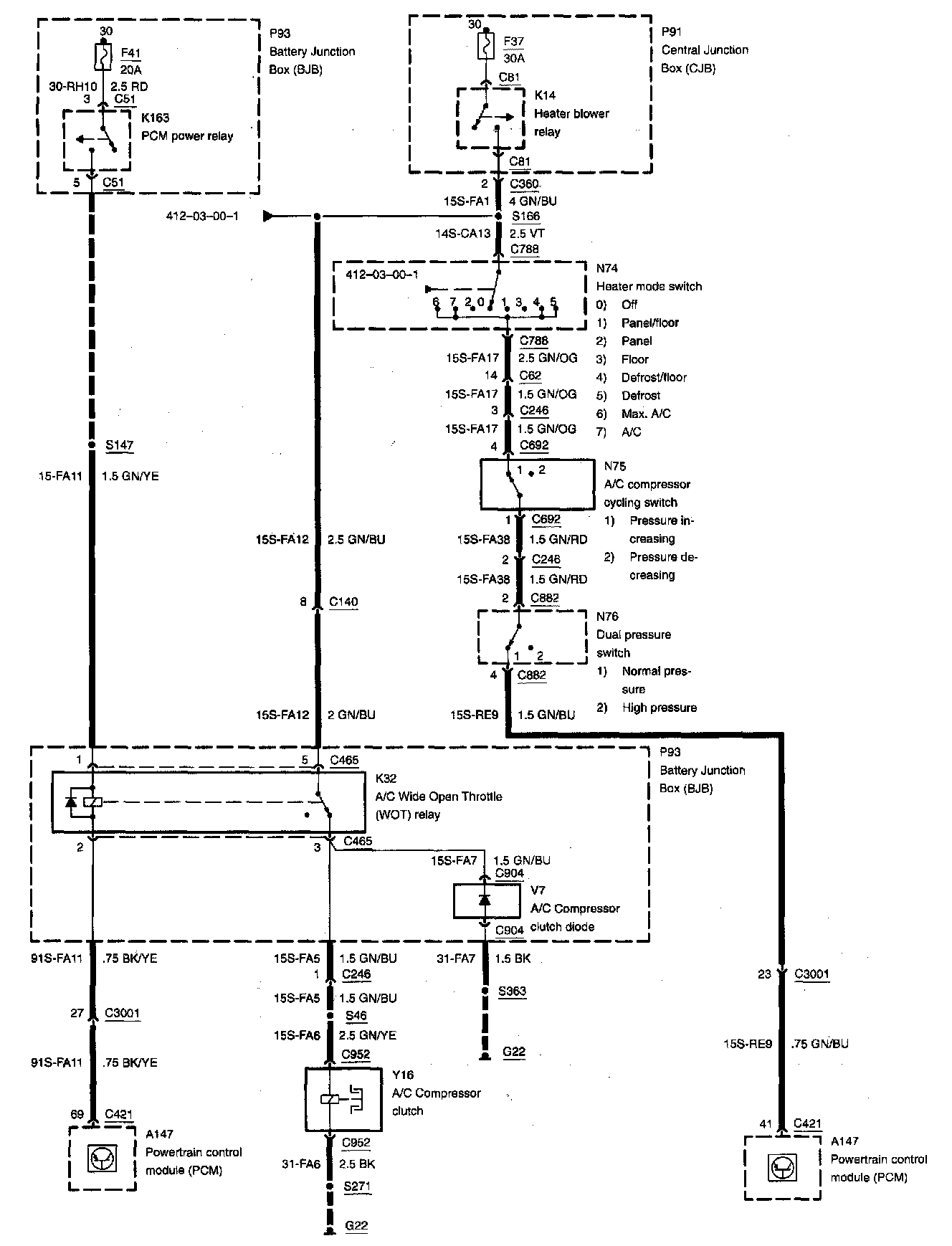

Diagram 412-03-00-2:

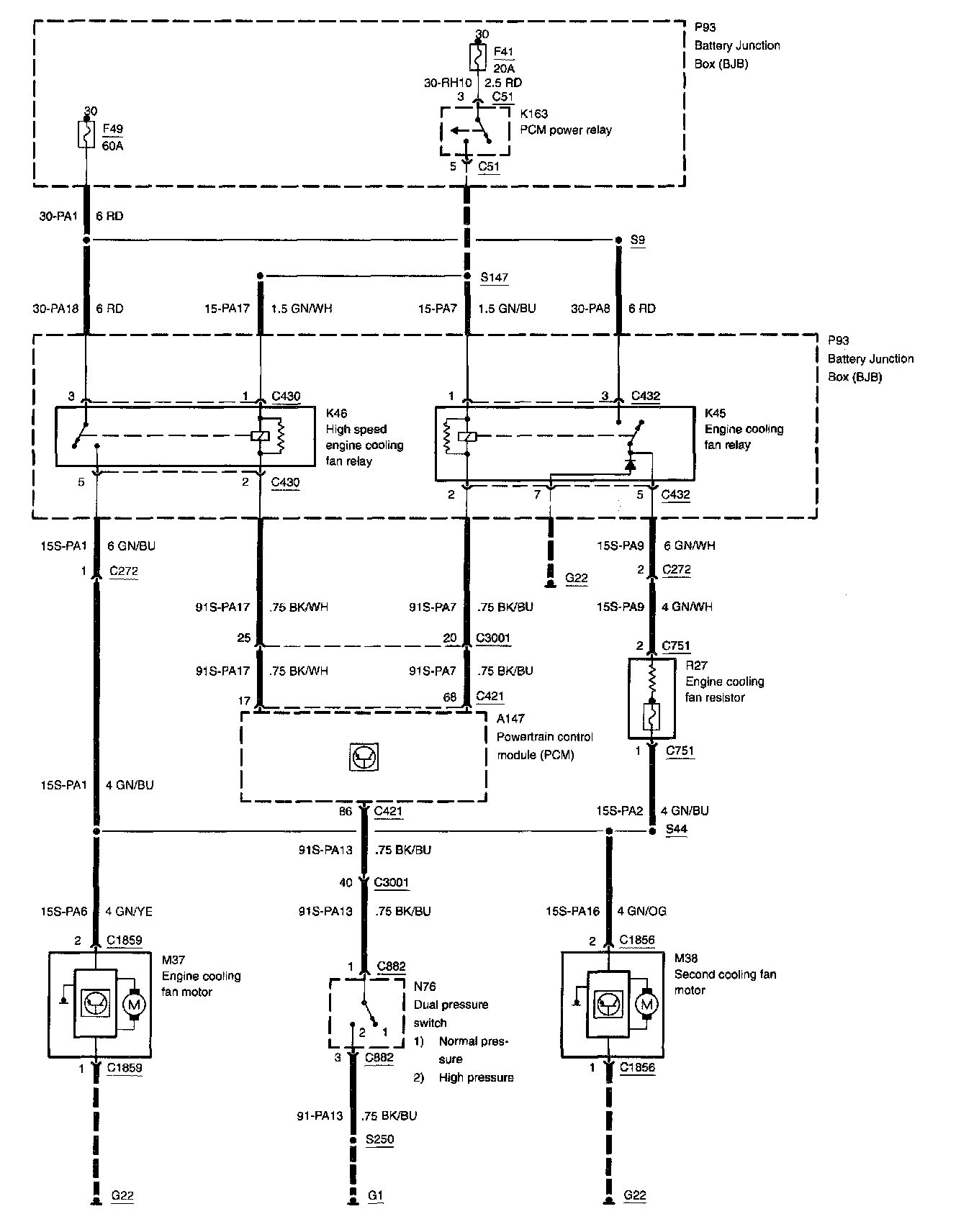

Diagram 412-03-00-3:
