Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> General Module >> Instrument Interface Module >> Manual Transmission

Manual Transmission

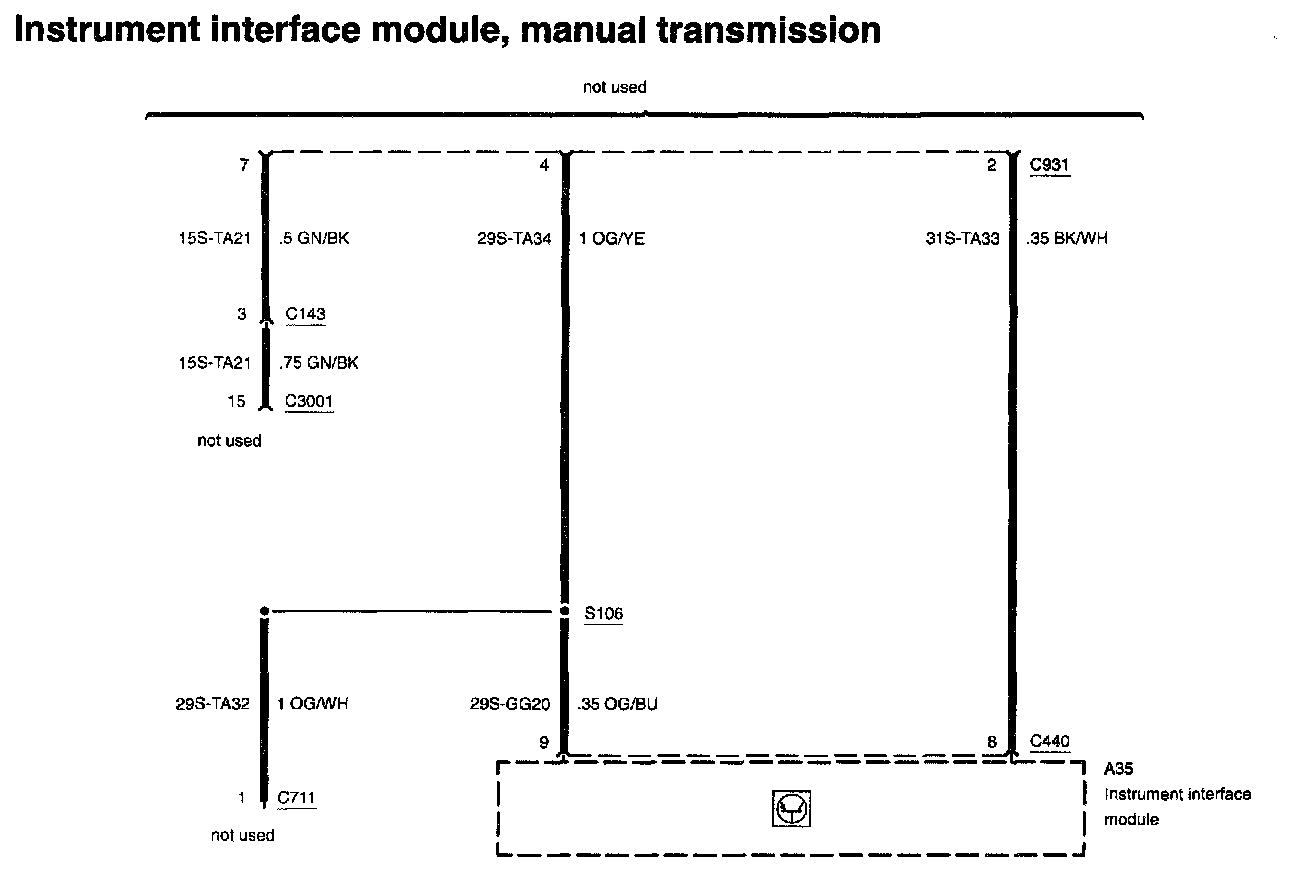

Diagram 419-10-00-4:



Diagram 419-10-00-6:
