Diagram Set 310-03-00
Diagram Set 310-03-00

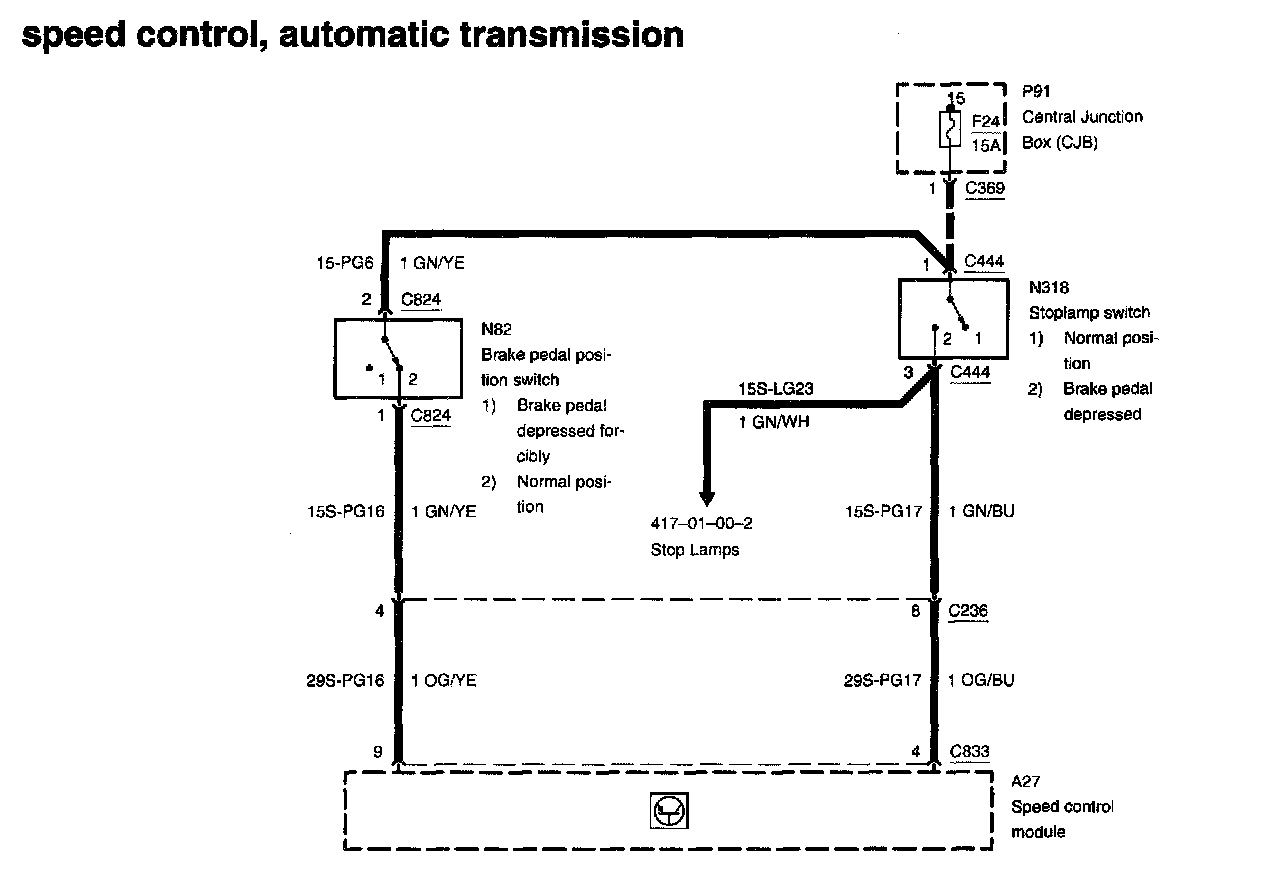

Diagram 310-03-00-1:
Diagram 310-03-00-2:
Diagram 31-03-00-3:
Diagram 31-03-00-4:
Diagram 31-03-00-5:
