Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Pinpoint Tests >> Test A: Speed Control Is Inoperative

Test A: Speed Control Is Inoperative

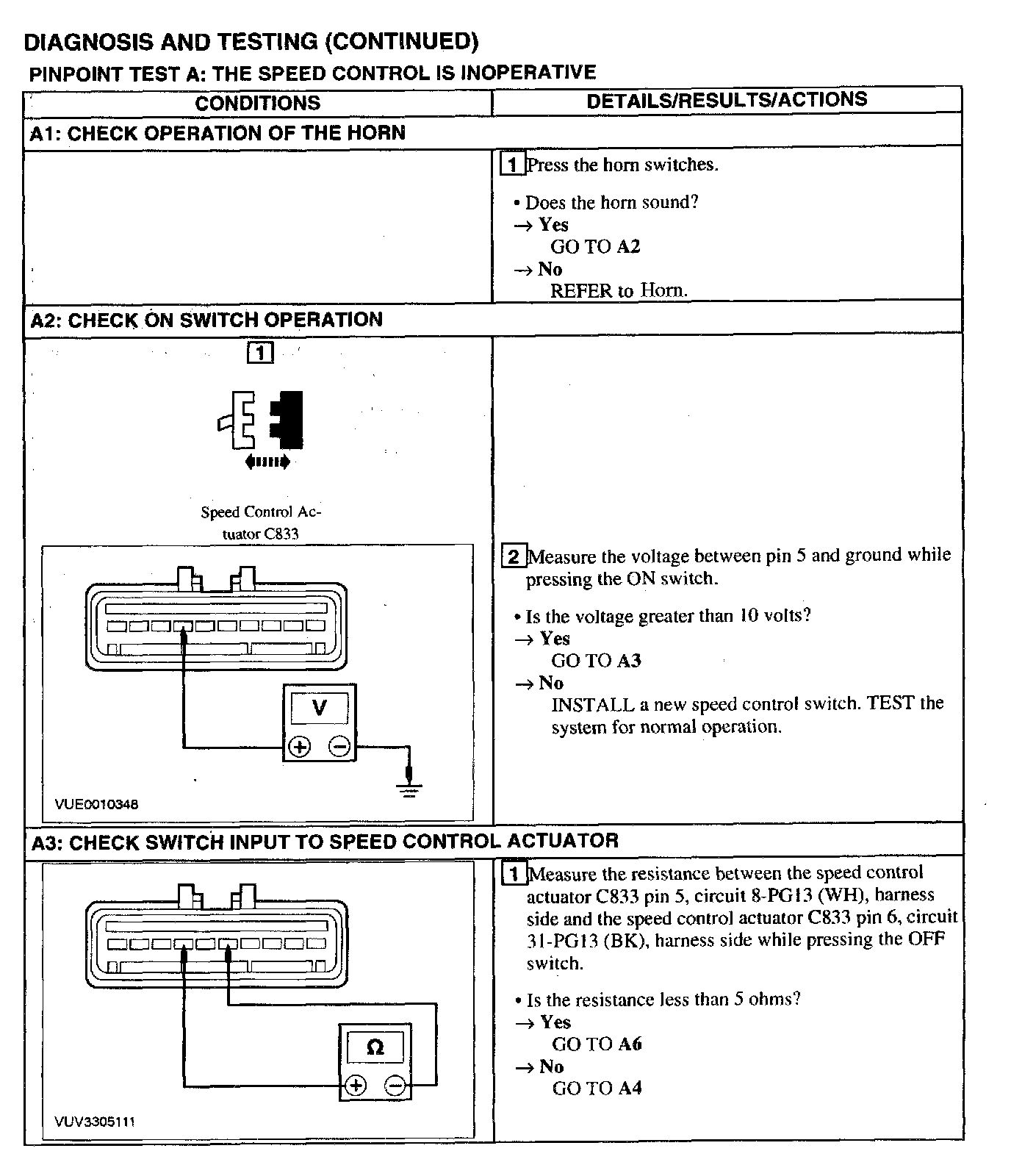

A1 - A3:

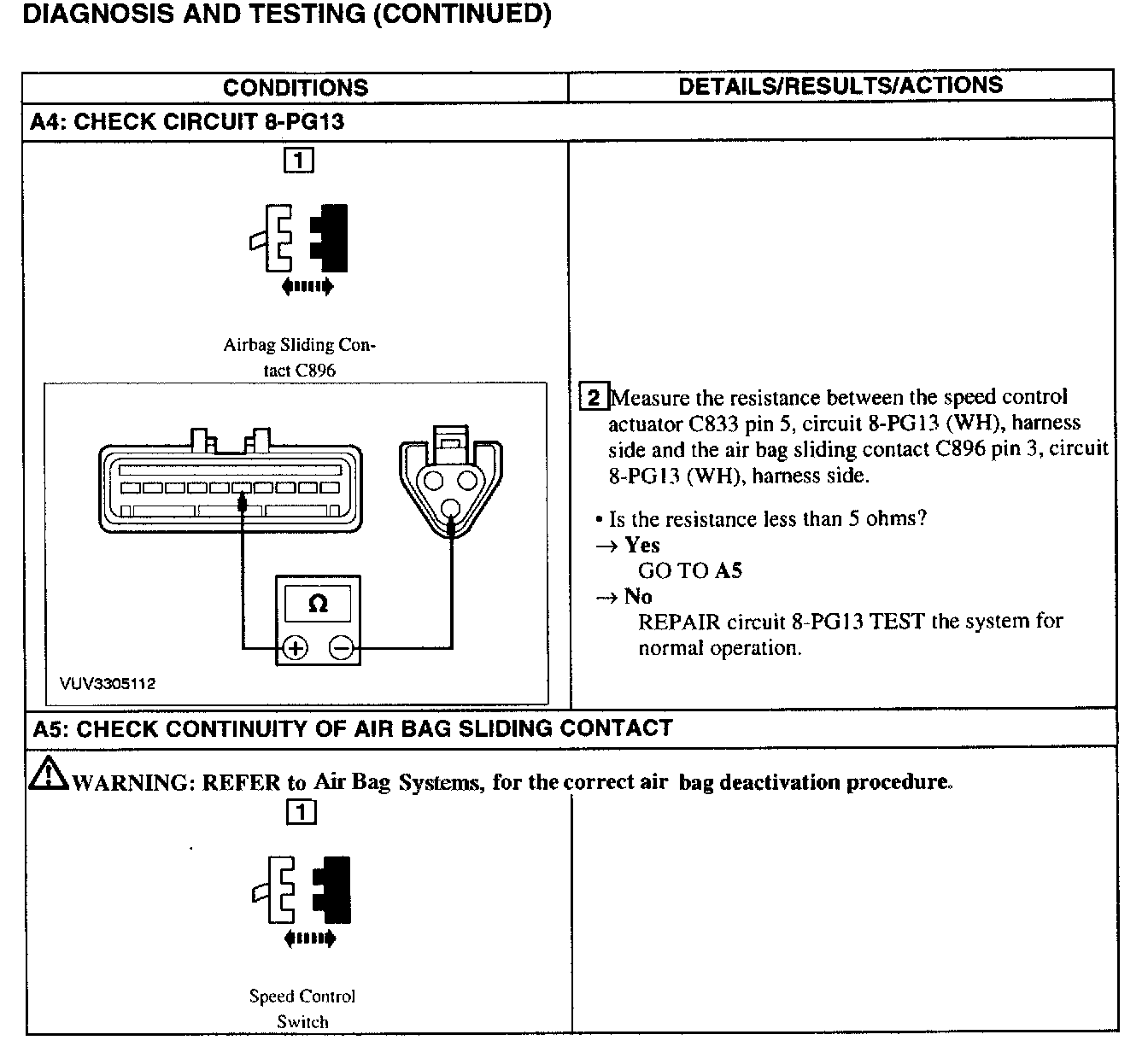

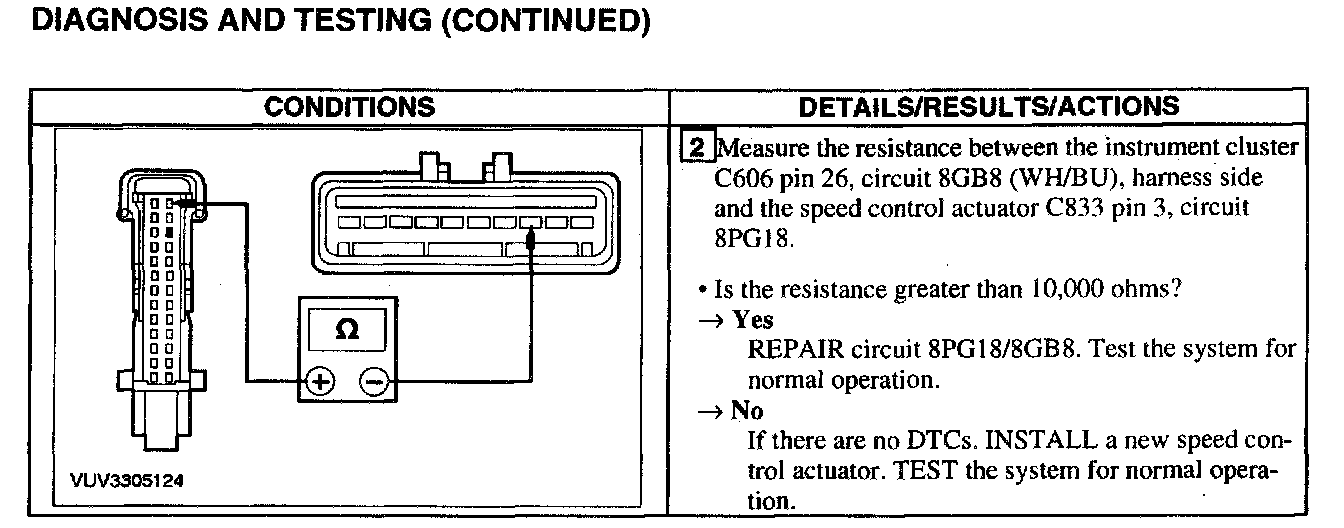

A4 - A5:

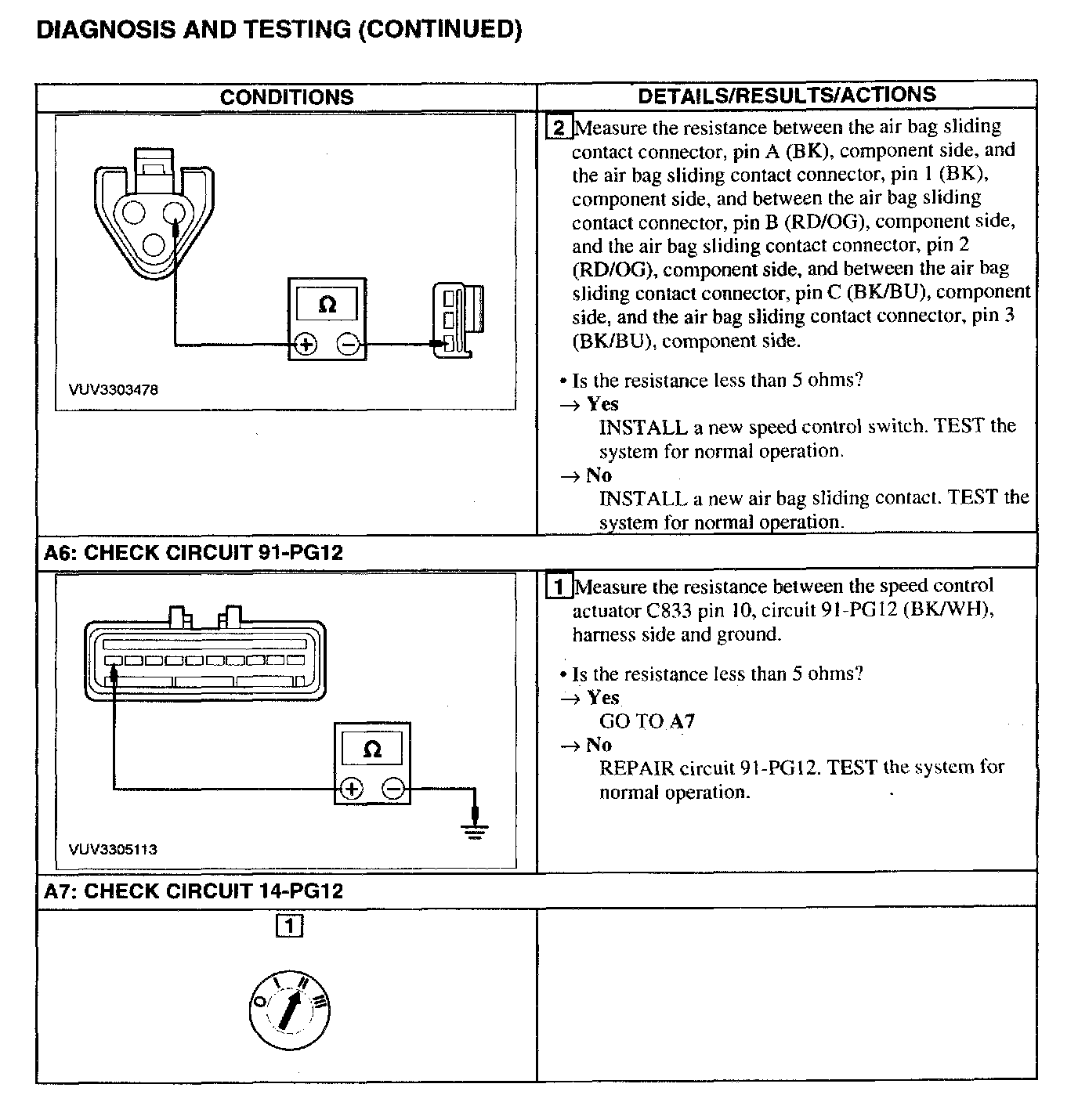

A5 - A7:

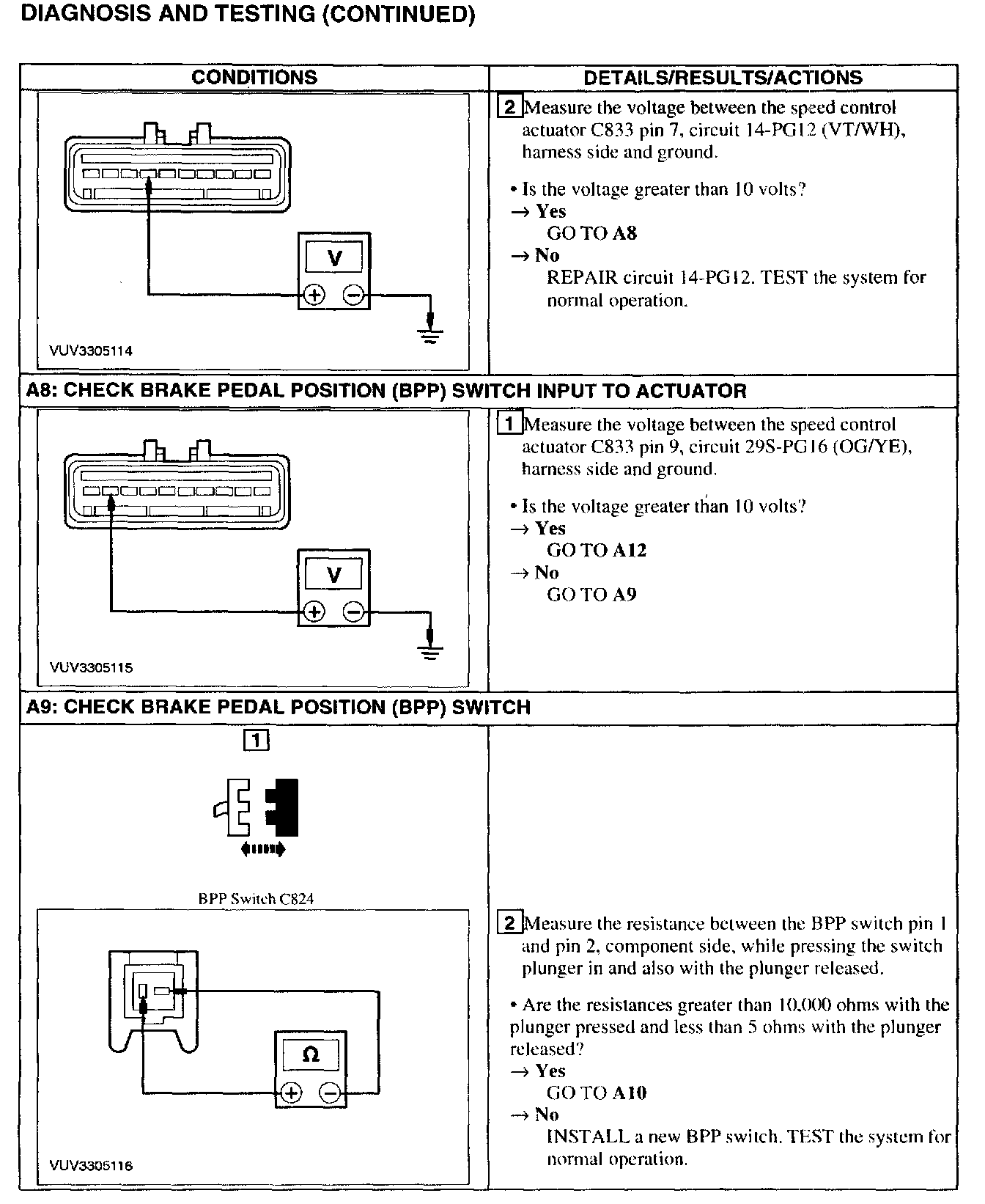

A7 - A9:

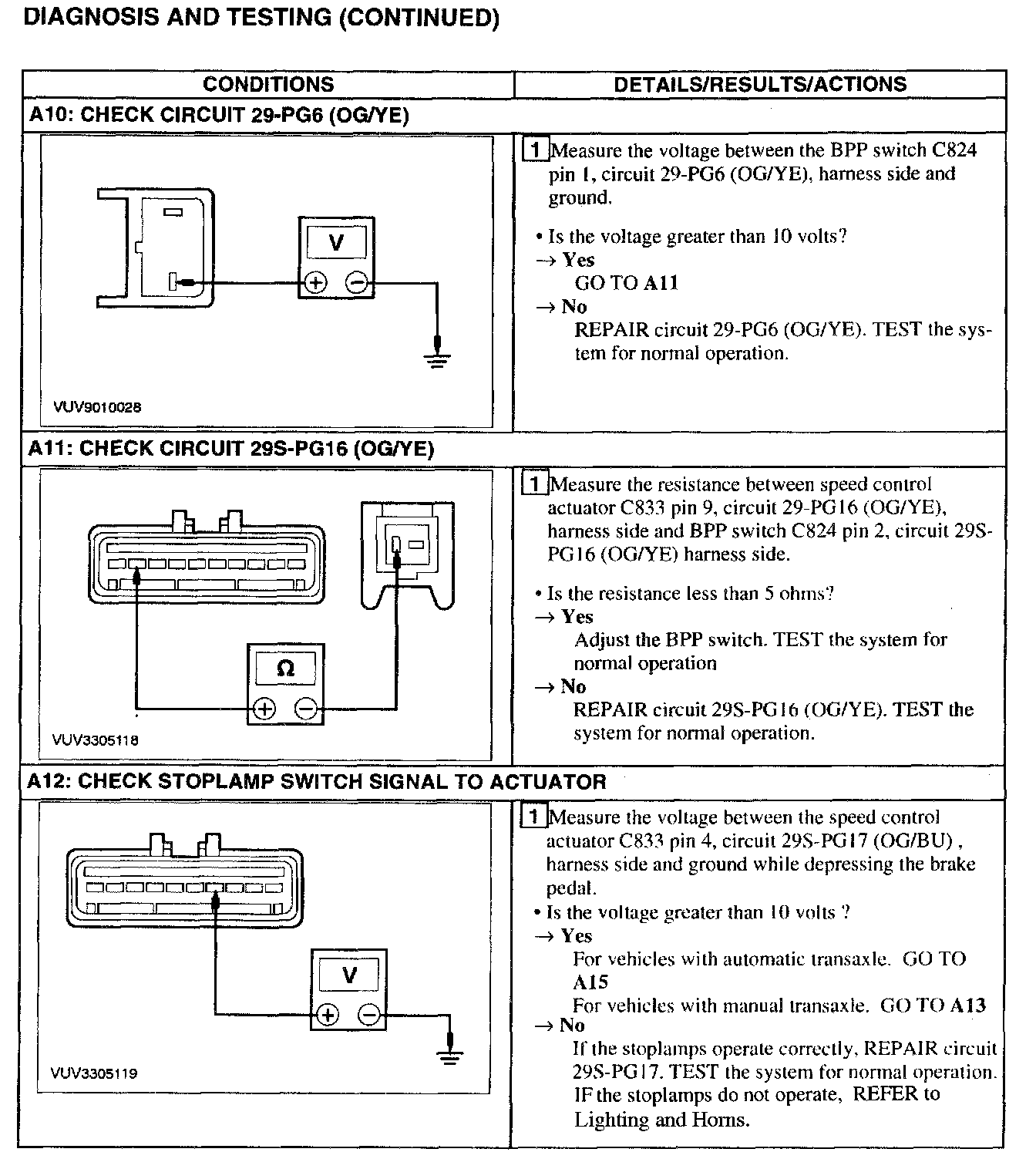

A10 - A12:

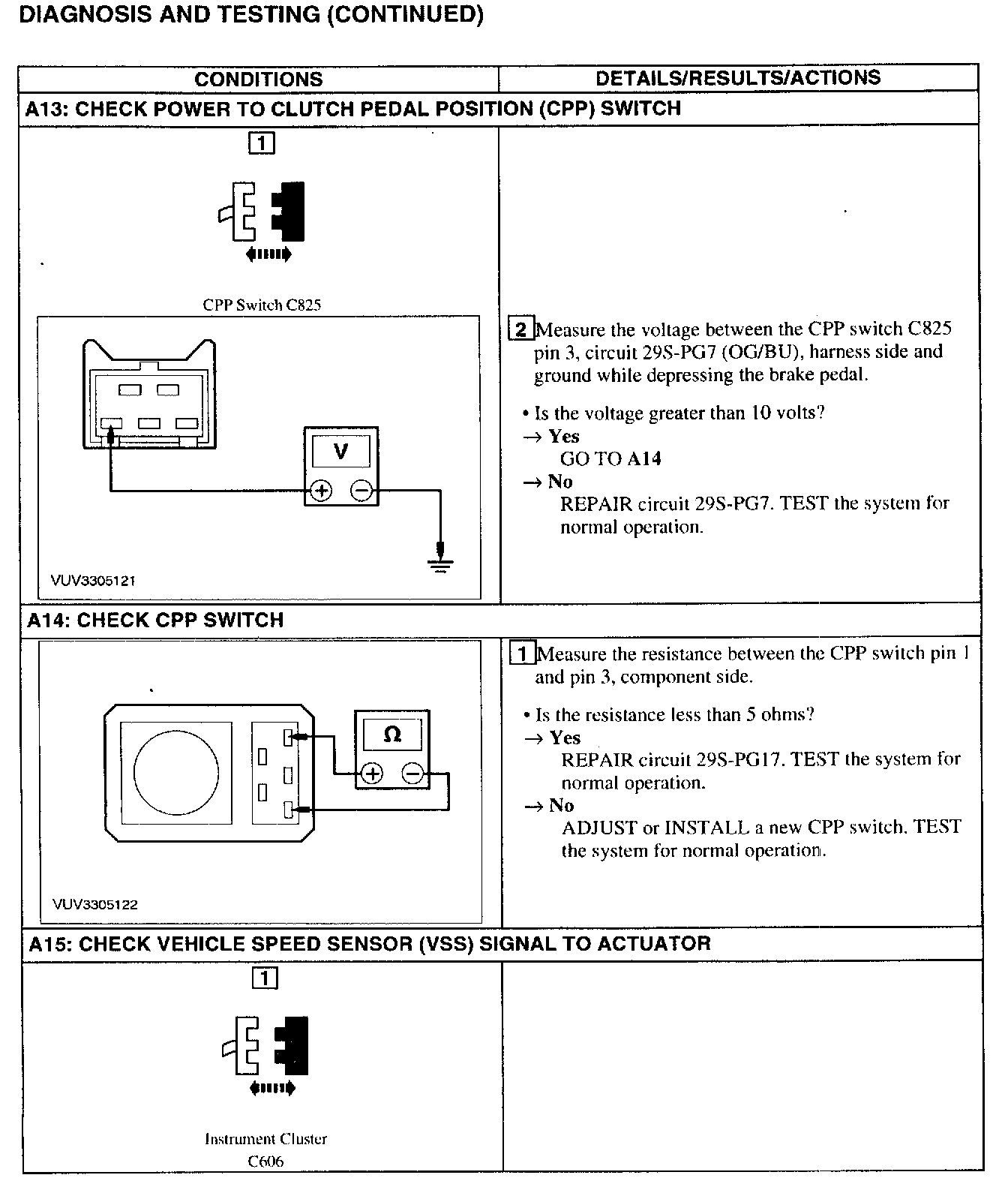

A13 - A15:






A15:
