Test G: Brake Lockup During Light Brake Pedal Force
Test G: Brake Lockup During Light Brake Pedal Force
PINPOINT TEST G: BRAKE LOCK-UP DURING LIGHT BRAKE PEDAL FORCE

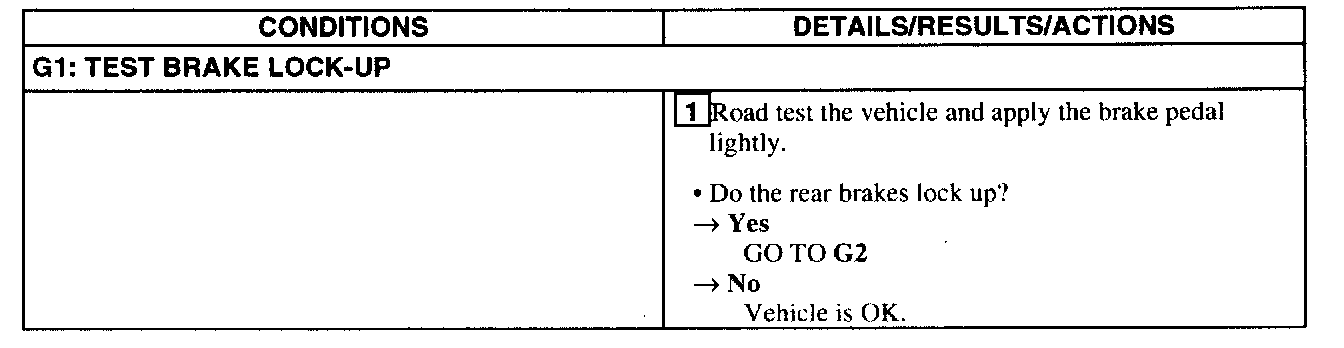

Test G1:

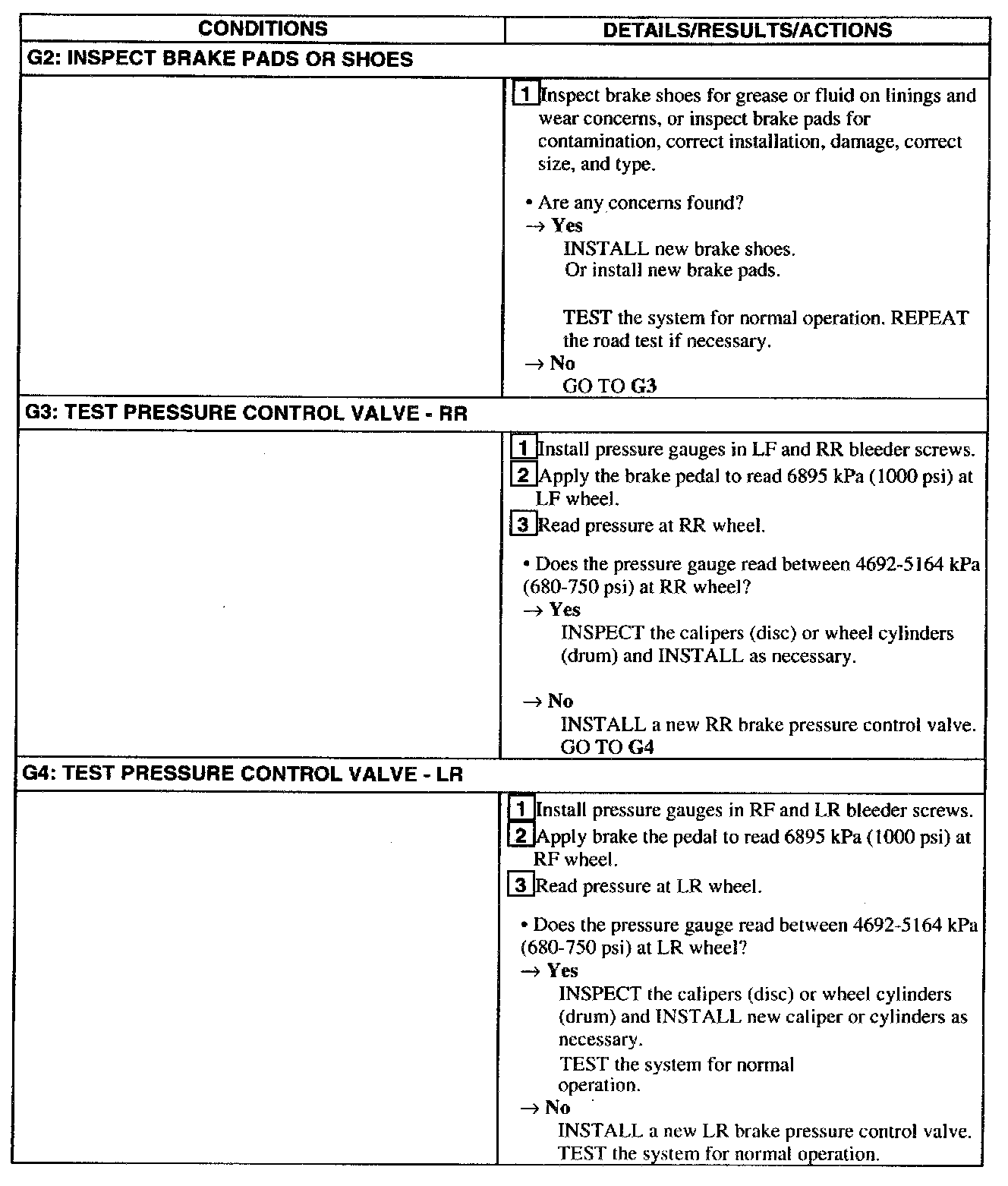

Test G2-G4:
