M: Traction Control Switch Indicator Is Inoperative
M: Traction Control Switch Indicator Is Inoperative
PINPOINT TEST M: THE
TRACTION CONTROL SWITCH
INDICATOR IS INOPERATIVE

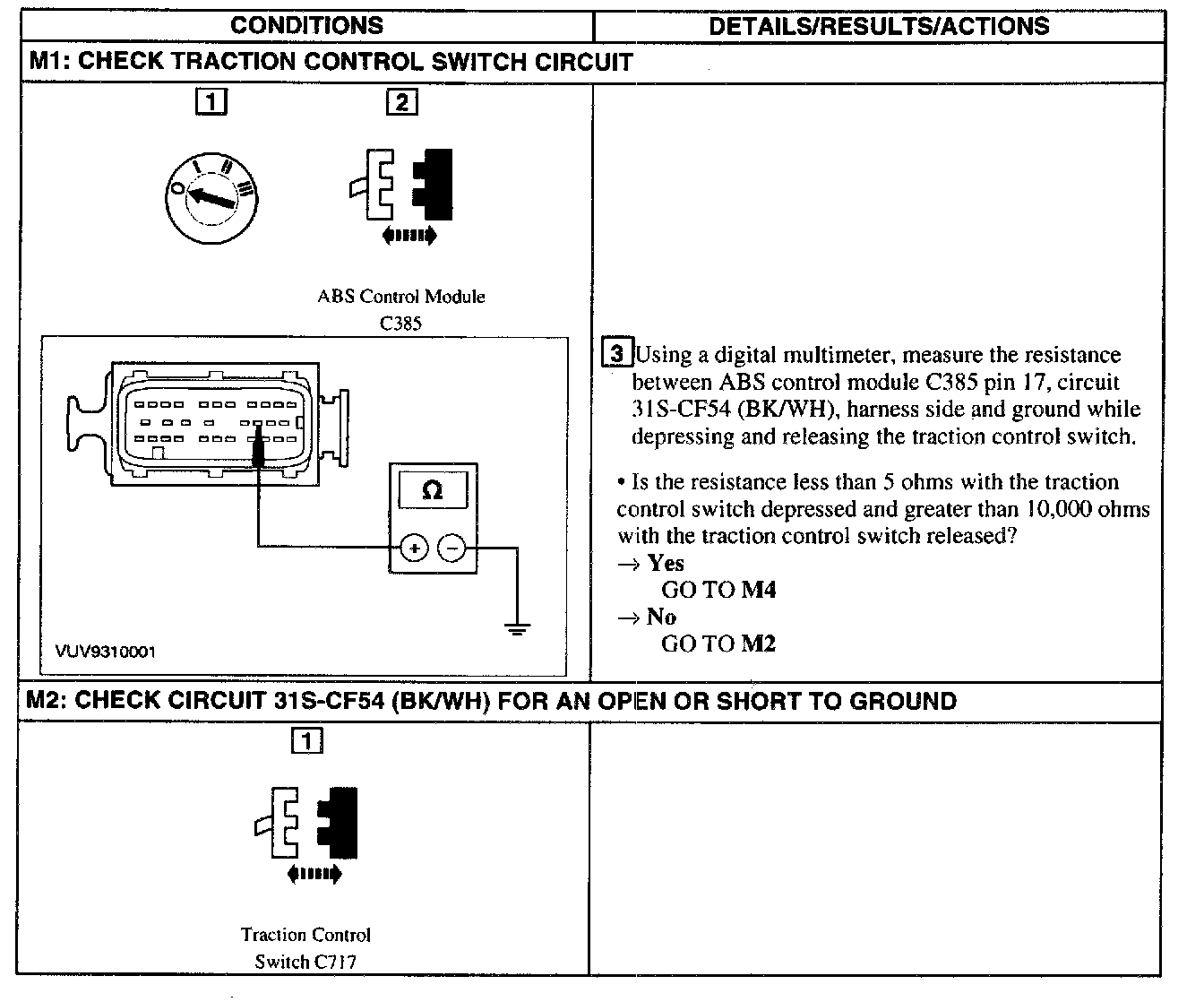

Test M1-M2:

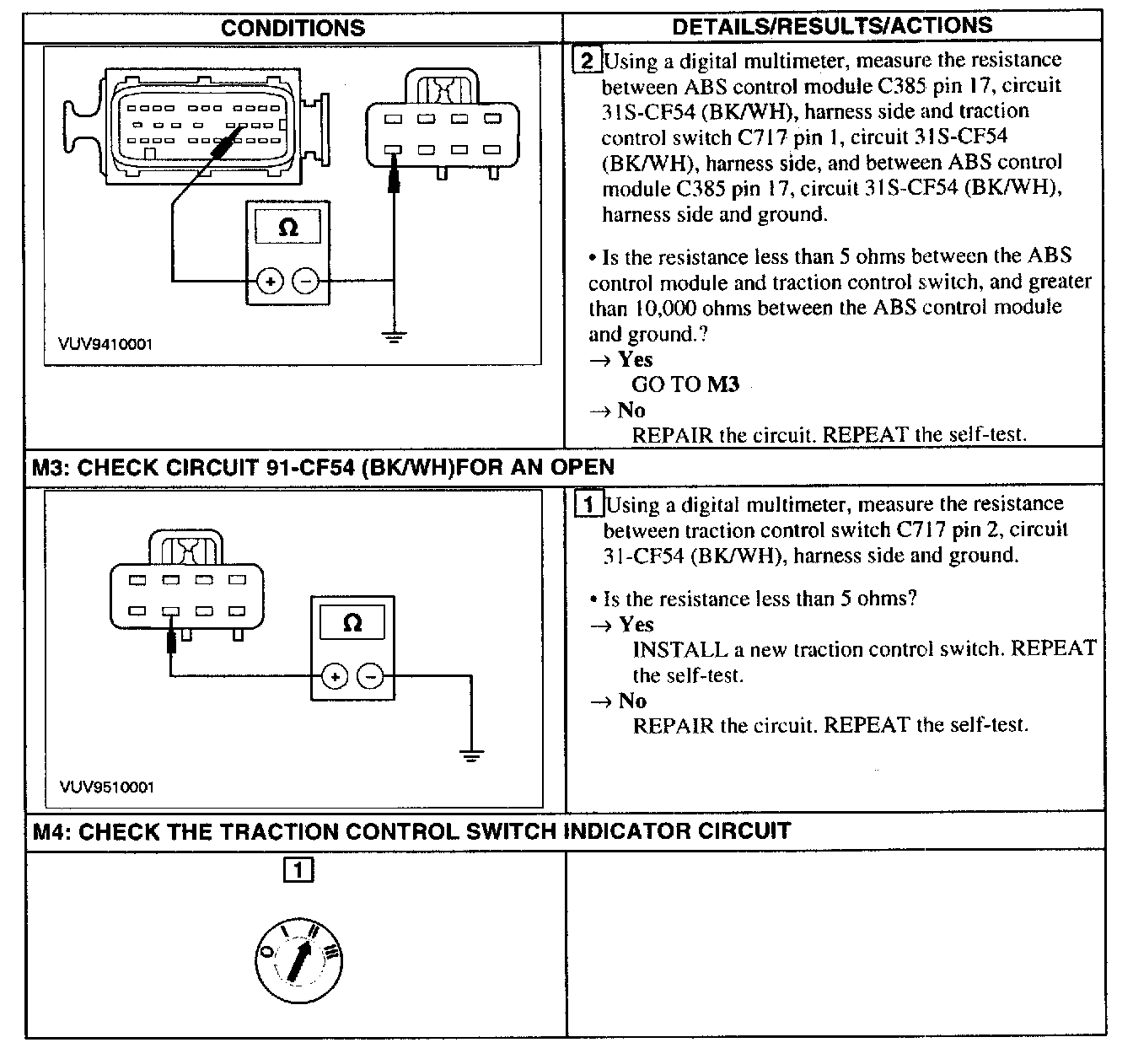

Test M2-M4:

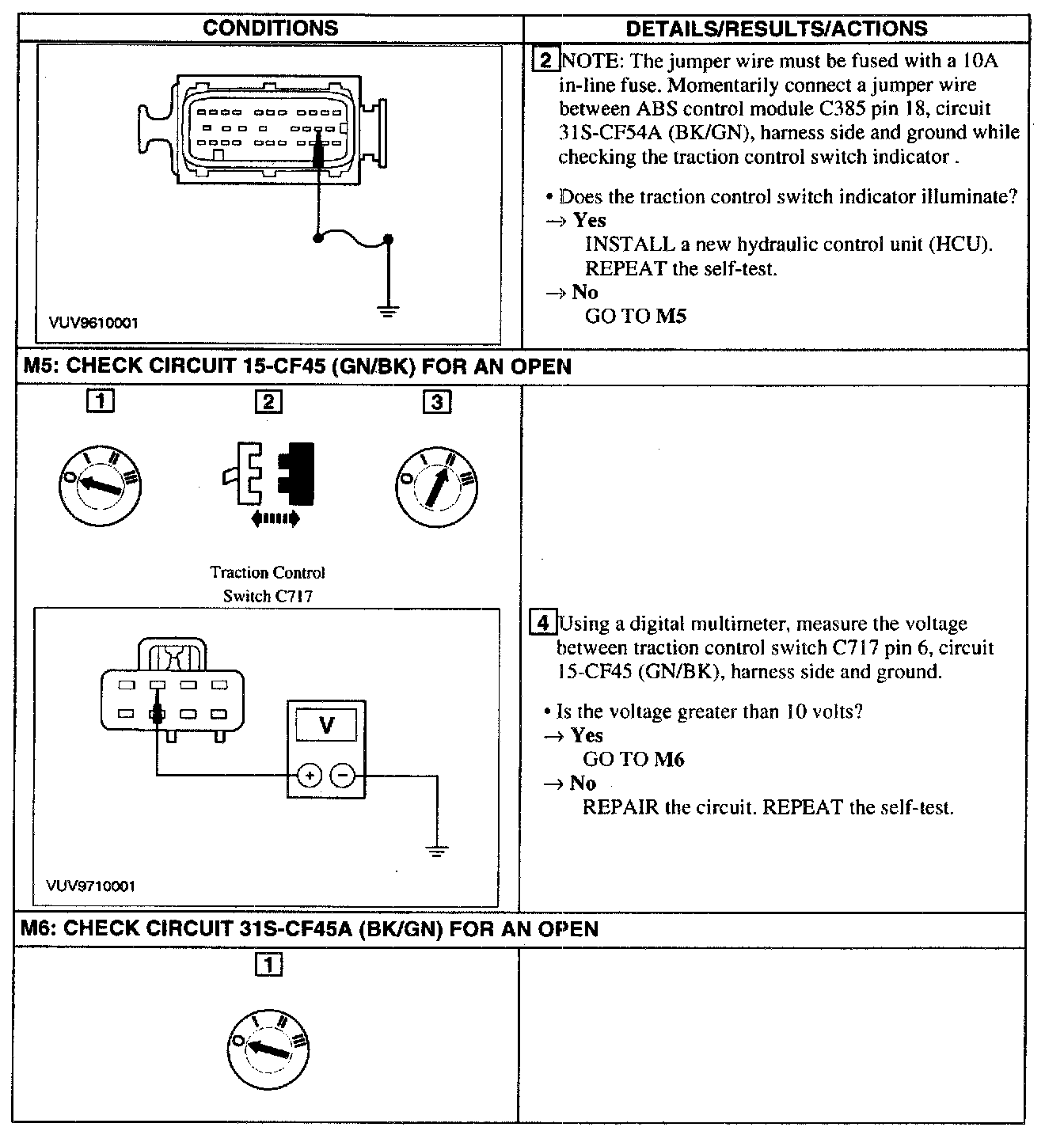

Test M4-M6:

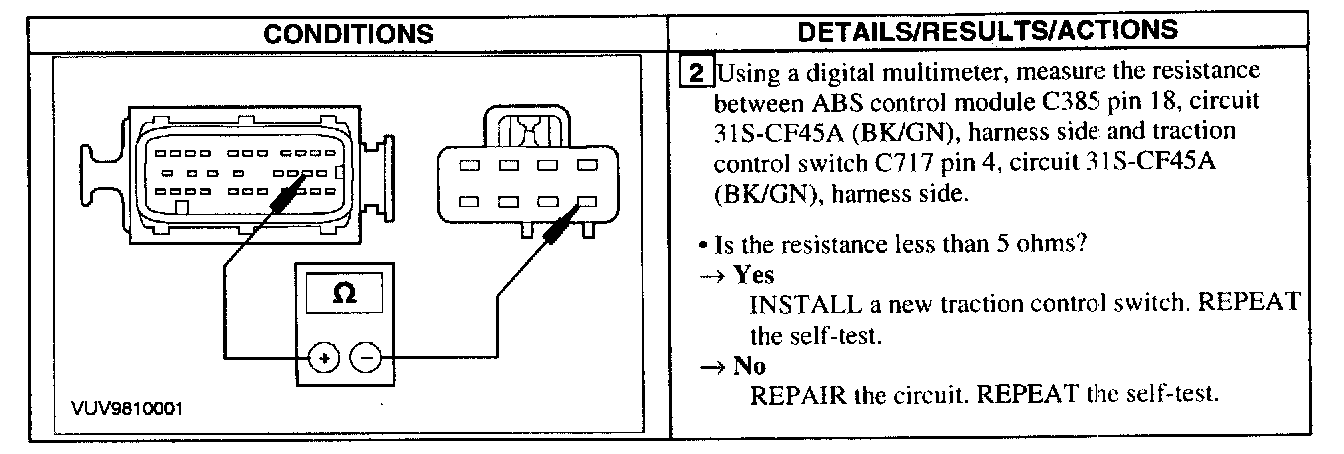

Test M6 Continued:
