FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2001
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
E: C1095 - ABS Hydraulic Pump Motor Circuit Failure
>>
Anti-Lock Brakes
Anti-Lock Brakes
PINPOINT TEST E: DTC C1095 - ABS HYDRAULIC PUMP MOTOR CIRCUIT FAILURE

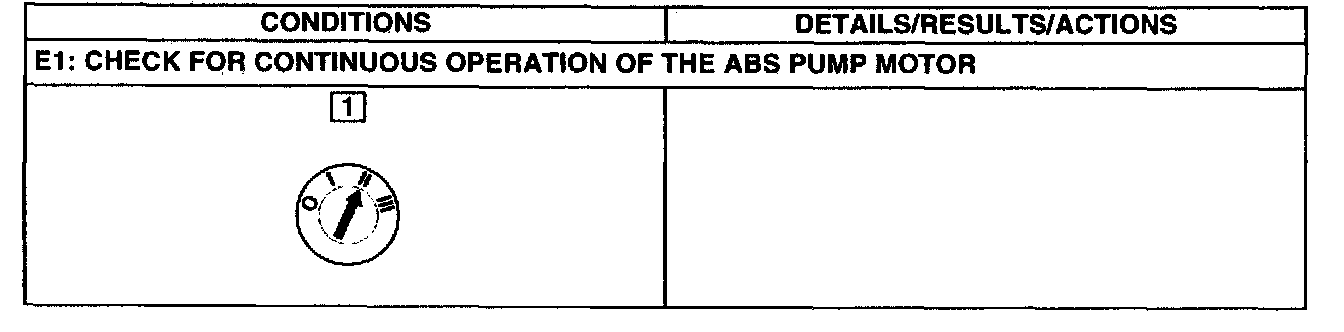

Test E1:

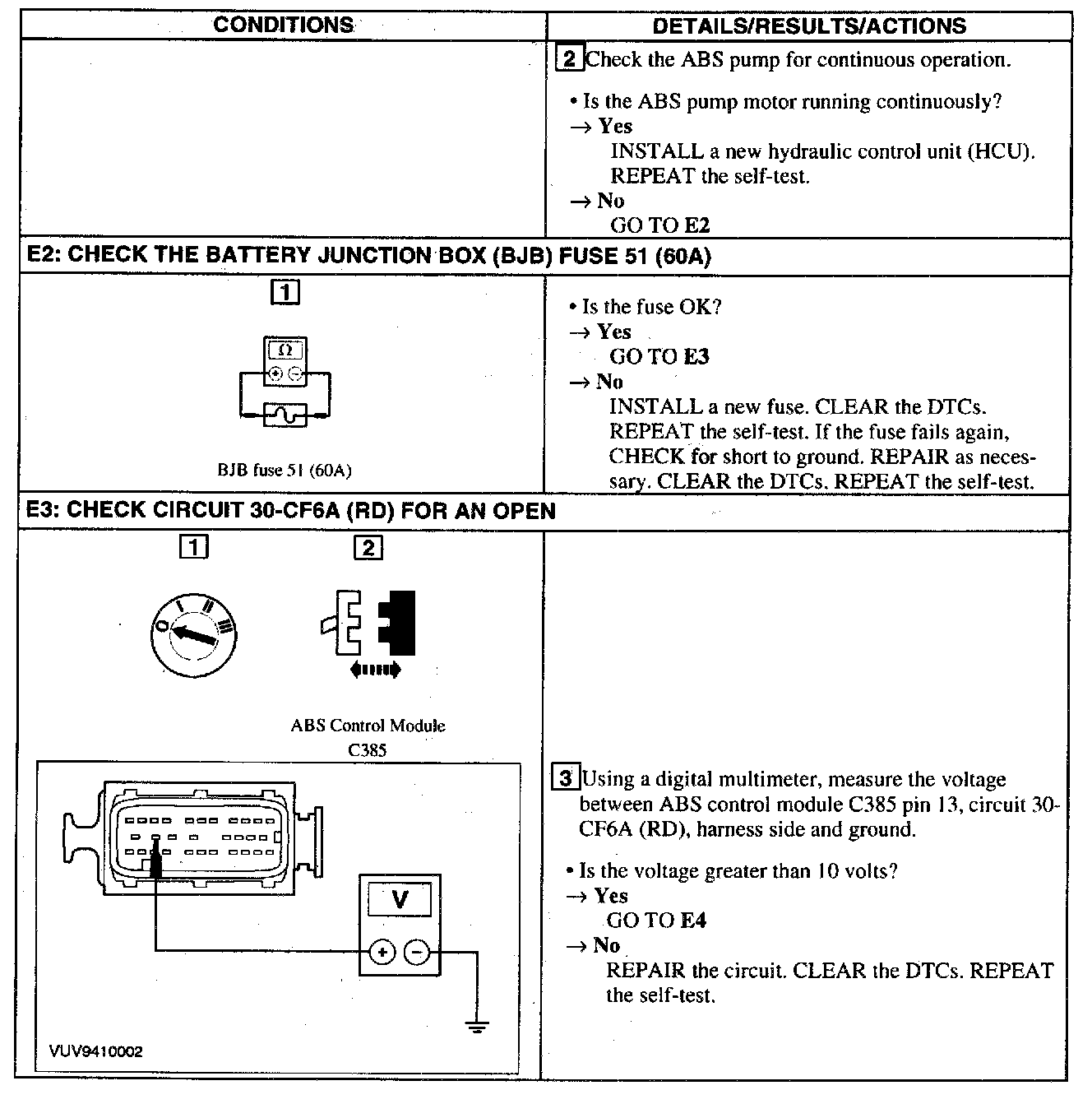

Test E1-E3:

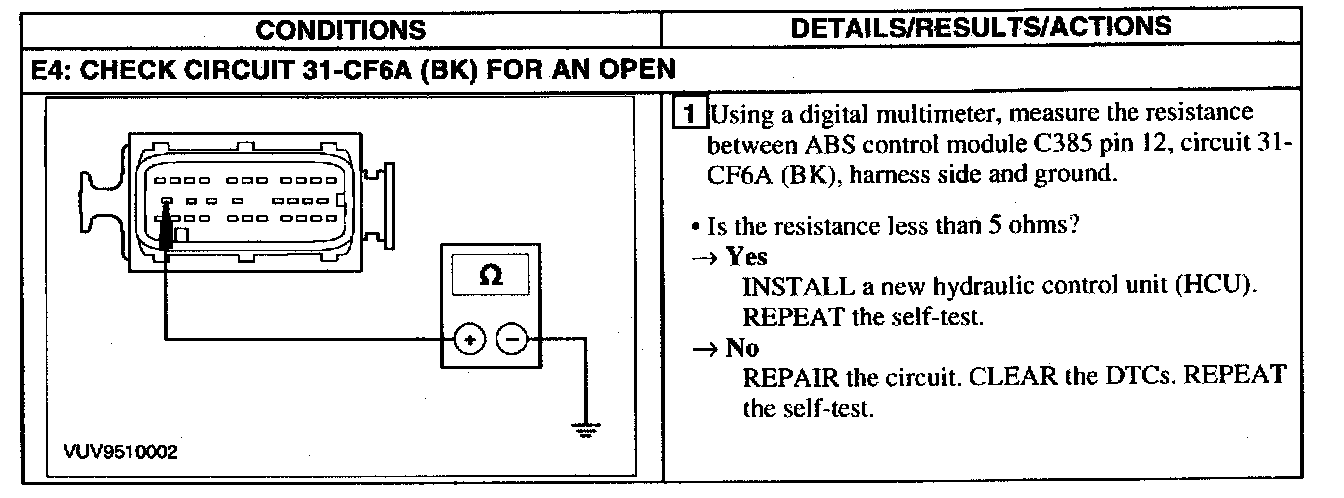

Test E4:
