Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Body and Frame >> Seats >> Testing and Inspection >> Pinpoint Tests >> Test F: Power Seat Does Not Recline

Test F: Power Seat Does Not Recline

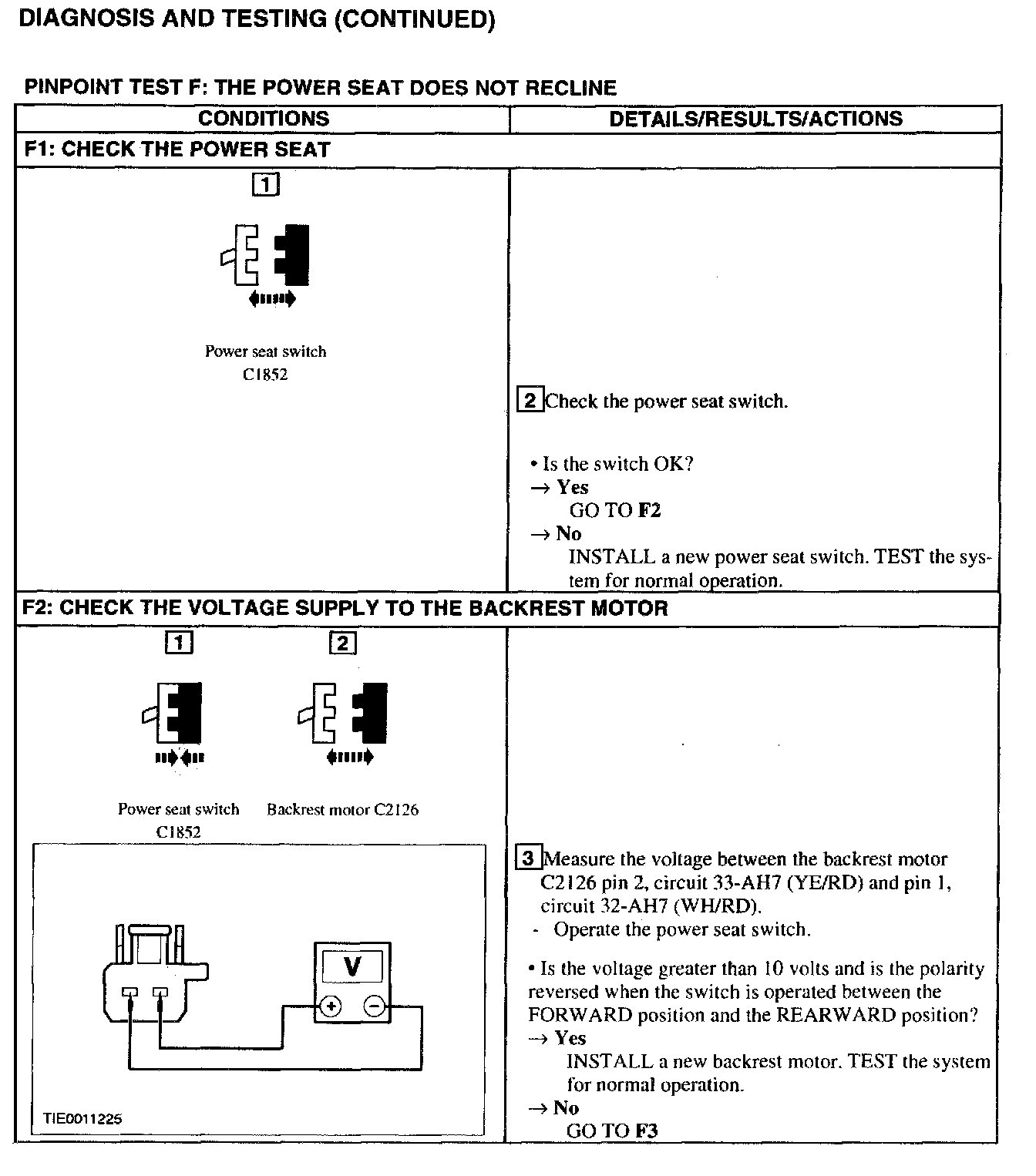

F1 - F2:

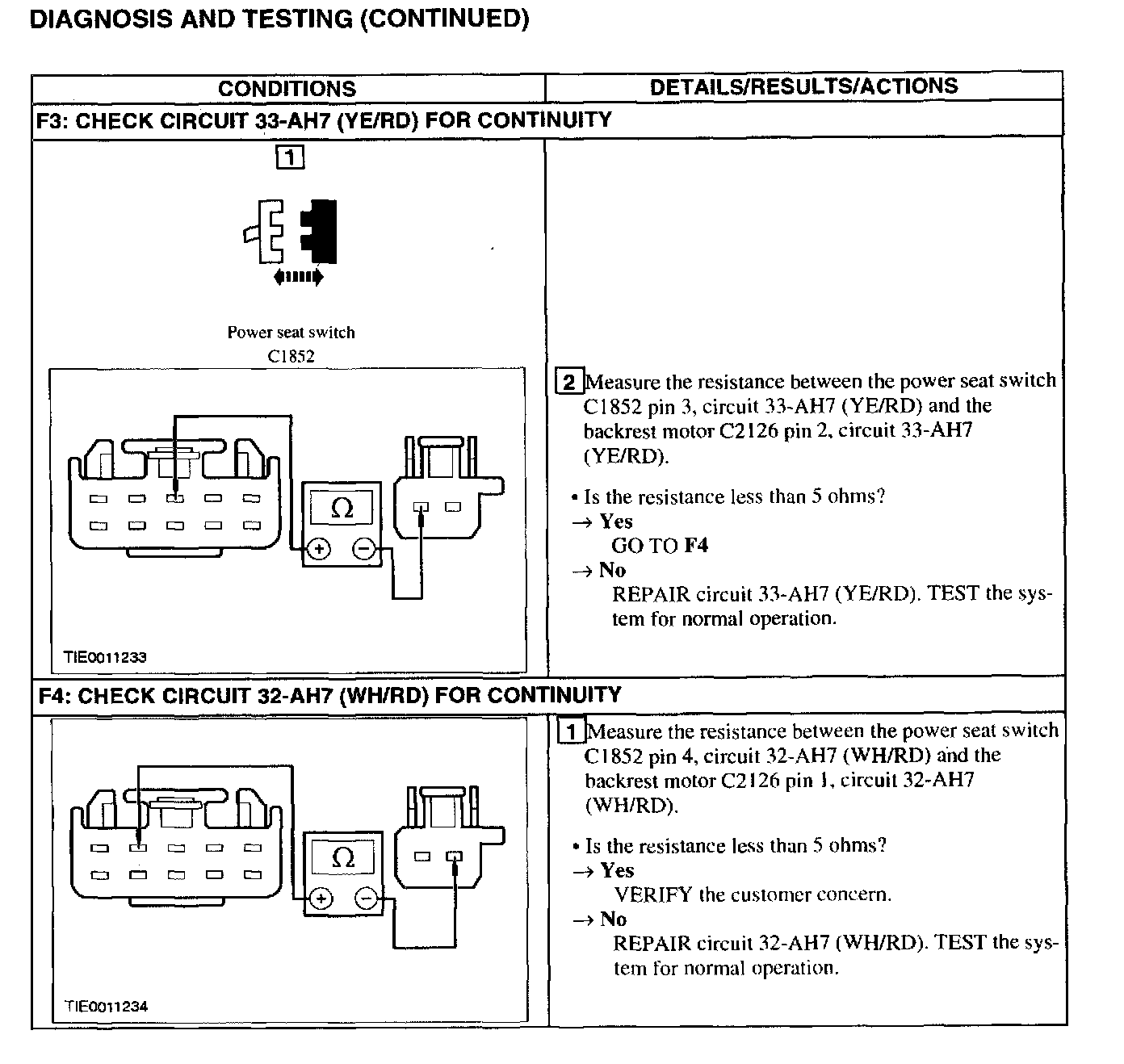

F3 - F4:
