Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Pinpoint Tests >> Test E: Roof Opening Panel Does Not Open Or Close

Test E: Roof Opening Panel Does Not Open Or Close

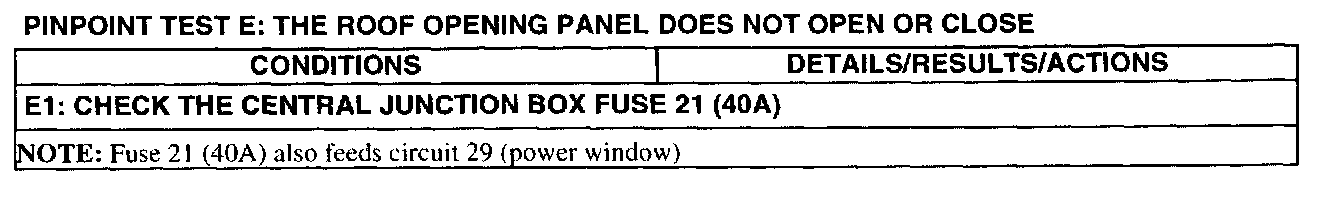

E1:

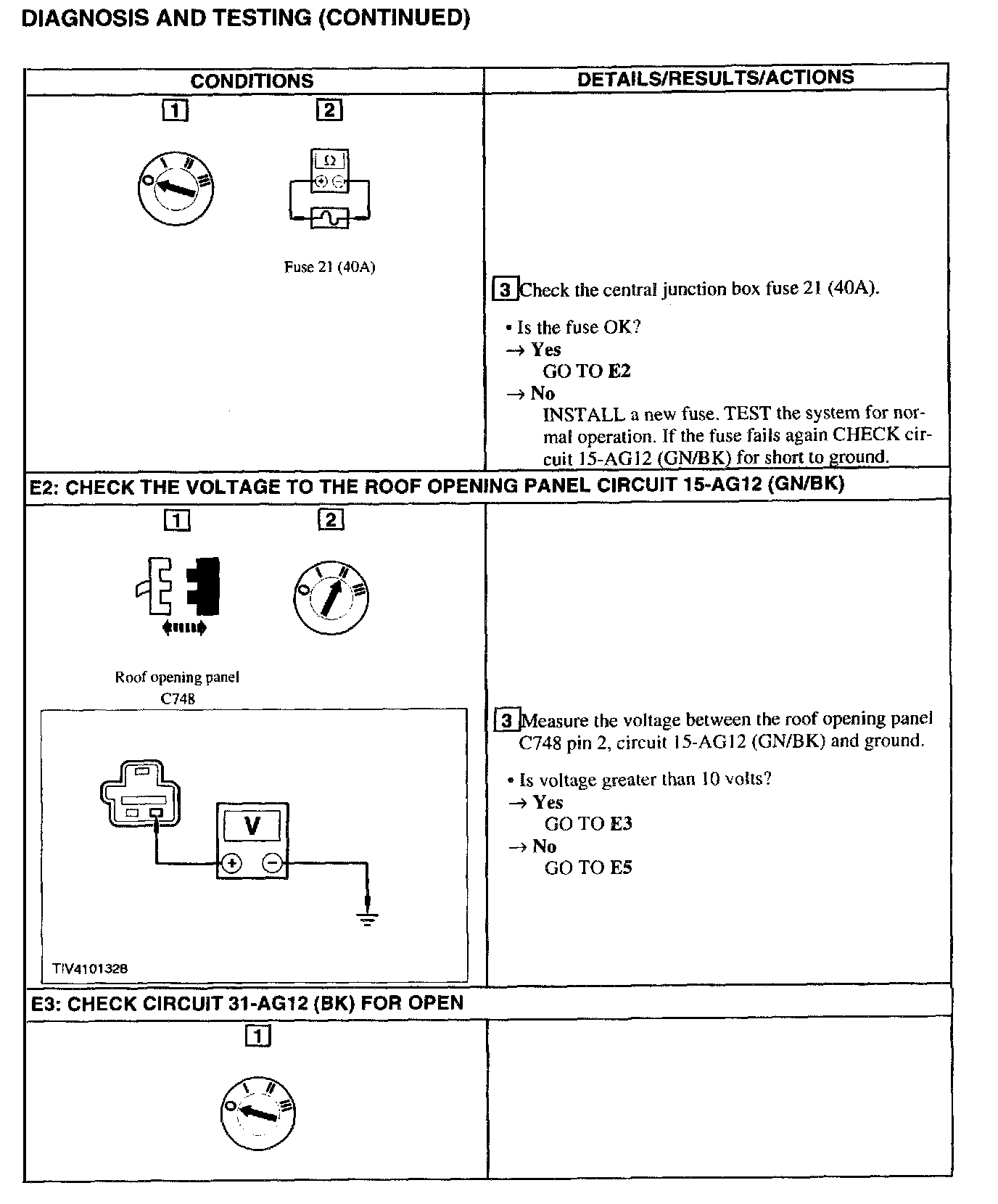

E1 - E3:

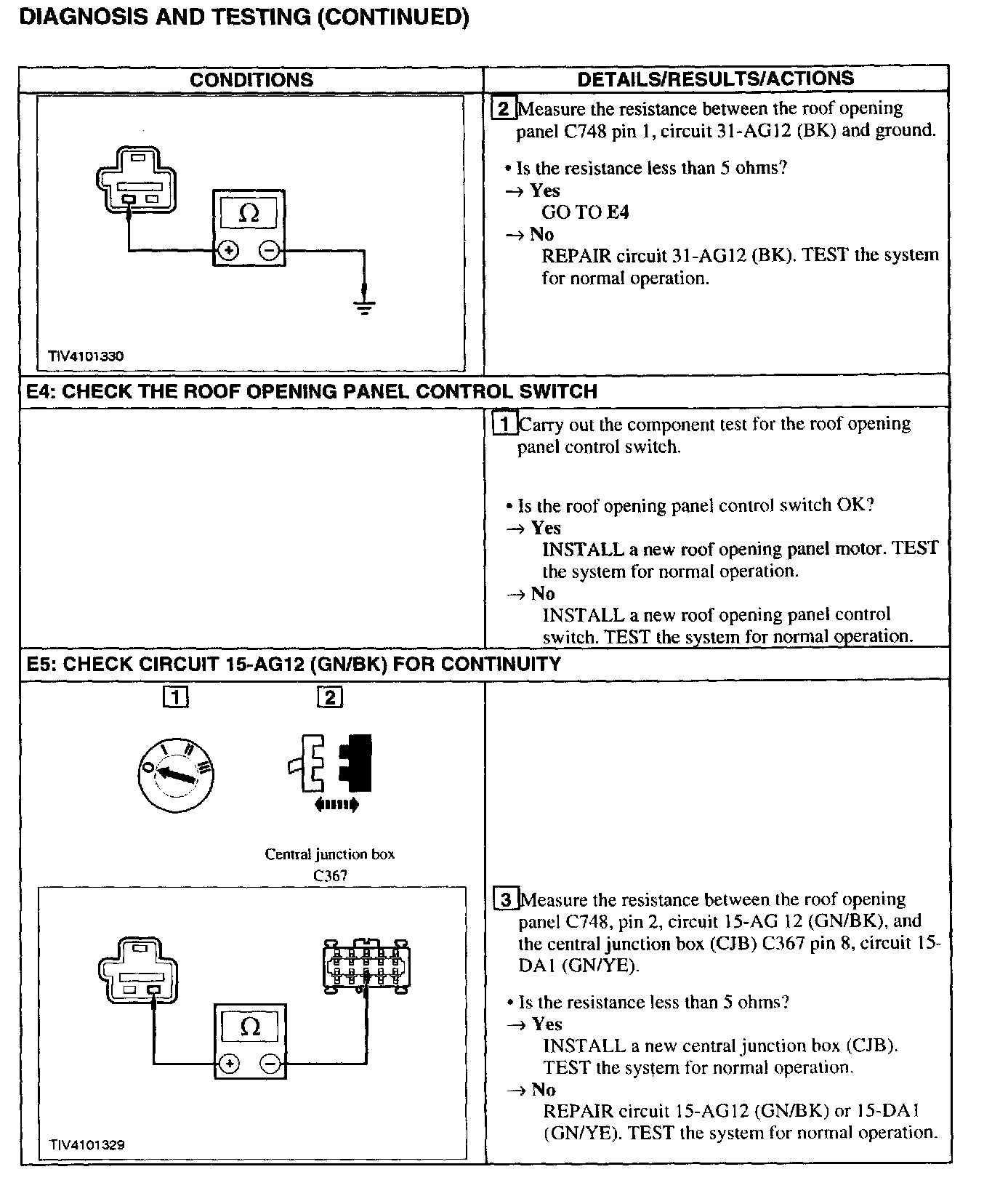

E3 - E5:
