Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Testing and Inspection >> Pinpoint Tests >> Test C: Roof Opening Panel Rattles

Test C: Roof Opening Panel Rattles

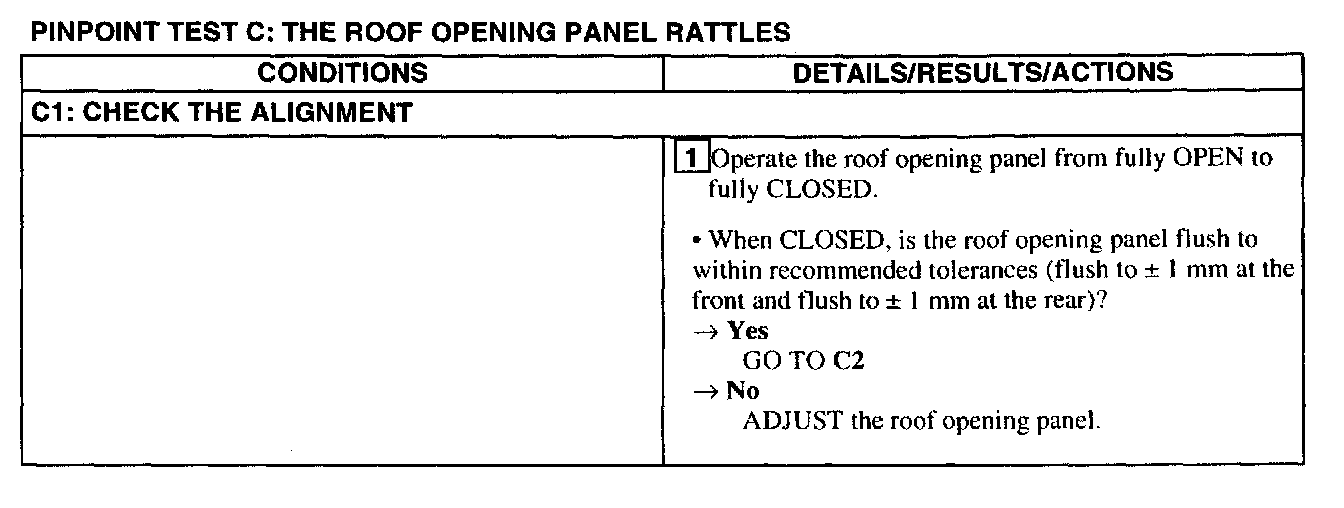

C1:

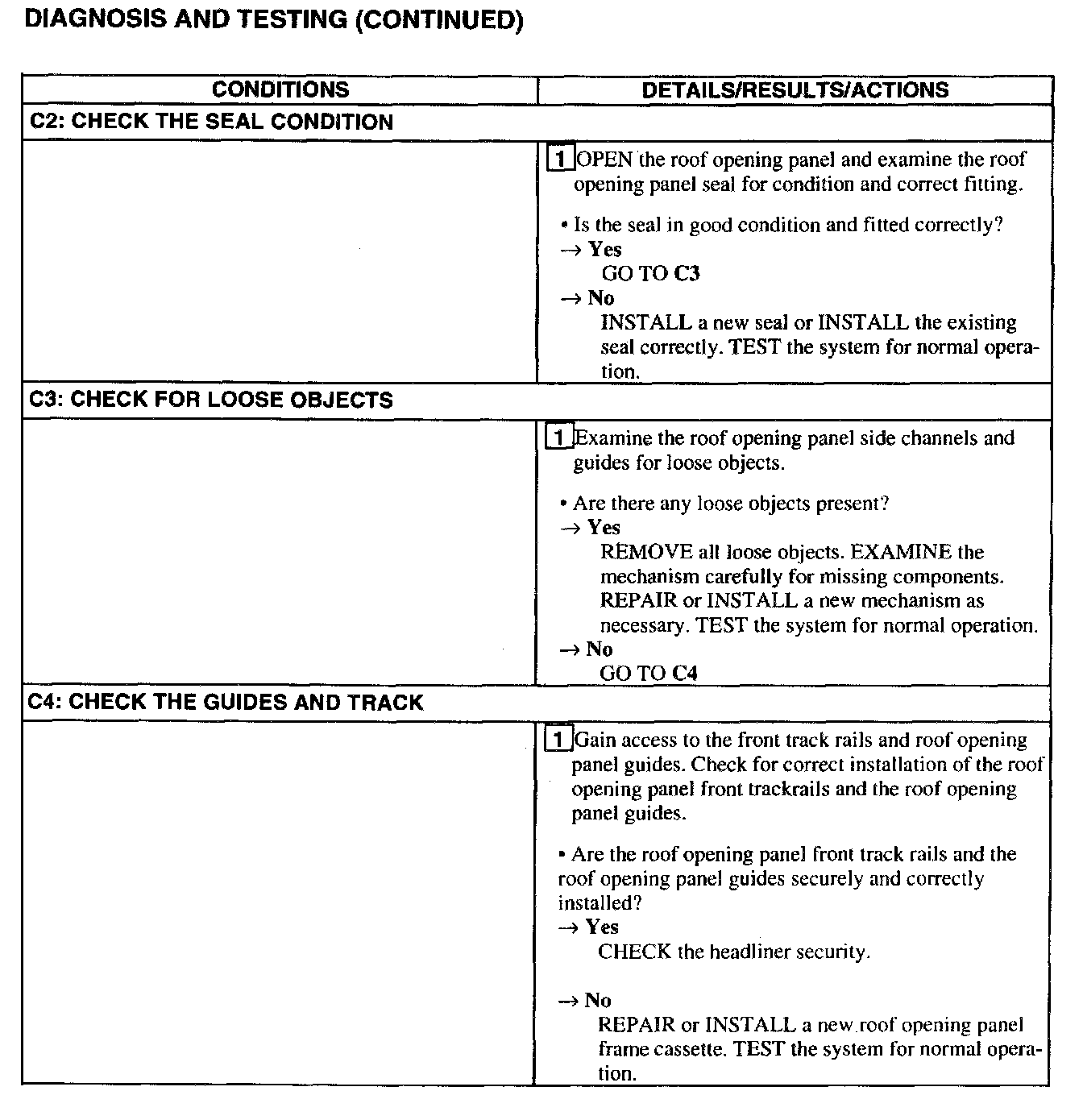

C2 - C4:
