Roof Opening Panel Rear Drain Hose

REMOVAL
1. Remove the headliner.







2. Detach the drain hose from the roof opening panel.

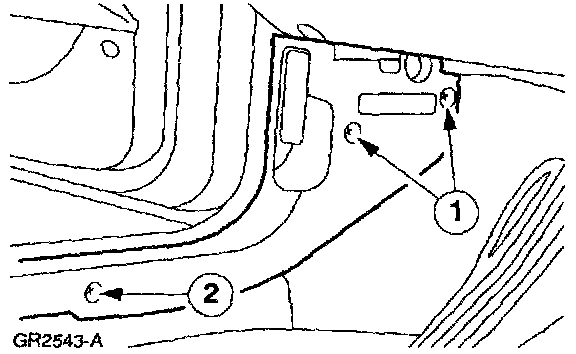

3. Detach the scuff plate.
1. Remove the clips.
2. Remove the screws.

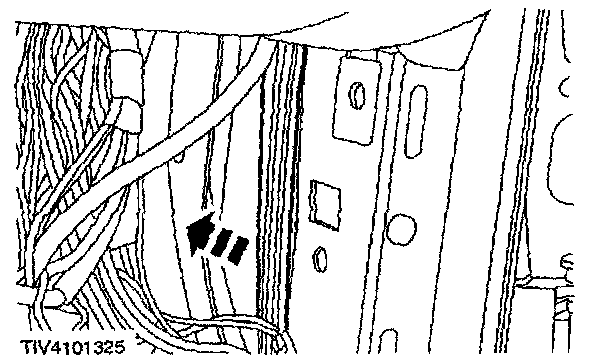

4. Detach the electrical connector box.

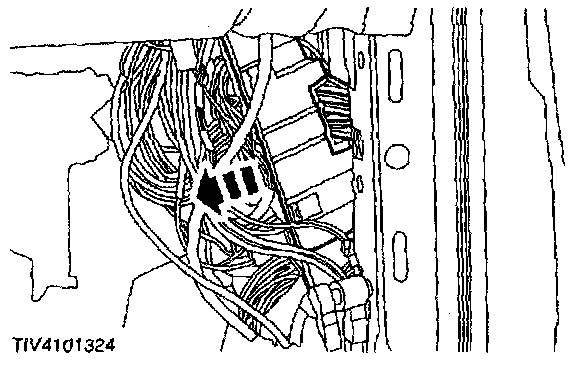

5. Detach the drain hose and remove it from the A-pillar.

INSTALLATION
1. To instal, reverse the removal procedure.
