FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2001
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test G: Door Is Inoperative - The Key Cylinder Switch Is Not Functioning Correctly

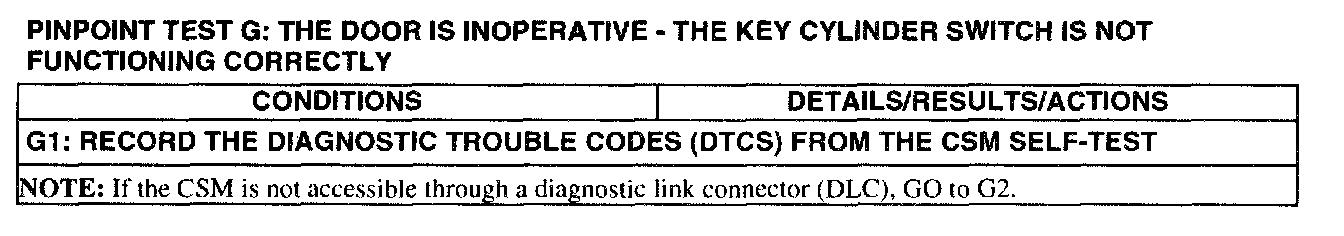

Test G: Door Is Inoperative - The Key Cylinder Switch Is Not Functioning Correctly

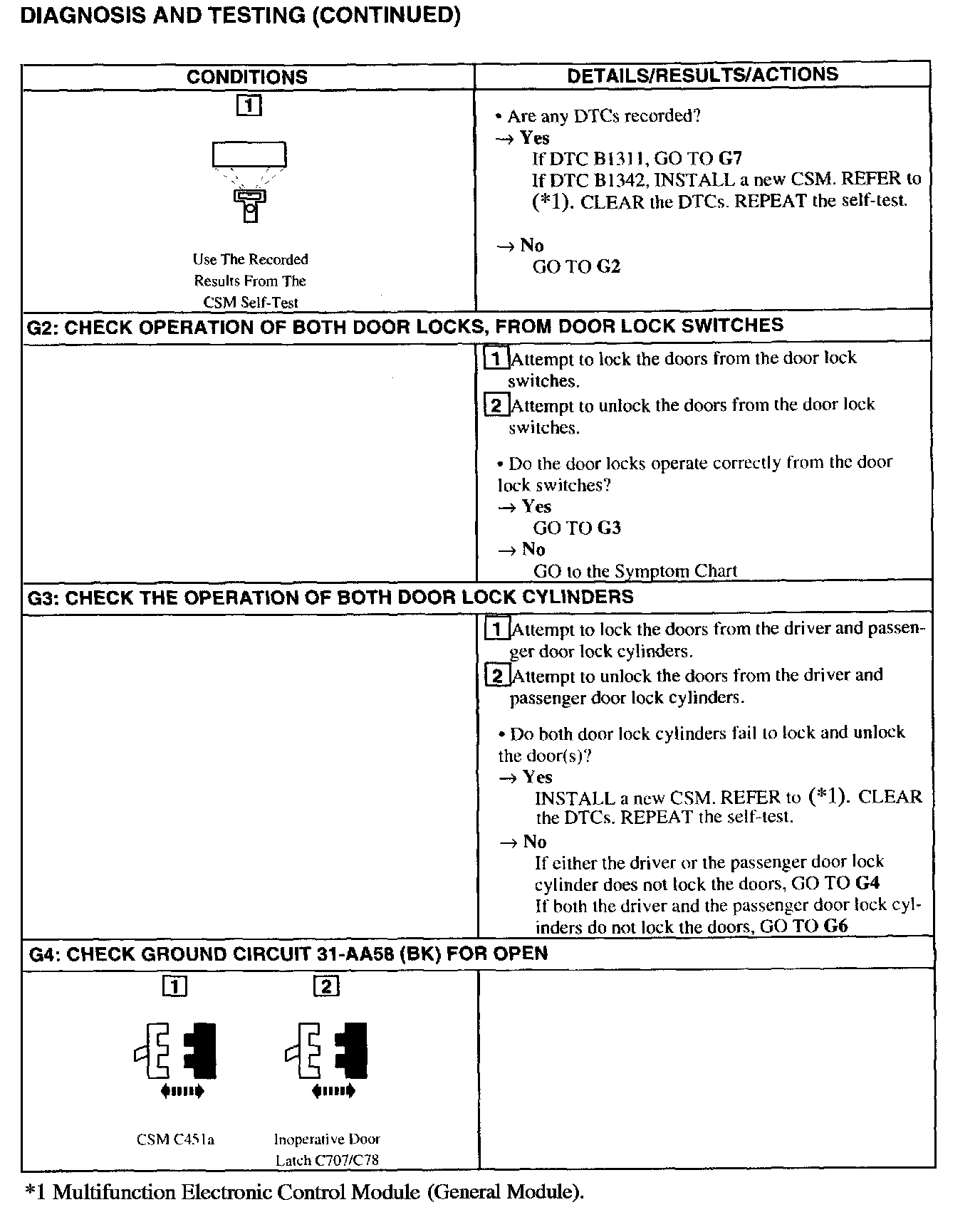

G1:
G1 - G4:

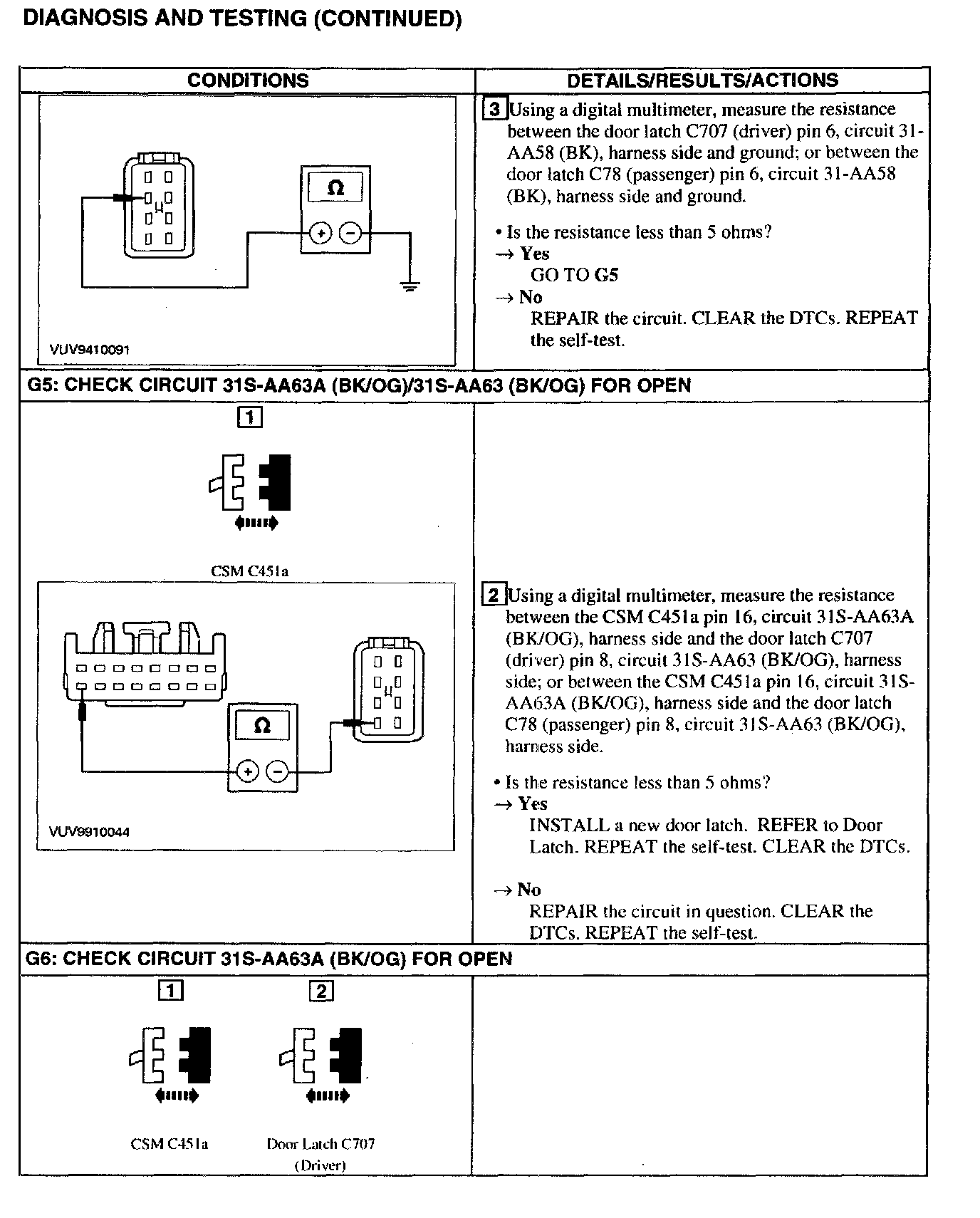

G4 - G6:

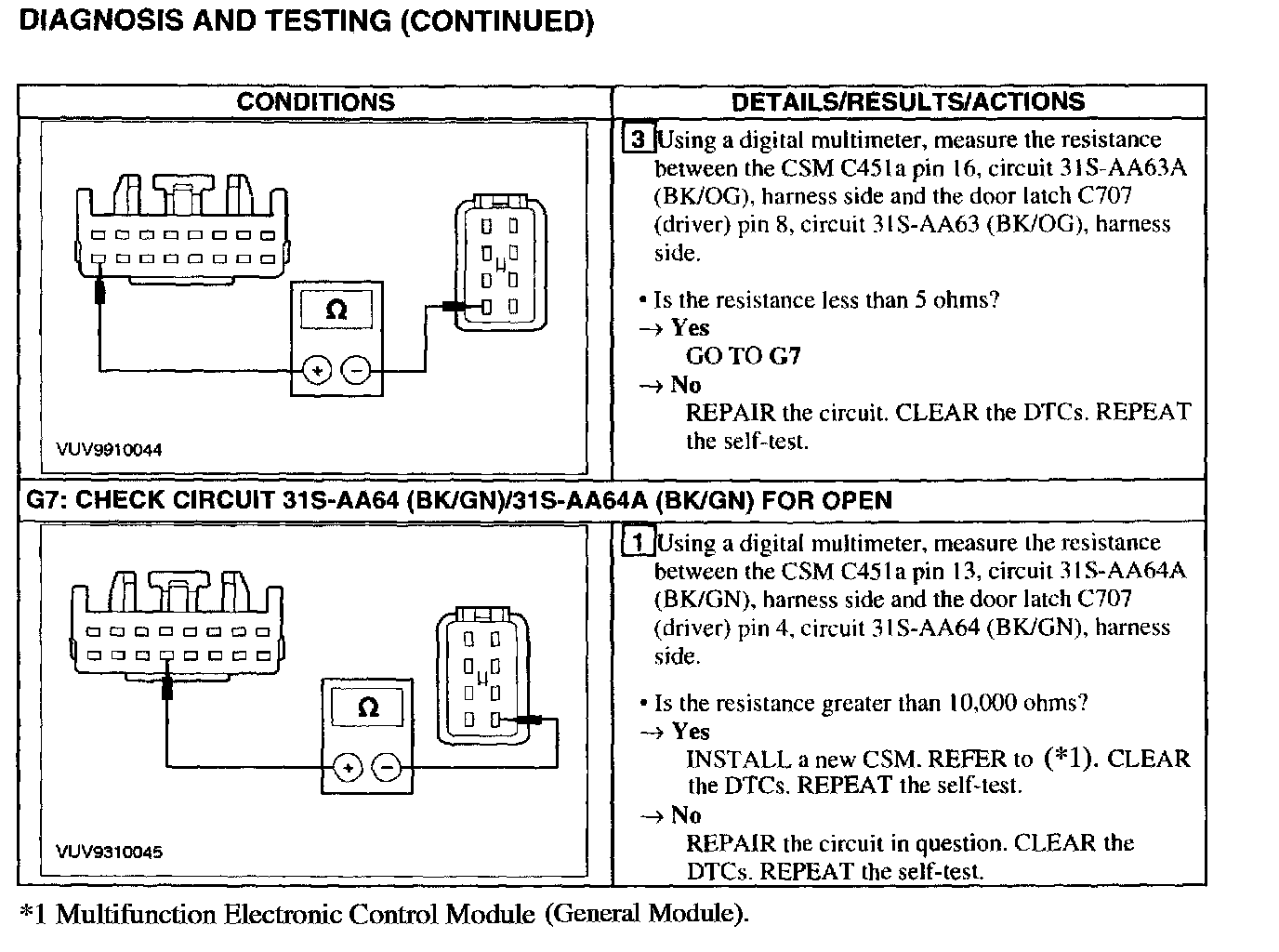

G6 - G7:
