Rear Quarter Trim Panel

REAR QUARTER TRIM PANEL

Removal
1. Fold the rear seat backrest forwards.

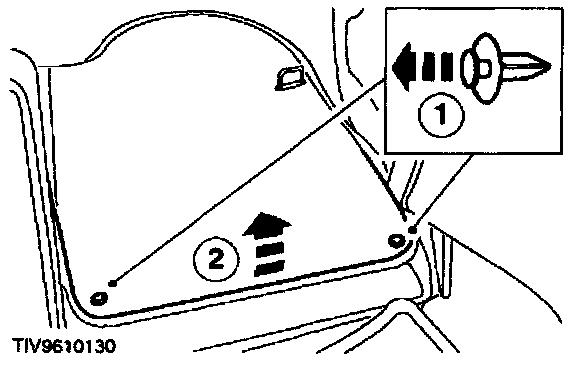

2. Detach the rear seat backrest trim.
1 Remove the clips.
2 Detach the rear seat backrest trim.







3. Remove the rear seat backrest.
4. Remove the rear package tray and support.

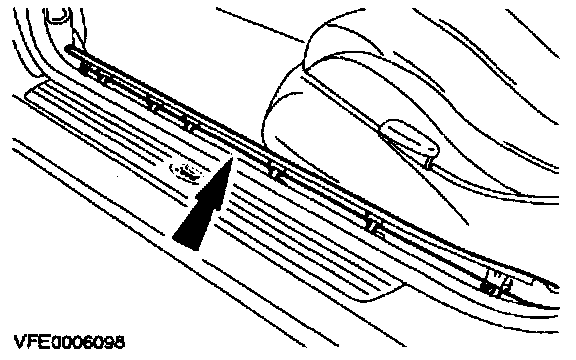

5. Remove the scuff panel trim.

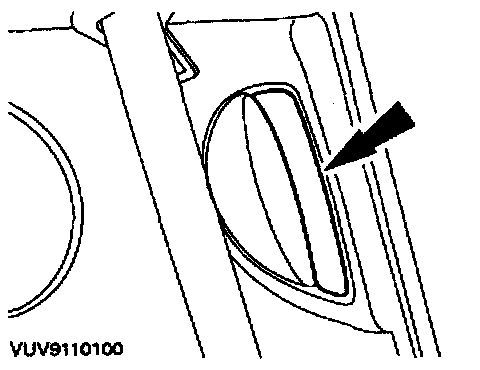

6. Remove the rear quarter trim panel handle insert.

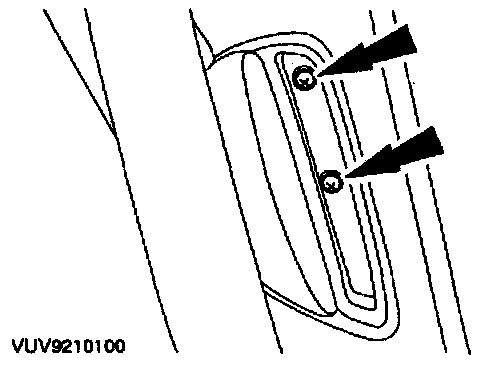

7. Remove the trim panel screws.

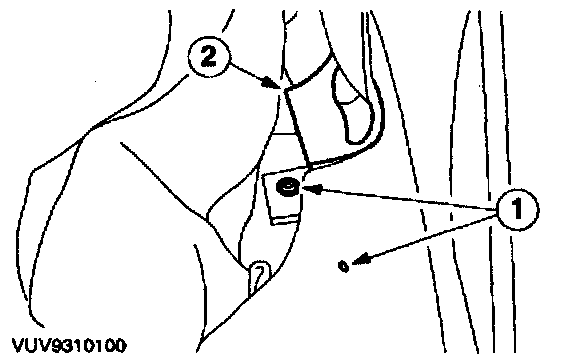

8. Remove the trim panel screws and safety belt bezel.
1 Remove the screws.
2 Remove the bezel.

9. Remove the rear seat backrest latch cover.

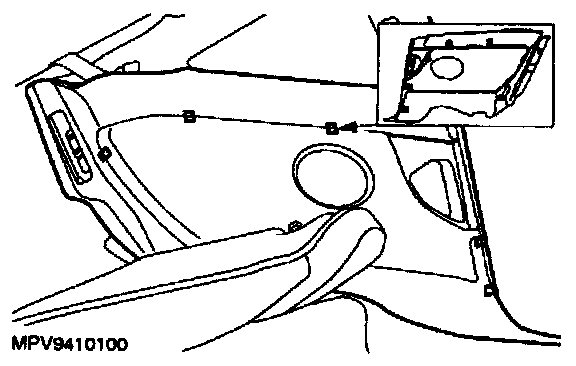

10. Remove the trim panel.

Installation







1. To install, reverse the removal procedure.
