Procedures

REMOVAL

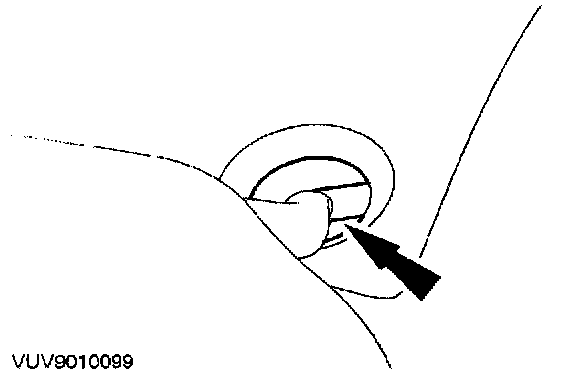

1. Detach the sun visor from its retaining clip.

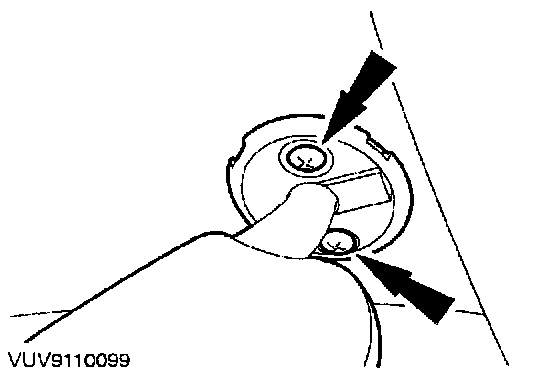

2. Remove the screw cover.

NOTE: Make sure the screw cover is removed with care to prevent breaking the retainers.







3. Detach the sun visor.

Vehicles with vanity mirror illumination

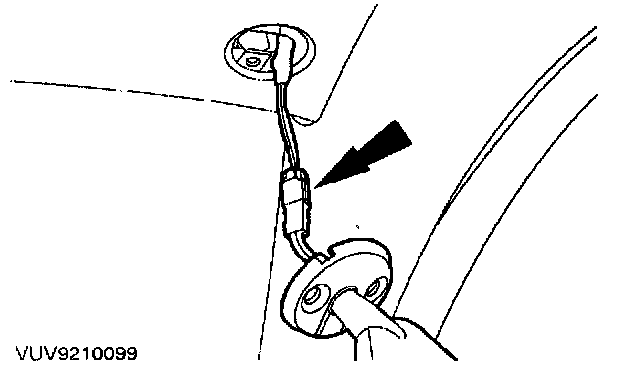

4. Disconnect the electrical connector and remove the sun visor.

INSTALLATION
1. To install, reverse the removal procedure
