Trunk / Liftgate Solenoid: Service and Repair

REMOVAL
1. Remove the liftgate latch.







2. Remove the liftgate lock actuator bolts.







3. Remove the liftgate lock actuator.

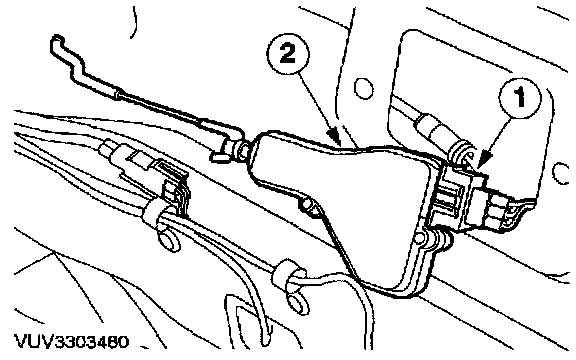

1. Disconnect the electrical connector.
2. Remove the actuator.

INSTALLATION
1. To install, reverse the removal procedure.
