CD Changer: Testing and Inspection

NOTE: Refer to Vehicle/Diagrams for schematic and connector information.

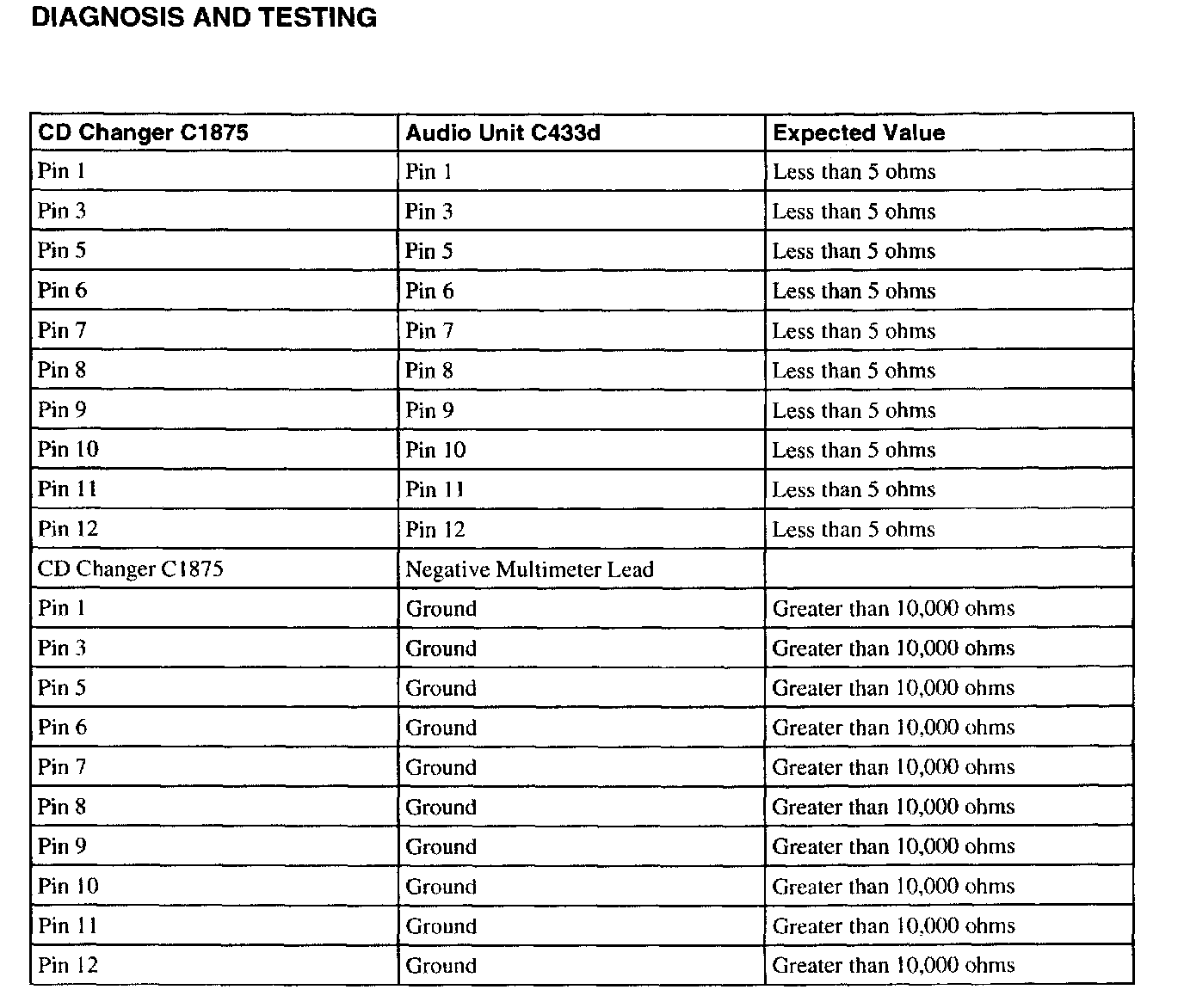

1. Using a multi meter test the CD changer harness using the table as a guide to meter lead placement as well as expected values.
2. If routed here from a Pinpoint Test, return to the Pinpoint Test.
