Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Parameter Identification (PIDs) >> Passive Anti-Theft System (PATS)

Passive Anti-Theft System (PATS)

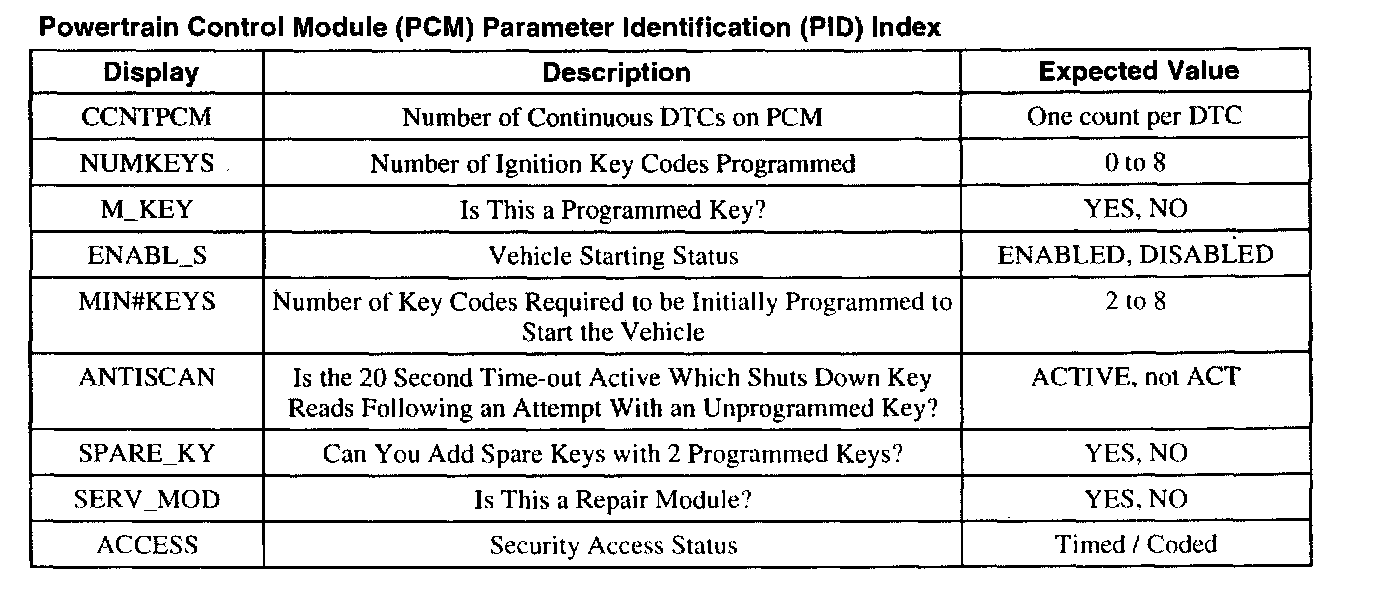

Powertrain Control Module (PCM) Parameter Identification (PID) Index:
