Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Parameter Identification (PIDs) >> Anti-Theft - Perimeter

Anti-Theft - Perimeter

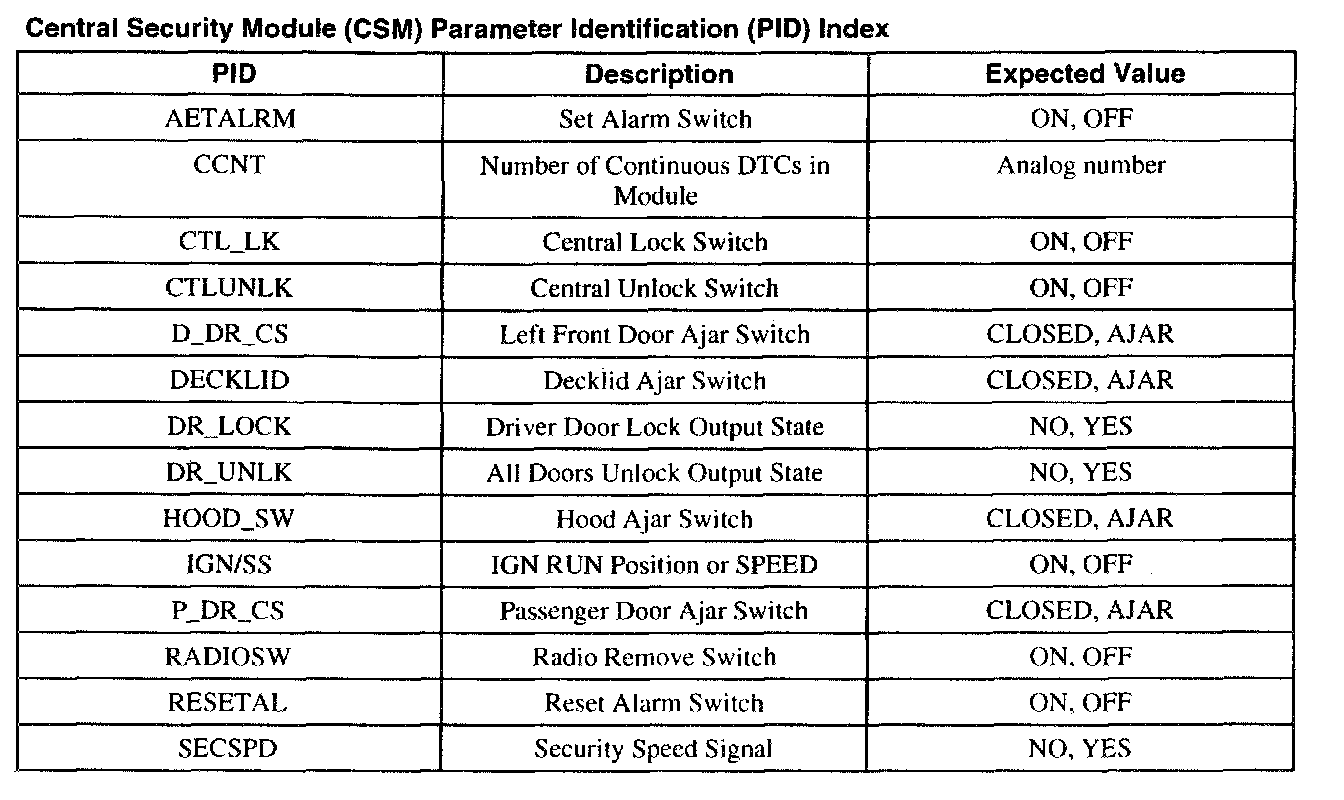

Central Security Module (CSM) Parameter Identification (PID) Index, Part 1:

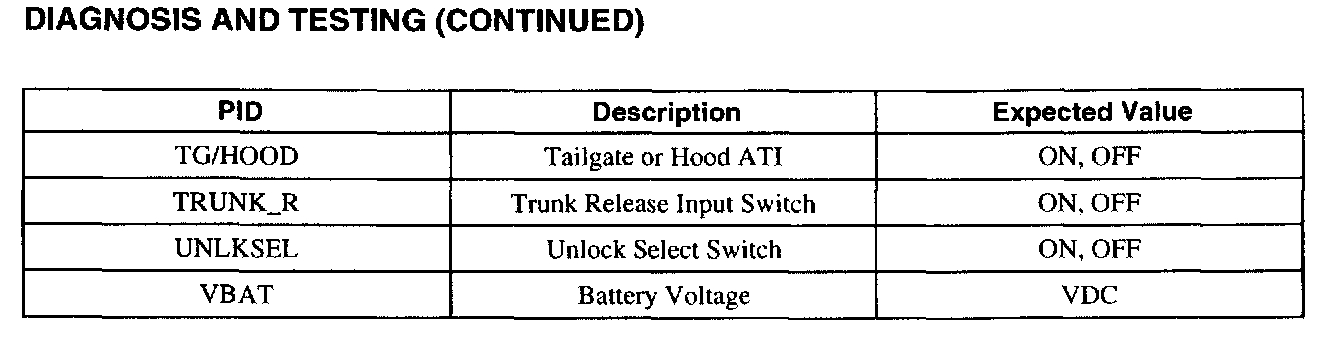

Central Security Module (CSM) Parameter Identification (PID) Index, Part 2:
